Magneto Group Parts for 1958 Johnson 7.5 hp AD-12 Outboard Motor

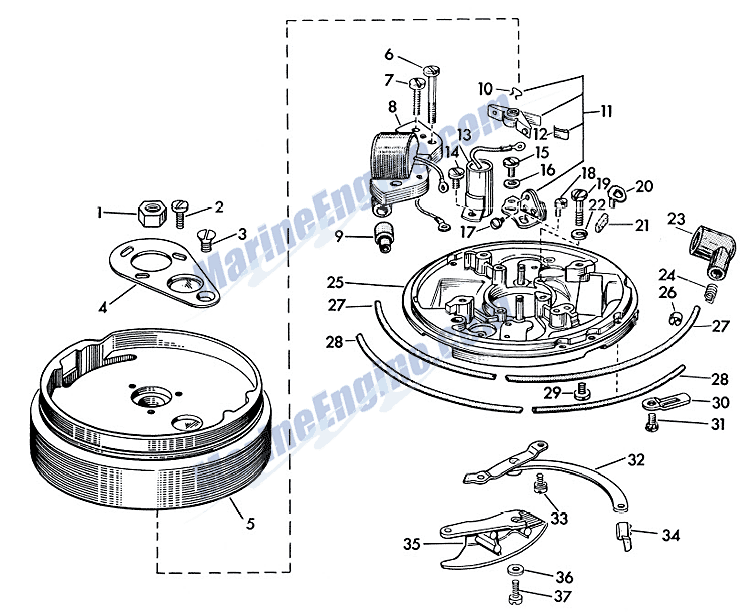

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 — 301988 — (1 required per assembly) | ||
  |
|
|
| #2 — 203751 — (3 required per assembly) | ||
 |
0203751 - Screw [ More info ] Unavailable |
|
|
|
|
| #3 — 510293 — (1 required per assembly) | ||
|
|
0510293 - Screw Sem [ More info ]
|
| #4 — 510292 — (1 required per assembly) | ||
  |
|
|
| #5 — 580217 — (1 required per assembly) | ||
  |
|
0580217 - Flywheel [ More info ] Unavailable |
| #6 — 510191 — (2 required per assembly) | ||
  |
|
|
| #7 — 510195 — (4 required per assembly) | ||
  |
|
|
  |
|
|
| #8 — 580118 — (2 required per assembly) | ||
|
|
0580118 [ More info ] Unavailable Replaced by 0582995 |
  |
0582995 - Ignition Coil and Lamination [ More info ] Unavailable |
|
  |
|
0584477 - Ignition Coil and Lamination with Grommet [ More info ]
|
  |
|
18-5181 - Ignition Coil, 584477 [ More info ]
|
  |
|
183-4477 - Ignition Coil [ More info ]
|
| #9 — 510289 — (2 required per assembly) | ||
  |
|
0510289 - Ignition Coil Grommet [ More info ]
|
| #10 — 71-1052 — (2 required per assembly) |
| #11 — 580148 — (2 required per assembly) | ||
  |
|
0580148 - Breaker Points [ More info ] Unavailable |
  |
|
18-5156 - Contact Set - Breaker Points, 580148 [ More info ]
|
| #12 — 510204 — (2 required per assembly) | ||
  |
|
|
| #13 — 510173 — (2 required per assembly) | ||
|
|
0510173 [ More info ] Unavailable Replaced by 0580321 |
  |
|
0580321 - Condenser [ More info ]
|
  |
|
18-5199 - Condenser 580321 [ More info ]
|
| #14 — 510193 — (3 required per assembly) | ||
  |
|
|
| #15 — 510278 — (4 required per assembly) | ||
|
|
|
| #16 — 510208 — (2 required per assembly) | ||
|
|
0510208 - Washer [ More info ]
|
| #17 — 510194 — (2 required per assembly) | ||
  |
|
|
| #18 — 510185 — (2 required per assembly) | ||
  |
|
0510185 - Breaker Screw [ More info ]
|
| #19 — 510192 — (2 required per assembly) | ||
  |
|
|
| #20 — 510188 — (1 required per assembly) | ||
  |
|
0510188 - Clip, Oiler [ More info ] Unavailable |
| #21 — 510189 — (1 required per assembly) | ||
  |
|
0510189 - Oiler Wick [ More info ] Unavailable |
| #22 — 306311 — (2 required per assembly) | ||
  |
0306311 - LockWasher [ More info ] Unavailable |
|
|
|
360252 - Flat Washer - BRP (360252) [ More info ]
|
| #23 — 510232 — (2 required per assembly) |
| #24 — 510231 — (2 required per assembly) | ||
  |
|
0510231 - Spring Terminal [ More info ]
|
| #25 — 580210 — (1 required per assembly) | ||
|
|
0580210 - Armature, I13 [ More info ]
|
| #25 — 580206 — (1 required per assembly) | ||
|
|
0580206 [ More info ] Unavailable Replaced by 0580582 |
|
|
0580582 - Armature Plate, [ More info ] Unavailable |
| #26 — 120783 — (1 required per assembly) | ||
  |
|
0120783 -High Tension Lead Tag [ More info ]
|
| #27 — 510256 — (1 required per assembly) | ||
|
0510256 - Spark Plug Lead, 32 Inch, One Boot Only [ More info ] Unavailable |
|
  |
0510883 - 7MM Ignition Wire Sold By The Foot. [ More info ] Unavailable |
|
  |
|
0772584 - 7MM Ignition Wire Sold By The Foot. [ More info ]
|
| #28 — 510257 — (1 required per assembly) | ||
|
0510257 - Spark Plug Lead, 32 Inch, One Boot Only [ More info ] Unavailable |
|
|
0510883 - 7MM Ignition Wire Sold By The Foot. [ More info ] Unavailable |
|
|
|
0772584 - 7MM Ignition Wire Sold By The Foot. [ More info ]
|
| #29 — 510278 — (4 required per assembly) | ||
|
|
|
| #30 — 510388 — (1 required per assembly) | ||
  |
|

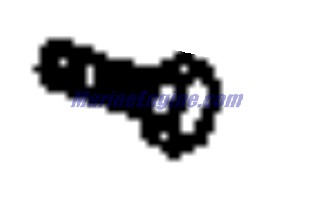

0510388 - Anchor [ More info ]
|
| #31 — 510193 — (3 required per assembly) | ||
|
|
|

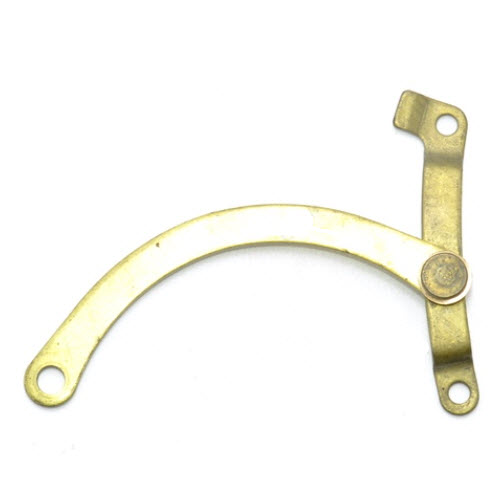

| #32 — 376064 — (1 required per assembly) | ||
|
|
|
| #33 — 510193 — (2 required per assembly) | ||
|
|
|
| #34 — 305988 — (1 required per assembly) | ||
|
|
0305988 - Spring Clip [ More info ]
|
  |
|
0316362 - Spring Clip [ More info ]
|
| #35 — 203888 — (1 required per assembly) | ||
  |
|

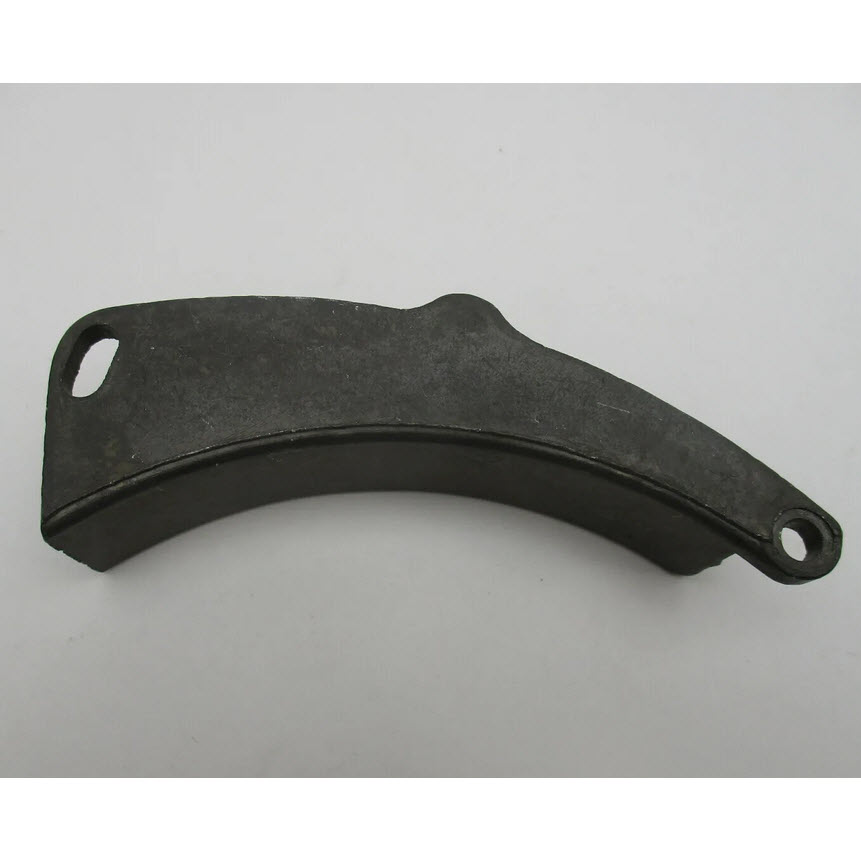

0203888 - Throttle Cam [ More info ]
|
| #36 — 303952 — (4 required per assembly) | ||
  |
|
0303952 - Washer [ More info ]
|
| #37 — 302750 — (2 required per assembly) | ||
  |
|
0302750 - Throttle Cam Screw [ More info ]
|
  |
|
|
