Gear Case Group Parts for 1957 Johnson 3 hp JW-13 Outboard Motor

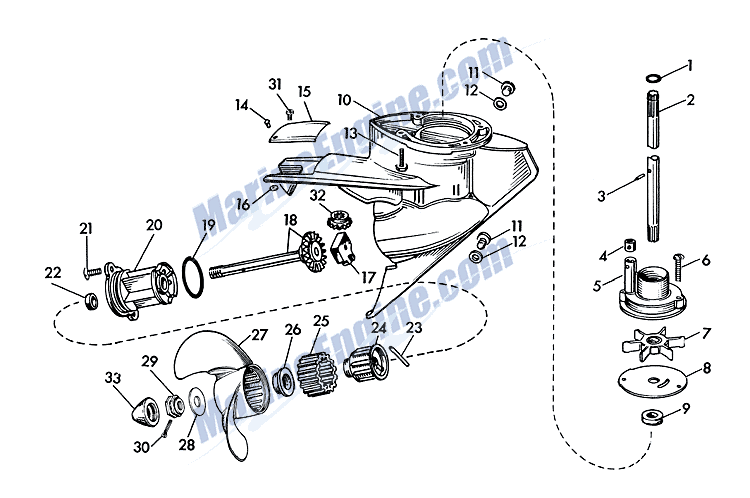

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 — 202893 — (1 required per assembly) | ||
  |
|

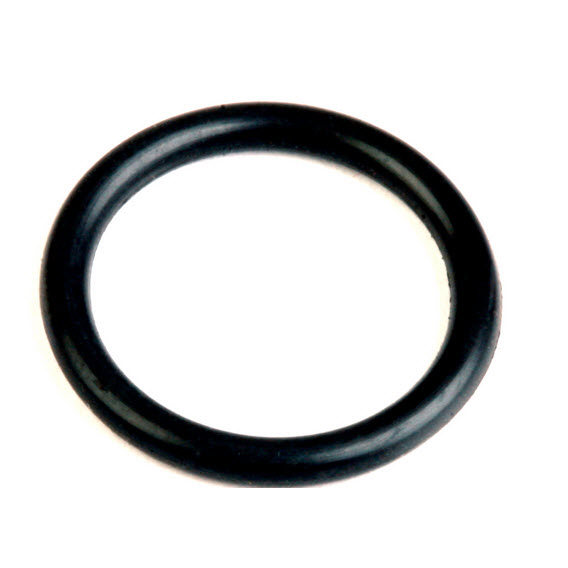

0202893 - O-Ring [ More info ]
|
  |
|
3852033 - O-Ring, Volvo [ More info ]
|
  |
|
18-7168-9 - O-Ring (PK5) 202893, 25-48171 [ More info ]
|
| #2 — 203137 — (1 required per assembly) | ||
 |
|
0203137 [ More info ] Unavailable Replaced by 0310345 |
  |
|
0310345 - Drive Shaft [ More info ] Unavailable |
| #2 — 203215 — (1 required per assembly) | ||
  |
|
0203215 - Drive Shaft Long [ More info ] Unavailable |
  |
|
0205350 - Drive Shaft, Long [ More info ]
|

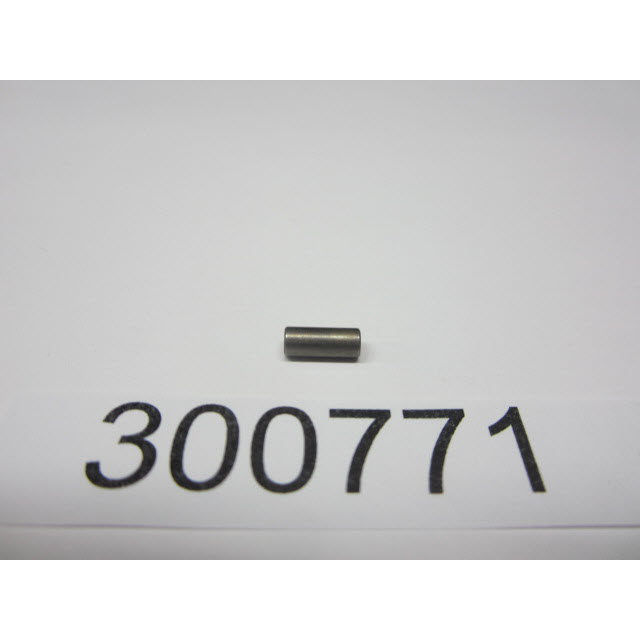

| #3 — 300771 — (1 required per assembly) | ||
  |
|
|
| #4 — 203131 — (1 required per assembly) | ||
  |
|

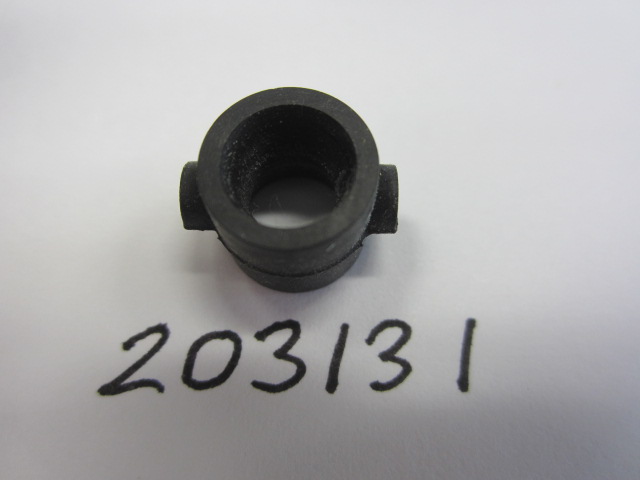

0203131 - Water Tube Grommet [ More info ]
|
  |
|

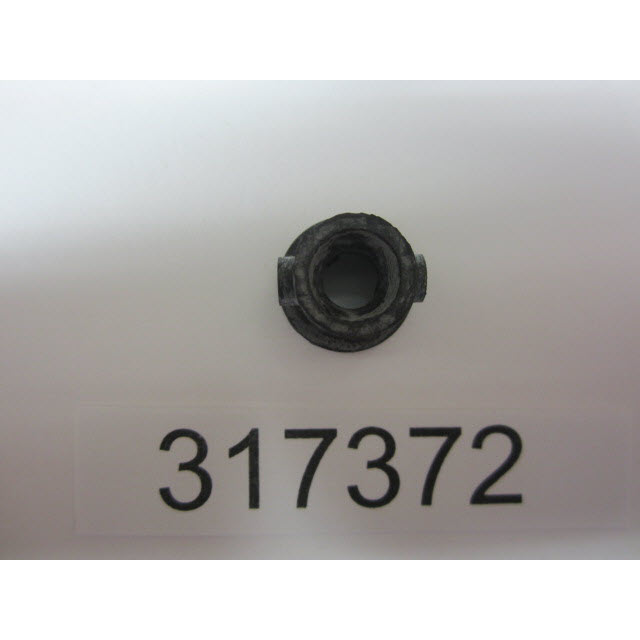

0317372 - Water Tube Grommet [ More info ]
|
| #5 — 203119 — (1 required per assembly) | ||
|
0203119 - Water Pump Housing Only [ More info ] Unavailable |
|
  |
|

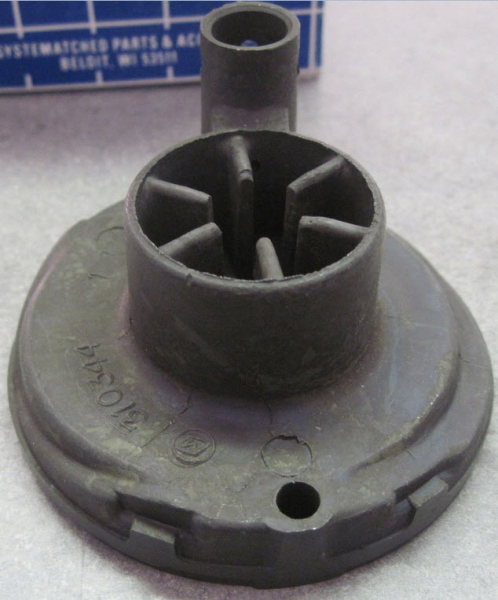

0310344 - Impeller Housing [ More info ] Unavailable |
  |
|

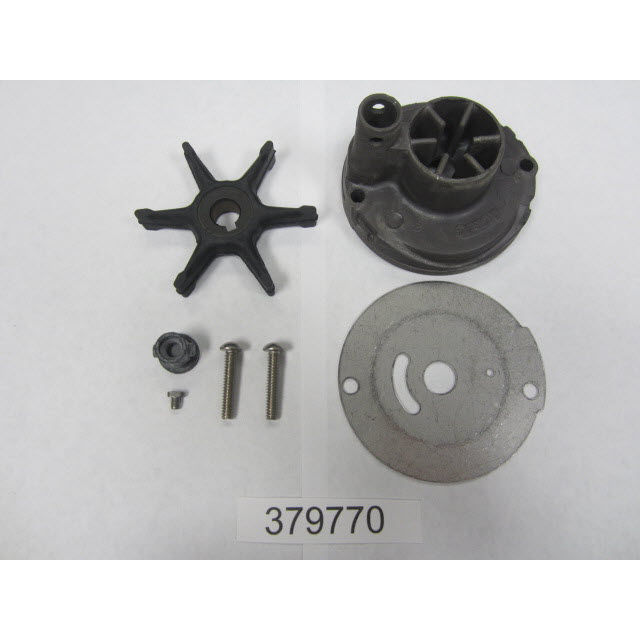

0379770 - Water Pump Kit, NLA [ More info ]
|
| #6 — 302963 — (2 required per assembly) | ||
  |
|

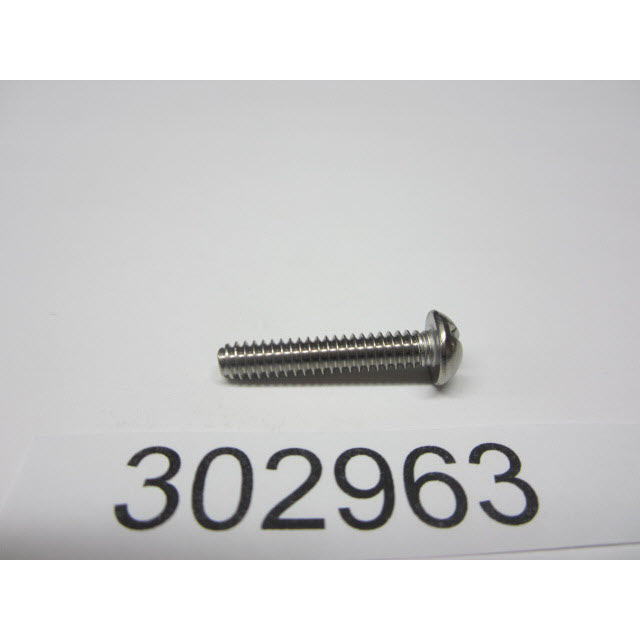

0302963 - Screw, Impeller Housing [ More info ]
|
| #7 — 277181 — (1 required per assembly) | ||
  |

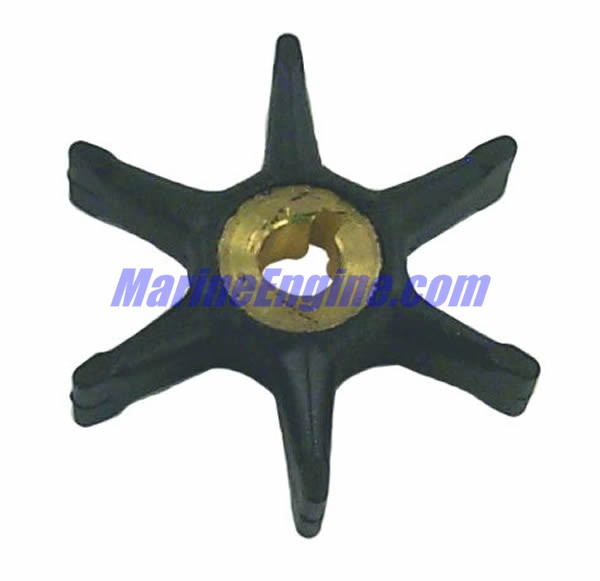

0277181 - Impeller Assembly [ More info ] Unavailable |
|
  |
|

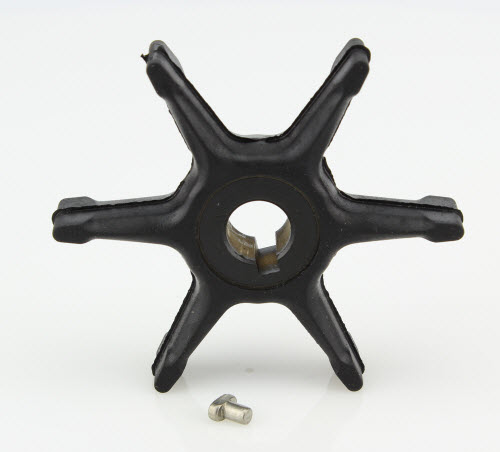

0434424 - Impeller - See Notes - for metal pump housing [ More info ]
|
  |
|

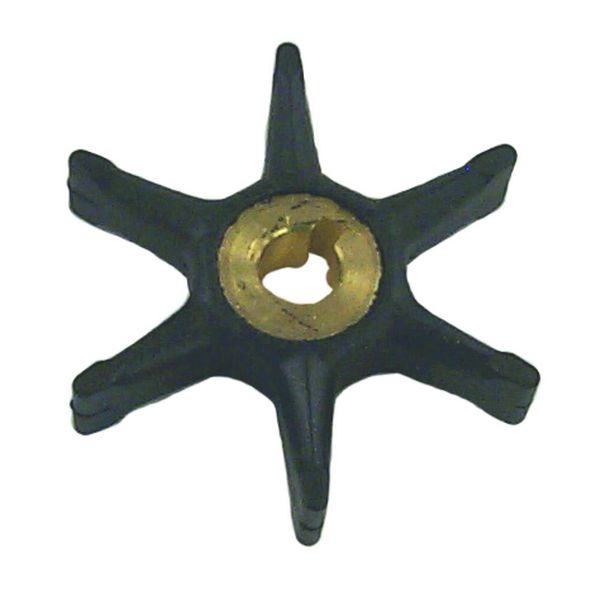

18-3001 - Impeller 434424 - See Notes On Detail Page [ More info ]
|
| #8 — 203132 — (1 required per assembly) | ||
  |
|

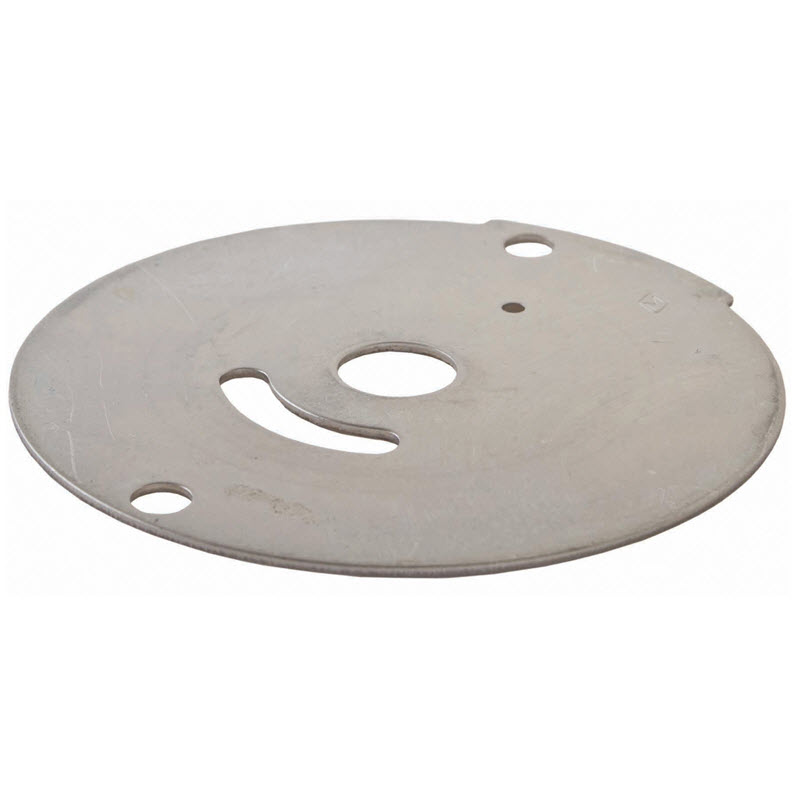

0203132 - Water Pump Plate [ More info ]
|
| #9 — 300599 — (1 required per assembly) | ||
  |
0300599 - Oil Retainer Seal [ More info ] Unavailable |
|
  |
|

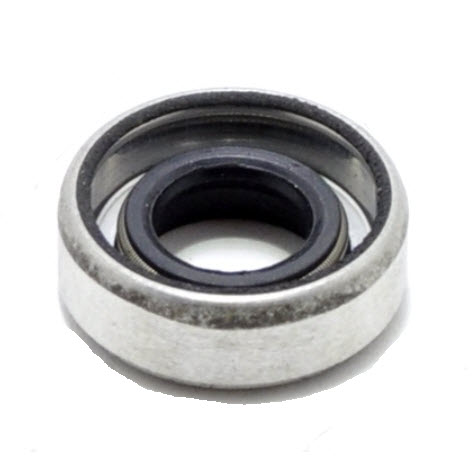

0327031 - Oil Seal [ More info ]
|
  |
|

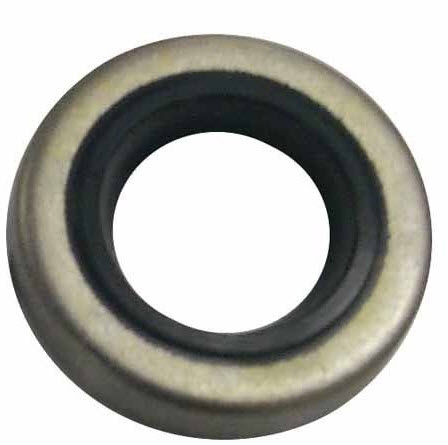

18-2035 - Seal, 327031 [ More info ]
|
| #10 — 277364 — (1 required per assembly) | ||
|
|
0277364 - Gearcase Housing [ More info ] Unavailable |
| #11 — 27-283 — (2 required per assembly) |
| #12 — 27-284 — (2 required per assembly) |
| #13 — 300630 — (4 required per assembly) | ||
  |
|

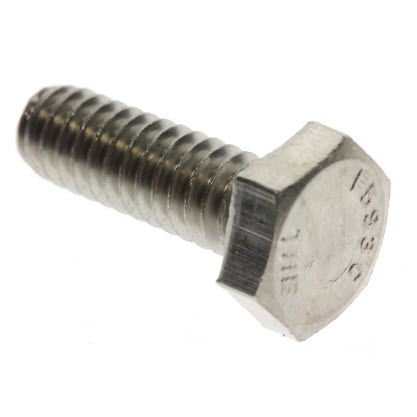

0300630 - Screw, Retainer [ More info ]
|
  |
|

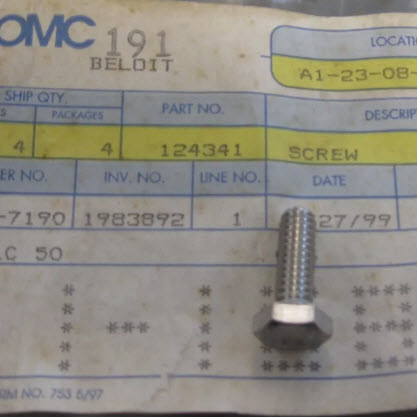

0124341 - Mounting Bolt [ More info ]
|
| #14 — 203190 — (1 required per assembly) | ||
  |
|
0203190 - Exhaust Cover Rivet [ More info ]
|
| #15 — 203121 — (1 required per assembly) | ||
|
|
|
| #16 — 303068 — (1 required per assembly) | ||
|
|
0303068 - Washer [ More info ]
|
| #17 — 203140 — (1 required per assembly) | ||
  |
|

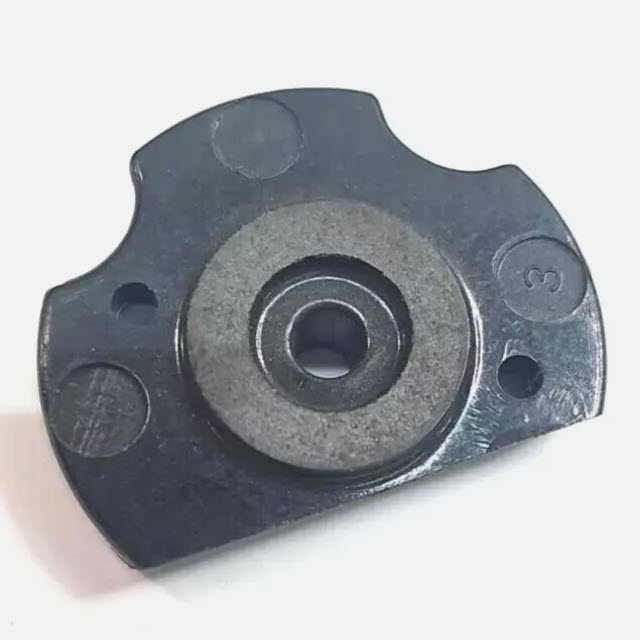

0203140 - Thrust Bearing [ More info ]
|
| #18 — 277457 — (1 required per assembly) | ||
  |
|
|

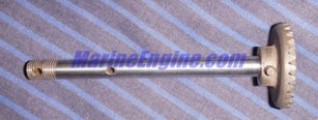

| #19 — 301917 — (1 required per assembly) | ||
  |
|

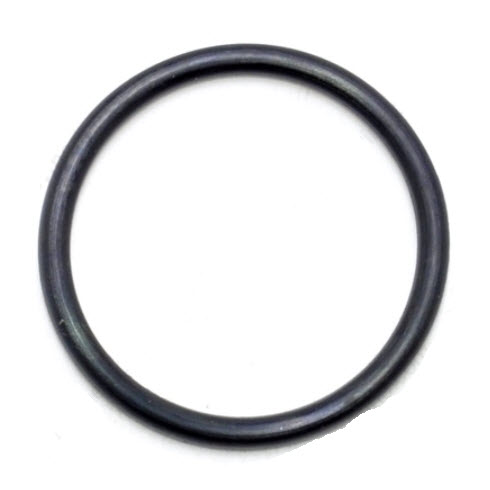

0301917 - O-Ring [ More info ]
|
| #20 — 277589 — (1 required per assembly) | ||
|
0277589 - Bearing Carrier [ More info ] Unavailable |
|
  |
|
0384714 - Bearing Carrier [ More info ] Unavailable |
| #21 — 302974 — (2 required per assembly) | ||
|
|

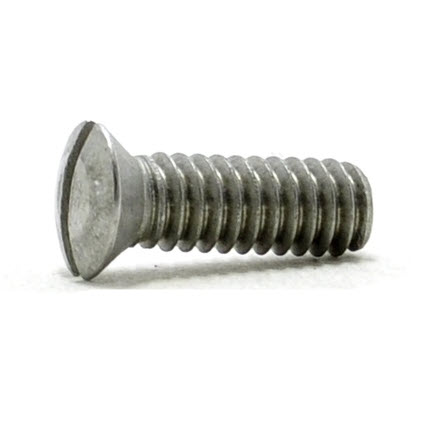

0302974 - . Screw, Bearing Housing [ More info ]
|
| #22 — 300599 — (1 required per assembly) | ||
|
0300599 - Oil Retainer Seal [ More info ] Unavailable |
|
|
|
0327031 - Oil Seal [ More info ]
|
|
|
18-2035 - Seal, 327031 [ More info ]
|
| #23 — 203230 — (1 required per assembly) | ||
  |
|

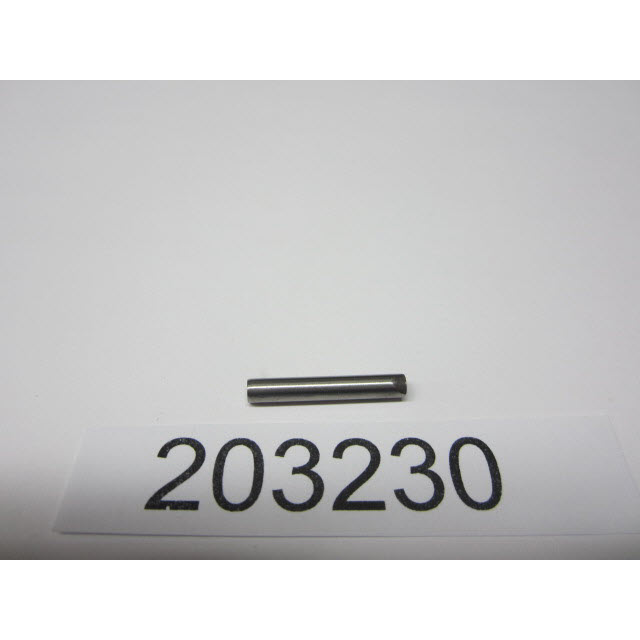

0203230 - Drive Pin [ More info ]
|
| #24 — 376769 — (1 required per assembly) | ||
  |
|
0376769 - Clutch Hub [ More info ]
|
| #25 — 300565 — (1 required per assembly) | ||
  |
|
0300565 [ More info ] Unavailable Replaced by 0315471 |
  |
|

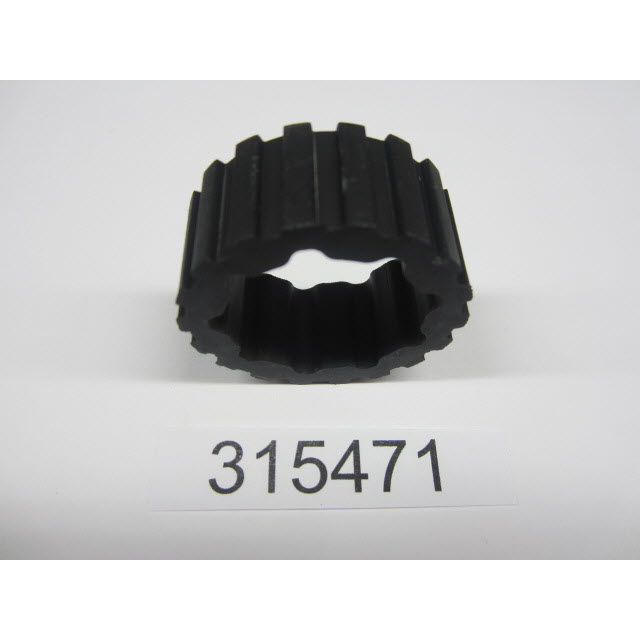

0315471 - Propeller Clutch Ring [ More info ]
|
| #26 — 300619 — (1 required per assembly) | ||
  |
|
0300619 -Clutch Bushing [ More info ]
|
| #27 — 203919 — (1 required per assembly) | ||
  |
|

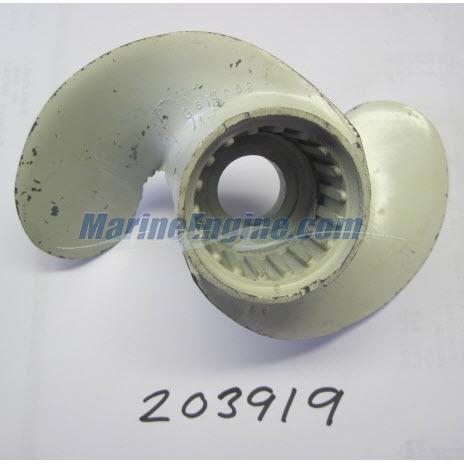

0203919 - Aluminum Prop 3 & 4HP Weedless [ More info ]
|
| #28 — 300573 — (1 required per assembly) | ||
  |
|

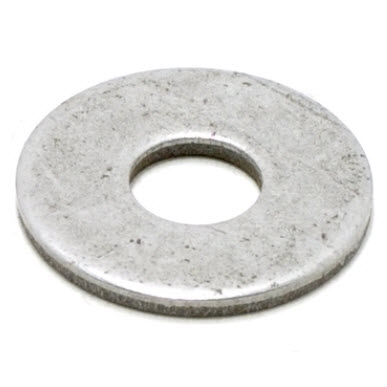

0300573 - Washer [ More info ]
|
| #29 — 203829 — (1 required per assembly) | ||
  |
|
0203829 - Propeller Nut [ More info ]
|
| #30 — 302804 — (3 required per assembly) | ||
  |
|

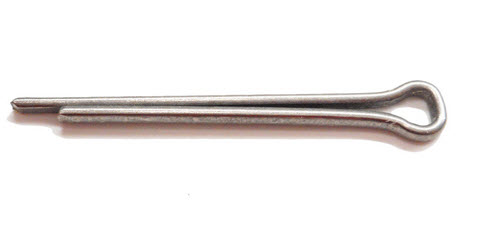

0302804 - Cotter Pin [ More info ]
|
  |
|
18-3740-9 - Cotter Pin, 10PK [ More info ]
|
| #31 — 203342 — (1 required per assembly) | ||
|
|
0203342 - Screw, Exhaust Cover [ More info ]
|
| #32 — 203648 — (1 required per assembly) | ||
  |
|
0203648 - Gear, Pinion, Driveshaft [ More info ]
|
| #33 — 203830 — (1 required per assembly) | ||
  |
|

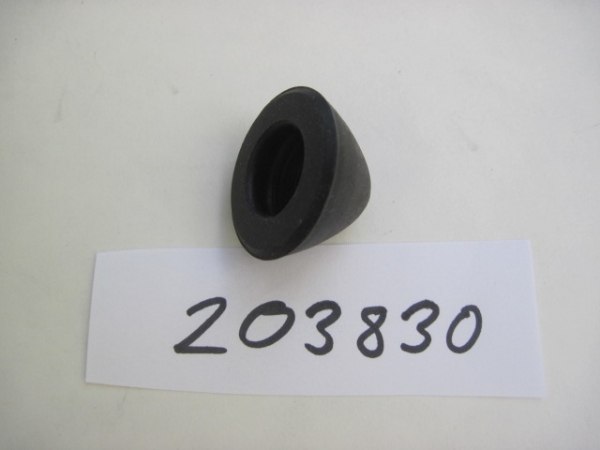

0203830 - Propeller Nut Cap [ More info ]
|
