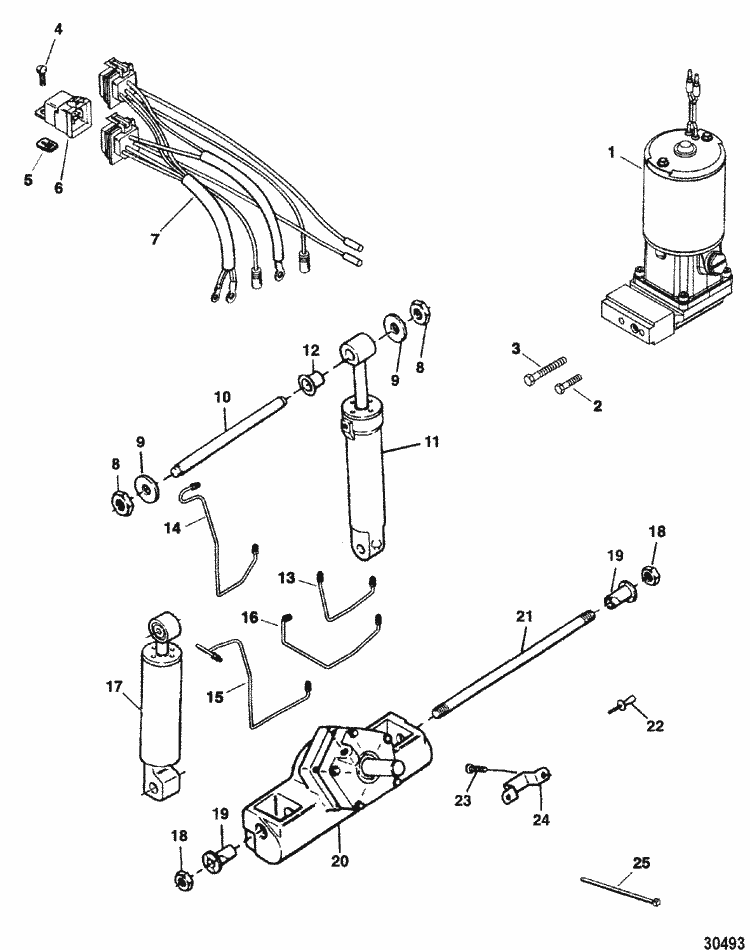

Parts for Force Force Trim & Tilt 85-150 HP (1984-1999) Trim & Tilt Assembly (819762A15)
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #_ | 819762A15 | TRIM AND TILT ASSEMBLY (1 required per assembly) |
  |
|
819762A15 - Trim & Tilt Kit,NLA [ More info ] Unavailable |
  |
|
18-6777 - Tilt & Trim Motor [ More info ]
|
  |
|
300-26101 - Tilt and Trim Motor, Mercury Mariner 2 Wire [ More info ]
|
  |
|
6276 - Tilt Trim Motor, 809885A1, A2 [ More info ]
|
| #1 | 853520A 1 | PUMP/MOTOR ASSEMBLY (1 required per assembly) (See Pump/Motor Assembly Section For Parts Breakdown) |
  |
853520A 1 - Pump/Motor Assembly [ More info ] Unavailable |
|
  |
|
853520T 1 - Pump/Motor Assembly [ More info ] Unavailable |
| #2 | 10-19923088 | SCREW, (.250-20 x .875) (1 required per assembly) |
  |
|
10-19923088 - Screw [ More info ]
|
| #3 | 10-19923225 | SCREW, (.250-20 x 2.25) (1 required per assembly) |
  |
|
10-19923225 - Screw - Priced Individually [ More info ] Unavailable |
| #4 | 10-852453 | SCREW, (#10-24 x .560) (2 required per assembly) |
  |
|
10-852453 - Screw [ More info ]
|

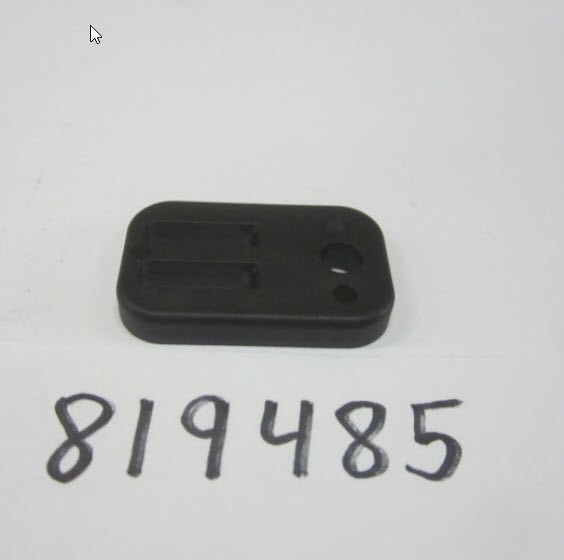

| #5 | 819485 | PLATE, Adapter (2 required per assembly) |
  |
|
819485 - Adapter Plate [ More info ] Unavailable |
| #6 | 87-819509 | RELAY (2 required per assembly) |
  |
87-819509 - RELAY [ More info ] Unavailable |
|
  |
|
87-819509T - Trim Relay [ More info ]
|
  |
|
8M0052578 - Trim Relay [ More info ]
|

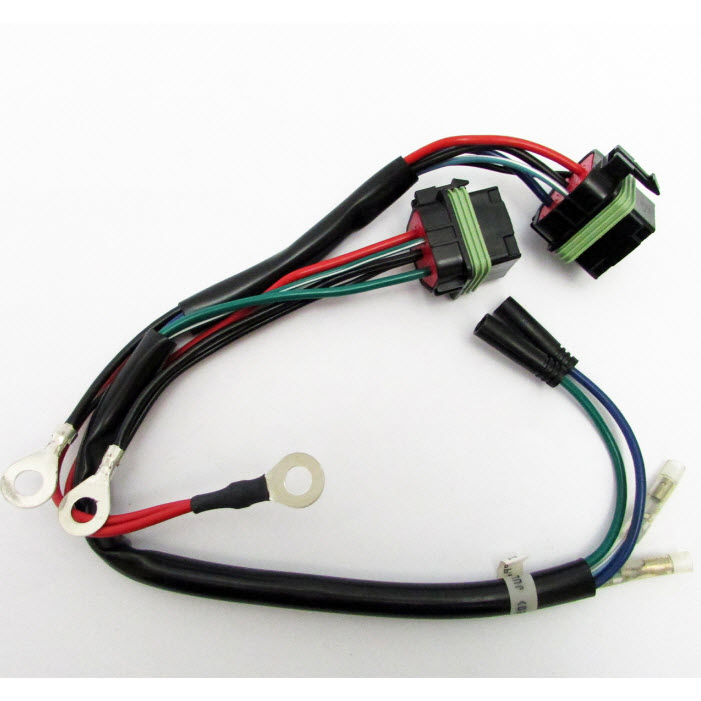

| #7 | 84-819514A11 | HARNESS ASSEMBLY, Trim, Relay (1 required per assembly) |
  |
|
84-819514A11 - Harness Assembly [ More info ]
|
| #8 | 11-35778 | NUT, (.500-20) (2 required per assembly) |
  |
11-35778 - Nut (1/2-20) [ More info ] Unavailable |
|
  |
|
11-826709117 - Nut, (.500-20) Stainless Steel [ More info ]
|
| #9 | 12-F1960 | WASHER (2 required per assembly) |
  |
|
12-F1960 - Washer, NLA [ More info ] Unavailable |
| #10 | F449889 | SHAFT, Shock Upper (1 required per assembly) |
  |
|
F449889 - Upper Shaft SS [ More info ]
|

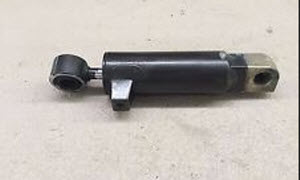

| #11 | 819108F | CYLINDER ASSEMBLY, Lift (1 required per assembly) |
  |
|
819108F - Lift Cylinder Assembly, NLA [ More info ]
|
| #12 | 23-F178344 | BUSHING (1 required per assembly) |
  |
|
23-F178344 - Bushing, NLA [ More info ] Unavailable |
| #13 | 32-854316 | LINE, Hydraulic (1 required per assembly) |
  |
|
32-854316 - Hydraulic Line, NLA [ More info ] Unavailable |
| #14 | 32-854314 | LINE, Hydraulic (1 required per assembly) |
  |
|
32-854314 - Hydraulic Line, NLA [ More info ] Unavailable |
| #15 | 32-854313 | LINE, Hydraulic (1 required per assembly) |
  |
|
32-854313 - Hydraulic Line [ More info ] Unavailable |
| #16 | 32-854315 | LINE, Hydraulic (1 required per assembly) |
  |
|
32-854315 - Hydraulic Line [ More info ] Unavailable |
| #17 | FS719962 | SHOCK ABSORBER ASSEMBLY (1 required per assembly) |
  |
|
FS719962 - Shock Absorber [ More info ]
|
| #18 | 11-F7053 | NUT (.625-18) (2 required per assembly) |
  |
|
11-F7053 - Nut, (5/8-18) Brass [ More info ]
|
| #19 | 23-F449362 | BUSHING (2 required per assembly) |
  |
|
23-F449362 - Bushing [ More info ]
|
| #20 | 818055A 3 | HOUSING ASSEMBLY, Trim Cylinder (1 required per assembly) (See Housing Assembly-Trim Cylinder (818055A3) Section For Parts Breakdown) |
  |
|
818055A 3 - Tilt & Trim Housing,NLA [ More info ]
|
| #21 | F449632 | SHAFT, Trim Mount (1 required per assembly) |
  |
|
F449632 - Shaft SS [ More info ]
|
| #22 | 19-F1966 | PLUG (1 required per assembly) |
  |
|
19-F1966 - Plug, NLA [ More info ] Unavailable |
| #23 | 10-34939 | SCREW, (.250-20 x .500) (2 required per assembly) |
  |
|
10-34939 - Screw w/ Lw, NLA [ More info ]
|
| #24 | F449354 | BRACKET, Thrust (1 required per assembly) |
  |
|
F449354 - Bracket, NLA [ More info ]
|
| #25 | 54-816311 | TIE STRAP, (8.00 Inches) (2 required per assembly) |
  |
54-816311 - TIE STRAP Note: Priced Individually [ More info ] Unavailable |
|
  |
|
54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ]
|
