Parts for Force 90 HP (1998) Transom Bracket

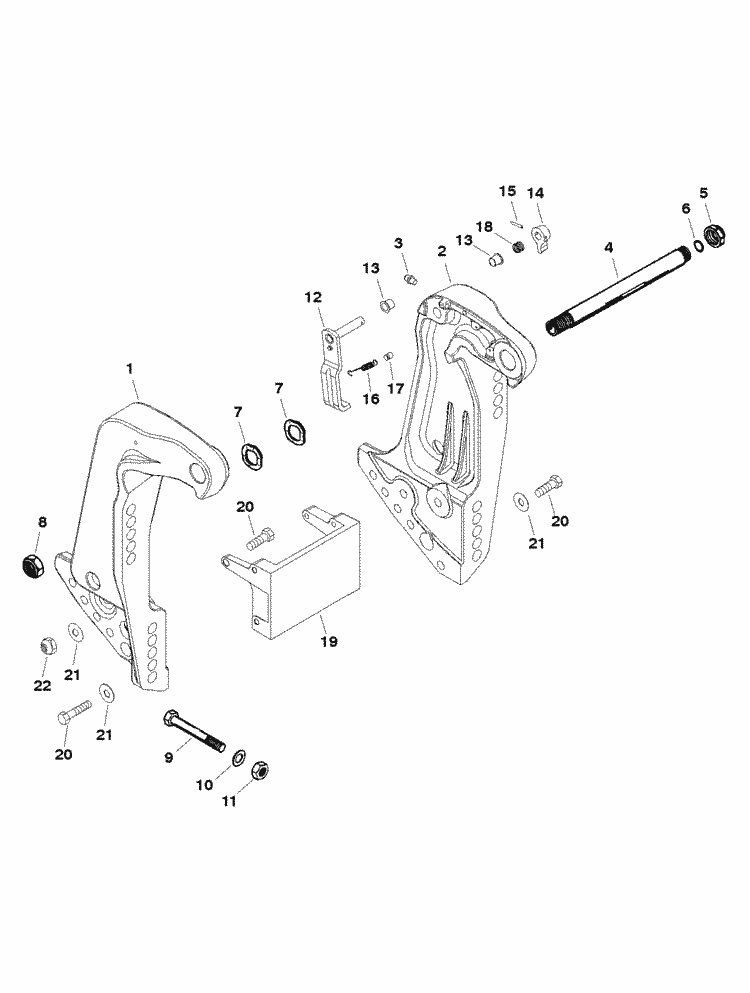

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 3426-828334F 4 | BRACKET-Transom (Painted)(STARBOARD) (1 required per assembly) |
  |
|
3426-828334F 4 - Transom Bracket - Starboard [ More info ] Unavailable |

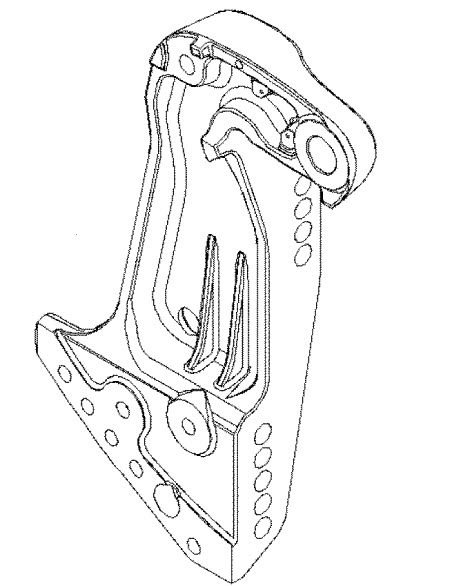

| #2 | 3425-828333A 6 | BRACKET ASSY-Transom (Painted) (PORT) (1 required per assembly) |
  |
|
3425-828333A 6 - Bracket Assembly -transo, NLA [ More info ]
|
| #3 | 22-98727 | FITTING-Grease (1 required per assembly) TORQUE 40 LB. IN. 4.5 N-M |
  |
22-98727 - Fitting [ More info ] Unavailable |
|
  |
|
22-8M0169588 - FITTING [ More info ] Unavailable |
| #4 | 99170A 2 | TUBE KIT-Tilt (1 required per assembly) |
  |
|
99170A 2 - Tilt Tube [ More info ] Unavailable |
  |
|
826125A 1 - Tilt Tube Kit [ More info ]
|
| #5 | 11-826135 | NUT (1.0-14) (1 required per assembly) |
  |
|
11-826135 - Nut (1.0-14) [ More info ]
|
| #6 | 25-45711 | O RING (1 required per assembly) |
  |
|
25-45711 - Valve Cover O-Ring, Priced Individually [ More info ]
|
| #7 | 13-88750 | WASHER-Wave (2 required per assembly) |
  |
|
13-88750 - Wave Washer - Priced Individually [ More info ]
|
| #8 | 11-30499 | NUT (.875-14) (1 required per assembly) |
  |
11-30499 - Nut (7/8-14) [ More info ] Unavailable |
|
  |
|
11-858869 - Nut, (.875-14) [ More info ]
|
| #9 | 10-67755 1 | BOLT (.500-20 x 4.500) (4 required per assembly) |
  |
|
10-67755 1 - Screw [ More info ]
|
| #10 | 12-28421 | WASHER (4 required per assembly) |
  |
|
12-28421 - Washer, (1.5 X 3.05 X 0.13) Stainless Steel [ More info ]
|
  |
|
12-8M0204648 - ENGINE MOUNTING WASHER Note: Must be ordered in multiples of 5 O/B [ More info ]
|
| #11 | 11-91962 | NUT (.500-20) (4 required per assembly) |
  |
|
1191962 - 118M0027784 [ More info ] Unavailable |
| #12 | 821176A 1 | LEVER ASSEMBLY-Tilt Lock (1 required per assembly) |
  |
|
821176A 1 - Lilt Lock Lever [ More info ]
|
  |
821176T 1 - LEVER ASY-TILTLOC [ More info ] Unavailable |
|
  |
|
821176T02 - Tilt Lock Lever [ More info ]
|
  |
|
8M0109798 - Tilt Lock Lever Assembly [ More info ]
|
| #13 | 23-65830 | BUSHING (2 required per assembly) |
  |
|
23-65830 - NyLiner [ More info ]
|
| #14 | 99633 | KNOB-Tilt Lock Lever (1 required per assembly) |
  |
|
99633 - Tilt Lock Lever Knob [ More info ]
|
| #15 | 17-99615 | PIN-Groove (1 required per assembly) |
  |
|
17-99615 - Pin, Groove [ More info ]
|
| #16 | 24-830899 | SPRING-Tilt Lock Tension (1 required per assembly) |
  |
|
24-830899 - Spring, Tension, Tilt Lock [ More info ]
|
| #17 | 17-99617 | PIN-Groove (1 required per assembly) |
  |
17-99617 - Pin, Groove [ More info ] Unavailable |
|
  |
|
17-893709 - Pin -grooved [ More info ]
|
| #18 | 24-830900 | SPRING (1 required per assembly) |
  |
|
24-830900 - Spring, Compression [ More info ]
|
| #19 | 818771F 8 | BRACKET-Anchor (Painted) (1 required per assembly) |
  |
818771F 8 - Anchor Bracket [ More info ] Unavailable |
|
  |
|
818771T 8 - Ord 818771T 1, NLA [ More info ] Unavailable |
  |
|
8M0086406 - Bracket-Anchor [ More info ]
|
| #20 | 10-40003 77 | SCREW (M10 x 30) (6 required per assembly) TORQUE 30 LB. FT. 40.7 N-M |
  |
|
10-40003 77 - Screw [ More info ] Unavailable |
| #21 | 12-40023 19 | WASHER (6 required per assembly) |
  |
|
12-40023 19 - Washer (M10) [ More info ]
|
| #22 | 11-40114 | NUT (M10) (1 required per assembly) |
  |
|
11-40114 - Nut (M10 X 1.5) [ More info ]
|
