Parts for Force 90 HP (1991) Fuel Tank & Line

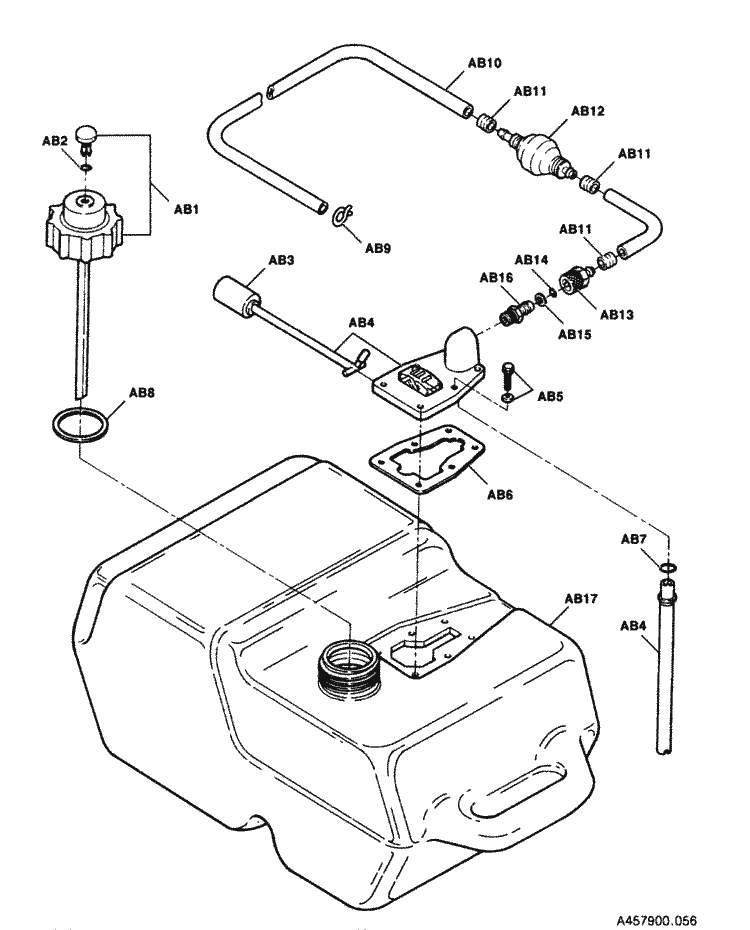

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | FS409752 | FUEL LINE COMPLETE (FORCE MODELS) (1 required per assembly) |
  |
FS409752 - Fuel Line [ More info ] Unavailable |
|
  |
32-822379A12 - Line- Fuel - 12 FT [ More info ] Unavailable |
|
  |
32-858623A12 - Fuel Hose - 12 Ft [ More info ] Unavailable |
|
  |
32-858623Q12 - Fuel Hose - 12 FT [ More info ] Unavailable |
|
  |
|
32-877683Q12 - Ord 32-858108Q12, NLA [ More info ] Unavailable |
| #AB1 | F17821 | CAP, FUEL TANK (1 required per assembly) |
  |
|
F17821 - Cap Assembly -6 Gal, NLA [ More info ] Unavailable |
| #AB2 | F17825 | SEAL (1 required per assembly) |
  |
|
F17825 - O-ring,NLA [ More info ]
|
| #AB3 | F17826 | FLOAT (1 required per assembly) |
  |
|
F17826 - Float, NLA [ More info ]
|
| #AB4 | F17828 | GAUGE ASSEMBLY (1 required per assembly) |
  |
|
F17828 - Gauge Assembly, NLA [ More info ]
|
| #AB5 | F17824 | SCREW (6 required per assembly) |
  |
|
F17824 - Screw, NLA [ More info ] Unavailable |
| #AB6 | F17823 | GASKET (1 required per assembly) |
  |
F17823 - F178231 [ More info ] Unavailable |
|
  |
|
F17823-1 - Gasket, NLA [ More info ]
|
| #AB7 | F17827 | SEAL (1 required per assembly) |
  |
|
F17827 - O Ring,NLA [ More info ]
|
| #AB8 | F17822 | GASKET (1 required per assembly) |
  |
F17822 - F178221 [ More info ] Unavailable |
|
  |
|
F17822-1 - Gasket, NLA [ More info ]
|
| #AB9 | F97772 | CLAMP, FUEL LINE (1 required per assembly) |
  |
F97772 - Clamp, NLA [ More info ] Unavailable |
|
  |
|
54-63933 - Clamp [ More info ]
|
| #AB10 | 32-817738A 1 | FUEL LINE (1 required per assembly) |
  |
|
32-817738A 1 - LINE KIT-FUEL,NLA [ More info ] Unavailable |
| #AB11 | F298788 | FERRULE (3 required per assembly) |
  |
|
F298788 - Ferrule [ More info ]
|
  |
54-41582 7 - CLAMP Note: Priced Individually [ More info ] Unavailable |
|
  |
|
54-41582Q 7 - Clamps [ More info ]
|
  |
|
18-8020-9 - Snapper Clamp, 10PK [ More info ]
|
  |
|
54-41582T 7 - Clamps [ More info ]
|
| #AB12 | 89396A38 | BULB, PRIME (1 required per assembly) |
  |
89396A38 - Primer Bulb - Priced Individually [ More info ] Unavailable |
|
  |
89396Q38 - Primer Bulb - Priced Individually [ More info ] Unavailable |
|
  |
|
89396Q01 - 8M0052975 [ More info ] Unavailable |
  |
|
18-8004EP-1 - Primer Bulb 5/16 Inch [ More info ]
|
  |
|
32-03881 - Fuel Line Primer Bulb, EPA, 5/16 inch [ More info ]
|
| #AB13 | F197787-3 | COUPLER (1 required per assembly) |
  |
F197787-3 - Coupler- Fuel Line [ More info ] Unavailable |
|
  |
|
F197787Q3 - Fuel Coupler Assembly - Priced Individually [ More info ]
|
  |
|
18-8062 - Fitting, F197787-3 [ More info ]
|
  |
|
F197787T3 - Coupler- Fuel - Priced Individually [ More info ]
|
| #AB14 | F17815 | SEAL, SMALL (1 required per assembly) |
  |
|
F17815 - Small Seal [ More info ] Unavailable |
| #AB15 | F17816 | SEAL, LARGE (1 required per assembly) |
  |
|
F17816 - Large Seal [ More info ]
|

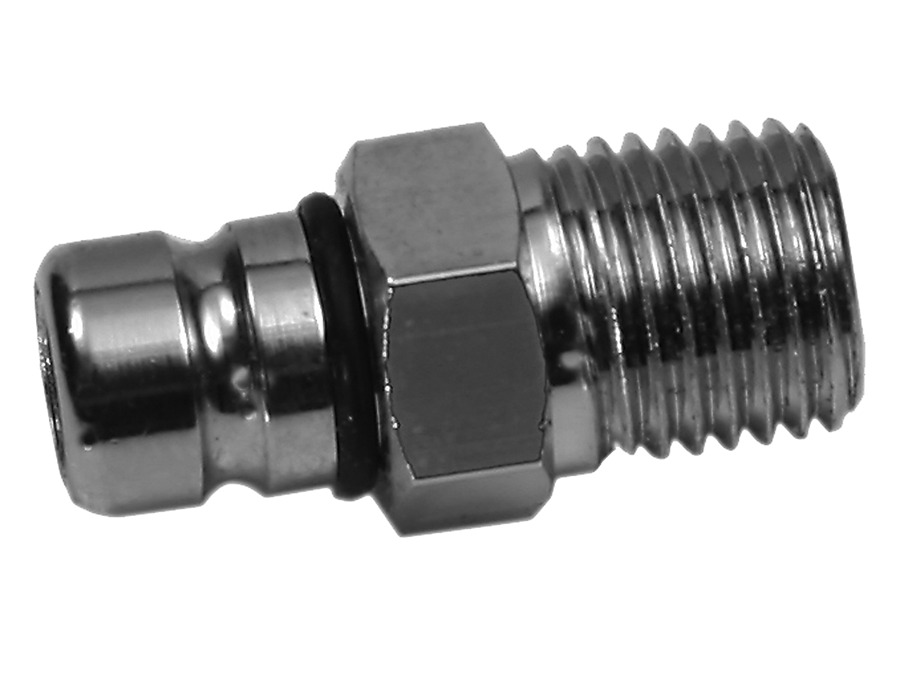

| #AB16 | F213238-2 | BUSHING (1 required per assembly) |
  |
23-F213238-2 - Fuel Bushing, NLA [ More info ] Unavailable |
|
  |
|
F213238Q2 - Bushing - Priced Individually [ More info ]
|
  |
|
F213238T2 - Connector - Priced Individually [ More info ]
|
| #AB17 | F5H215-1 | FUEL TANK COMPLETE (6 GALLON PLASTIC) (1 required per assembly) |
  |
F5H215-1 - TANK-6 GAL [ More info ] Unavailable |
|
  |
1200-819039A 1 - TANK W/O LINE-6 [ More info ] Unavailable |
|
  |
|
1259-823504A 3 - TANK-6.6-W/LINE,NLA [ More info ] Unavailable |
