Parts for Force 90 HP (1991) Ignition Components

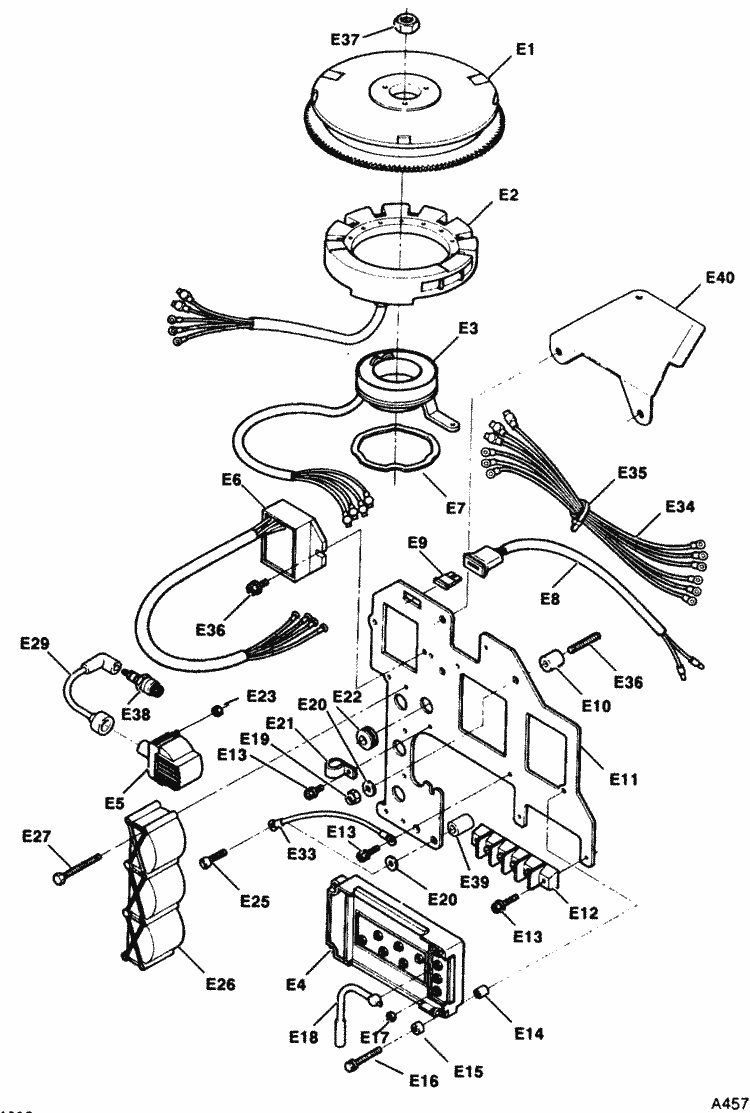

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #E1 | 817494A 2 | FLYWHEEL (1 required per assembly) |
  |
200-817494A 2 - Flywheel [ More info ] Unavailable |
|
  |
200-859241T 4 - Flywheel [ More info ] Unavailable |
|
  |
200-859241T 8 - Flywheel [ More info ] Unavailable |
|
  |
|
200-859241T10 - Flywheel [ More info ]
|
| #E2 | 398-8778A10 | STATOR (1 required per assembly) |
  |
|
398-8778A10 - REF PARTSBU,NLA [ More info ] Unavailable |
| #E3 | 817029A 3 | TRIGGER (1 required per assembly) |
  |
|
817029A 3 - Trigger Assembly -3 Cylinder [ More info ] Unavailable |
  |
|
18-99419 - Trigger, 3 Cylinder, 817029A3, A9, 134-7029-3 [ More info ]
|
| #E4 | 332-7778A12 | SWITCHBOX (1 required per assembly) |
  |
|
332-7778A12 - Switch Box [ More info ]
|
  |
|
18-5775-1 - Switch Box, 332-7778A3, 12, 14, 114-7778 [ More info ]
|
  |
|
18-5775-1 - Switch Box, 332-7778A3, 12, 14, 114-7778 [ More info ]
|
  |
|
300-01852 - Switch Box [ More info ]
|
| #E5 | 339-7370A23 | COIL, IGNITION (3 required per assembly) |
  |
339-7370A23 - COIL ASSY [ More info ] Unavailable |
|
  |
339-832757A 3 - COIL ASSY [ More info ] Unavailable |
|
  |
339-832757A 4 - Ignition Coil [ More info ] Unavailable |
|
  |
|
8M0230859 - Ignition Coil [ More info ]
|
  |
|
18-5186 - Ignition Coil 339-7370A13 [ More info ]
|
| #E6 | 817411 | RECTIFIER (9 AMP) (1 required per assembly) |
  |
817411 - Rectifier Regulator [ More info ] Unavailable |
|
  |
815279T 2 - Voltage Regulator [ More info ] Unavailable |
|
  |
|
815279T 3 - Voltage Regulator - Ring [ More info ]
|
  |
|
830179A 2 - Voltage Regulator Kit [ More info ]
|
  |
|
18-5743-1 - Voltage Regulator, Mercury [ More info ]
|
| #E7 | F2442 | SPRING, WAVE (1 required per assembly) |
  |
|
13-F2442 - Wave Washer, NLA [ More info ]
|
| #E8 | 88-19637 | SOCKET ASSEMBLY, FUZE (1 required per assembly) |
  |
|
88-19637 - Socket [ More info ]
|
| #E9 | 88-812619 | FUSE (20 AMP) (1 required per assembly) |
  |
|
88-812619 - Fuse - Yellow - 20 Amp [ More info ]
|
| #E10 | F722932 | SPACER (3 required per assembly) |
  |
|
23-F722932 - Spacer, NLA [ More info ]
|
| #E11 | 817268 | BRACKET, IGNITION (1 required per assembly) |
  |
817268 - PLATE-IGN-3 CYL [ More info ] Unavailable |
|
  |
817268 4 - PLATE-IGN-3 CYL [ More info ] Unavailable |
|
  |
817268 5 - PLATE-IGN-3 CYL [ More info ] Unavailable |
|
  |
|
817268 6 - Ignition Mount Plate, NLA [ More info ]
|
| #E12 | F660497 | BLOCK, TERMINAL (4 POSITION) (1 required per assembly) |
  |
F660497 - Terminal Block-4 Post [ More info ] Unavailable |
|
  |
|
817492 - Terminal Block-4 Post [ More info ]
|
| #E13 | 10-41805 | SCREW, 10 - 24 X .62 (5 required per assembly) |
  |
10-41805 - SCREW [ More info ] Unavailable |
|
  |
|
10-41805 1 - Screw [ More info ]
|
| #E14 | 23-91912 | BUSHING (2 required per assembly) |
  |
|
23-91912 - Bushing [ More info ] Unavailable |
| #E15 | 23-94304 | SPACER (2 required per assembly) |
  |
|
23-94304 - Spacer - Switch Box Screw [ More info ]
|
| #E16 | 10-812987 | SCREW, 10 - 24 X 1-1/4 (2 required per assembly) |
  |
|
10-812987 - Screw [ More info ]
|
| #E17 | 11-45076 | NUT, 10 - 24 (10 required per assembly) |
  |
|
11-45076 - Nut (#10-32) (brass) [ More info ]
|
| #E18 | 84-88807A34 | CABLE ASSEMBLY, ADAPTER (1 required per assembly) |
  |
|
84-88807A34 - Cable Assembly [ More info ] Unavailable |
| #E19 | F7006 | LOCK NUT, 5/16 - 18 (6 required per assembly) |
  |
11-F7006 - Nut (5/16-18) [ More info ] Unavailable |
|
  |
|
11-26484 - Nut (5/16-18) [ More info ]
|
  |
|
11-8M0204646 - NUT @5 [ More info ] Unavailable |
| #E20 | F8094 | WASHER (1 required per assembly) |
  |
|
F8094 - Washer SS [ More info ]
|
  |
|
12-40023 16 - Washer - Priced Individually [ More info ]
|
  |
|
128M0214930 - WASHER Note: Must be ordered in multiples of 5 [ More info ]
|
| #E21 | 54-63153 | CLIP, INSULATED "J" (2 required per assembly) |
  |
|
54-63153 - J Clip [ More info ]
|
| #E22 | 25-817491 | GROMMET (1 required per assembly) |
  |
|
25-817491 - Grommet, (.56 Inside Diameter) [ More info ]
|
| #E25 | F2192 | SCREW, 1/4 - 20 X 1-3/4 (1 required per assembly) |
  |
|
10-F2192 - Screw [ More info ]
|
| #E26 | 43542 | COVER, COIL (1 required per assembly) |
  |
|
43542 - Coil Cover [ More info ] Unavailable |
| #E27 | 10-817458 | SCREW, 10 - 24 X 2-1/4 (6 required per assembly) |
  |
|
10-817458 - Screw, NLA [ More info ]
|
| #E29 | 84-813706A28 | CABLE ASSEMBLY, HIGH TENSION (COMPLETE) (3 required per assembly) |
  |
84-813706A28 - Cable [ More info ] Unavailable |
|
  |
84-821945A28 - Cable Assembly [ More info ] Unavailable |
|
  |
|
84-821945T28 - Cable Assembly [ More info ]
|
| #E33 | 84-88807A29 | CABLE ASSEMBLY, BLACK (1 required per assembly) |
  |
|
84-88807A29 - Cable Assembly [ More info ] Unavailable |
| #E34 | 84-817441A 1 | HARNESS, COIL TO SWITCHBOX (1 required per assembly) |
  |
|
84-817441A 1 - Harness Assembly -3 Cylinder, NLA [ More info ]
|
| #E35 | 54-816311 | STA-STRAP (2 required per assembly) |
  |
54-816311 - TIE STRAP Note: Priced Individually [ More info ] Unavailable |
|
  |
|
54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ]
|
| #E36 | F746210 | STUD, 5/16 - 18 X 2-1/4 (4 required per assembly) |
  |
16-F746210 - STUD [ More info ] Unavailable |
|
  |
|
16-826393 - Stud, NLA [ More info ]
|
| #E37 | F1968 | STOP NUT, 3/4 - 16 (1 required per assembly) |
  |
|
11-F1968 - Nut (3/4-16) [ More info ]
|
| #E38 | FS749227 | PLUG, SPARK (CHAMPION - L76V) (3 required per assembly) |
  |
FS749227 - SPARK PLUG-L76V [ More info ] Unavailable |
|
  |
33-827C - SP #L76V Note: Priced Individually [ More info ] Unavailable |
|
  |
|
33-896329827 - Spark Plug - L76V - Priced Individually [ More info ] Unavailable |
  |
|
L76V - Champion Spark Plug ( #827M) [ More info ]
|
| #E39 | F722452 | SPACER (1 required per assembly) |
  |
|
23-F722452 - Spacer, NLA [ More info ]
|
| #E40 | 819111 | GUARD, IGNITION (1 required per assembly) |
  |
|
819111 - Guard, NLA [ More info ]
|
| #E41 | 10-817504 | SCREW (2 required per assembly) |
  |
|
10-817504 - Screw [ More info ]
|
