Parts for Force 90 HP (1991) Swivel Bracket & Stern Brackets Power Trim Models

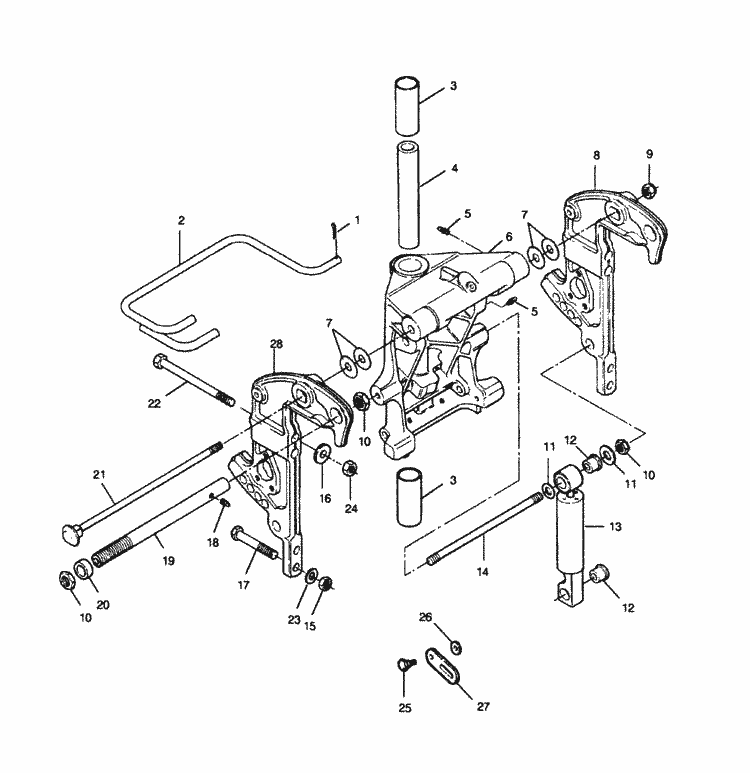

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | FA500019 | KING PIN (25 INCH MODELS) (1 required per assembly) |
  |
|
FA500019 - KINGPIN ASY-25IN,NLA [ More info ] Unavailable |
| #1 | F525629 | COTTER PIN (1 required per assembly) |
  |
|
18-F525629 - Pin, Hitch [ More info ]
|
| #2 | F5H179 | BRACKET, TRAILERING |
  |
F5H179 - Bracket Kit - Lock [ More info ] Unavailable |
|
  |
|
819504A 1 - Lock Bracket Kit [ More info ]
|
  |
|
819504A 2 - Lock Bracket Kit [ More info ]
|
| #3 | F438169 | BEARING (2 required per assembly) |
  |
23-F438169 - Bushing [ More info ] Unavailable |
|
  |
|
23-819493 - Bushing, NLA [ More info ]
|
| #4 | FS85019 | KING PIN (20 INCH MODELS) (1 required per assembly) |
  |
|
FS85019 - Kingpin Assembly -For 20" long shaft engines only [ More info ]
|
| #5 | F213274 | FITTING, GREASE (3 required per assembly) |
  |
|
22-F213274 - Grease Fitting [ More info ] Unavailable |
| #6 | 817783A 5 | BRACKET, SWIVEL W/GREASE FITTINGS (1 required per assembly) |
  |
|
817783A 5 - Swivel Bracket Kit, NLA [ More info ] Unavailable |
| #7 | F84286-1 | WASHER, FRICTION (4 required per assembly) |
  |
|
12-F84286-1 - Friction Washer, NLA [ More info ]
|
| #8 | F685532-1 | BRACKET, STERN (PORT) (1 required per assembly) |
  |
1400-F685532-1 - Stern Bracket-PORT [ More info ] Unavailable |
|
  |
|
1400-820446F - Stern Bracket-PORT,NLA [ More info ] Unavailable |
| #9 | F7012 | NUT, 1/2 - 20 (1 required per assembly) |
  |
|
11-F7012 - Nut, Lock (1/2 - 20) [ More info ]
|
  |
11-28040 - Nut (1/2-20) [ More info ] Unavailable |
|
  |
11-826708 17 - Nut, (.500-20) [ More info ] Unavailable |
|
  |
|
11-898832 - Nut, (.500-20) [ More info ]
|
| #10 | F523280 | NUT (2 required per assembly) |
  |
|
11-F523280 - Nut, Steering Support Tube,NLA [ More info ] Unavailable |
| #11 | F1960 | WASHER (2 required per assembly) |
  |
|
12-F1960 - Washer, NLA [ More info ] Unavailable |
| #12 | F178344 | BUSHING (2 required per assembly) |
  |
|
23-F178344 - Bushing, NLA [ More info ] Unavailable |
| #13 | FS631962 | SHOCK ABSORBER W/BUSHING (1 required per assembly) |
  |
55-FS631962 - Shock Absorber, NLA [ More info ] Unavailable |
|
  |
|
FS719962 - Shock Absorber [ More info ]
|
| #14 | F449889 | SHAFT, UPPER SHOCK (1 required per assembly) |
  |
|
F449889 - Upper Shaft SS [ More info ]
|
| #15 | F1346 | LOCKNUT, 3/8 - 16 (2 required per assembly) |
  |
|
11-F1346 - Hex Nut, 3/8 - 16 [ More info ]
|
  |
|
11-86226 - Nut (3/8-16) [ More info ]
|
  |
|
11-8M0204671 - NUT [ More info ] Unavailable |
| #16 | FK684201 | WASHER (2 required per assembly) |
  |
|
FK684201 - Washer Kit, NLA [ More info ]
|
| #17 | F2428 | SCREW, 3/8 - 16 X 5 (2 required per assembly) |
  |
|
10-F2428 - Screw, NLA [ More info ] Unavailable |
| #18 | F523274 | FITTING, GREASE (1 required per assembly) |
  |
|
22-F523274 - Grease Fitting, NLA [ More info ]
|
| #19 | 32-818066A 3 | TUBE ASSY., STEERING W/FITTING & SEAL (1 required per assembly) |
  |
|
32-818066A 3 - Steering Tube Assembly [ More info ] Unavailable |
| #20 | F316599 | SEAL (1 required per assembly) |
  |
|
25-F316599 - O Ring, Steering Tube [ More info ]
|
  |
|
25-48462 - O-ring, (.614 X .070) [ More info ]
|
| #21 | F85037-1 | BOLT, STERN BRACKET PIVOT (1 required per assembly) |
  |
|
10-F85037-1 - Bolt -Special, NLA [ More info ]
|
| #22 | F685632 | BOLT, 1/2- 20 X 7 S.S. (2 required per assembly) |
  |
|
10-F685632 - Bolt, NLA [ More info ] Unavailable |
| #23 | F684201 | WASHER (2 required per assembly) |
  |
|
12-F684201 - 12FK684201 [ More info ]
|
| #24 | F7056 | NUT, 1/2 - 20 (2 required per assembly) |
  |
|
11-F7056 - 118M0027784 [ More info ]
|
  |
11-8M0027784 - NUT,NLA [ More info ] Unavailable |
|
  |
|
11-826711 17 - Nut, (.500-20) [ More info ]
|
| #25 | F85350-1 | PIVOT (NOT USED ON ALL MODELS) (4 required per assembly) |
  |
|
F85350-1 - Pivot SS [ More info ]
|
| #26 | F1666 | WASHER (NOT USED ON ALL MODELS) (2 required per assembly) |
  |
F1666 - Wave Washer - Priced Individually [ More info ] Unavailable |
|
  |
|
13-69150 - Wave Washer - Priced Individually [ More info ]
|
| #27 | F694496 | STOP, TILT (NOT USED ON ALL MODELS) (2 required per assembly) |
  |
F694496 - STOP [ More info ] Unavailable |
|
  |
|
F694426 - Stop, NLA [ More info ]
|
| #28 | F685032-1 | BRACKET, STERN (STARBOARD) (1 required per assembly) |
  |
1400-F685032-1 - Stern Bracket - Starboard [ More info ] Unavailable |
|
  |
|
1400-820445F - Stern Bracket - Stbd, NLA [ More info ] Unavailable |
