Parts for Force 90 HP (1991 L-Drive) Trim Pump Bracket & Relays

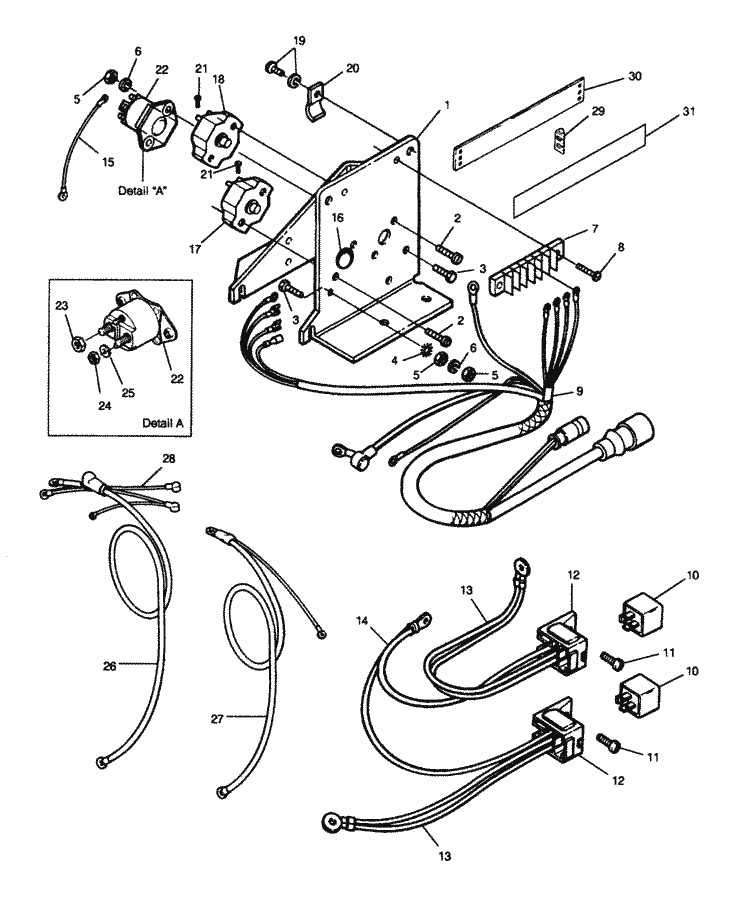

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | F695371-2 | BRACKET, TRIM COMPONENTS (1 required per assembly) |
  |
F695371-2 - F6953713 [ More info ] Unavailable |
|
  |
|
F695371-3 - Pump Bracket/Ele, NLA [ More info ] Unavailable |
| #2 | F1303 | SCREW, 8 - 32 X 3/4 (4 required per assembly) |
  |
|
10-F1303 - Screw [ More info ]
|
| #3 | F1999 | SCREW, 1/4 - 20 X 7/8 (3 required per assembly) |
  |
|
10-F1999 - Screw -ss [ More info ]
|
  |
|
10-28668 - Screw - Priced Individually [ More info ]
|
| #4 | F8158 | LOCKWASHER (1 required per assembly) |
  |
F8158 - LockWasher - Priced Individually [ More info ] Unavailable |
|
  |
|
13-93702 - LockWasher - Priced Individually [ More info ]
|
| #5 | F1341 | NUT, 1/4 - 20 (4 required per assembly) |
  |
F1341 - Hex Nut 1/4 - 20 [ More info ] Unavailable |
|
  |
|
11-64015 - Nut (1 /4-20) [ More info ]
|
| #6 | F1975 | LOCKWASHER (2 required per assembly) |
  |
13-F1975 - LockWasher - Priced Individually [ More info ] Unavailable |
|
  |
|
13-26996 - LockWasher - Priced Individually [ More info ]
|
| #7 | F722497 | BLOCK, TERMINAL (1 required per assembly) |
  |
|
86-F722497 - Terminal Block, NLA [ More info ] Unavailable |
| #8 | F1733 | SCREW, 10 - 24 X 5/8 (2 required per assembly) |
  |
|
10-F1733 - Screw, SS [ More info ]
|
  |
|
10-852453 - Screw [ More info ]
|
| #9 | F722744 | HARNESS, BOAT INTERFACE (1 required per assembly) |
  |
84-F722744 - HARNESS [ More info ] Unavailable |
|
  |
|
84-819025A 1 - Harness, NLA [ More info ] Unavailable |
| #10 | F698917 | RELAY, POWER TRIM (2 required per assembly) |
  |
|
87-F698917 - Relay [ More info ]
|
| #11 | F1760 | SCREW, 10 - 24 X 5/8 (2 required per assembly) |
  |
|
10-F1760 - Screw -ss, NLA [ More info ]
|
| #12 | F722293 | SOCKET (2 required per assembly) |
  |
F722293 - SOCKET,NLA [ More info ] Unavailable |
|
  |
|
817020 - SOCKET,NLA [ More info ] Unavailable |
| #13 | F722683 | WIRE ASSY - BLACK (2 required per assembly) |
  |
|
84-F722683 - Wire Assembly, NLA [ More info ]
|
| #14 | F722583 | WIRE ASSY - RED W/PURPLE STRIPE (1 required per assembly) |
  |
|
84-F722583 - Wire Assembly, NLA [ More info ]
|
| #15 | F722664 | WIRE, STARTER SOLENOID GROUND (1 required per assembly) |
  |
|
84-F722664 - WIRE ASSY,NLA [ More info ] Unavailable |
| #16 | F695374 | DECAL, CIRCUIT BREAKER (2 required per assembly) |
  |
|
37-F695374 - DECAL,NLA [ More info ] Unavailable |
| #17 | F698460 | BREAKER, CIRCUIT, 25 AMP (1 required per assembly) |
  |
|
88-F698460 - Breaker-25 AMP,NLA [ More info ] Unavailable |
| #18 | F695460 | BREAKER, CIRCUIT, 35 AMP (1 required per assembly) |
  |
|
88-F695460 - Breaker - 35 Amp, NLA [ More info ]
|
| #19 | F1734 | SCREW W/LOCKWASHER, 1/4 - 20 X 1/2 (2 required per assembly) |
  |
F1734 - Screw w/ Lw, NLA [ More info ] Unavailable |
|
  |
|
10-34939 - Screw w/ Lw, NLA [ More info ]
|
| #20 | F289446-1 | CLAMP, CABLE (3 required per assembly) |
  |
54-F289446-1 - CLAMP,NLA [ More info ] Unavailable |
|
| #21 | F1280 | SCREW, 8 - 32 X 1/4 (4 required per assembly) |
  |
|
10-F1280 - Screw -ss [ More info ]
|
  |
|
108M0129582 - Screw [ More info ]
|
| #22 | F460917-1 | RELAY, STARTER (1 required per assembly) |
  |
89-F460917-1 - Solenoid [ More info ] Unavailable |
|
  |
|
89-817109A 3 - Solenoid Kit [ More info ]
|
  |
|
18-5835 - Solenoid, 89-817109A3 - 4 Post [ More info ]
|
  |
|
SW109 - Solenoid [ More info ]
|
| #23 | F1515 | NUT, 5/16 - 18 (2 required per assembly) |
  |
|
F1515 - Hex Hut, 5/16 - 18 [ More info ]
|
  |
|
11-68292 - Nut (5/16 Inch) [ More info ]
|
  |
|
11-8M0204668 - NUT @5 [ More info ] Unavailable |
| #24 | F1513 | NUT, 10 - 32 (2 required per assembly) |
  |
|
F1513 - Hex Nut 10 - 32 [ More info ]
|
  |
|
11-68219 - Nut (#10-32) [ More info ]
|
| #26 | F722833 | CABLE, BATTERY POSITIVE (RED) (1 required per assembly) |
  |
|
84-F722833 - Cable - Red, NLA [ More info ]
|
| #27 | F722841 | CABLE, BATTERY NEGATIVE (BLACK) (1 required per assembly) |
  |
|
84-F722841 - Cable - Black, NLA [ More info ] Unavailable |
| #28 | F722635 | WIRE ASSY, RED W/BOOTS (1 required per assembly) |
  |
|
84-F722635 - Wire Assembly, NLA [ More info ] Unavailable |
| #29 | F664384 | CLIP, COVER (2 required per assembly) |
  |
|
54-F664384 - Clip, NLA [ More info ]
|
| #30 | F694672 | COVER, TERMINAL BLOCK (1 required per assembly) |
  |
|
|
| #31 | F691025 | PAD, INSULATING (1 required per assembly) |
  |
|
F691025 - Pad, NLA [ More info ]
|
