Parts for Force 90 HP (1991 L-Drive) Trim Cylinder

Revise Search: All Models > 90 HP (1991 L-Drive) > 90LD91B ( ) > Trim Cylinder

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

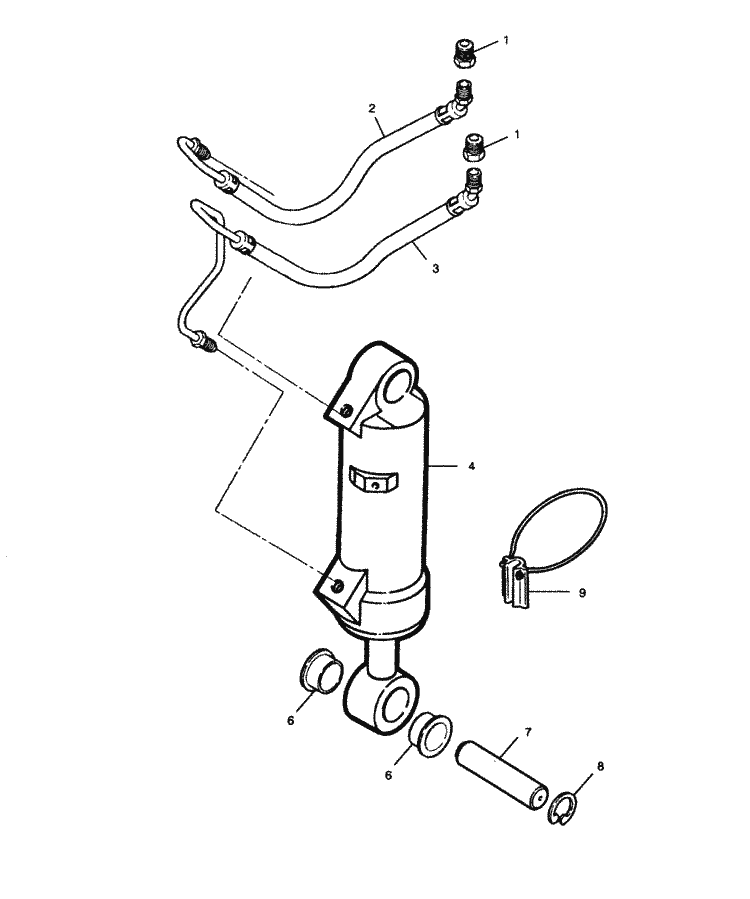

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	F698059	FITTING, HYDRAULIC (4 required per assembly)
		F698059 - Fitting [ More info ] Unavailable
		22-819052 - Connector [ More info ] Unavailable
		22-48166 - Connector [ More info ] $34.49 Available to Order: Shipping delay up to 10 days.
#2	F698259	HOSE, HYDRAULIC (UP) (1 required per assembly)
		32-F698259 - Hydraulic Hose, NLA [ More info ] $37.50 $31.77 4 In Stock.
#3	F698088	HOSE, HYDRAULIC (DOWN) (1 required per assembly)
		F698088 - Hydraulic Hose, NLA [ More info ] $40.76 $34.53 4 In Stock.
#4	FA722381	CYLINDER, HYDRAULIC W/BEARINGS (1 required per assembly)
		FA722381 - Cylinder Kit - Hydraulic, NLA [ More info ] Unavailable
#6	F695818	BEARING (4 required per assembly)
		23-F695818 - Bearing, NLA [ More info ] $6.00 $5.08 10 In Stock.
#7	F695037	PIN, TRIM CYLINDER (2 required per assembly)
		17-F695037 - Pin, Trim Cylinder, NLA [ More info ] $20.00 $16.94 10+ In Stock.
#8	F695930	RING, RETAINING (2 required per assembly)
		53-F695930 - RING-RETAINING [ More info ] Unavailable
		53-818826 - Ring - Retaining, NLA [ More info ] $9.69 10+ In Stock.
#9	F695451-1	SPACER, TILT LOCK (1 required per assembly)
		F695451-1 - SPACER,NLA [ More info ] Unavailable
