Parts for Force 90 HP (1991 L-Drive) Transom Plate

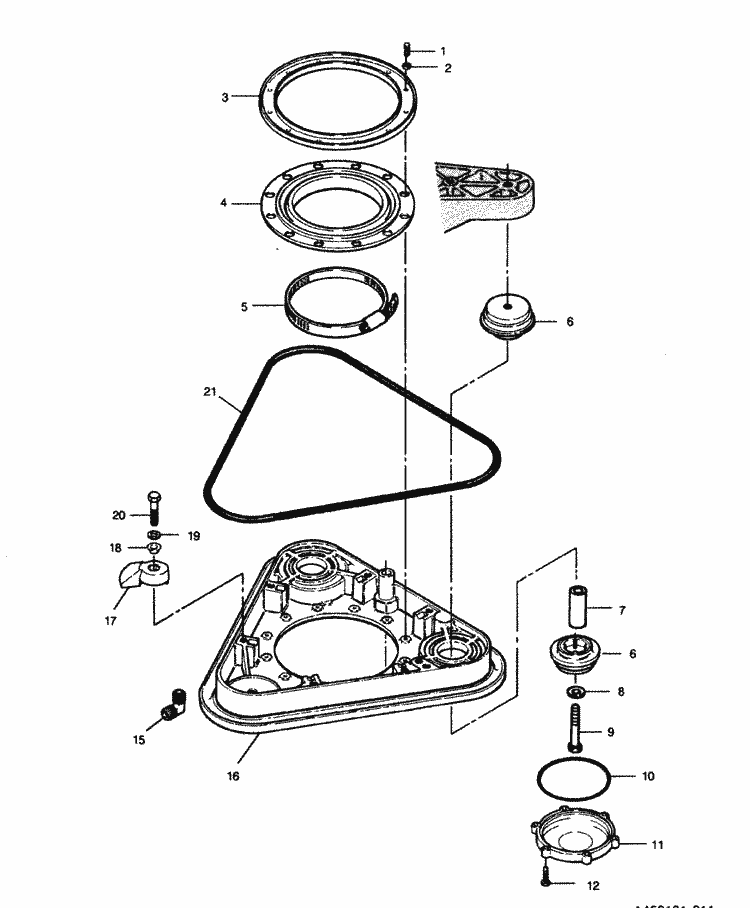

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | F1950 | SCREW, 10 - 24 X 5/8 (12 required per assembly) |
  |
|
10-F1950 - Screw -ss, NLA [ More info ]
|
| #2 | F2042 | WASHER (12 required per assembly) |
  |
F2042 - Washer - Priced Individually [ More info ] Unavailable |
|
  |
|
12-89302 - Washer (.203 X .406 X .040) [ More info ]
|
| #3 | F695741 | RING, SEAL (1 required per assembly) |
  |
|
F695741 - RING-SEAL,NLA [ More info ] Unavailable |
| #4 | F695342 | SEAL, WATER (1 required per assembly) |
  |
|
26-F695342 - Seal, NLA [ More info ]
|
| #5 | F695920 | CLAMP, WATER SEAL (1 required per assembly) |
  |
54-F695920 - CLAMP [ More info ] Unavailable |
|
  |
|
54-815504388 - Clamp [ More info ]
|
| #6 | F695965 | MOUNT, ISOLATOR (4 required per assembly) |
  |
|
F695965 - Isolater Mount, NLA [ More info ]
|
| #7 | F698902 | SPACER (2 required per assembly) |
  |
|
23-F698902 - SPACER,NLA [ More info ] Unavailable |
| #8 | F8145 | WASKER (2 required per assembly) |
  |
|
12-F8145 - Washer, NLA [ More info ]
|
| #9 | F2224 | SCREW, 1/2 - 13 X 3-1/4 (2 required per assembly) |
  |
|
10-F2224 - Screw, NLA [ More info ] Unavailable |
| #10 | F695989 | SEAL, O-RING (2 required per assembly) |
  |
|
25-F695989 - O-Ring [ More info ]
|
| #11 | F695946 | COVER (2 required per assembly) |
  |
|
F695946 - Cover, NLA [ More info ] Unavailable |
| #12 | F2240 | SCREW, 10 - 24 X 7/8 (12 required per assembly) |
  |
|
10-F2240 - SCREW-SS,NLA [ More info ] Unavailable |
| #15 | 22-819070 | ELBOW, WATER INLET (1 required per assembly) |
  |
|
22-819070 - Elbow, NLA [ More info ] Unavailable |
| #16 | F695212 | PLATE, TRANSOM (1 required per assembly) |
  |
F695212 - 819045A1 [ More info ] Unavailable |
|
  |
819045 - PLATE-TRANSOM [ More info ] Unavailable |
|
  |
|
819045A 1 - PLATE ASY-TRANSO,NLA [ More info ] Unavailable |
| #17 | F695870 | CLAMP (6 required per assembly) |
  |
|
F695870 - CLAMP,NLA [ More info ] Unavailable |
| #18 | F695422 | PIVOT, BALL (6 required per assembly) |
  |
|
F695422 - Ball Pivot, NLA [ More info ]
|
| #19 | F2014 | WASHER (6 required per assembly) |
  |
|
|
  |
|
12-34931 - Washer, (.406 X .734 X .063 - Stainless Steel) [ More info ]
|
| #20 | F1872 | SCREW, 3/8 - 16 X 1-3/4 (6 required per assembly) |
  |
10-F1872 - Screw [ More info ] Unavailable |
|
  |
|
10-32132 - Screw [ More info ]
|
| #21 | FS695736 | SEAL, O-RING (1 required per assembly) |
  |
|
FS695736 - O-Ring [ More info ]
|
