Parts for Force 90 HP (1990 L-Drive) Trim Pump Bracket & Relays

Revise Search: All Models > 90 HP (1990 L-Drive) > 90LD90A ( ) > Trim Pump Bracket & Relays

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

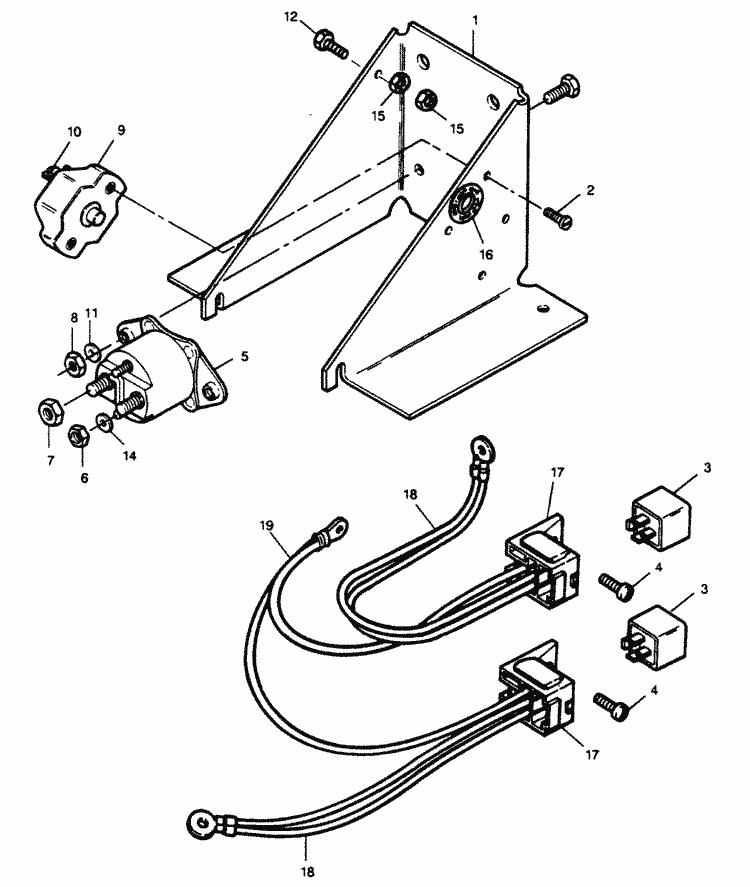

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	F695371-1	BRACKET, TRIM COMPONENTS (1 required per assembly)
		F695371-1 - F695371-1 - BRACKET [ More info ] Unavailable Replaced by -F695371-2
		F695371-2 - F6953713 [ More info ] Unavailable
		F695371-3 - Pump Bracket/Ele, NLA [ More info ] Unavailable
#2	F1303	SCREW, 8 - 32 X 3/4 (2 required per assembly)
		10-F1303 - Screw [ More info ] $0.40 $0.34 2 In Stock.
#3	F698917	RELAY, TRIM (2 required per assembly)
		87-F698917 - Relay [ More info ] $26.93 2 In Stock.
#4	F1760	SCREW, 10 - 24 X 3/8 (2 required per assembly)
		10-F1760 - Screw -ss, NLA [ More info ] $1.50 $1.28 10+ In Stock.
#5	F460917-1	RELAY, STARTER (1 required per assembly)
		89-F460917-1 - Solenoid [ More info ] Unavailable
		89-817109A 3 - Solenoid Kit [ More info ] $82.99 $81.82 Available to Order: Shipping delay up to 10 days.
		18-5835 - Solenoid, 89-817109A3 - 4 Post [ More info ] $54.99 $52.26 1 In Stock.
		SW109 - Solenoid [ More info ] $41.40 $40.71 2 In Stock.
#6	F1513	NUT, 10 - 32 (2 required per assembly)
		F1513 - Hex Nut 10 - 32 [ More info ] $0.86 10+ In Stock.
		11-68219 - Nut (#10-32) [ More info ] $2.99 10+ In Stock.
#7	F1515	NUT, 5/16 - 18 (2 required per assembly)
		F1515 - Hex Hut, 5/16 - 18 [ More info ] $0.30 10+ In Stock.
		11-68292 - Nut (5/16 Inch) [ More info ] $1.50 10+ In Stock.
		11-8M0204668 - NUT @5 [ More info ] Unavailable
#8	F1341	NUT, 1/4 - 20 (2 required per assembly)
		F1341 - Hex Nut 1/4 - 20 [ More info ] Unavailable
		11-64015 - Nut (1 /4-20) [ More info ] $2.79 10+ In Stock.
#9	F695460	BREAKER (CIRCUIT) (1 required per assembly)
		88-F695460 - Breaker - 35 Amp, NLA [ More info ] $17.78 $15.06 6 In Stock.
#10	F1280	SCREW, 8 - 32 X 1/4 (2 required per assembly)
		10-F1280 - Screw -ss [ More info ] $0.55 $0.46 10+ In Stock.
		108M0129582 - Screw [ More info ] $0.61 Available to Order: Shipping delay up to 10 days.
#11	F8083	WASHER (1 required per assembly)
		F8083 - LockWasher SS [ More info ] Unavailable
		13-26992 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
#12	F1999	SCREW (3 required per assembly)
		10-F1999 - Screw -ss [ More info ] $1.10 10 In Stock.
		10-28668 - Screw - Priced Individually [ More info ] $1.70 Available to Order: Shipping delay up to 10 days.
#13	F8158	WASHER (1 required per assembly)
		F8158 - LockWasher - Priced Individually [ More info ] Unavailable
		13-93702 - LockWasher - Priced Individually [ More info ] $2.37 10 In Stock.
#14	F1975	WASHER (2 required per assembly)
		13-F1975 - LockWasher - Priced Individually [ More info ] Unavailable
		13-26996 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
#15	F1641	NUT, 1/4 - 28 (2 required per assembly)
		F1641 - Nut, 1/4 - 28 [ More info ] Unavailable
		118267089 [ More info ] $1.00 10+ In Stock.
		11-826708 9 - Nut - Priced Individually [ More info ] $1.50 10 In Stock.
		18-3722-9 - Lock Nut, 121731, 11-35888, Pack of 5 [ More info ] $11.99 $8.16 Available to Order: Shipping delay up to 10 days.
#16	F695374	DECAL, CIRCUIT BREAKER (1 required per assembly)
		37-F695374 - DECAL,NLA [ More info ] Unavailable
#17	F695293	SOCKET (2 required per assembly)
		F695293 - SOCKET,NLA [ More info ] Unavailable
#18	F685683	WIRE ASSY. - BLACK (2 required per assembly)
		84-F685683 - Wire Assembly, NLA [ More info ] $5.00 $4.24 10+ In Stock.
#19	F685583	WIRE ASSY. - RED/PURPLE STRIPE (1 required per assembly)
		84-F685583 - Wire Assembly, NLA [ More info ] $5.00 $4.24 10+ In Stock.
