Parts for Force 85 HP (1989 L-Drive) Gear Housing

Revise Search: All Models > 85 HP (1989 L-Drive) > 85LD9B ( ) > Gear Housing

NEED PARTS OR KITS?

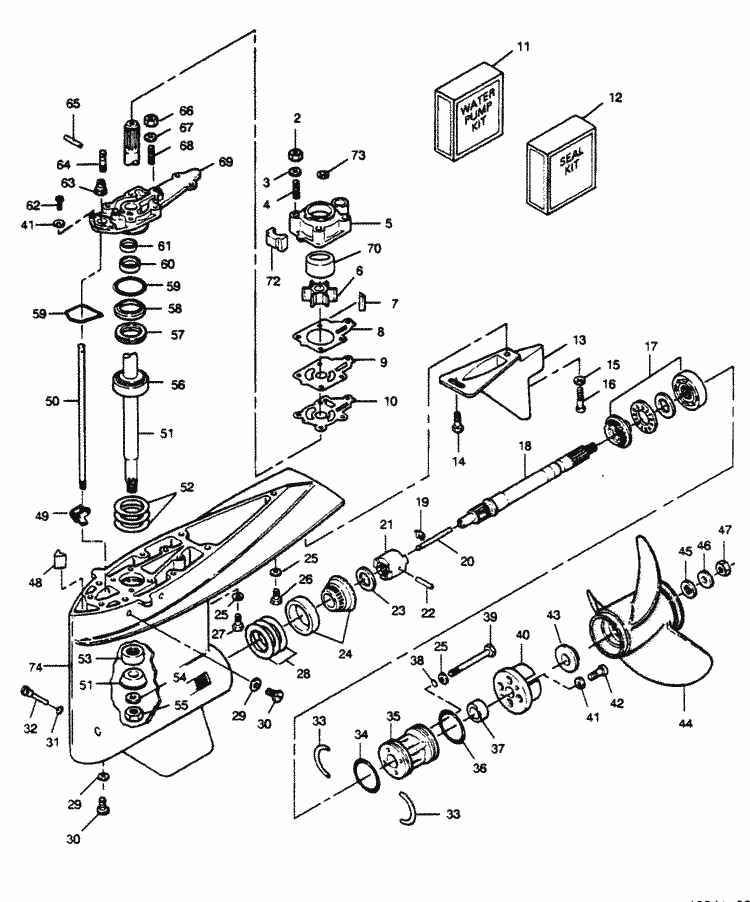

View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	F9281	SHIM (.010) (A/R required per assembly)
		15-F9281 - Shim - (.010), NLA [ More info ] $2.00 $1.69 10+ In Stock.
#	F1937	SPACER (.062) (A/R required per assembly)
		23-F1937 - Spacer - Bevel Gear Front - .062 [ More info ] $2.16 10+ In Stock.
#	F1942	SPACER (.077) (A/R required per assembly)
		23-F1942 - Spacer - Bevel Gear Front - .077 [ More info ] Unavailable
#	F9278	SHIM (.005) (A/R required per assembly)
		15-F9278 - Shim - (.005), NLA [ More info ] $2.20 $1.86 10+ In Stock.
#	F9283	SHIM (.003) (A/R required per assembly)
		15-F9283 - Shim - (.003) [ More info ] Unavailable
#	F2121	SPACER (.057) (A/R required per assembly)
		23-F2121 - Spacer - Bevel Gear Front - .057 [ More info ] $2.00 $1.69 10+ In Stock.
#	F1940	SPACER (.071) (A/R required per assembly)
		23-F1940 - Spacer - Bevel Gear Front - .071 [ More info ] $2.16 10+ In Stock.
#	F2115	SPACER (.086) (A/R required per assembly)
		23-F2115 - Spacer - Bevel Gear Front - .086 [ More info ] $5.00 $4.24 10+ In Stock.
#	FC695054	GEAR HOUSING COMPLETE (1 required per assembly)
		FC695054 - Gear Housing Complete [ More info ] Unavailable
		1600-817923A 4 - Gear Housing [ More info ] Unavailable
		1600-817923A 5 - Gear Housing Kit-LD [ More info ] Unavailable
		1600-817923A 6 - GEAR HSG KIT-LD,NLA [ More info ] Unavailable
#	F1938	SPACER (.065) (A/R required per assembly)
		23-F1938 - Spacer - Bevel Gear Front - .065 [ More info ] $1.62 10+ In Stock.
#	F2113	SPACER (.080) (A/R required per assembly)
		23-F2113 - Spacer - Bevel Gear Front - .080 [ More info ] $2.00 $1.69 3 In Stock.
#	F9277	SHIM (.010) (A/R required per assembly)
		15-F9277 - Shim - (.010), NLA [ More info ] $1.88 $1.59 1 In Stock.
#	F9282	SHIM (.005) (A/R required per assembly)
		15-F9282 - Shim - (.005), NLA [ More info ] Unavailable
#	F1936	SPACER (.059) (A/R required per assembly)
		23-F1936 - Spacer - Bevel Gear - Front [ More info ] $6.28 10+ In Stock.
#	F1941	SPACER (.074) (A/R required per assembly)
		23-F1941 - Spacer - Bevel Gear Front - .074 [ More info ] $1.36 10+ In Stock.
#	F2116	SPACER (.089) (A/R required per assembly)
		23-F2116 - Spacer - Bevel Gear Front - .089 [ More info ] $5.00 $4.24 7 In Stock.
#	F9279	SHIM (.003) (A/R required per assembly)
		15-F9279 - Shim - (.003), NLA [ More info ] Unavailable
#	F1845	TY-RAP (NOT SHOWN) (1 required per assembly)
		F1845 - Tie Strap - Priced Individually [ More info ] Unavailable
		56762 - Tie Strap - Priced Individually [ More info ] $0.50 3 In Stock.
#	F1939	SPACER (.068) (A/R required per assembly)
		23-F1939 - Spacer - Bevel Gear Front - .068 [ More info ] $1.62 10+ In Stock.
#	F2114	SPACER (.083) (A/R required per assembly)
		23-F2114 - Spacer - Bevel Gear Front - .083 [ More info ] Unavailable
#2	F7061	NUT, 1/4 - 28 (4 required per assembly)
		11-F7061 - Nut, Sold Individually [ More info ] Unavailable
		11-35045 - Nut (1/4-28) [ More info ] Unavailable
		11-826709109 - Nut, (.250-28) Stainless Steel [ More info ] $3.59 4 In Stock.
#3	F2012	WASHER (4 required per assembly)
		F2012 - Washer [ More info ] Unavailable
		12-29245 - Washer [ More info ] $0.89 10+ In Stock.
		12-8M0204649 - WASHER Note: Priced Individually [ More info ] $1.20 7 In Stock.
#4	F694210	STUD (4 required per assembly)
		16-F694210 - STUD-SS [ More info ] Unavailable
		16-826372 - Stud [ More info ] Unavailable
		16-30667 - Stud [ More info ] Unavailable
		16306671 - Stud [ More info ] $10.19 Available to Order: Shipping delay up to 10 days.
#5	46-817978A 2	BODY, WATER PUMP W/INSERT (1 required per assembly)
		46-817978A 2 - Water Pump Body Kit [ More info ] $60.99 Available to Order: Shipping delay up to 10 days.
#6	F694065	IMPELLER (1 required per assembly)
		47-F694065 - Impeller [ More info ] Unavailable
		47-803631T - Impeller [ More info ] Unavailable
		47-89984T 3 - Impeller [ More info ] $45.99 3 In Stock.
		18-3017 - Impeller 47-89984 [ More info ] $39.99 $23.95 10+ In Stock.
#7	F694498	KEY (1 required per assembly)
		28-F694498 - Key [ More info ] $17.29 Available to Order: Shipping delay up to 10 days.
#8	F694031	GASKET, UPPER WATER PUMP (1 required per assembly)
		27-F694031 - Water Pump Gasket [ More info ] $3.69 3 In Stock.
#9	F694562	PLATE (1 required per assembly)
		F694562 - Plate -with Hole [ More info ] $19.08 $18.32 2 In Stock.
#10	F694830	GASKET, LOWER WATER PUMP (1 required per assembly)
		27-F694830 - Water Pump Gasket [ More info ] $2.69 4 In Stock.
#11	FK1202	KIT, WATER PUMP (1 required per assembly)
		FK1202 - Water Pump Kit [ More info ] Unavailable
		FK1202-1 - Water Pump Kit [ More info ] $118.49 $113.52 2 In Stock.
#12	FK1203	KIT, LOWER UNIT SEAL (1 required per assembly)
		FK1203 - FK12031 [ More info ] Unavailable
		FK1203-1 - Seal Kit [ More info ] Unavailable
		18-2640 - Seal Kit, FK1203 1 [ More info ] $96.99 $96.66 1 In Stock.
#13	F695116-2	SNOUT, EXHAUST (1 required per assembly)
		F695116-2 - SNOUT-EXH-L DRIVE [ More info ] Unavailable
		F748116 - Snout - Exhaust -l Driv, NLA [ More info ] $44.44 $37.64 6 In Stock.
#14	F438930	RETAINER (1 required per assembly)
		10-F438930 - Screw [ More info ] $5.99 1 In Stock.
		10-826377 - Screw [ More info ] $10.76 10+ In Stock.
#15	F1856	WASHER (1 required per assembly)
		12-F1856 - Washer, NLA [ More info ] $1.62 10+ In Stock.
#16	F1994	SCREW, 5/16 - 18 X 1 (1 required per assembly)
		10-F1994 - Screw - SS [ More info ] $1.49 10+ In Stock.
		10-90073 - Screw [ More info ] $1.85 $1.46 10+ In Stock.
#17	F2A694662	GEAR, REVERSE W/BEARING (1 required per assembly)
		43-F2A694662 - Reverse Gear Assembly [ More info ] Unavailable
		43-803843T - Gear Assembly - Rear, NLA [ More info ] $79.99 $67.74 6 In Stock.
#18	44-817962A 2	PROP SHAFT (1 required per assembly)
		44-817962A 2 - Prop Shaft Kit, NLA [ More info ] Unavailable
#19	F90619-2	YOKE (1 required per assembly)
		F90619-2 - Yoke [ More info ] $61.49 Available to Order: Shipping delay up to 10 days.
#20	F84871-1	PIN, GEAR SHIFT (1 required per assembly)
		17-F84871-1 - Gear Shift Pin [ More info ] Unavailable
#21	F694521	CLUTCH (1 required per assembly)
		F694521 - Clutch [ More info ] Unavailable
		52-816433 - Clutch [ More info ] $149.99 1 In Stock.
		52-816433T - Clutch [ More info ] $363.49 Available to Order: Shipping delay up to 10 days.
#22	F1713	SPRING PIN (1 required per assembly)
		F1713 - 17F2419 [ More info ] Unavailable
		17-F2419 - Spring Pin [ More info ] $1.43 2 In Stock.
		17-8M0029889 - Pin -roll [ More info ] $2.11 10+ In Stock.
#23	F2122	SPACER (.054) (A/R required per assembly)
		23-F2122 - Spacer - Bevel Gear Front - .054 [ More info ] $2.22 $1.88 8 In Stock.
#24	FS694023	GEAR, FORWARD W/BEARING AND CUP (1 required per assembly)
		43-FS694023 - Forward Gear Only, NLA [ More info ] Unavailable
		FS707023 - Forward Gear Only [ More info ] Unavailable
		43-816434A 5 - Forward Gear Only [ More info ] $124.99 $105.86 8 In Stock.
#25	F1907	WASHER (11 required per assembly)
		F1907 - Washer, Stainless Steel [ More info ] Unavailable
		12-12038 - Washer [ More info ] $2.30 3 In Stock.
		12-8M0207778 - WASHER Note: Priced Individually [ More info ] $11.89 5 In Stock.
#26	F1858	SCREW, 5/16 - 18 X 1 (1 required per assembly)
		10-F1858 - Screw -ss, NLA [ More info ] $3.56 2 In Stock.
#27	F1491	SCREW, 5/16 - 18 X 3-1/4 (6 required per assembly)
		10-F1491 - Screw -ss [ More info ] $9.40 $7.52 7 In Stock.
#28	F9284	SHIM (.002) (A/R required per assembly)
		15-F9284 - Shim - (.002), NLA [ More info ] $4.50 $3.82 4 In Stock.
#29	F8077	WASHER (3 required per assembly)
		F8077 - SEAL [ More info ] Unavailable
		F8186 - Washer-BLK - Priced Individually [ More info ] Unavailable
		12-19183 - Washer (3/8 Inch Screw) [ More info ] Unavailable
		12-19183 2 - Washer - Priced Individually [ More info ] Unavailable
		12-19183 3 - Seal -Blue - Priced Individually [ More info ] Unavailable
		12-8M0187157 - SEAL-BLUE, Sold Individually [ More info ] $1.49 10+ In Stock.
		18-2945-9 - Gasket 12-19183 2-Pack [ More info ] $2.41 10+ In Stock.
		12-19183Q02 - Seals, Pack of 4 (yes this is actually a pack of 4) [ More info ] $6.69 10+ In Stock.
		12-19183K02 - Seal, Pack of 4 [ More info ] $7.29 6 In Stock.
		12-02108-1 - Drain Gasket (1 piece) [ More info ] $1.20 $0.85 10+ In Stock.
#30	F50109	PLUG (3 required per assembly)
		10-F50109 - Screw -Special [ More info ] $7.77 4 In Stock.
		10-79953A 2 - Drain Screw Kit [ More info ] Unavailable
		10-79953Q 2 - Screw Kit - Priced Individually [ More info ] Unavailable
		10-79953Q04 - Screw Kit - Priced Individually [ More info ] $7.49 10+ In Stock.
		18-2244 - Plug Kit, 10-79953A2 [ More info ] $3.79 10+ In Stock.
		10-79953K04 - Drain Screw - Priced Individually [ More info ] $8.19 6 In Stock.
#31	F498618	SEAL (1 required per assembly)
		25-F498618 - O-Ring [ More info ] Unavailable
		26-817469 - O-Ring [ More info ] Unavailable
		25-25007 - O-ring, Gear Shift Arm Pin [ More info ] $1.50 Available to Order: Shipping delay up to 10 days.
		18-7120 - O-Ring 322598 [ More info ] $1.07 5 In Stock.
#32	F498891	PIN, GEAR SHIFT (1 required per assembly)
		F498891 - Shift Pivot Pin [ More info ] Unavailable
		817468 - Shift Pivot Pin [ More info ] Unavailable
		826374 - Pin - Retainer [ More info ] Unavailable
#33	F523411	RETAINING RING (2 required per assembly)
		53-F523411 - Ring - Retaining, NLA [ More info ] $14.43 $12.23 4 In Stock.
#34	F84305	SEAL (1 required per assembly)
		25-F84305 - Seal [ More info ] $4.43 10+ In Stock.
		25-32507 - O-ring, (3.359 X .139) [ More info ] $5.19 1 In Stock.
		18-7127 - O-Ring 313446 [ More info ] $3.99 $3.93 Available to Order: Shipping delay up to 10 days.
#35	F2A523239	SPOOL, PROPELLER SHAFT W/BEARING AND SEAL (1 required per assembly)
		F2A523239 - Spool Assembly [ More info ] Unavailable
		803940T - Spool Assembly, NLA [ More info ] Unavailable
#36	F24278	SEAL (1 required per assembly)
		25-F24278 - O-Ring Seal-Propshaft Spool (type A) [ More info ] Unavailable
		18-7169-9 - O-Ring (PK5) 25-70937, 911686 [ More info ] $20.63 Available to Order: Shipping delay up to 10 days.
#37	F506118-1	SEAL (1 required per assembly)
		26-F506118-1 - 26-F506118-1 - SEAL [ More info ] Unavailable Replaced by 26-F506118-1
#38	F50342-1	SEAL (4 required per assembly)
		25-F50342-1 - Seal - Priced Individually [ More info ] Unavailable
		25-62702 - O-ring, (.301 X .070) [ More info ] Unavailable
		25-62702 1 - O-Ring [ More info ] $1.70 10+ In Stock.
#39	F1885	SCREW, 5/16 - 18 X 4-1/4 (4 required per assembly)
		10-F1885 - Screw -ss, NLA [ More info ] $2.50 $2.13 10+ In Stock.
#40	FA523485	ANODE, ANTI-CORROSION (1 required per assembly)
		FA523485 - Anti-Corrosion Anode, NLA [ More info ] Unavailable
#41	F8083	LOCKWASHER (6 required per assembly)
		F8083 - LockWasher SS [ More info ] Unavailable
		13-26992 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
#42	F1112	SCREW, 1/4 - 20 X 7/8 (2 required per assembly)
		10-F1112 - Screw -ss, NLA [ More info ] $2.57 10+ In Stock.
#43	F694099	SPACER (1 required per assembly)
		F694099 - Thrust Washer, NLA [ More info ] $40.33 $34.16 10+ In Stock.
#45	F523282	WASHER, PROP SPLINE (1 required per assembly)
		12-F523282 - Washer (splined) NLA [ More info ] Unavailable
#46	F1866	WASHER (1 required per assembly)
		12-F1866 - Washer [ More info ] $2.96 Available to Order: Shipping delay up to 10 days.
#47	F7048	STOP NUT, 3/4 - 16 (1 required per assembly)
		11-F7048 - Prop Nut - Priced Individually [ More info ] $13.97 1 In Stock.
#48	F694226	PLUG, PITOT TUBE (1 required per assembly)
		F694226 - PLUG,NLA [ More info ] $3.65 2 In Stock.
		892827 - PLUG,NLA [ More info ] Unavailable
#49	FA84621-1	COUPLING, GEAR SHIFT (1 required per assembly)
		FA84621-1 - Coupling [ More info ] Unavailable
#50	F694705	ROD, SHIFT (1 required per assembly)
		F694705 - ROD-SHIFT,NLA [ More info ] Unavailable
#51	FS694628	DRIVESHAFT W/BEARING AND PINION GEAR (1 required per assembly)
		45-FS694628 - 45FS707628 [ More info ] Unavailable
		45-FS707628 - Drive Shaft, Force [ More info ] Unavailable
#52	F9280	SHIM (.002) (A/R required per assembly)
		15-F9280 - Shim - (.002), NLA [ More info ] Unavailable
#53	F694057	BEARING (1 required per assembly)
		31-F694057 - Bearing [ More info ] Unavailable
		31-42647A 1 - Roller Bearing - Drive Shaft [ More info ] $65.99 Available to Order: Shipping delay up to 10 days.
		18-1117 - Bearing, 387817, 31-42647A1 [ More info ] $56.09 1 In Stock.
		31-02762 - Bearing, 31-42647A1, 387817 [ More info ] $47.99 $40.13 In Stock
#54	F694186	WASHER (1 required per assembly)
		12-F694186 - Washer - Priced Individually [ More info ] Unavailable
		12-92721 - Washer, Pinion Gear [ More info ] $1.50 $0.85 10+ In Stock.
		18-2359 - Nut Kit [ More info ] $5.19 $3.51 Available to Order: Shipping delay up to 10 days.
#55	F694188	NUT, PINION (1 required per assembly)
		11-F694188 - Nut [ More info ] Unavailable
		11-35921 - Nut, (.625-18) [ More info ] $7.99 10+ In Stock.
		18-3719 - Nut, 11-35921, 314730 [ More info ] $5.19 1 In Stock.
#56	F694058	BEARING, (CONE) (1 required per assembly)
		31-F694058 - Bearing [ More info ] Unavailable
		31-35924A 1 - Bearing Set [ More info ] Unavailable
		31-35924T 1 - Bearing [ More info ] Unavailable
#57	F694056	CUP, BEARING (1 required per assembly)
		31-F694056 - Bearing Cup [ More info ] Unavailable
#58	F694961	RETAINER, BEARING (1 required per assembly)
		F694961 - F6949611 [ More info ] Unavailable
		F694961-1 - Retainer [ More info ] Unavailable
		824519 - Retainer [ More info ] Unavailable
		824519 1 - Retainer [ More info ] $6.99 Available to Order: Shipping delay up to 10 days.
		18-2346 - Retainer, 824519 1 [ More info ] $5.25 Available to Order: Shipping delay up to 10 days.
#59	F74305	SEAL (2 required per assembly)
		25-F74305 - Drive Shaft Cover O-Ring [ More info ] Unavailable
		25-90011 - Drive Shaft Cover O-Ring [ More info ] Unavailable
		25-896523 - O-ring, (2.175 X .103) [ More info ] Unavailable
		25-8M0142854 - O-Ring [ More info ] $1.10 5 In Stock.
#60	F694305	SEAL (1 required per assembly)
		26-F694305 - Seal [ More info ] Unavailable
		26-89238 - Seal [ More info ] $21.68 1 In Stock.
		18-2014 - Seal 26-89238, 26F69430 [ More info ] $18.86 5 In Stock.
		26-00171 - Seal 26-89238, 26F694305 [ More info ] $16.99 $14.00 Available to Order: Shipping delay up to 10 days.
#61	F694307	SEAL (1 required per assembly)
		26-F694307 - F6943071 [ More info ] Unavailable
		F694307-1 - SEAL [ More info ] Unavailable
		26-819740 - Seal [ More info ] $8.79 4 In Stock.
#62	F1999	SCREW, 1/4 - 20 X 7/8 (4 required per assembly)
		10-F1999 - Screw -ss [ More info ] $1.10 10 In Stock.
		10-28668 - Screw - Priced Individually [ More info ] $1.70 Available to Order: Shipping delay up to 10 days.
#63	F694618	BELLOWS (1 required per assembly)
		F694618 - Bellows, NLA [ More info ] Unavailable
		FK721706 - Gear Housing Cover [ More info ] Unavailable
#64	F695685	CONNECTOR, SHIFT ROD (1 required per assembly)
		F695685 - CONNECTOR [ More info ] Unavailable
		819465A 1 - Connector Kit, NLA [ More info ] Unavailable
#65	F695871	SHAFT, SHIFT ROD (1 required per assembly)
		F695871 - Shift Rod Shaft, Stainless Steel, NLA [ More info ] $26.93 10+ In Stock.
#66	F7062	NUT, 10 - 32 (1 required per assembly)
		11-F7062 - Nut - Priced Individually [ More info ] Unavailable
		11-29488 - Nut, (#10-32) [ More info ] $3.61 10+ In Stock.
		11-826709106 - Nut, (#10-32) Stainless Steel [ More info ] $4.50 6 In Stock.
		11-8M0204718 - NUT [ More info ] $4.69 Available to Order: Shipping delay up to 10 days.
#67	F2042	WASHER (1 required per assembly)
		F2042 - Washer - Priced Individually [ More info ] Unavailable
		12-89302 - Washer (.203 X .406 X .040) [ More info ] $1.80 10+ In Stock.
#68	F694211	STUD (1 required per assembly)
		16-F694211 - STUD,NLA [ More info ] Unavailable
#69	FK721706	COVER, GEAR HOUSING (1 required per assembly)
#71	F694564-1	LINER, WATER PUMP (1 required per assembly)
		F694564-1 - Insert [ More info ] $30.29 Available to Order: Shipping delay up to 10 days.
#72	F698735-1	SEAL, EXHAUST (1 required per assembly)
		F698735-1 - Seal, NLA [ More info ] Unavailable
#73	F695680	GASKET (1 required per assembly)
		F695680 - F695680 - PLATE-SPACER [ More info ] Unavailable Replaced by -F695680-1
		F695680-1 - PLATE-SPACER,NLA [ More info ] Unavailable
#74	FA694054	GEAR HOUSING (1 required per assembly)
		FA694054 - Gear Housing [ More info ] Unavailable
		1600-819190A 1 - Gear Housing Kit [ More info ] Unavailable
		1600-819190A 2 - Gear Housing Kit [ More info ] Unavailable
		1600-819190A 3 - Basic Gear Housing Assembly [ More info ] Unavailable
		1600-817925A 5 - Gear Housing, NLA [ More info ] Unavailable
