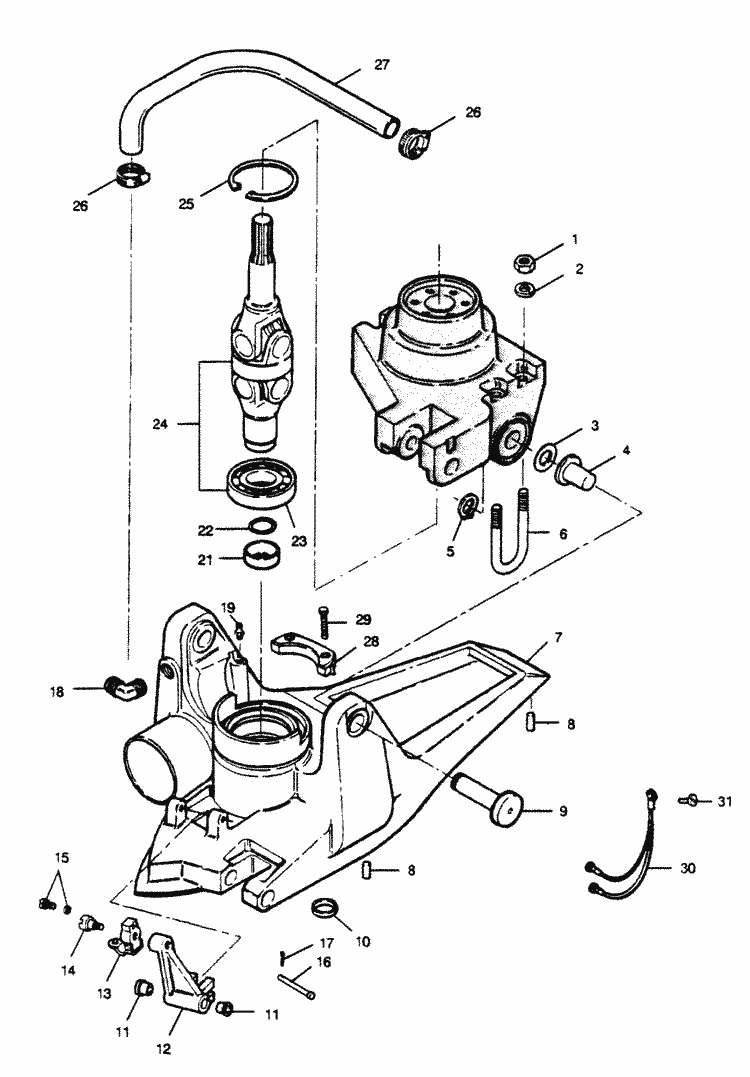

Parts for Force 85 HP (1989 L-Drive) U-joint & Housing
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 817922A 1 | U-JOINT HOUSING W/U-JOINT (1 required per assembly) |
  |
|
817922A 1 - Housing,NLA [ More info ] Unavailable |
| #1 | F7025 | NUT, 3/8 - 16 (2 required per assembly) |
  |
F7025 - Lock Nut 3/8 - 16 (Stainless Steel) [ More info ] Unavailable |
|
  |
|
11-68411 - Nut (3/8-16) [ More info ]
|
  |
|
11-826709 12 - Nut, (.375-16) Stainless Steel [ More info ]
|
| #2 | F2014 | WASHER (2 required per assembly) |
  |
|
|
  |
|
12-34931 - Washer, (.406 X .734 X .063 - Stainless Steel) [ More info ]
|
| #3 | F695175 | WASHER (2 required per assembly) |
  |
|
12-F695175 - Washer, NLA [ More info ]
|
| #4 | F695610 | BEARING (2 required per assembly) |
  |
|
23-F695610 - Bearing, NLA [ More info ]
|
| #5 | F695807 | RING, RETAINING (2 required per assembly) |
  |
|
53-F695807 - Ring - Retaining, NLA [ More info ]
|
| #6 | F695632 | U-BOLT (1 required per assembly) |
  |
|
10-F695632 - U Bolt, NLA [ More info ]
|
| #7 | 817980A 2 | HOUSING, U-JOINT (1 required per assembly) |
  |
|
817980A 2 - HSG KIT-U JOINT,NLA [ More info ] Unavailable |
| #8 | F8580 | PIN, LOCATING (2 required per assembly) |
  |
|
17-F8580 - Pin, Locating [ More info ]
|
  |
|
17-85500 - Pin, Dowel (.187 X .530) [ More info ]
|
  |
|
178M0084726 - Pin - Dowel [ More info ]
|
| #9 | F695440 | PIN, PIVOT (2 required per assembly) |
  |
F695440 - Pin, Pivot [ More info ] Unavailable |
|
  |
|
819282A 1 - PIN KIT-PIVOT,NLA [ More info ] Unavailable |
| #10 | F694736 | SEAL, WATER PUMP OUTLET (1 required per assembly) |
  |
|
25-F694736 - O-Ring [ More info ]
|
| #11 | F695189 | BUSHING (2 required per assembly) |
  |
|
23-F695189 - Bushing, NLA [ More info ]
|
| #12 | F695621 | LEVER, SHIFT (1 required per assembly) |
  |
|
F695621 - LEVER-SHIFT,NLA [ More info ] Unavailable |
| #13 | FK405020 | CLAMP W/PIVOT SCREW (1 required per assembly) |
  |
|
FK405020 - Swivel Kit, NLA [ More info ]
|
| #14 | F405457 | PIVOT SCREW (1 required per assembly) |
  |
|
10-F405457 - Screw, NLA [ More info ]
|
| #15 | F2217 | SCREW W/LOCKWASHER, 10 - 24 X 3/8 (1 required per assembly) |
  |
|
10-F2217 - Screw [ More info ]
|
  |
|
10-F2217-1 - 10-F2217-1 - SCREW (10-24 x .3 [ More info ] Unavailable Replaced by 10-F2217-1 |
| #16 | F695620 | PIN, SHIFT ARM (1 required per assembly) |
  |
|
17-F695620 - Pin - Shift Arm, NLA [ More info ]
|
| #17 | F8581 | COTTER PIN (1 required per assembly) |
  |
F8581 - Cotter Pin [ More info ] Unavailable |
|
  |
|
18-46950 - Cotter Pin [ More info ]
|
| #18 | F695131 | ELBOW, WATER LINE (1 required per assembly) |
  |
F695131 - Elbow [ More info ] Unavailable |
|
  |
|
22-819070 - Elbow, NLA [ More info ] Unavailable |
| #19 | F98273 | BALL STUD (1 required per assembly) |
  |
|
16-F98273 - Stud, NLA [ More info ]
|
| #21 | F695735 | SEAL (1 required per assembly) |
  |
|
26-F695735 - Seal [ More info ] Unavailable |
| #22 | F695618 | SEAL (1 required per assembly) |
  |
F695618 - 25F6956181 [ More info ] Unavailable |
|
  |
|
25-F695618-1 - O-Ring [ More info ]
|
| #23 | F695527 | BEARING (1 required per assembly) |
  |
|
30-F695527 - Ball Bearing [ More info ]
|
| #24 | F2A695141 | UNIVERSAL JOINT W/BEARING (1 required per assembly) |
  |
|
F2A695141 - Universal Joint with Bearing [ More info ] Unavailable |
| #25 | F695764 | RING, RETAINING (1 required per assembly) |
  |
|
53-F695764 - RET-RING,NLA [ More info ] Unavailable |
| #26 | F695771 | CLAMP (2 required per assembly) |
  |
54-F695771 - CLAMP-SS [ More info ] Unavailable |
|
  |
54-815504412 - Clamp [ More info ] Unavailable |
|
  |
|
54-8M0204717 - CLAMP [ More info ] Unavailable |
| #27 | F695259-1 | HOSE (1 required per assembly) |
  |
F695259-1 - 32F6952592 [ More info ] Unavailable |
|
  |
32-F695259-2 - Hose -13.75 IN, NLA [ More info ] Unavailable |
|
| #28 | F695485 | ANODE (1 required per assembly) |
  |
F695485 - Anode [ More info ] Unavailable |
|
  |
|
819011C - Anode, NLA [ More info ] Unavailable |
| #29 | F1657 | SCREW, 5/8 - 18 X 1-3/4 (2 required per assembly) |
  |
F1657 - SCREW-SS [ More info ] Unavailable |
|
  |
|
10-30559 - Screw, NLA [ More info ]
|
| #30 | F695905 | CABLE, GROUND (1 required per assembly) |
  |
F695905 - Cable [ More info ] Unavailable |
|
  |
|
84-819031A 1 - Cable Assembly, NLA [ More info ]
|
