Parts for Force 85 HP (1988) Engine Cover Cajun Models

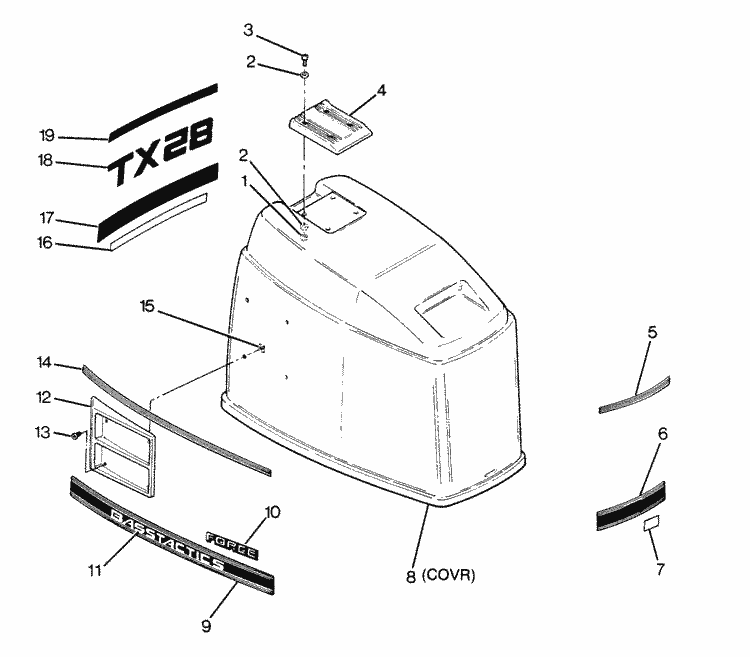

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | F663984 | BLANKET, TOP (NOT SHOWN) (1 required per assembly) |
  |
F663984 - F6639841 [ More info ] Unavailable |
|
  |
F663984-1 - Blanket-TOP [ More info ] Unavailable |
|
  |
|
827291 - Blanket-TOP,NLA [ More info ] Unavailable |
| # | F2C685712 | ENGINE COVER, COMPLETE (1 required per assembly) |
  |
|
F2C685712 - Cover, NLA [ More info ] Unavailable |
| # | F663985 | BLANKET, SIDE (NOT SHOWN) (2 required per assembly) |
  |
|
F663985 - Blanket-side, NLA [ More info ] Unavailable |
| #1 | F7024 | STOP NUT, 1/4 - 20 (4 required per assembly) |
  |
F7024 - 11F7060 [ More info ] Unavailable |
|
  |
11-F7060 - 118267118 [ More info ] Unavailable |
|
  |
11-13855 - Nut (1/4-20) [ More info ] Unavailable |
|
  |
|
11-826711 8 - Nut [ More info ]
|
| #2 | F2012 | WASHER (8 required per assembly) |
  |
F2012 - Washer [ More info ] Unavailable |
|
  |
|
12-29245 - Washer [ More info ]
|
  |
|
12-8M0204649 - WASHER Note: Priced Individually [ More info ]
|
| #3 | F2143 | HEX SOC. HD. SCREW, 1/4 - 20 X 1 S.S. (4 required per assembly) |
  |
|
10-F2143 - Screw -ss [ More info ]
|
| #4 | F663269 | HANDLE, TILT (1 required per assembly) |
  |
F663269 - HANDLE-TILT [ More info ] Unavailable |
|
  |
816518 - HANDLE-TILT NLA C [ More info ] Unavailable |
|
  |
|
828477 - HANDLE-TILT [ More info ] Unavailable |
| #5 | FM685894 | DECAL, TOP-FRONT (1 required per assembly) |
  |
|
FM685894 - DECAL-CAJUN,NLA [ More info ] Unavailable |
| #6 | FM685892 | DECAL, BOTTOM-FRONT (1 required per assembly) |
  |
|
FM685892 - DECAL-CAJUN,NLA [ More info ] Unavailable |
| #7 | F685387 | DECAL, "US MARINE" (1 required per assembly) |
  |
F685387 - F6853871 [ More info ] Unavailable |
|
  |
F685387-1 - 37F6853872 [ More info ] Unavailable |
|
  |
|
37-F685387-2 - Decal - (Blue), NLA [ More info ]
|
| #8 | FS663712 | ENGINE COVER, (WITHOUT PAINT, DECALS, OR HARDWARE) (1 required per assembly) |
  |
FS663712 - COWL ASSY-3 CYL [ More info ] Unavailable |
|
  |
100-819364A 3 - COWL ASSY-BASIC [ More info ] Unavailable |
|
  |
100-819364A 6 - COWL ASSY-BASIC [ More info ] Unavailable |
|
  |
100-819364A 7 - COWL ASSY-BASIC [ More info ] Unavailable |
|
  |
100-819364A 9 - COWL ASSY-BASIC [ More info ] Unavailable |
|
  |
|
100-819364T 9 - COWL ASSY-BASIC,NLA [ More info ] Unavailable |
| #9 | FM685396 | DECAL, BOTTOM-STARBOARD (1 required per assembly) |
  |
|
FM685396 - DECAL-CAJUN,NLA [ More info ] Unavailable |
| #10 | F663366 | MEDALLION-FORCE (2 required per assembly) |
  |
F663366 - F6633661 [ More info ] Unavailable |
|
  |
F663366-1 - MEDALLION-FORCE [ More info ] Unavailable |
|
  |
|
819169 - Medallion - Force, NLA [ More info ]
|
| #11 | FM685392 | DECAL, "BASSTACTICS" (SIDE) (2 required per assembly) |
  |
|
FM685392 - DECAL-CAJUN,NLA [ More info ] Unavailable |
| #12 | F685681 | SCOOP, AIR (2 required per assembly) |
  |
|
F685681 - SHIELD NLA [ More info ] Unavailable |
| #13 | F2216 | HEX SOC. HD. SCREW, 8-32 X 1/2 S.S. (8 required per assembly) |
  |
|
10-F2216 - Screw -ss, NLA [ More info ]
|
| #14 | FM685915 | DECAL, TOP-SIDE (2 required per assembly) |
  |
|
FM685915 - DECAL-CAJUN,NLA [ More info ] Unavailable |
| #15 | F1693 | TINNERMAN NUT, 8-32 (8 required per assembly) |
  |
|
11-F1693 - Nut (#8-32) [ More info ]
|
| #16 | FM684392 | DECAL, "BASSTACTICS" (REAR) (1 required per assembly) |
  |
|
FM684392 - DECAL-CAJUN,NLA [ More info ] Unavailable |
| #17 | FM685528 | DECAL, BOTTOM-REAR (1 required per assembly) |
  |
|
FM685528 - DECAL-CAJUN,NLA [ More info ] Unavailable |
| #18 | FM685386 | DECAL, "85XT" (1 required per assembly) |
  |
|
FM685386 - DECAL-CAJUN,NLA [ More info ] Unavailable |
| #19 | FM685585 | DECAL, TOP-REAR (1 required per assembly) |
  |
|
FM685585 - DECAL-CAJUN,NLA [ More info ] Unavailable |
