Parts for Force 85 HP (1987) Fuel Pump

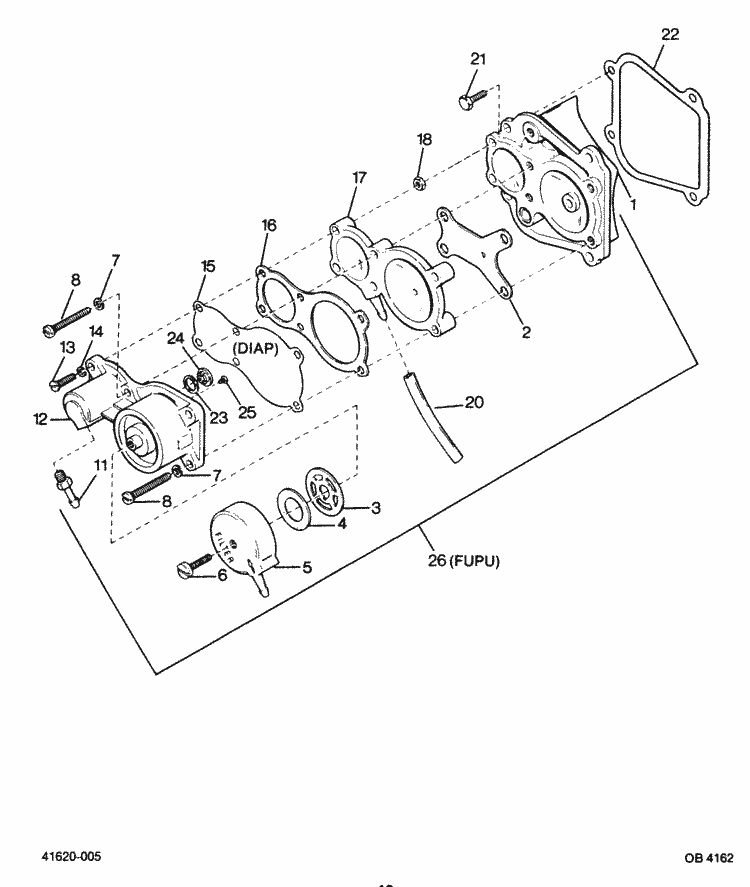

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | FA658746 | COVER, FUEL PUMP (1 required per assembly) W/LITERATURE |
  |
FA658746 - F6587461, NLA [ More info ] Unavailable |
|
  |
|
F658746-1 - Fuel Pump Cover [ More info ]
|
  |
|
817870A 1 - Fuel Pump Cover Kit, NLA [ More info ] Unavailable |
| #2 | F658803 | GASKET, SPACER PLATE (1 required per assembly) |
  |
|
27-F658803 - Fuel Pump Spacer Gasket [ More info ]
|
| #3 | F438617 | GASKET, FUEL SEDIMENT BOWL (1 required per assembly) |
  |
27-F438617 - Fuel Pump Bowl Gasket [ More info ] Unavailable |
|
  |
|
27-823606 - Fuel Bowl Gasket [ More info ]
|
| #4 | F438653 | SCREEN, FUEL PUMP (1 required per assembly) |
  |
|
35-F438653 - Screen [ More info ]
|
| #5 | F438500 | BOWL, FUEL SEDIMENT (1 required per assembly) |
  |
F438500 - Fuel Bowl Pump [ More info ] Unavailable |
|
  |
|
817066 - Fuel Pump Bowl [ More info ] Unavailable |
| #6 | F1648 | SCREW, FUEL SEDIMENT BOWL (1 required per assembly) |
  |
F1648 - Screw [ More info ] Unavailable |
|
  |
|
10-41069 - Screw [ More info ]
|
| #7 | F8083 | LOCKWASHER (4 required per assembly) |
  |
F8083 - LockWasher SS [ More info ] Unavailable |
|
  |
|
13-26992 - LockWasher - Priced Individually [ More info ]
|
| #8 | F1504 | SLOTTED FIL SCREW, 1/4 - 20 X 1-1/4 S.S. (4 required per assembly) |
  |
|
10-F1504 - Screw -ss [ More info ]
|
| #9 | F89758 | FUEL PUMP AIR HOSE, TOP (1 required per assembly) |
  |
F89758 - F897581 [ More info ] Unavailable |
|
  |
F89758-1 - Hose - Impulse [ More info ] Unavailable |
|
  |
32-99127109 - TUBING-57 INCH [ More info ] Unavailable |
|
  |
32-830756109 - Hose, 57 Inch [ More info ] Unavailable |
|
  |
32-8M0047428 - Hose -57 Inch [ More info ] Unavailable |
|
  |
|
32-8M0108355 - Hose, 57 Inch [ More info ]
|
| #11 | F438801 | FITTING, FUEL PUMP OUTLET (1 required per assembly) |
  |
22-F438801 - Fitting [ More info ] Unavailable |
|
  |
|
22-64705 - Fitting [ More info ]
|
| #12 | FA438431 | BODY, FUEL PUMP (1 required per assembly) W/ILLUS. |
  |
FA438431 - FA686431 Fuel Pump [ More info ] Unavailable |
|
  |
FA686431 - BODY ASSY-F/P [ More info ] Unavailable |
|
  |
819843A 1 - Fuel Pump Body [ More info ] Unavailable |
|
  |
|
819843T 1 - Fuel Pump Body Assembly [ More info ] Unavailable |
| #14 | F1975 | LOCKWASHER (2 required per assembly) |
  |
13-F1975 - LockWasher - Priced Individually [ More info ] Unavailable |
|
  |
|
13-26996 - LockWasher - Priced Individually [ More info ]
|
| #15 | F438747 | DIAPHRAGM, FUEL PUMP (1 required per assembly) |
  |
|
F438747 - Fuel Pump Diaphragm Only - No Gasket, Priced Individually [ More info ]
|
| #16 | F438760 | GASKET, FUEL PUMP (1 required per assembly) |
  |
27-F438760 - Fuel Pump Gasket [ More info ] Unavailable |
|
  |
|
27-820490 - Fuel Pump Gasket [ More info ]
|
| #17 | F658836 | SPACER, FUEL PUMP (1 required per assembly) |
  |
|
F658836 - Fuel Pump Spacer [ More info ]
|
| #18 | F1473 | NUT, 10 - 24 S.S. (2 required per assembly) |
  |
F1473 - Hex Nut 10 - 24 [ More info ] Unavailable |
|
  |
|
11-79989 - Nut (10 - 24) [ More info ]
|
| #20 | F658758 | HOSE, IMPULSE (1 required per assembly) |
  |
32-F658758 - F897581 [ More info ] Unavailable |
|
| #21 | F1540 | HEX HD SCREW, 1/4 - 20 X 5/8 GR. 5 (3 required per assembly) |
  |
F1540 - 10F1922 [ More info ] Unavailable |
|
  |
|
10-F1922 - Screw, NLA [ More info ] Unavailable |
| #22 | F40223 | GASKET, TRANSFER PORT COVER (1 required per assembly) |
  |
27-F40223 - Transfer Port Cover Gasket [ More info ] Unavailable |
|
  |
27-820500 - Transfer Port Gasket [ More info ] Unavailable |
|
  |
|
27-820500A 3 - Gasket Kit [ More info ]
|
  |
|
18-0869-9 - Gasket 27-F40223 2-Pack [ More info ]
|
| #23 | F84792 | GASKET, FUEL PUMP VALVE (1 required per assembly) |
  |
|
27-F84792 - Fuel Pump Valve Gasket [ More info ]
|
| #24 | F177330 | VALVE, FUEL PUMP (3 required per assembly) |
  |
21-F177330 - Check Valve [ More info ] Unavailable |
|
  |
|
218M0082362 - Check Valve [ More info ]
|
| #25 | F1860 | SLOTTED BINDING HEAD SCREW, 6 - 32 X 1/4 (2 required per assembly) |
  |
F1860 - Screw [ More info ] Unavailable |
|
  |
|
10-28430 - Screw [ More info ]
|
| #26 | F2A658746 | FUEL PUMP COMPLETE (1 required per assembly) INCLUDES ITEMS 1, 2, 7, 8 & 11 THRU 20 |
  |
F2A658746 - Pump Assembly -3 CYL [ More info ] Unavailable |
|
  |
|
818071A 2 - Pump Assembly -3 CYL, NLA [ More info ] Unavailable |
