Parts for Force 85 HP (1985) Carburetor (Bottom Jet Style)

Revise Search: All Models > 85 HP (1985) > 856XC5L ( ) > Carburetor (Bottom Jet Style)

NEED PARTS OR KITS?

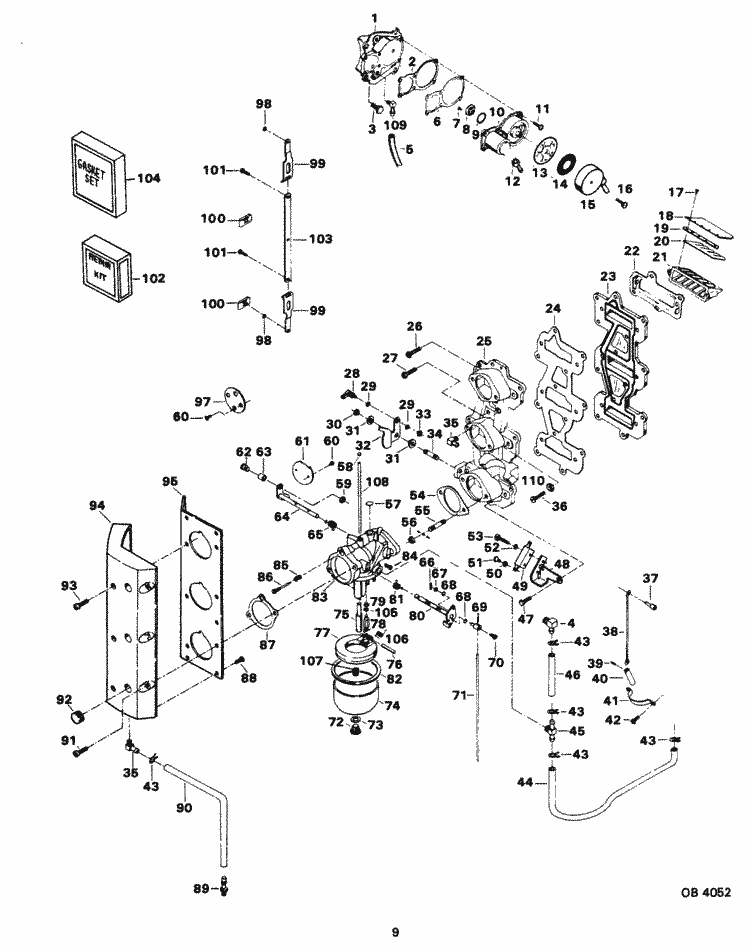

View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	FA439746	FUEL PUMP COVER (1 required per assembly) W/PLUG AND LITERATURE
		FA439746 - FS664746, NLA [ More info ] Unavailable
		FS664746 - Fuel Pump Cover Kit, NLA [ More info ] Unavailable
#2	27-F438760	FUEL PUMP GASKET (1 required per assembly)
		27-F438760 - Fuel Pump Gasket [ More info ] Unavailable
		27-820490 - Fuel Pump Gasket [ More info ] $4.59 10+ In Stock.
#3	10-F1922	HEX CAP SCREW, 1/4 - 20 X 5/8 (3 required per assembly)
		10-F1922 - Screw, NLA [ More info ] Unavailable
#4	F10156	ELBOW (2 required per assembly)
		F10156 - Fitting, NLA [ More info ] Unavailable
#5	F89758	FUEL PUMP AIR HOSE, TOP (1 required per assembly)
		F89758 - F897581 [ More info ] Unavailable
		F89758-1 - Hose - Impulse [ More info ] Unavailable
		32-99127109 - TUBING-57 INCH [ More info ] Unavailable
		32-830756109 - Hose, 57 Inch [ More info ] Unavailable
		32-8M0047428 - Hose -57 Inch [ More info ] Unavailable
		32-8M0108355 - Hose, 57 Inch [ More info ] $52.49 2 In Stock.
#6	F438747	FUEL PUMP DIAPHRAGM (1 required per assembly)
		F438747 - Fuel Pump Diaphragm Only - No Gasket, Priced Individually [ More info ] $9.89 10+ In Stock.
#7	F1860	SLOTTED BINDING HD SCREW, 6 - 32 X 1/4 (2 required per assembly)
		F1860 - Screw [ More info ] Unavailable
		10-28430 - Screw [ More info ] $1.10 Available to Order: Shipping delay up to 10 days.
#8	21-F177330	FUEL PUMP VALVE (3 required per assembly)
		21-F177330 - Check Valve [ More info ] Unavailable
		218M0082362 - Check Valve [ More info ] $9.89 10+ In Stock.
#9	27-F84792	GASKET, FUEL PUMP VALVE (1 required per assembly)
		27-F84792 - Fuel Pump Valve Gasket [ More info ] $3.39 10+ In Stock.
#10	FA438431	FUEL PUMP BODY (1 required per assembly) W/ILLUS. 7, 8 AND 9
		FA438431 - FA686431 Fuel Pump [ More info ] Unavailable
		FA686431 - BODY ASSY-F/P [ More info ] Unavailable
		819843A 1 - Fuel Pump Body [ More info ] Unavailable
		819843T 1 - Fuel Pump Body Assembly [ More info ] Unavailable
#11	10-F1108	FILL HD SCREW W/LOCKWASHER, 1/4 - 20 X 3/4 (6 required per assembly)
		10-F1108 - Screw -w/Lw, NLA [ More info ] $1.99 $1.68 8 In Stock.
#12	22-F438801	FITTING (1 required per assembly)
		22-F438801 - Fitting [ More info ] Unavailable
		22-64705 - Fitting [ More info ] $11.59 1 In Stock.
#13	27-F438617	FUEL SEDIMENT BOWL GASKET (1 required per assembly)
		27-F438617 - Fuel Pump Bowl Gasket [ More info ] Unavailable
		27-823606 - Fuel Bowl Gasket [ More info ] $14.89 4 In Stock.
#14	35-F438653	FUEL SEDIMENT BOWL SCREEN (1 required per assembly)
		35-F438653 - Screen [ More info ] $10.69 7 In Stock.
#15	F438500	FUEL SEDIMENT BOWL (1 required per assembly)
		F438500 - Fuel Bowl Pump [ More info ] Unavailable
		817066 - Fuel Pump Bowl [ More info ] Unavailable
#16	F438165	SCREW, FUEL PUMP BOWL (1 required per assembly)
		F438165 - Screw-SPECIAL [ More info ] Unavailable
		F1648 - Screw [ More info ] Unavailable
		10-41069 - Screw [ More info ] $1.99 Available to Order: Shipping delay up to 10 days.
#17	F1755	RD HD SCREW W/LOCKWASHER, 6 - 32 X 5/16 (30 required per assembly)
		F1755 - SCREW [ More info ] $0.30 5 In Stock.
		10-819074 - Screw -w/Lw [ More info ] $0.55 $0.46 10+ In Stock.
#18	34-F85161-1	REED STOP (6 required per assembly)
		34-F85161-1 - Reed Stop, NLA [ More info ] Unavailable
#19	F523451	SPACER, REED STOP (6 required per assembly)
		F523451 - Spacer - Reed Stop [ More info ] $2.20 10+ In Stock.
#20	34-F530160	REED (6 required per assembly) (5 PETAL)
		34-F530160 - Reed [ More info ] Unavailable
#21	F3A523158	REED PLATE (3 required per assembly) W/ILLUS. 17, 18, 19 AND 20
		F3A523158 - Reed Plate [ More info ] Unavailable
		818108A 1 - Reed Plate Assembly, NLA [ More info ] Unavailable
#22	27-F85168-1	GASKET REED PLATE ADAPTER (3 required per assembly)
		27-F85168-1 - 27F851682 [ More info ] Unavailable
		27-F85168-2 - Reed Plate Adapter Gasket [ More info ] $5.69 Available to Order: Shipping delay up to 10 days.
#23	F85162	REED PLATE ADAPTER (1 required per assembly)
		F85162 - Adapter [ More info ] Unavailable
		F722162 - Adapter, NLA [ More info ] Unavailable
		819735 1 - Adapter, NLA [ More info ] $53.99 $45.72 6 In Stock.
#24	27-F85159-1	GASKET, INTAKE MANIFOLD (1 required per assembly)
		27-F85159-1 - 27-F85159-1 - GASKET [ More info ] Unavailable Replaced by 27-F85159-1
#25	817959A 3	INTAKE MANIFOLD (1 required per assembly) W/ILLUS. 36 AND LITERATURE ORIGINAL FORCE P/N K480167-2
		817959A 3 - Manifold Kit,NLA [ More info ] Unavailable
#26	10-F2008	HEX HD SCREW, 1/4 - 20 X 7/8 (7 required per assembly)
		10-F2008 - Screw -ss, NLA [ More info ] $3.22 10+ In Stock.
#27	10-F1699	HEX HD SCREW, 1/4 - 20 X 1-1/8 (2 required per assembly)
		10-F1699 - Screw -ss, NLA [ More info ] $3.22 10+ In Stock.
#28	817747 1	BALL JOINT W/STUD (1 required per assembly)
		817747 1 - Ball Joint Assembly [ More info ] Unavailable
		828514A 1 - Ball and Socket [ More info ] $22.61 10+ In Stock.
#29	13-F8058	INTERNAL TOOTH LOCKWASHER (2 required per assembly)
		13-F8058 - LockWasher, NLA [ More info ] $1.09 10+ In Stock.
#30	11-F7008	STOP NUT, 1/4 - 20 (1 required per assembly)
		11-F7008 - Nut, (.250-20) [ More info ] Unavailable
		11-72008 - Nut (1/4-20) [ More info ] Unavailable
		11-826708 8 - Nut [ More info ] $1.70 Available to Order: Shipping delay up to 10 days.
#31	23-F269319	BEARING (2 required per assembly)
		23-F269319 - Bushing, NLA [ More info ] $9.69 10+ In Stock.
#32	F85192-1	THROTTLE CAM (1 required per assembly)
		F85192-1 - Throttle Cam, NLA [ More info ] $11.72 10+ In Stock.
#33	F1513	HEX NUT, 10 - 32 (1 required per assembly)
		F1513 - Hex Nut 10 - 32 [ More info ] $0.86 10+ In Stock.
		11-68219 - Nut (#10-32) [ More info ] $2.99 10+ In Stock.
#34	16-F433209-1	STUD (1 required per assembly)
		16-F433209-1 - Stud [ More info ] $8.61 10+ In Stock.
#35	22-818103 1	ELBOW (2 required per assembly)
		22-818103 1 - Fitting, NLA [ More info ] Unavailable
#36	10-F2050	HEX HD SCREW, 1/4 - 20 X 1-1/2 (6 required per assembly)
		10-F2050 - Screw [ More info ] Unavailable
		10-819110150 - Screw, NLA [ More info ] Unavailable
#37	F85033	CHOKE ROD SWIVEL (1 required per assembly)
		F85033 - Swivel [ More info ] $49.99 $42.33 10+ In Stock.
#38	F85925	CHOKE ROD (1 required per assembly)
		F85925 - Choke Rod, NLA [ More info ] $6.47 10+ In Stock.
#39	17-F2033	GROOVE PIN (1 required per assembly)
		17-F2033 - Pin, Groove, NLA [ More info ] $1.53 $1.29 10+ In Stock.
#40	F391926-1	CHOKE SOLENOID PLUNGER (1 required per assembly)
		F391926-1 - Choke Plunger, NLA [ More info ] $41.85 $35.45 3 In Stock.
#41	F85317-2	CLAMP (1 required per assembly)
		F85317-2 - 54F853173 [ More info ] Unavailable
		54-F85317-3 - Clamp [ More info ] $4.83 $4.10 10+ In Stock.
#42	F1236	HEX HD SCREW, 1/4 - 20 X 1/2 (2 required per assembly)
		F1236 - Screw [ More info ] Unavailable
		10-98253 - Screw [ More info ] $1.10 Available to Order: Shipping delay up to 10 days.
#43	F97772	HOSE CLAMP (6 required per assembly)
		F97772 - Clamp, NLA [ More info ] Unavailable
		54-63933 - Clamp [ More info ] $1.96 10+ In Stock.
#44	F438754	FUEL LINE (1 required per assembly)
		F438754 - 32F695754 [ More info ] Unavailable
		32-F695754 - Hose-19.5 INCH [ More info ] Unavailable
		32-827228 81 - Hose-38 INCH [ More info ] Unavailable
#45	F10164	FUEL FITTING (2 required per assembly)
		F10164 - Fitting, NLA [ More info ] Unavailable
#46	F85253-1	FUEL LINE (2 required per assembly)
		F85253-1 - Fuel Line [ More info ] Unavailable
		32-819248 10 - Hose-3.38 INCH [ More info ] Unavailable
		32-819248 67 - Hose-25 INCH [ More info ] Unavailable
#47	10-F1532	HEX HD SCREW, 1/4 - 20 X 1 (3 required per assembly)
		10-F1532 - Screw [ More info ] Unavailable
		10-819110100 - Screw [ More info ] $0.50 Available to Order: Shipping delay up to 10 days.
#48	F480551-1	BRACKET INTERLOCK SWITCH (1 required per assembly)
		F480551-1 - Bracket, NLA [ More info ] Unavailable
#54	27-F85906	CARBURETOR GASKET (3 required per assembly)
		27-F85906 - Carburetor Gasket [ More info ] Unavailable
		27-828925 - Carburetor Gasket [ More info ] $2.39 10+ In Stock.
#55	16-F40209	CARBURETOR STUD (6 required per assembly)
		16-F40209 - STUD [ More info ] Unavailable
		16-826388 1 - Stud, NLA [ More info ] $1.65 $1.40 10+ In Stock.
#56	F1515	HEX NUT, 5-16 - 18 (6 required per assembly)
		F1515 - Hex Hut, 5/16 - 18 [ More info ] $0.30 10+ In Stock.
		11-68292 - Nut (5/16 Inch) [ More info ] $1.50 10+ In Stock.
		11-8M0204668 - NUT @5 [ More info ] Unavailable
#57	19-F10153	BODY CHANNEL WELCH PLUG (1 required per assembly)
		19-F10153 - Plug [ More info ] $2.39 1 In Stock.
#58	19-F10152	BODY CHANNEL CUP PLUG (1 required per assembly)
		19-F10152 - Plug -cup [ More info ] $1.77 $1.49 2 In Stock.
#59	11-F1997	STOP NUT, 8 - 32 (1 required per assembly)
		11-F1997 - Nut (#8-32) [ More info ] Unavailable
		11-826709 4 - Nut - Priced Individually [ More info ] $1.88 3 In Stock.
#60	10-F10155	THROTTLE SHUTTER SCREW AND LOCKWASHER (4 required per assembly)
		10-F10155 - Screw [ More info ] $2.79 Available to Order: Shipping delay up to 10 days.
#61	F10169	THROTTLE SHUTTER (1 required per assembly)
		F10169 - Valve, NLA [ More info ] $1.65 $1.40 5 In Stock.
#62	F333316	THROTTLE ROLLER SHAFT (1 required per assembly)
		F333316 - Roller Shaft, NLA [ More info ] Unavailable
		830110 - Roller Shaft, NLA [ More info ] $11.84 3 In Stock.
#63	F92759	THROTTLE ROLLER (1 required per assembly)
		F92759 - Roller, NLA [ More info ] Unavailable
		819225 - Roller, NLA [ More info ] $9.69 10+ In Stock.
#64	F10168	THROTTLE SHAFT AND LEVER (1 required per assembly)
		F10168 - SHAFT ASSY,NLA [ More info ] Unavailable
#65	24-F10172	THROTTLE SHAFT RETURN SPRING (1 required per assembly)
		24-F10172 -Spring, Throttle Return,NLA [ More info ] $3.99 $3.37 8 In Stock.
#66	F1014	COTTER PIN (3 required per assembly)
		F1014 - Cotter Pin - Priced Individually [ More info ] Unavailable
		18-26953 - Cotter Pin - Priced Individually [ More info ] $4.19 8 In Stock.
#67	12-F8088	PLAIN WASHER (3 required per assembly)
		12-F8088 - Washer - Priced Individually [ More info ] Unavailable
		12-27882 - Washer - Priced Individually [ More info ] $1.27 10+ In Stock.
#68	25-F184579	SEAL, CHOKE ARM SWIVEL (6 required per assembly)
		25-F184579 - O-Ring [ More info ] Unavailable
		25-68211 - O-Ring [ More info ] $1.40 Available to Order: Shipping delay up to 10 days.
#69	F184033-1	CHOKE ARM SWIVEL (2 required per assembly)
		F184033-1 - Swivel [ More info ] $9.12 10+ In Stock.
#70	10-F1059	FILL HD SCREWS, S.S., 6 - 32 X 1/4 (3 required per assembly)
		10-F1059 - Screw -ss, NLA [ More info ] $2.93 10+ In Stock.
#71	F85509-1	CHOKE LINK (1 required per assembly)
		F85509-1 - Choke Link E, NLA [ More info ] Unavailable
#72	F10173	MAIN FUEL JET (.074) STD. SEA LEVEL - 2500 FT. (1 required per assembly)
		F10173 - Main Fuel Jet -.074, NLA [ More info ] Unavailable
#72	F10147	MAIN FUEL JET (.072) OPT. 2500 - 5000 FT. (OPT required per assembly)
		F10147 - Jet - Bottom-.072, NLA [ More info ] Unavailable
#72	F10184	MAIN FUEL JET (.070) OPT. 5000 - 7500 FT. (OPT required per assembly)
		F10184 - JET-BOTTOM-.070 [ More info ] Unavailable
#72	F10183	MAIN FUEL JET (0.68) OPT. 7500 FT. & UP (OPT required per assembly)
		F10183 - JET-BOTTOM-.068 [ More info ] Unavailable
#73	27-F10090	GASKET, FUEL BOWL RETAINING SCREW (1 required per assembly)
		27-F10090 - Fuel Bowl Gasket [ More info ] $3.69 6 In Stock.
#74	F10127	FUEL BOWL (1 required per assembly)
		F10127 - BOWL [ More info ] Unavailable
		F10333 - Fuel Bowl [ More info ] $34.48 2 In Stock.
#75	F10137	MAIN NOZZLE (1 required per assembly)
		F10137 - Main Nozzle, NLA [ More info ] Unavailable
#76	F10136	FLOAT LEVER PIN (1 required per assembly)
		F10136 - Shaft, NLA [ More info ] $2.72 $2.31 10+ In Stock.
#77	F10135	FLOAT (1 required per assembly)
		F10135 - Float Assembly [ More info ] $46.18 1 In Stock.
#78	F10170	VALVE ASSY/INLET (1 required per assembly)
		F10170 - Valve Assembly [ More info ] $19.55 $16.56 10+ In Stock.
#79	FO18005	SEAT VALVE (1 required per assembly)
		FO18005 - Seat - Valve [ More info ] Unavailable
		820719 - Seat - Valve [ More info ] $9.39 5 In Stock.
#80	F10159	CHOKE SHAFT AND LEVER (1 required per assembly)
		F10159 - SHAFT ASSY,NLA [ More info ] Unavailable
#81	24-F10143	CHOKE SHAFT RETURN SPRING (1 required per assembly)
		24-F10143 - Choke Shaft Return Spring,NLA [ More info ] $2.72 $2.31 3 In Stock.
#82	F10138	FUEL BOWL GASKET (1 required per assembly)
		F10138 - 27FO15623 [ More info ] Unavailable
		27-FO15623 - Fuel Bowl Gasket [ More info ] $4.29 10+ In Stock.
#83	F581061	CARBURETOR (WE 4-1) (1 required per assembly) (COMPLETE) (TOP)
		F581061 - Carburetor [ More info ] Unavailable
		1300-F831061-3 - Carburetor-TOP [ More info ] Unavailable
		1300-803920T - Carburetor-TOP,NLA [ More info ] Unavailable
#83	F582061	CARBURETOR (WE 4-2) (2 required per assembly) (COMPLETE) (MIDDLE & BOTTOM)
		F582061 - Carburetor [ More info ] Unavailable
		1300-F832061-3 - Carburetor-MID OR BOT [ More info ] Unavailable
		1300-803921T - Carburetor-MID OR BOT,NLA [ More info ] Unavailable
#84	FO15339	JET, NOZZLE VENT (1 required per assembly)
		FO15339 - JET-.054 [ More info ] Unavailable
		1399-5225 - Jet -.054 [ More info ] $4.09 Available to Order: Shipping delay up to 10 days.
#85	24-F10141	IDLE SCREW SPRING (1 required per assembly)
		24-F10141 - Spring, Idle Mixture Screw [ More info ] Unavailable
		1395-6103 - Spring, Idle Needle [ More info ] Unavailable
#86	FO14166	IDLE SCREW (1 required per assembly)
		FO14166 - Idle Mixture Screw [ More info ] $13.09 6 In Stock.
#87	27-F481836	INTAKE GASKET (3 required per assembly)
		27-F481836 - Intake Gasket [ More info ] $2.89 6 In Stock.
#88	10-F1760	PAN HD SCREW, 10 - 24 X 3/8 (6 required per assembly)
		10-F1760 - Screw -ss, NLA [ More info ] $1.50 $1.28 10+ In Stock.
#89	22-817789A 1	DRAIN FITTING W/METERING CUP (1 required per assembly)
		22-817789A 1 - Fitting, NLA [ More info ] Unavailable
#90	F63754	HOSE INTAKE DRAIN (1 required per assembly)
		F63754 - 32F691796 [ More info ] Unavailable
		32-F691796 - Hose [ More info ] Unavailable
		32-819029 62 - Hose -22.5 Inch, NLA [ More info ] $11.84 10+ In Stock.
#91	10-F1504	FILL HD SCREW, 1/4 - 20 X 1-1/4 (3 required per assembly)
		10-F1504 - Screw -ss [ More info ] $2.79 Available to Order: Shipping delay up to 10 days.
#92	25-F53504	GROMMET (3 required per assembly)
		25-F53504 - Grommet, NLA [ More info ] $11.10 $9.41 6 In Stock.
#93	10-F1072	FILL HD SCREW, 1/4 - 20 X 1-3/4 (3 required per assembly)
		10-F1072 - Screw [ More info ] $2.06 5 In Stock.
#94	F481860-1	CARBURETOR, INTAKE (1 required per assembly)
		F481860-1 - INTAKE-AIR [ More info ] Unavailable
		F695861 - INTAKE-AIR,NLA [ More info ] Unavailable
		819771 1 - INTAKE-AIR,NLA [ More info ] Unavailable
#95	F481567	CARBURETOR INTAKE ADAPTER (1 required per assembly)
		F481567 - Adapter-Carburetor [ More info ] Unavailable
		819772 - Adapter-Carburetor,NLA [ More info ] Unavailable
#97	F10161	CHOSE SHUTTER (1 required per assembly)
		F10161 - Valve, NLA [ More info ] $1.88 $1.59 10+ In Stock.
#98	53-F90807	RETAINING RING (3 required per assembly)
		53-F90807 - Retainer [ More info ] Unavailable
		53-21058 - E-Ring, NLA [ More info ] Unavailable
#99	FA85193	TIE BAR END W/SWIVEL (2 required per assembly)
		FA85193 - Bar Assembly - Throttle, NLA [ More info ] $16.76 10+ In Stock.
#100	11-F1693	TIE BAR RETAINER (2 required per assembly)
		11-F1693 - Nut (#8-32) [ More info ] $2.99 3 In Stock.
#101	10-F1064	FILL HD SCREWS, S.S., 8 - 32 X 3/8 (2 required per assembly)
		10-F1064 - Screw -ss [ More info ] $1.10 Available to Order: Shipping delay up to 10 days.
#102	FK10177	REPAIR PARTS KIT (1 required per assembly)
		FK10177 - Carburetor Repair Kit, NLA [ More info ] Unavailable
#103	FA85511	THROTTLE TIE BAR W/SWIVEL (1 required per assembly)
		FA85511 - Throttle Bar, NLA [ More info ] $6.00 $5.08 10+ In Stock.
#104	FK10178	GASKET SET (1 required per assembly)
		FK10178 - Carburetor Gasket Set [ More info ] $18.60 5 In Stock.
#105	53-F10167	RING, RETAINING (1 required per assembly)
		53-F10167 - Ring [ More info ] $5.29 Available to Order: Shipping delay up to 10 days.
#106	24-F10142	SPRING, FLOAT SUPPORT (1 required per assembly)
		24-F10142 - Spring, Float Support [ More info ] Unavailable
#107	24-F10145	SPRING, COMPRESSION (1 required per assembly)
		24-F10145 - Spring, NLA [ More info ] Unavailable
#108	F10176	TUBE, IDLE (1 required per assembly)
		F10176 - Tube - Idle, NLA [ More info ] Unavailable
#109	22-F84314-2	ELBOW (1 required per assembly)
		22-F84314-2 - Elbow, NLA [ More info ] Unavailable
#110	F8026	PLAIN WASHER (1 required per assembly)
		F8026 - Washer, NLA [ More info ] Unavailable
		12-18678 - Washer, NLA [ More info ] $1.25 $1.06 10+ In Stock.
