Parts for Force 75 HP (1998) Starter Assembly

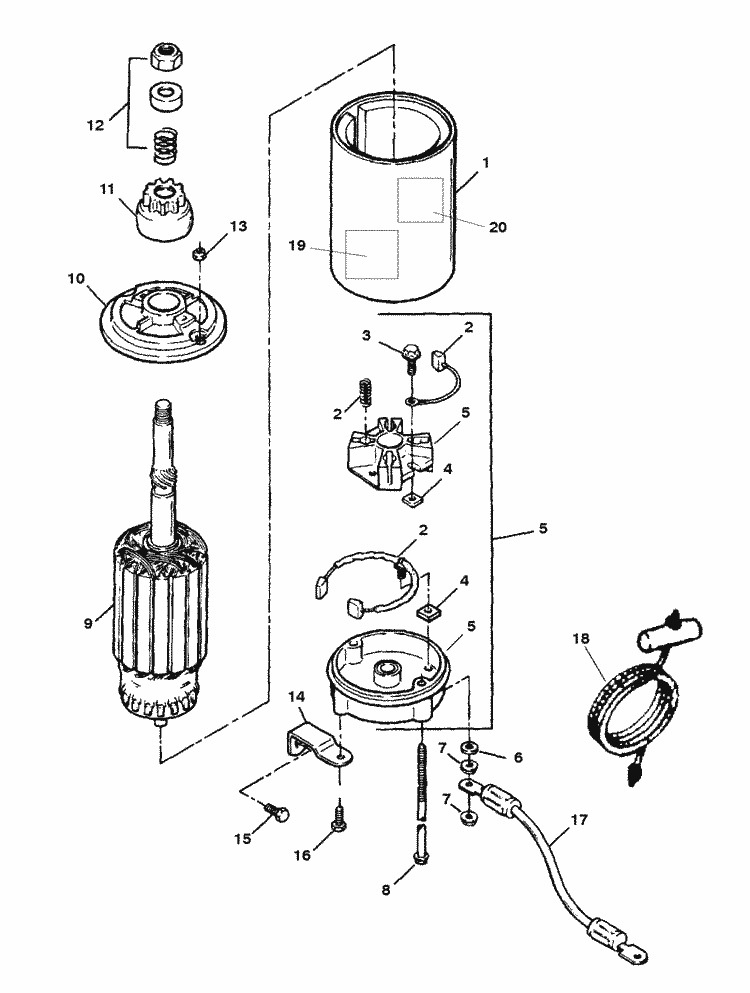

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 50-819085 | STARTER ASSEMBLY (Services F616955-1) (1 required per assembly) (SERIAL # 0E288000 THRU 0E318771) |
  |
50-819085 - Starter [ More info ] Unavailable |
|
  |
50-819085 1 - Starter [ More info ] Unavailable |
|
  |
50-819085T 1 - Starter [ More info ] Unavailable |
|
  |
|
50-898265002 - Starter Motor [ More info ] Unavailable |
  |
|
18-5613 - Starter, 50-819085 [ More info ]
|
  |
|
5393 - Outboard Starter [ More info ]
|
| #1 | 50-853869 | STARTER ASSEMBLY (1 required per assembly) (SERIAL # 0E318772 THRU 0E344999) |
  |
50-853869 - Starter [ More info ] Unavailable |
|
  |
50-853869T - Starter [ More info ] Unavailable |
|
| #2 | F15190 | BRUSH/SPRING KIT (1 required per assembly) |
  |
|
F15190 - Brush and Spring Kit [ More info ]
|
  |
|
BK900 - Brush Kit [ More info ]
|
| #3 | F15158 | SCREW (2 required per assembly) |
  |
|
F15158 - Screw [ More info ] Unavailable |
| #4 | F15159 | INSULATOR (2 required per assembly) |
  |
F15159 - Bushing - Priced Individually [ More info ] Unavailable |
|
  |
|
23-57387 - Bushing - Priced Individually [ More info ]
|
| #5 | F15189 | END CAP-Commutator (1 required per assembly) |
  |
|
F15189 - Commutator End Cap Assembly [ More info ]
|
  |
|
SR393 - End Cap Repair Kit - Commutators [ More info ]
|
| #6 | F15160 | WASHER (1 required per assembly) |
  |
F15160 - Washer, Insulator [ More info ] Unavailable |
|
  |
|
12-804700 - Washer, NLA [ More info ]
|
| #7 | F15162 | NUT (2 required per assembly) |
  |
|
F15162 - Nut (1/4-20) NLA [ More info ]
|
| #8 | F15178 | THRU BOLT (2 required per assembly) |
  |
|
F15178 - Thru Bolt [ More info ] Unavailable |
| #9 | F15177 | ARMATURE (1 required per assembly) |
  |
|
F15177 - Armature [ More info ]
|
| #10 | F15176 | END CAP-Drive (1 required per assembly) |
  |
F15176 - End Cap-DRIVE [ More info ] Unavailable |
|
  |
|
803888T - End Cap - Drive [ More info ] Unavailable |
| #11 | 819222 | DRIVE ASSEMBLY (1 required per assembly) (SERIAL # 0E288000 THRU 0E318771) |
  |
819222 - Drive Assembly [ More info ] Unavailable |
|
  |
802587 - DRIVE ASSY [ More info ] Unavailable |
|
  |
802587T - Drive Assembly [ More info ] Unavailable |
|
  |
|
802587T01 - Drive Pinion [ More info ] Unavailable |
  |
|
DV393 - Outboard Drive Gear [ More info ]
|
| #11 | 802587 | DRIVE ASSEMBLY (1 required per assembly) (SERIAL # 0E318772 THRU 0E344999) |
| #12 | 90644 | DRIVE KIT (1 required per assembly) |
  |
|
90644 - Drive Retainer Kit [ More info ]
|
| #13 | 11-828451 | NUT (.250-28) (2 required per assembly) |
  |
|
11-828451 - Nut (.250-28) [ More info ]
|
| #14 | F616675 | BRACKET-Starter Mount (1 required per assembly) |
  |
|
F616675 - Bracket [ More info ]
|
| #15 | 10-19923062 | SCREW (.250-20 x .625) With Dri Lok (1 required per assembly) |
  |
|
10-19923062 - Screw [ More info ]
|
| #17 | 84-93388A 6 | CABLE ASSY (5.500 Inches)-Starter Lead (1 required per assembly) |
  |
|
84-93388A 6 - Cable Assembly [ More info ]
|
| #18 | 47341A 1 | ROPE AND HANDLE-Emergency Start (1 required per assembly) |
  |
47341A 1 - Rope And Handle [ More info ] Unavailable |
|
  |
|
47341A11 - Manual Start Rope And Handle [ More info ]
|
| #19 | 37-825064 | DECAL-Caution-Start in Gear (1 required per assembly) |
  |
37-825064 - DECAL-CAUTION [ More info ] Unavailable |
|
  |
|
37-881865 - Decal -Caution [ More info ]
|
| #20 | 37-827282 2 | DECAL-Warning-Hi Voltage (1 required per assembly) |
  |
|
37-827282 2 - Decal - Warning [ More info ]
|
