Parts for Force 60 HP (1984) Gear Housing

Revise Search: All Models > 60 HP (1984) > 608H4C ( ) > Gear Housing

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

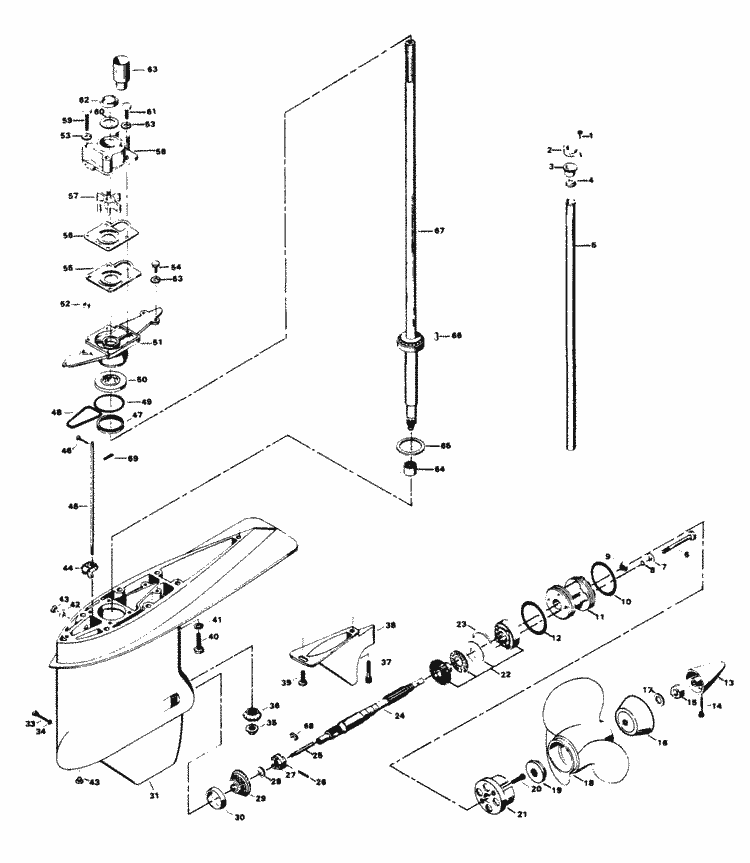

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	FK1128	WATER PUMP KIT. (1 required per assembly)
		FK1128 - Water Pump Kit, Mercury, NLA [ More info ] $64.13 $54.32 10+ In Stock.
#	F2123	SPACER, BEVEL GEAR FRONT, SIZE .053 (A/R required per assembly)
		23-F2123 - SPACER,NLA [ More info ] Unavailable
#	FC577054	*GEAR HOUSING COMPLETE (1 required per assembly) INCLUDES ALL ITEMS MARKED WITH AN ASTERISK ()**
		FC577054 - Gear Housing,NLA [ More info ] Unavailable
#	F2056	SPACER, BEVEL GEAR FRONT, SIZE .062 (A/R required per assembly)
		23-F2056 - Spacer, NLA [ More info ] $2.50 $2.13 10+ In Stock.
#	F2061	SPACER, BEVEL GEAR FRONT, SIZE .077 (A/R required per assembly)
		23-F2061 - Spacer, NLA [ More info ] Unavailable

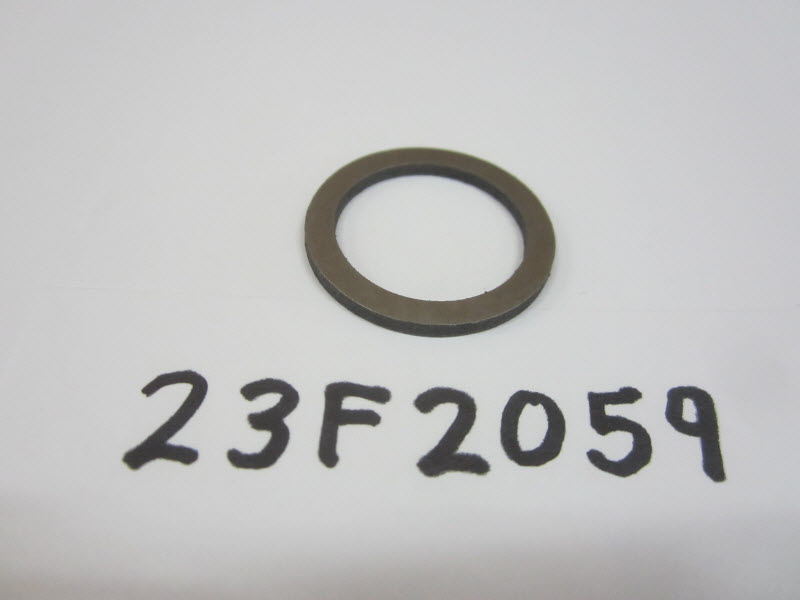

#	F2059	SPACER, BEVEL GEAR FRONT, SIZE .071 (A/R required per assembly)
		23-F2059 - Spacer, NLA [ More info ] Unavailable
#	F9095	SHIM, DRIVESHAFT BEARING - UPPER, SIZE .005 (A/R required per assembly)
		15-F9095 - Shim -.005, NLA [ More info ] Unavailable
#	FK1127	SEAL KIT, GEAR HOUSING. (1 required per assembly)
		FK1127 - Seal Kit, NLA [ More info ] $32.32 2 In Stock.
#	F9097	SHIM, DRIVESHAFT BEARING - UPPER, SIZE .010 (A/R required per assembly)
		15-F9097 - Shim -.010, NLA [ More info ] Unavailable
#	F2064	SPACER, BEVEL GEAR FRONT, SIZE .086 (A/R required per assembly)
		23-F2064 - Spacer, NLA [ More info ] $2.00 $1.69 10+ In Stock.
#	F2057	SPACER, BEVEL GEAR FRONT, SIZE .065 (A/R required per assembly)
		23-F2057 - Spacer, NLA [ More info ] $2.50 $2.13 10+ In Stock.

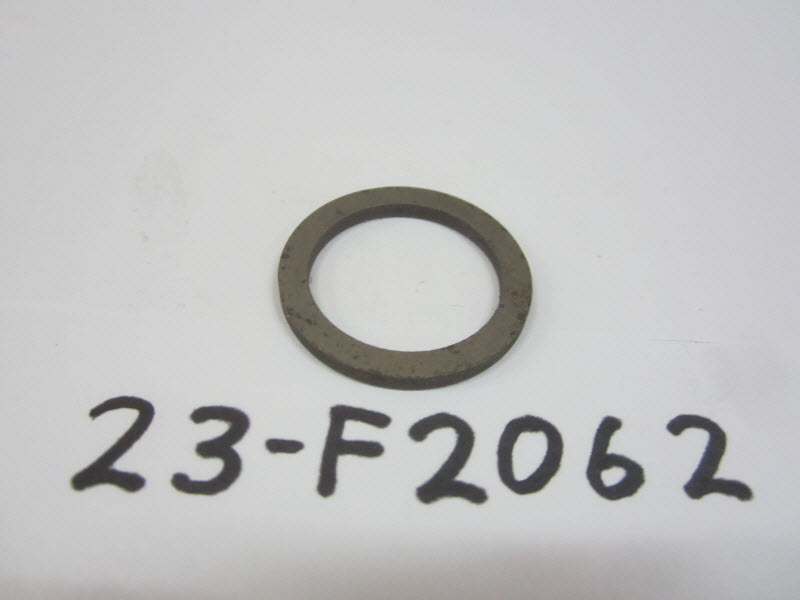

#	F2062	SPACER, BEVEL GEAR FRONT, SIZE .080 (A/R required per assembly)
		23-F2062 - Spacer, NLA [ More info ] Unavailable
#	F2124	SPACER, BEVEL GEAR FRONT, SIZE .050 (A/R required per assembly)
		23-F2124 - Spacer, NLA [ More info ] $2.00 $1.69 10+ In Stock.
#	F2055	SPACER, BEVEL GEAR FRONT, SIZE .059 (A/R required per assembly)
		23-F2055 - Spacer, NLA [ More info ] $2.50 $2.13 10+ In Stock.
#	F2060	SPACER, BEVEL GEAR FRONT, SIZE .074 (A/R required per assembly)
		23-F2060 - Spacer, NLA [ More info ] $2.00 $1.69 9 In Stock.
#	F9096	SHIM, DRIVESHAFT BEARING - UPPER, SIZE .007 (A/R required per assembly)
		15-F9096 - Shim -.007, NLA [ More info ] Unavailable

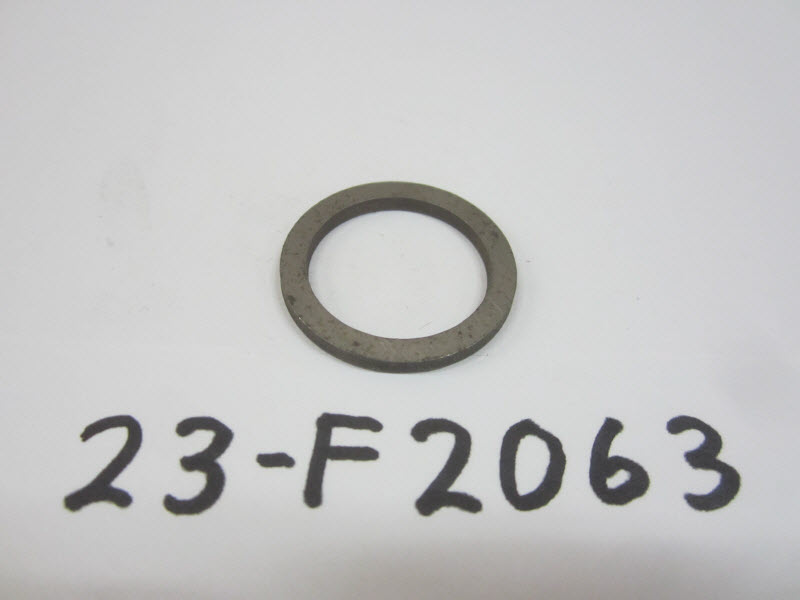

#	F2063	SPACER, BEVEL GEAR FRONT, SIZE .083 (A/R required per assembly)
		23-F2063 - Spacer, NLA [ More info ] Unavailable

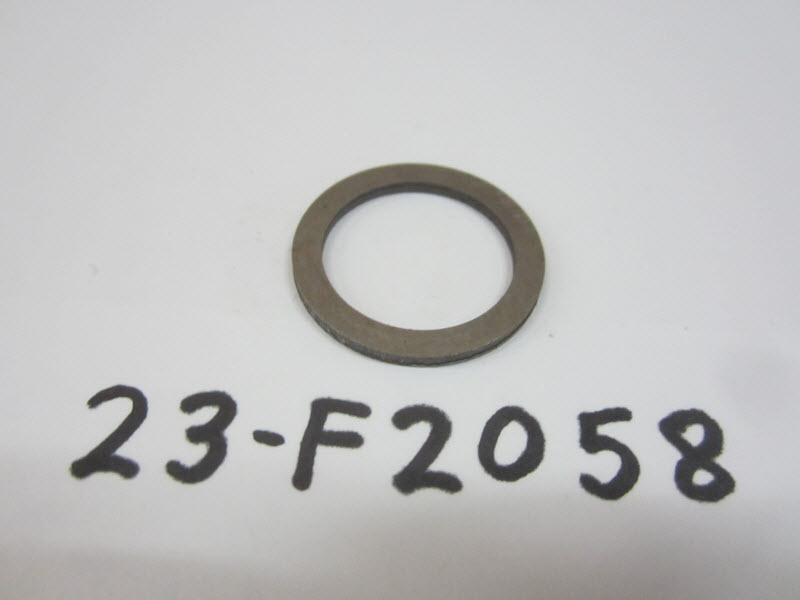

#	F2058	SPACER, BEVEL GEAR FRONT, SIZE .068 (A/R required per assembly)
		23-F2058 - Spacer, NLA [ More info ] Unavailable
#1	F1733	HEX HD SCREW, 10 - 24 X 9/16 (2 required per assembly)
		10-F1733 - Screw, SS [ More info ] $1.29 2 In Stock.
		10-852453 - Screw [ More info ] $1.50 Available to Order: Shipping delay up to 10 days.
#2	F474117	WATER LINE BRACKET (1 required per assembly)
		F474117 - Bracket, NLA [ More info ] $7.00 $5.93 2 In Stock.
#3	F474830	WATER LINE BRACKET GASKET (1 required per assembly)
		F474830 - GASKET NLA [ More info ] Unavailable
#4	F474342	SEAL (1 required per assembly)
		25-F474342 - O-Ring [ More info ] $0.49 8 In Stock.
		25-69756 - O-ring, (.549 X .103) [ More info ] $3.59 Available to Order: Shipping delay up to 10 days.
#5	F522244	INLET WATER LINE (1 required per assembly)
		32-F522244 - Hose, NLA [ More info ] Unavailable
#6	F1417	HEX CAP SCREW, 5/16 - 18 X 3-1/2 (4 required per assembly)
		F1417 - SCREW [ More info ] Unavailable
		10-814945 - Screw [ More info ] $6.89 $5.52 3 In Stock.
#7	F1907	PLAIN WASHER (4 required per assembly)
		F1907 - Washer, Stainless Steel [ More info ] Unavailable
		12-12038 - Washer [ More info ] $2.30 3 In Stock.
		12-8M0207778 - WASHER Note: Priced Individually [ More info ] $11.89 5 In Stock.
#8	F50342-1	SEAL (4 required per assembly)
		25-F50342-1 - Seal - Priced Individually [ More info ] Unavailable
		25-62702 - O-ring, (.301 X .070) [ More info ] Unavailable
		25-62702 1 - O-Ring [ More info ] $1.70 10+ In Stock.
#9	F522118	SEAL, PROPELLER SHAFT (1 required per assembly)
		26-F522118 - Seal, NLA [ More info ] $10.12 10+ In Stock.
#10	F522305	SEAL, O-RING (1 required per assembly)
		25-F522305 - O-Ring [ More info ] $2.03 5 In Stock.
#11	F2A522239	SPOOL, PROP SHAFT BEARING W/ BEARING (1 required per assembly) ILLUS. 9
		F2A522239 - Spool Assembly, NLA [ More info ] Unavailable
#12	F141305	SEAL, O-RING (1 required per assembly)
		25-F141305 - O-Ring [ More info ] Unavailable
		25-88657 - O-ring, Prop shaft Cage [ More info ] $4.99 5 In Stock.
#13	F522094-1	PROPELLER NUT (1 required per assembly)
		F522094-1 - Prop Nut, NLA [ More info ] $34.99 $29.63 9 In Stock.
#14	F498891	PIN (1 required per assembly)
		F498891 - Shift Pivot Pin [ More info ] Unavailable
		817468 - Shift Pivot Pin [ More info ] Unavailable
		826374 - Pin - Retainer [ More info ] Unavailable
#15	F1788	STOP NUT (1 required per assembly)
		F1788 - 11F7048 [ More info ] Unavailable
		11-F7048 - Prop Nut - Priced Individually [ More info ] $13.97 1 In Stock.
#16	F5H118	WASHER (ACCESSORY ITEM) (1 required per assembly)
		F5H118 - SPACER [ More info ] Unavailable
		F531299 - Spacer [ More info ] $12.49 $10.58 4 In Stock.
#17	F1866	PLAIN WASHER (1 required per assembly)
		12-F1866 - Washer [ More info ] $2.96 Available to Order: Shipping delay up to 10 days.

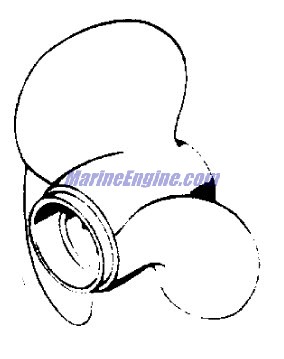

#18	FPS486	PROPELLER (ACCESSORY ITEM) (1 required per assembly)
		FPS486 - Aluminum 10.0X1, NLA [ More info ] Unavailable
#19	F522099	SPACER, PROPELLER (1 required per assembly)
		23-F522099 - SPACER,NLA [ More info ] Unavailable
#20	F1577	FILL HD SCREW, 1/4 - 20 X 3/4 (2 required per assembly)
		10-F1577 - Screw -ss, NLA [ More info ] $1.83 $1.56 10+ In Stock.
#21	FA522485	ANTI-CORROSION ANODE (1 required per assembly) W/LITERATURE
		FA522485 - Anode Kit, NLA [ More info ] $9.00 $7.62 1 In Stock.
#22	FA522662	BEVEL GEAR REAR W/ BEARING CAGE (1 required per assembly)
		FA522662 - Bevel Gear Rear [ More info ] Unavailable
#23	F522411	RETAINING RING, BEARING CAGE (2 required per assembly)
		53-F522411 - RING,NLA [ More info ] Unavailable
#24	FA522098	PROPELLER SHAFT ASSEMBLY (1 required per assembly)
		44-FA522098 - Prop Shaft,NLA [ More info ] Unavailable
#25	F522871	GEAR SHIFT ARM PIN (1 required per assembly)
		F522871 - Gear Shift Arm Pin, NLA [ More info ] $7.00 $5.93 2 In Stock.
#26	F2097	SPRING PIN (1 required per assembly)
		17-F2097 - Spring Pin, NLA [ More info ] $4.22 $3.57 10+ In Stock.
#27	F99521-1	CLUTCH (1 required per assembly)
		F99521-1 - Clutch [ More info ] Unavailable
		52-819259 - Clutch [ More info ] Unavailable
		52-819259T - Clutch [ More info ] $160.99 Available to Order: Shipping delay up to 10 days.
#28	F2087	SPACER, BEVEL GEAR FRONT, SIZE .056 (A/R required per assembly)
		23-F2087 - Spacer, NLA [ More info ] $2.00 $1.69 10+ In Stock.
#29	F2A522023	BEVEL GEAR FRONT W/ BEARING AND SHIMS (1 required per assembly)
		F2A522023 - Front Gear [ More info ] Unavailable
		43-819292A 2 - Front Gear,NLA [ More info ] Unavailable
#30	F506250	BEARING CUP (1 required per assembly)
		31-F506250 - 31-812767A 1 ORD [ More info ] Unavailable
#31	FA522054	GEAR HOUSING (1 required per assembly) W/ILLUS. 30, 32, 42, 43 AND 64
		FA522054 - Gear Housing Kit,NLA [ More info ] Unavailable
#34	F498618	NYLTITE WASHER (1 required per assembly)
		25-F498618 - O-Ring [ More info ] Unavailable
		26-817469 - O-Ring [ More info ] Unavailable
		25-25007 - O-ring, Gear Shift Arm Pin [ More info ] $1.50 Available to Order: Shipping delay up to 10 days.
		18-7120 - O-Ring 322598 [ More info ] $1.07 5 In Stock.
#35	F522188-1	NUT, BEVEL PINION RETAINING (1 required per assembly)
		F522188-1 - 11F5221882 [ More info ] $13.17 9 In Stock.
		11-F522188-2 - NUT-SPECIAL,NLA [ More info ] Unavailable
#36	FA522266	BEVEL PINION GEAR (1 required per assembly) W/ILLUS. 47 AND 65
		43-FA522266 - Pinion Gear Kit, NLA [ More info ] Unavailable
#37	F2031	HEX SOCKET HD CAP SCREW, 1/4 - 20 X 3/4 (1 required per assembly)
		10-F2031 - Screw, NLA [ More info ] $1.50 $1.28 10+ In Stock.
#38	F522116-1	SNOUT (1 required per assembly)
		F522116-1 - Snout, NLA [ More info ] $28.00 $23.72 1 In Stock.
#39	F438930	RETAINER, SNOUT (1 required per assembly)
		10-F438930 - Screw [ More info ] $5.99 1 In Stock.
		10-826377 - Screw [ More info ] $10.76 10+ In Stock.
#40	F2079	HEX CAP SCREW, 5/16 - 18 X 2-1/4 (6 required per assembly)
		10-F2079 - Screw, NLA [ More info ] $1.50 $1.28 10+ In Stock.
#41	F8096	SPRING LOCKWASHER (6 required per assembly)
		F8096 - LockWasher - Priced Individually [ More info ] Unavailable
		13-53166 - LockWasher - Priced Individually [ More info ] $1.80 10+ In Stock.
#42	F8077	WASHER, GEAR HOUSING PLUG (3 required per assembly)
		F8077 - SEAL [ More info ] Unavailable
		F8186 - Washer-BLK - Priced Individually [ More info ] Unavailable
		12-19183 - Washer (3/8 Inch Screw) [ More info ] Unavailable
		12-19183 2 - Washer - Priced Individually [ More info ] Unavailable
		12-19183 3 - Seal -Blue - Priced Individually [ More info ] Unavailable
		12-8M0187157 - SEAL-BLUE, Sold Individually [ More info ] $1.49 10+ In Stock.
		18-2945-9 - Gasket 12-19183 2-Pack [ More info ] $2.41 10+ In Stock.
		12-19183Q02 - Seals, Pack of 4 (yes this is actually a pack of 4) [ More info ] $6.69 10+ In Stock.
		12-19183K02 - Seal, Pack of 4 [ More info ] $7.29 6 In Stock.
		12-02108-1 - Drain Gasket (1 piece) [ More info ] $1.20 $0.85 10+ In Stock.
#43	F50109	PLUG, GEAR HOUSING (3 required per assembly)
		10-F50109 - Screw -Special [ More info ] $7.77 4 In Stock.
		10-79953A 2 - Drain Screw Kit [ More info ] Unavailable
		10-79953Q 2 - Screw Kit - Priced Individually [ More info ] Unavailable
		10-79953Q04 - Screw Kit - Priced Individually [ More info ] $7.49 9 In Stock.
		18-2244 - Plug Kit, 10-79953A2 [ More info ] $3.79 10+ In Stock.
		10-79953K04 - Drain Screw - Priced Individually [ More info ] $8.19 8 In Stock.
#44	817796A 2	GEAR SHIFT ARM ASSY. (1 required per assembly)
		817796A 2 - Coupling Assembly [ More info ] $86.22 10 In Stock.
#45	F522705	GEAR SHIFT ROD LOWER (1 required per assembly)
		F522705 - ROD,NLA [ More info ] Unavailable
#46	F85372	PIN, GEAR SHIFT ROD LOWER (1 required per assembly)
		17-F85372 - Gear Shift Rod Lower Pin [ More info ] $6.39 3 In Stock.
#47	F523961	CRUSH RING (1 required per assembly)
		F523961 - Crush Ring [ More info ] $59.56 10+ In Stock.
#48	F522555	SEAL, GEAR HOUSING COVER (1 required per assembly)
		25-F522555 - O-Ring [ More info ] Unavailable
		25-822370 - O-ring, (2.362 X .103) [ More info ] $4.19 10 In Stock.
#49	F74305	SEAL, DRIVESHAFT BEARING CAGE (1 required per assembly)
		25-F74305 - Drive Shaft Cover O-Ring [ More info ] Unavailable
		25-90011 - Drive Shaft Cover O-Ring [ More info ] Unavailable
		25-896523 - O-ring, (2.175 X .103) [ More info ] Unavailable
		25-8M0142854 - O-Ring [ More info ] $1.10 5 In Stock.
#51	FA577706	GEAR HOUSING COVER (1 required per assembly) W/ILLUS. 50 AND 52
		FA577706 - Cover, NLA [ More info ] Unavailable
#52	F338618-1	SEAL, SHIFT ROD LOWER (1 required per assembly)
		F338618-1 - SEAL [ More info ] Unavailable
		26-817472 - Seal [ More info ] $8.99 4 In Stock.
		18-0500 - Seal, 26-817472 [ More info ] $8.99 $8.32 Available to Order: Shipping delay up to 10 days.
#53	F8083	SPRING, LOCKWASHER (7 required per assembly)
		F8083 - LockWasher SS [ More info ] Unavailable
		13-26992 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
#54	F1705	HEX CAP SCREW, 1/4 - 20 X 3/4 (3 required per assembly)
		F1705 - Screw - Priced Individually [ More info ] Unavailable
		10-28636 - Screw - Priced Individually [ More info ] $1.80 10+ In Stock.

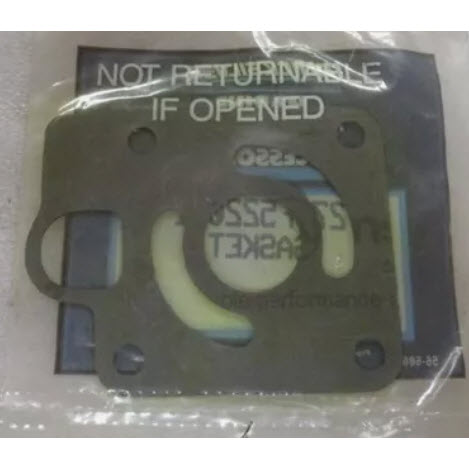

#55	F522031	GASKET, WATER PUMP (1 required per assembly)
		27-F522031 - Gasket [ More info ] $7.02 10+ In Stock.
#56	F522562	WATER PUMP BACK PLATE (1 required per assembly)
		F522562 - Plate [ More info ] $12.49 $10.58 10+ In Stock.
#57	F474065-1	WATER PUMP IMPELLER (1 required per assembly)
		47-F474065-1 - Impeller, Six Vane, See Detail Page [ More info ] $43.00 $17.60 10+ In Stock.
#58	46-817851A 1	WATER PUMP BODY (1 required per assembly) W/ILLUS. 60, 62 AND 63 ORIGINAL FORCE P/N A 522060-1
		46-817851A 1 - Water Pump Body, Chrysler [ More info ] $40.00 $33.88 8 In Stock.
#59	F1175	HEX CAP SCREW, 1/4 - 20 X 1-7/8 (2 required per assembly)
		10-F1175 - Screw -ss, NLA [ More info ] Unavailable
#60	F474388	DISC, WATER PUMP (1 required per assembly)
		F474388 - Disc, NLA [ More info ] $9.69 10+ In Stock.
#61	F1849	HEX CAP SCREW, 1/4 - 20 X 1-3/8 (2 required per assembly)
		10-F1849 - Screw -ss [ More info ] $0.90 $0.18 9 In Stock.
#62	F474736	SEAL, DRIVESHAFT - WATER PUMP (1 required per assembly)
		26-F474736 - Seal, NLA [ More info ] Unavailable
#63	FA523735	SEAL, INLET WATER LINE LOWER (1 required per assembly) W/LITERATURE
		FA523735 - Lower Inlet Water Line Seal [ More info ] $9.69 4 In Stock.
#64	F522057	BEARING, DRIVESHAFT LOWER (1 required per assembly)
		31-F522057 - Bearing, NLA [ More info ] $7.00 $5.93 5 In Stock.
#65	F9106	SHIM, DRIVESHAFT BEARING - UPPER, SIZE .003 (A/R required per assembly)
		15-F9106 - Shim-.003, NLA [ More info ] $3.75 $3.17 10+ In Stock.
#66	F9038	WOODRUFF KEY (1 required per assembly)
		28-F9038 - Key [ More info ] $10.09 $4.45 10+ In Stock.
#67	FK577128	DRIVESHAFT (1 required per assembly) W/ILLUS. 47, 65 AND LITERATURE.
		45-FK577128 - Drive Shaft KIT,NLA [ More info ] Unavailable
#68	F90619-1	YOKE, GEARSHIFT ARM (1 required per assembly)
		F90619-1 - F906192 [ More info ] Unavailable
		F90619-2 - Yoke [ More info ] $61.49 Available to Order: Shipping delay up to 10 days.
#69	F1015	COTTER PIN (1 required per assembly)
		18-F1015 - Cotter Pin - Priced Individually [ More info ] $1.46 10+ In Stock.
