Parts for Force 60 HP (1984) Fuel Pump

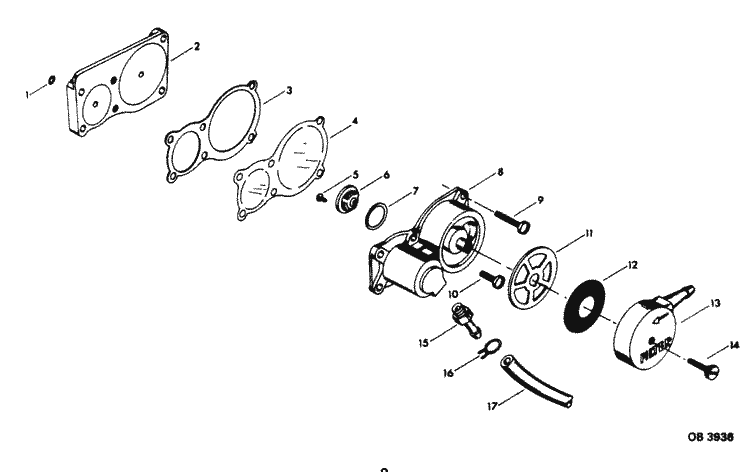

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | F50342-1 | SEAL (2 required per assembly) |
  |
25-F50342-1 - Seal - Priced Individually [ More info ] Unavailable |
|
  |
25-62702 - O-ring, (.301 X .070) [ More info ] Unavailable |
|
  |
|
25-62702 1 - O-Ring [ More info ]
|
| #2 | F474746 | FUEL PUMP COVER (1 required per assembly) |
  |
|
F474746 - Cover, NLA [ More info ] Unavailable |
| #3 | F438760 | FUEL PUMP GASKET (1 required per assembly) |
  |
27-F438760 - Fuel Pump Gasket [ More info ] Unavailable |
|
  |
|
27-820490 - Fuel Pump Gasket [ More info ]
|
| #4 | F438747 | FUEL PUMP DIAPHRAGM (1 required per assembly) |
  |
|
F438747 - Fuel Pump Diaphragm Only - No Gasket, Priced Individually [ More info ]
|
| #5 | F1860 | SLOTTED HD M. SCREW, 6 - 32 X 1/4 (2 required per assembly) |
  |
F1860 - Screw [ More info ] Unavailable |
|
  |
|
10-28430 - Screw [ More info ]
|
| #6 | F177330 | FUEL PUMP VALVE (3 required per assembly) |
  |
21-F177330 - Check Valve [ More info ] Unavailable |
|
  |
|
218M0082362 - Check Valve [ More info ]
|
| #7 | F84792 | FUEL PUMP VALVE GASKET (CENTER VALVE) (1 required per assembly) |
  |
|
27-F84792 - Fuel Pump Valve Gasket [ More info ]
|
| #8 | FA438431 | FUEL PUMP BODY (1 required per assembly) W/ILLUS. 5, 6 AND 7 |
  |
FA438431 - FA686431 Fuel Pump [ More info ] Unavailable |
|
  |
FA686431 - BODY ASSY-F/P [ More info ] Unavailable |
|
  |
819843A 1 - Fuel Pump Body [ More info ] Unavailable |
|
  |
|
819843T 1 - Fuel Pump Body Assembly [ More info ] Unavailable |
| #9 | F1889 | FILL HD SCREW, 1/4 - 20 X 1 1/4 (4 required per assembly) |
  |
|
10-F1889 - SCREW,NLA [ More info ] Unavailable |
| #10 | F1108 | FILL HD SCREW, 1/4 - 20 X 3/4 (2 required per assembly) |
  |
|
10-F1108 - Screw -w/Lw, NLA [ More info ]
|
| #11 | F438617 | FUEL SEDIMENT BOWL GASKET (1 required per assembly) |
  |
27-F438617 - Fuel Pump Bowl Gasket [ More info ] Unavailable |
|
  |
|
27-823606 - Fuel Bowl Gasket [ More info ]
|
| #12 | F438653 | FUEL PUMP SCREEN (1 required per assembly) |
  |
|
35-F438653 - Screen [ More info ]
|
| #13 | F438500 | FUEL SEDIMENT BOWL (1 required per assembly) |
  |
F438500 - Fuel Bowl Pump [ More info ] Unavailable |
|
  |
|
817066 - Fuel Pump Bowl [ More info ] Unavailable |
| #14 | F438165 | SCREW, FUEL BOWL (1 required per assembly) |
  |
F438165 - Screw-SPECIAL [ More info ] Unavailable |
|
  |
F1648 - Screw [ More info ] Unavailable |
|
  |
|
10-41069 - Screw [ More info ]
|
| #15 | F438801 | FITTING (1 required per assembly) |
  |
22-F438801 - Fitting [ More info ] Unavailable |
|
  |
|
22-64705 - Fitting [ More info ]
|
| #16 | F97772 | FUEL LINE CLAMPS (3 required per assembly) |
  |
F97772 - Clamp, NLA [ More info ] Unavailable |
|
  |
|
54-63933 - Clamp [ More info ]
|
| #17 | F438754 | FUEL LINE, PUMP TO CARBURETOR (1 required per assembly) |
  |
F438754 - 32F695754 [ More info ] Unavailable |
|
  |
32-F695754 - Hose-19.5 INCH [ More info ] Unavailable |
|
  |
|
32-827228 81 - Hose-38 INCH [ More info ] Unavailable |
