Parts for Force 50 HP (1996) Starter Assembly

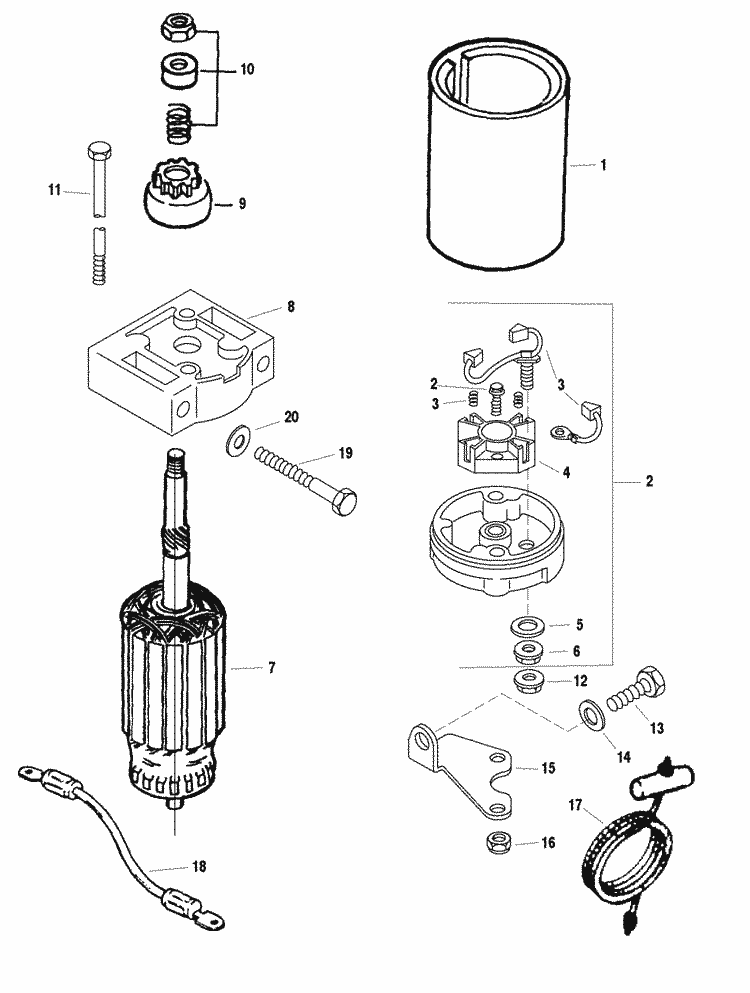

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 50-820193 | STARTER ASSEMBLY (1 required per assembly) |
  |
50-820193 - Starter [ More info ] Unavailable |
|
  |
50-820193 1 - Starter [ More info ] Unavailable |
|
  |
50-820193T 1 - Starter [ More info ] Unavailable |
|
  |
|
50-820193003 - Starter Assembly [ More info ] Unavailable |
  |
|
5394 - Outboard Starter [ More info ]
|
| #2 | 820595 | CAP ASSEMBLY-Comm End (1 required per assembly) |
  |
|
820595 - CAP ASSY-COMM EN [ More info ] Unavailable |
| #3 | F15190 | BRUSH & SPRING KIT (1 required per assembly) |
  |
|
F15190 - Brush and Spring Kit [ More info ]
|
  |
|
BK900 - Brush Kit [ More info ]
|
| #4 | 61787 | HOLDER-Brush (1 required per assembly) |
  |
61787 - Brush Holder [ More info ] Unavailable |
|
  |
|
898265014 - Brush Holder [ More info ] Unavailable |
| #5 | F15160 | WASHER-Insulator (1 required per assembly) |
  |
F15160 - Washer, Insulator [ More info ] Unavailable |
|
  |
|
12-804700 - Washer, NLA [ More info ]
|
| #6 | F15162 | NUT (.250-20) (1 required per assembly) |
  |
|
F15162 - Nut (1/4-20) NLA [ More info ]
|
| #7 | F15183 | ARMATURE (1 required per assembly) |
  |
|
F15183 - Armature, NLA [ More info ] Unavailable |
| #8 | 820594 | CAP-Drive End (1 required per assembly) |
  |
|
820594 - Cap - Drive End, NLA [ More info ] Unavailable |
| #9 | 811902 | PINION-Drive (1 required per assembly) |
  |
811902 - DRIVE ASSY [ More info ] Unavailable |
|
  |
|
802665 - 802665 - PINION [ More info ] Unavailable Replaced by -802665T |
  |
|
802665T - Drive Assembly, NLA [ More info ] Unavailable |
  |
|
DV394 - Starter Drive [ More info ]
|
| #10 | 90643 | DRIVE KIT (1 required per assembly) |
  |
|
90643 - Drive Retainer Kit [ More info ]
|
| #11 | 811903 | THRU BOLT (2 required per assembly) |
  |
|
811903 - Thru Bolt, NLA [ More info ]
|
| #13 | 10-F1822 | SCREW (.312-18 x .875) (1 required per assembly) |
  |
10-F1822 - Screw -ss [ More info ] Unavailable |
|
  |
|
10-28782 - Screw - Priced Individually [ More info ]
|
| #14 | 13-53166 | LOCKWASHER (.312) (1 required per assembly) |
  |
|
13-53166 - LockWasher - Priced Individually [ More info ]
|
| #15 | 819272 2 | BRACKET-Starter Support (1 required per assembly) |
  |
|
819272 2 - Bracket, NLA [ More info ]
|
| #16 | 11-20361 | NUT (.250-28)-Thru Bolt (2 required per assembly) |
  |
|
|
  |
|
11-826708 9 - Nut - Priced Individually [ More info ]
|
  |
|
18-3722-9 - Lock Nut, 121731, 11-35888, Pack of 5 [ More info ]
|
| #17 | 47341A 1 | ROPE AND HANDLE-Emergency Start (1 required per assembly) |
  |
47341A 1 - Rope And Handle [ More info ] Unavailable |
|
  |
|
47341A11 - Manual Start Rope And Handle [ More info ]
|
| #18 | 84-93388A 8 | CABLE ASSEMBLY (12.500 In.)-Starter Lead (1 required per assembly) |
  |
|
84-93388A 8 - Cable Assembly [ More info ]
|
| #19 | 10-F2185 | SCREW (.375-16 x 3.500) (2 required per assembly) |
  |
|
10-F2185 - Screw, NLA [ More info ]
|
| #20 | 12-45175 | WASHER (2 required per assembly) |
  |
12-45175 - Washer, (.406 X .750 X .104) [ More info ] Unavailable |
|
  |
12-856774 - Washer, (.406 X .750 X .105) Stainless Steel [ More info ] Unavailable |
|
  |
|
128M0214963 - WASHER Note: Priced Individually [ More info ]
|
| #NS | 37-825066 | DECAL-Warning-Hi Voltage (1 required per assembly) |
  |
37-825066 - DECAL-WARNING [ More info ] Unavailable |
|
  |
|
37-827282 2 - Decal - Warning [ More info ]
|
| #NS | 37-825064 | DECAL-Caution-Start in Gear (1 required per assembly) |
  |
37-825064 - DECAL-CAUTION [ More info ] Unavailable |
|
  |
|
37-881865 - Decal -Caution [ More info ]
|
