Parts for Force 50 HP (1996) Recirculation & Prime System

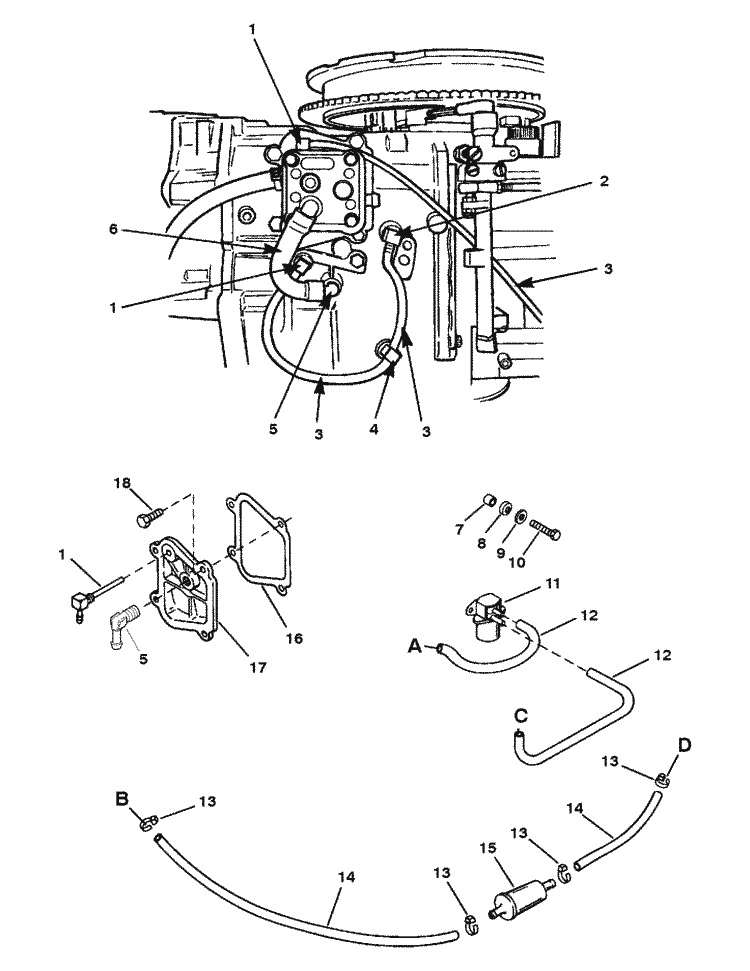

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 27-820751A 2 | GASKET SET-Powerhead (1 required per assembly) |
  |
|

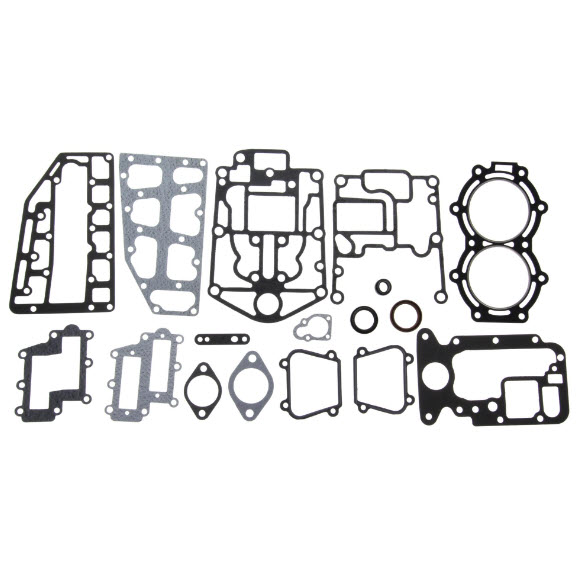

27-820751A 2 - Powerhead Gasket Set [ More info ] Unavailable |
| # | 800-818152A26 | POWERHEAD ASSEMBLY (1 required per assembly) |
  |
800-818152A26 - Powerhead KIT [ More info ] Unavailable |
|
  |
|

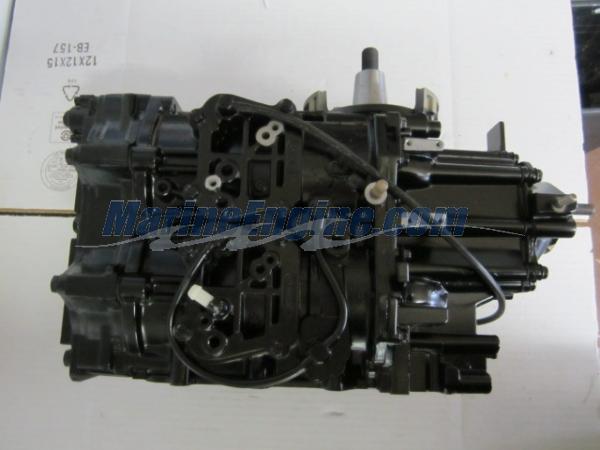

800-818152A29 - Powerhead F40/50 99, NLA [ More info ] Unavailable |
| #1 | 22-F743314 | ELBOW-Recirculating (1 required per assembly) |
  |
|
22-F743314 - Elbow [ More info ] Unavailable |
| #2 | 21-42864 | FITTING (90 Degrees) (1 required per assembly) |
  |
21-42864 - Fitting [ More info ] Unavailable |
|
  |
|
21-42864 1 - Fitting [ More info ]
|
| #3 | 32-99130122 | TUBING (20.00 Ft. Bulk) (Cut 18.500 In.) (Cut 7.500 In.) (Cut 3.750 In.) (1 required per assembly) |
  |
32-99130122 - Tubing-20 FEET [ More info ] Unavailable |
|
  |
|
32-892024122 - Tubing - 20 Feet [ More info ]
|
| #4 | 21-820706 | FITTING (T) (1 required per assembly) |
  |
21-820706 - VALVE-CHECK [ More info ] Unavailable |
|
  |
|
21-820706 1 - Check Valve [ More info ] Unavailable |
| #5 | 22-99664 | ELBOW (1 required per assembly) |
  |
|
22-99664 - Elbow [ More info ]
|
  |
22-99664 1 - Elbow [ More info ] Unavailable |
|
  |
|
22-99664 2 - Elbow [ More info ]
|
| #6 | 32-830756109 | HOSE (57.00 In. Bulk) (Cut 6.00 In.) (1 required per assembly) |
  |
32-830756109 - Hose, 57 Inch [ More info ] Unavailable |
|
  |
32-8M0047428 - Hose -57 Inch [ More info ] Unavailable |
|
  |
|
32-8M0108355 - Hose, 57 Inch [ More info ]
|
| #7 | 23-F694359 | SPACER (1 required per assembly) |
  |
|
23-F694359 - Spacer, NLA [ More info ]
|
| #8 | 25-F694504 | GROMMET (1 required per assembly) |
  |
|
25-F694504 - Grommet [ More info ]
|
| #9 | 12-35044 | WASHER (1 required per assembly) |
  |
|
12-35044 - Washer, (.281 X .625 X .065) Stainless Steel [ More info ]
|
| #10 | 10-45561 | SCREW (.250-20 x 1.125) (1 required per assembly) |
  |
10-45561 - Screw - Priced Individually [ More info ] Unavailable |
|
  |
|
10-45561 1 - Screw [ More info ]
|
| #11 | 89-819503 | SOLENOID-Primer (1 required per assembly) |
  |
89-819503 - Solenoid [ More info ] Unavailable |
|
  |
89-819503 6 - Solenoid [ More info ] Unavailable |
|
  |
|
89-819503T 6 - Solenoid [ More info ]
|
| #12 | 32-99126 88 | TUBING (36.00 In. Bulk) (Cut 4.500 In.) (Cut 5.250 In.) (1 required per assembly) |
  |
|
32-99126 88 - Tubing - 36 Inch [ More info ]
|
| #13 | 54-816311 | CABLE TIE (8.00 In.) (4 required per assembly) |
  |
54-816311 - TIE STRAP Note: Priced Individually [ More info ] Unavailable |
|
  |
|
54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ]
|
| #15 | 35-816296 | FILTER-Fuel (1 required per assembly) |
  |
35-816296 - Fuel Filter [ More info ] Unavailable |
|
  |
35-816296Q - Fuel Filter - Priced Individually [ More info ] Unavailable |
|
  |
|
35-816296Q03 - Fuel Filter - Priced Individually [ More info ]
|
  |
|
18-7829 - Filter, 35-816296 [ More info ]
|
  |
|
35-816296K03 - Fuel Filter - Priced Individually [ More info ]
|
| #16 | 27-820500 2 | GASKET-Transfer Port (1 required per assembly) |
  |
|
27-820500 2 - Gasket [ More info ]
|
| #17 | 817790A 1 | COVER KIT-Transfer Port (1 required per assembly) |
  |
|
817790A 1 - Cover Kit [ More info ] Unavailable |
| #18 | 10-819110062 | SCREW (.250-20 x .625) (4 required per assembly) TORQUE 100 LB IN. 11.3 N-M |
  |
|
10-819110062 - Screw [ More info ]
|
