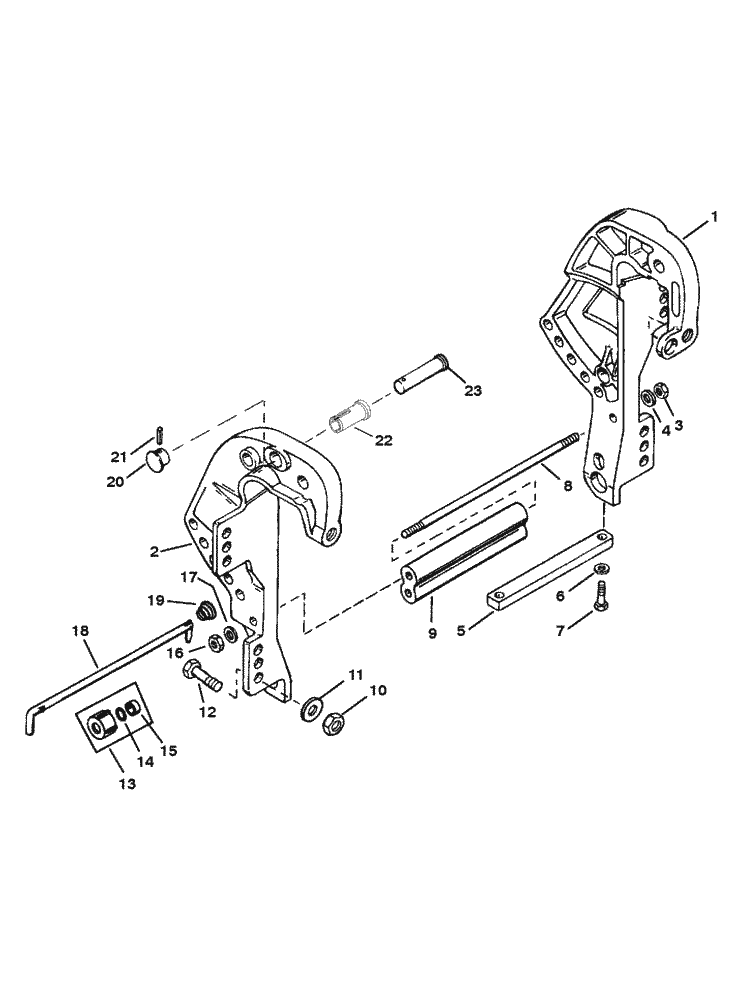

Parts for Force 50 HP (1996) Clamp Bracket
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.

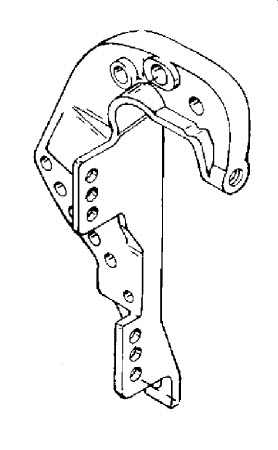

| #1 | 3411-821773F 5 | BRACKET-Clamp (PORT) (Painted) (1 required per assembly) |
  |
3411-821773F 5 - Stern Bracket-GRA/GR [ More info ] Unavailable |
|
  |
|
3411-821773F 6 - Stern Bracket-st/Gr, NLA [ More info ] Unavailable |
| #2 | 3411-821774F 5 | BRACKET-Clamp (STARBOARD) (Painted) (1 required per assembly) |
  |
3411-821774F 5 - BRKT-CLAMP-FORCE [ More info ] Unavailable |
|
  |
3412-821774F 6 - BRKT-CLAMP-FORCE [ More info ] Unavailable |
|
  |
|
3412-821774T10 - BRKT KIT-FORCE,NLA [ More info ] Unavailable |
| #3 | 11-13914 | NUT (M10) (1 required per assembly) (MANUAL TILT MODELS) TORQUE 28 LB FT 37.9 N-M |
  |
11-13914 - Nut (M10 X 1.5) [ More info ] Unavailable |
|
  |
|
11-40140 - Nut, (M10) [ More info ]
|
| #4 | 12-40023 19 | WASHER (1 required per assembly) (MANUAL TILT MODELS) |
  |
|
12-40023 19 - Washer (M10) [ More info ]
|
| #5 | 825271 | ANODE (1 required per assembly) |
  |
825271 - Anode [ More info ] Unavailable |
|
  |
|
97-825271 1 - Anode, Aluminum [ More info ]
|
| #6 | 12-29245 | WASHER (2 required per assembly) |
  |
|
12-29245 - Washer [ More info ]
|
  |
|
12-8M0204649 - WASHER Note: Priced Individually [ More info ]
|
| #7 | 10-40003 30 | SCREW (M6 x 25) (2 required per assembly) TORQUE 60 LB IN. 6.8 N-M |
  |
|
10-40003 30 - Screw - Priced Individually [ More info ]
|

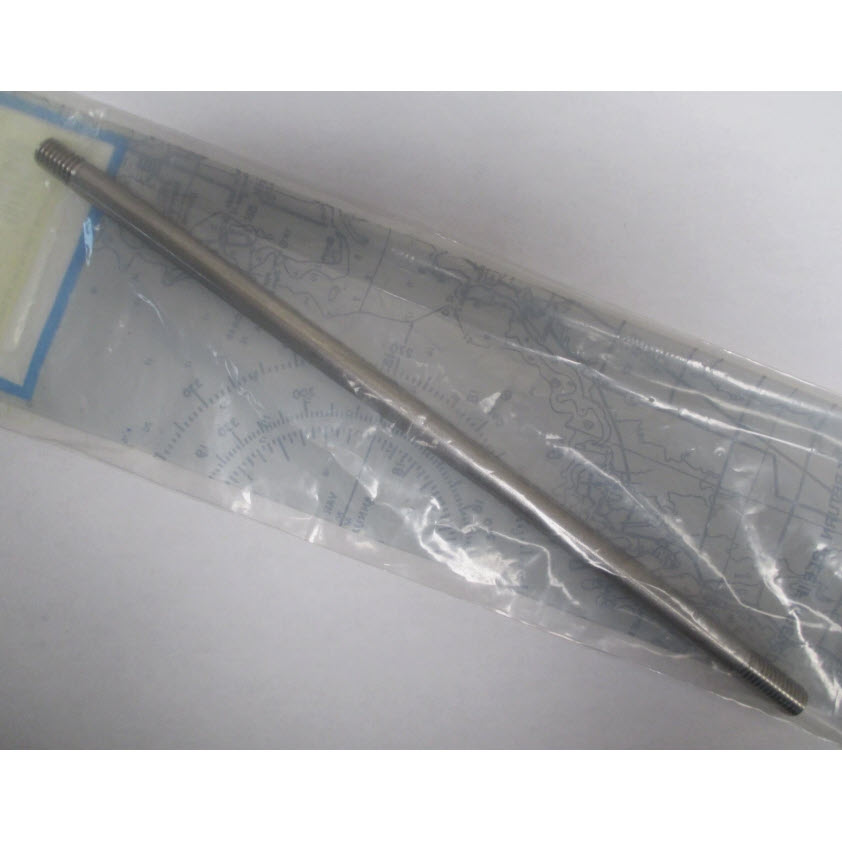

| #8 | 16-823656 | STUD (M10 x 277) (1 required per assembly) (MANUAL TILT MODELS) |
  |
16-823656 - Stud [ More info ] Unavailable |
|
  |
|
16-8M0034459 - Stud [ More info ]
|

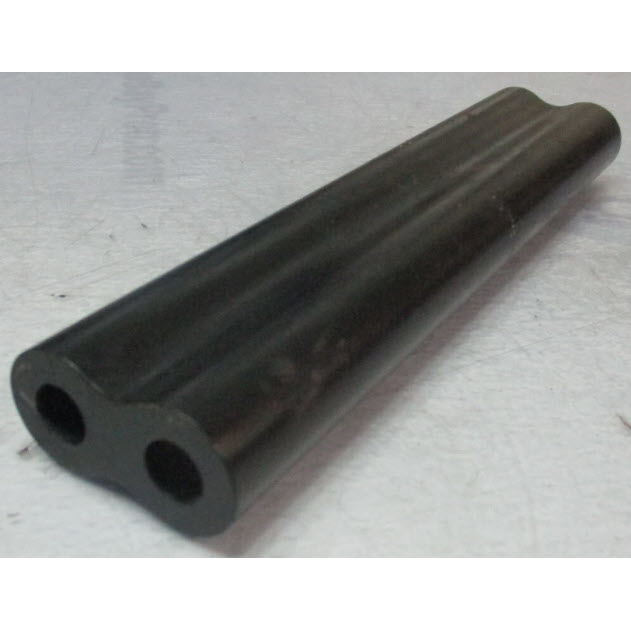

| #9 | 23-824952 | SPACER (1 required per assembly) (MANUAL TILT MODELS) |
  |
|
23-824952 - Spacer [ More info ]
|
| #10 | 11-91962 | NUT (.500-20) (2 required per assembly) |
  |
|
1191962 - 118M0027784 [ More info ] Unavailable |
| #11 | 12-28421 | WASHER (2 required per assembly) |
  |
|
12-28421 - Washer, (1.5 X 3.05 X 0.13) Stainless Steel [ More info ]
|
  |
|
12-8M0204648 - ENGINE MOUNTING WASHER Note: Must be ordered in multiples of 5 O/B [ More info ]
|
| #12 | 10-814259 | SCREW (.500-20 x 4.00) (2 required per assembly) |
  |
|
10-814259 - Screw [ More info ]
|
| #13 | 19624A 1 | SEAL KIT (1 required per assembly) |
  |
|
19624A 1 - Seal Kit [ More info ]
|
| #14 | 25-29619 | O RING (1 required per assembly) |
  |
|
25-29619 - O-ring, (.583 X .103) [ More info ]
|
| #15 | 23-78861 | SPACER (1 required per assembly) |
  |
|
23-78861 - Spacer [ More info ]
|

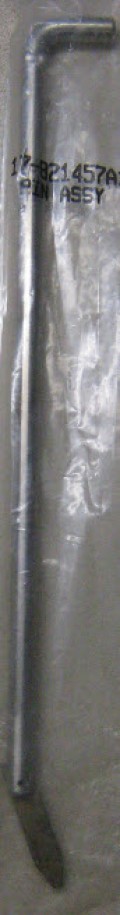

| #18 | 17-821457A 1 | PIN ASSEMBLY-Tilt Lock (1 required per assembly) |
  |
17-821457A 1 - Tilt Lock Pin [ More info ] Unavailable |
|
  |
|
17-8M0026103 - Tilt Lock Pin [ More info ]
|
| #19 | 24-821461 | SPRING-Tilt Lock Pin (1 required per assembly) (MANUAL TILT MODELS) |
  |
|
24-821461 - Spring, Tilt Lock Pin (Manual Tilt Models) [ More info ]
|
| #20 | 822401 | CAP-Tilt Stop Pin (1 required per assembly) |
  |
|
822401 - Tilt Stop Pin [ More info ] Unavailable |
| #21 | 17-25319 | PIN-Roll (1 required per assembly) |
  |
|
17-25319 - Pin, (.125 X 0.75 Inches) [ More info ]
|
| #22 | 23-823589 | BUSHING (1 required per assembly) |
  |
|
23-823589 - Bushing, NLA [ More info ]
|
| #23 | 17-822400 1 | PIN-Tilt Stop (1 required per assembly) |
  |
|
17-822400 1 - Tilt Lock Pin, NLA [ More info ]
|
