Parts for Force 50 HP (1995) Bottom Cowl
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | F663756-1 | PACKING (70") CUT AS REQ'D (1 required per assembly) |
  |
F663756-1 - PACKING-81 INCH [ More info ] Unavailable |
|
  |
|
819717 2 - PACKING-81 INCH [ More info ] Unavailable |
| #2 | 822541 1 | STRAP, HORIZONTAL SHIFT SHAFT (2 required per assembly) |
  |
822541 1 - STRAP [ More info ] Unavailable |
|
  |
|
828047 1 - Strap [ More info ]
|
| #3 | 10-40011127 | SCREW (M6 X 1 X 16) (2 required per assembly) |
  |
10-40011127 - SCREW [ More info ] Unavailable |
|
  |
10-40106 16 - SCREW [ More info ] Unavailable |
|
  |
|
10-40067 31 - Screw [ More info ]
|
| #4 | 822469 | CAP, INTERMEDIATE LEVER (1 required per assembly) |
  |
822469 - CAP-INTERMEDIATE [ More info ] Unavailable |
|
  |
|
8M0036802 - Cap -intermediate [ More info ]
|
| #6 | 23-26954 | BUSHING (1 required per assembly) |
  |
|
23-26954 - Bushing [ More info ]
|
| #7 | 822467 1 | LEVER, INTERMEDIATE (1 required per assembly) |
  |
822467 1 - LEVER-INTERMEDIAT [ More info ] Unavailable |
|
  |
|
8M0041741 - Lever -intermediat [ More info ]
|
| #8 | 42927 | INSERT (1 required per assembly) |
  |
|
|
| #9 | 17-822456 | PIN, CABLE RETAINER (1 required per assembly) |
  |
17-822456 - Pin, Cable Retainer [ More info ] Unavailable |
|
  |
|
17-822456 1 - Pin - Cable Retain [ More info ]
|
| #11 | 23-48475 | BUSHING (1 required per assembly) |
  |
|
23-48475 - Bushing [ More info ]
|
| #12 | 822459 | RETAINER, REMOTE CABLE (1 required per assembly) |
  |
|
822459 - Retainer [ More info ]
|
| #13 | 12-69056 | WASHER (1 required per assembly) |
  |
|
12-69056 - Washer, (.255 X .620 X .030) Stainless Steel [ More info ]
|
| #14 | 11-826833 6 | NUT (M6) (1 required per assembly) |
  |
11-826833 6 - Nut , Priced Individually [ More info ] Unavailable |
|
  |
11-40144 - NUT Note: Priced Individually [ More info ] Unavailable |
|
  |
|
11-40138 6 - Nut - Priced Individually [ More info ]
|
| #17 | 822470 | LINK, SHIFT (1 required per assembly) |
  |
|
822470 - Shift Link -edp [ More info ]
|
| #19 | 821483A 5 | SHIFT SHAFT ASSEMBLY, HORIZONTAL (1 required per assembly) |
  |
|
821483A 5 - Shift Shaft, NLA [ More info ] Unavailable |
| #21 | F663480-1 | RETAINER, COWL, FRONT (1 required per assembly) |
  |
|
F663480-1 - Retainer, NLA [ More info ]
|
| #22 | 98889 | LATCH, CONTROL CABLE (1 required per assembly) |
  |
|
|
| #23 | 39519 | CUP, CONTROL CABLE RETAINER (1 required per assembly) |
  |
|
39519 - Cup [ More info ]
|
| #24 | 100-820186F 1 | COWL ASSEMBLY, BOTTOM (PAINTED) (1 required per assembly) |
  |
100-820186F 1 - COWL ASSY-BOTTOM [ More info ] Unavailable |
|
  |
100-820186F 2 - COWL ASSY-BOTTOM [ More info ] Unavailable |
|
  |
|
100-820186T 2 - Cowl Assembly -bottom [ More info ] Unavailable |
| #25 | 10-42975 | SCREW, DRIVE (2 required per assembly) |
  |
|
10-42975 - Screw - Drive [ More info ]
|
| #26 | 26-820355 | SEAL, CABLE ENTRY (2 required per assembly) |
  |
|
26-820355 - Seal, NLA [ More info ] Unavailable |
| #27 | 826742 | RETAINER, CABLE ENTRY SEAL (2 required per assembly) |
  |
|
826742 - Retainer, NLA [ More info ]
|

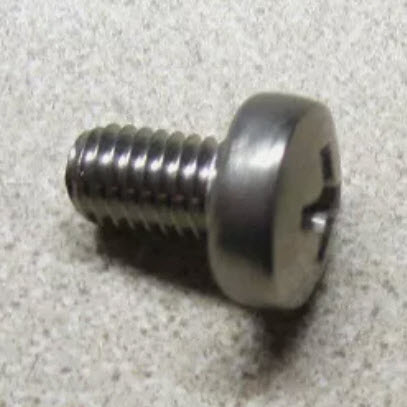

| #28 | 10-40019104 | SCREW (M5 X 8) (2 required per assembly) |
  |
|
10-40019104 - Screw, NLA [ More info ]
|
| #29 | 25-19564 | GROMMET (WITHOUT HOLE) (1 required per assembly) NON POWER TRIM |
  |
25-19564 - Grommet [ More info ] Unavailable |
|
  |
|
25-19564001 - Grommet [ More info ]
|
  |
|
258M0179867 - Grommet [ More info ]
|
| #29 | 25-19565 | GROMMET (WITH HOLE) (1 required per assembly) POWER TRIM |
  |
|
25-19565 - Grommet [ More info ]
|
  |
|
25-19565002 - Grommet [ More info ]
|
| #30 | 812830 1 | PLUG (1 required per assembly) |
  |
812830 1 - Plug [ More info ] Unavailable |
|
  |
|
812830T01 - Cap - Switch Lg [ More info ]
|
| #31 | 812443 1 | RETAINER (1 required per assembly) |
  |
|
812443 1 - Retainer [ More info ]
|
  |
|
8M0032848 - Retainer [ More info ]
|
| #32 | 10-40056105 | SCREW (M5 X 10) (2 required per assembly) |
  |
|
10-40056105 - Screw [ More info ]
|
| #33 | F684408 | COVER, STARTER RELAY (1 required per assembly) |
  |
|
F684408 - Starter Relay Cover [ More info ]
|
| #34 | 820000A 4 | HANDLE ASSEMBLY, COWL LATCH (PAINTED) (1 required per assembly) |
  |
820000A 4 - HANDLE ASY-GRA/GR [ More info ] Unavailable |
|
  |
820000A 7 - Handle Assembly-ST/GR [ More info ] Unavailable |
|
  |
|
820000A08 - Handle Assembly - Black, NLA [ More info ]
|
| #35 | 23-812707 | BUSHING (2 required per assembly) |
  |
|
23-812707 - Bushing [ More info ]
|
| #36 | 13-F2047 | WASHER, WAVE (1 required per assembly) |
  |
|
13-F2047 - Wave Washer [ More info ]
|
| #37 | F481777 | CAM, LATCH SHAFT (1 required per assembly) |
  |
F481777 - Latch Shaft Cam [ More info ] Unavailable |
|
  |
889566 - Latch-Cam [ More info ] Unavailable |
|
  |
|
|
| #38 | 12-40023 16 | WASHER (1 required per assembly) |
  |
|
12-40023 16 - Washer - Priced Individually [ More info ]
|
| #39 | 13-26992 | LOCKWASHER (1/4") (1 required per assembly) |
  |
|
13-26992 - LockWasher - Priced Individually [ More info ]
|
| #40 | 10-19923062 | SCREW (1/4-20 X 5/8") WITH DRY LOC (1 required per assembly) |
  |
|
10-19923062 - Screw [ More info ]
|
| #41 | 10-40011129 | SCREW (M6 X 25) (4 required per assembly) |
  |
|
10-40011129 - Screw [ More info ]
|
| #42 | 23-822003 | BUSHING (4 required per assembly) |
  |
|
23-822003 - Bushing [ More info ]
|
| #43 | 25-822002 | GROMMET (4 required per assembly) |
  |
|
25-822002 - Grommet [ More info ]
|
| #44 | 37-818029 | DECAL, FUEL MIX (1 required per assembly) |
  |
37-818029 - DECAL-FUEL MIX [ More info ] Unavailable |
|
  |
|
37-818029 1 - Decal - Fuel Mix, NLA [ More info ] Unavailable |
