Parts for Force 50 HP (1992) Electric Starter

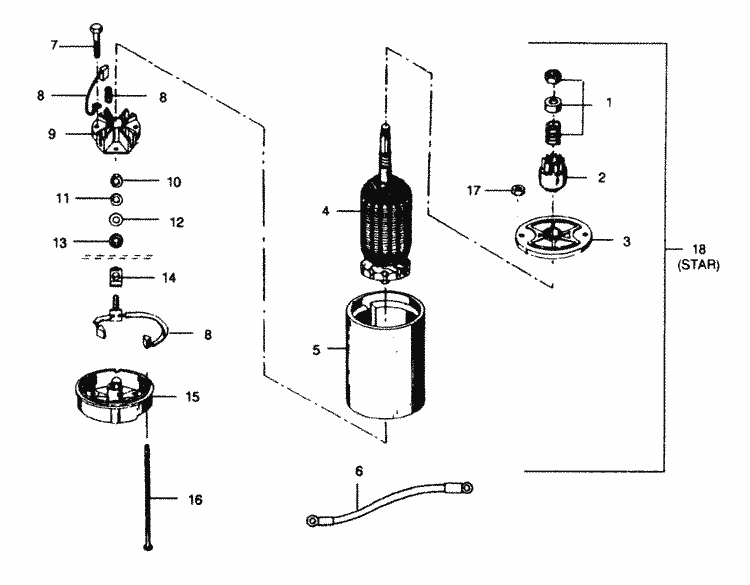

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | F15174 | DRIVE KIT (1 required per assembly) |
  |
F15174 - DRIVE KIT [ More info ] Unavailable |
|
  |
|
90644 - Drive Retainer Kit [ More info ]
|
| #2 | F15182 | DRIVE PINION (1 required per assembly) |
  |
|
F15182 - Starter Drive [ More info ]
|
| #3 | F15154 | CAP, DRIVE END (1 required per assembly) |
  |
|
F15154 - CAP-DRIVE END,NLA [ More info ] Unavailable |
| #4 | F15183 | ARMATURE (1 required per assembly) |
  |
|
F15183 - Armature, NLA [ More info ] Unavailable |
| #6 | F684908-3 | WIRE STARTER (1 required per assembly) |
  |
84-F684908-3 - WIRE [ More info ] Unavailable |
|
  |
|
84-820574 - Wire, NLA [ More info ]
|
| #7 | F15158 | SCREW, BRUSH HOLDER (2 required per assembly) |
  |
|
F15158 - Screw [ More info ] Unavailable |
| #8 | F15164 | BRUSH KIT (1 required per assembly) |
  |
|
F15164 - 898265016 [ More info ]
|
  |
|
75384 - Brush and Spring Kit [ More info ]
|
  |
|
898265016 - Brush/Spring Kit [ More info ] Unavailable |
  |
|
18-5697 - Brush Kit, 385952, 75384 [ More info ]
|
  |
|
300-05697 - 300-05697 OMC STR BRS KT [ More info ]
|
  |
|
BK900 - Brush Kit [ More info ]
|
| #9 | F15157 | HOLDER, BRUSH (1 required per assembly) |
  |
F15157 - Brush Holder [ More info ] Unavailable |
|
  |
61787 - Brush Holder [ More info ] Unavailable |
|
  |
|
898265014 - Brush Holder [ More info ] Unavailable |
| #10 | F15162 | NUT (1 required per assembly) |
  |
|
F15162 - Nut (1/4-20) NLA [ More info ]
|
| #11 | F8083 | LOCKWASHER (1 required per assembly) |
  |
F8083 - LockWasher SS [ More info ] Unavailable |
|
  |
|
13-26992 - LockWasher - Priced Individually [ More info ]
|
| #12 | F15161 | PLAIN WASHER (1 required per assembly) |
  |
F15161 - Washer, NLA [ More info ] Unavailable |
|
  |
|
12-38013 - Washer, Input Stud, NLA [ More info ]
|
| #13 | F15160 | INSULATOR WASHER (1 required per assembly) |
  |
F15160 - Washer, Insulator [ More info ] Unavailable |
|
  |
|
12-804700 - Washer, NLA [ More info ]
|
| #14 | F15159 | INSULATOR (1 required per assembly) |
  |
F15159 - Bushing - Priced Individually [ More info ] Unavailable |
|
  |
|
23-57387 - Bushing - Priced Individually [ More info ]
|
| #15 | F15179 | CAP, COMMUTATOR END W/BRUSHES AND BRUSH HOLDER (1 required per assembly) |
  |
|
F15179 - Commutator End Cap Assembly, NLA [ More info ]
|
| #16 | F15184 | THRU BOLT (2 required per assembly) |
  |
|
|
| #17 | F7008 | STOP NUT (2 required per assembly) |
  |
11-F7008 - Nut, (.250-20) [ More info ] Unavailable |
|
  |
11-72008 - Nut (1/4-20) [ More info ] Unavailable |
|
  |
|
11-826708 8 - Nut [ More info ]
|
| #18 | F575955 | STARTER MOTOR COMPLETE (1 required per assembly) |
  |
50-F575955 - Starter [ More info ] Unavailable |
|
  |
50-803903T - Starter [ More info ] Unavailable |
|
  |
|
50-898265011 - Starter Assembly [ More info ] Unavailable |
  |
|
5382 - Outboard Starter [ More info ]
|
