Parts for Force 50 HP (1991) Carburetor

Revise Search: All Models > 50 HP (1991) > 507X91B ( ) > Carburetor

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

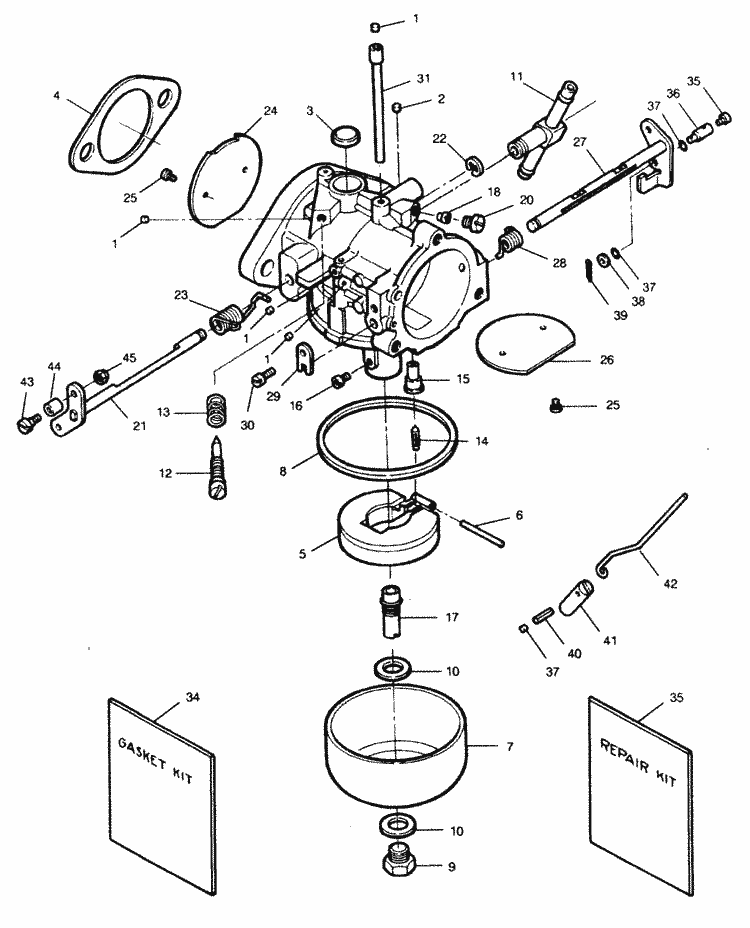

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	O15406	MAIN FUEL JET ( .090) 6000 - UP (1 required per assembly)
#	O14191	MAIN FUEL JET ( .094) 3000 - 4500 FT. (1 required per assembly)
#	F718061	CARBURETOR, COMPLETE (TC-102A) (1 required per assembly)
		1300-F718061 - Carburetor [ More info ] Unavailable
		1300-819671 - Carburetor [ More info ] Unavailable
#	O14190	MAIN FUEL JET ( .092) 4500 - 6000 FT. (1 required per assembly)
#	F10271	MAIN FUEL JET ( .096) 1500- 3000 FT. (1 required per assembly)
		F10271 - JET-.096 [ More info ] Unavailable
		1399-6249 - Jet -.096 [ More info ] $15.99 8 In Stock.
#1	O10588	PLUG (6 required per assembly)
#2	F10263	PLUG (1 required per assembly)
		F10263 - Metering Cup, NLA [ More info ] Unavailable
#3	O16128	PLUG (1 required per assembly)
#4	F440906	GASKET (1 required per assembly)
		27-F440906 - Carburetor Gasket [ More info ] $3.09 8 In Stock.
#5	O13554	FLOAT (1 required per assembly)
#6	O13944	PIN, FLOAT LEVER (1 required per assembly)
#7	O16130	BOWL, FUEL (1 required per assembly)
#8	O15623	GASKET, FUEL BOWL (1 required per assembly)
#9	O16132	SCREW, FUEL BOWL RETAINING (1 required per assembly)
#10	O5323	GASKET (2 required per assembly)
#11	F84314-2	ELBOW (1 required per assembly)
		22-F84314-2 - Elbow, NLA [ More info ] Unavailable
#12	F10268	SCREW, IDLE MIXTURE (1 required per assembly)
		F10268 - Screw - Idle Mixture Screw [ More info ] $22.11 7 In Stock.
#13	O11103	SPRING (1 required per assembly)
#14	F10264	INLET NEEDLE & SEAT (1 required per assembly)
		F10264 - FK10264, NLA [ More info ] Unavailable
		FK10264 - Needle and Seat [ More info ] Unavailable
		F10265 - Inlet Needle [ More info ] $16.79 3 In Stock.
#16	F10269	MAIN FUEL JET (.098) SEA LEVEL - 1500 FT. (1 required per assembly)
		F10269 - JET-.098 [ More info ] Unavailable
		1395-7335 - Jet -.098 [ More info ] $3.79 6 In Stock.
#17	O16133	NOZZLE (1 required per assembly)
#18	F10273	JET, MID RANGE (1 required per assembly)
		F10273 - 047 Idle Air Jet [ More info ] $18.39 Available to Order: Shipping delay up to 10 days.
#20	F10275	SCREW (1 required per assembly)
		F10275 - Screw [ More info ] $3.79 Available to Order: Shipping delay up to 10 days.
#21	O17884	SHAFT, THROTTLE (1 required per assembly)
#22	O16620	E- RING (1 required per assembly)
#23	O16143	SPRING, THROTTLE RETURN (1 required per assembly)
#24	F10335	SHUTTER, THROTTLE (1 required per assembly)
		F10335 - SHUTTER,NLA [ More info ] Unavailable
#25	F10328	SCREW (4 required per assembly)
		10-F10328 - Screw -w/Lw [ More info ] Unavailable
		10-803176 - Screw [ More info ] $3.59 1 In Stock.
#26	O17719	SHUTTER, CHOKE (1 required per assembly)
#27	F10336	SHAFT, CHOKE (1 required per assembly)
		F10336 - SHAFT AND LEVER,NLA [ More info ] Unavailable
#28	F10285	SPRING (1 required per assembly)
		F10285 - SPRING,NLA [ More info ] Unavailable
#29	O9678	CLIP (1 required per assembly)
#30	F10284	SCREW (1 required per assembly)
		F10284 - SCREW W/LW,NLA [ More info ] Unavailable
#31	O16993	TUBE, IDLE BY-PASS (1 required per assembly)
#33	FK10288	REPAIR KIT (1 required per assembly)
		FK10288 - Repair Kit [ More info ] Unavailable
		820576A 1 - Carburetor Repair Kit, NLA [ More info ] Unavailable
#34	F10023	GASKET SET (1 required per assembly)
		F10023 - FK10023, NLA [ More info ] Unavailable
		FK10023 - Carburetor Gasket Set [ More info ] $11.09 10+ In Stock.
#35	F1059	SCREW, 6 - 32 X 1/4 (1 required per assembly)
		10-F1059 - Screw -ss, NLA [ More info ] $2.93 10+ In Stock.
#36	F184033	SWIVEL (1 required per assembly)
		F184033 - F1840331 [ More info ] Unavailable
		F184033-1 - Swivel [ More info ] $9.12 10+ In Stock.
#37	F184579	SEAL (3 required per assembly)
		25-F184579 - O-Ring [ More info ] Unavailable
		25-68211 - O-Ring [ More info ] $1.40 Available to Order: Shipping delay up to 10 days.
#38	F8088	WASHER (1 required per assembly)
		12-F8088 - Washer - Priced Individually [ More info ] Unavailable
		12-27882 - Washer - Priced Individually [ More info ] $1.27 10+ In Stock.
#39	F1014	COTTER PIN (1 required per assembly)
		F1014 - Cotter Pin - Priced Individually [ More info ] Unavailable
		18-26953 - Cotter Pin - Priced Individually [ More info ] $4.19 8 In Stock.
#40	F2023	GROOVE PIN (1 required per assembly)
		F2023 - 17F2033 [ More info ] Unavailable
		17-F2033 - Pin, Groove, NLA [ More info ] $1.53 $1.29 10+ In Stock.
#41	F391926-1	PLUNGER, CHOKE (1 required per assembly)
		F391926-1 - Choke Plunger, NLA [ More info ] $41.85 $35.45 3 In Stock.
#42	F718925	ROD, CHOKE (1 required per assembly)
		F718925 - ROD-CHOKE,NLA [ More info ] Unavailable
#43	F333316	SHAFT, THROTTEL ROLLER (1 required per assembly)
		F333316 - Roller Shaft, NLA [ More info ] Unavailable
		830110 - Roller Shaft, NLA [ More info ] $11.84 3 In Stock.
#44	F92759	ROLLER (1 required per assembly)
		F92759 - Roller, NLA [ More info ] Unavailable
		819225 - Roller, NLA [ More info ] $9.69 10+ In Stock.
#45	F1997	NUT 1
		11-F1997 - Nut (#8-32) [ More info ] Unavailable
		11-826709 4 - Nut - Priced Individually [ More info ] $1.88 3 In Stock.
