Parts for Force 50 HP (1990) Shift & Throttle Linkage

Revise Search: All Models > 50 HP (1990) > 508F90D ( ) > Shift & Throttle Linkage

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

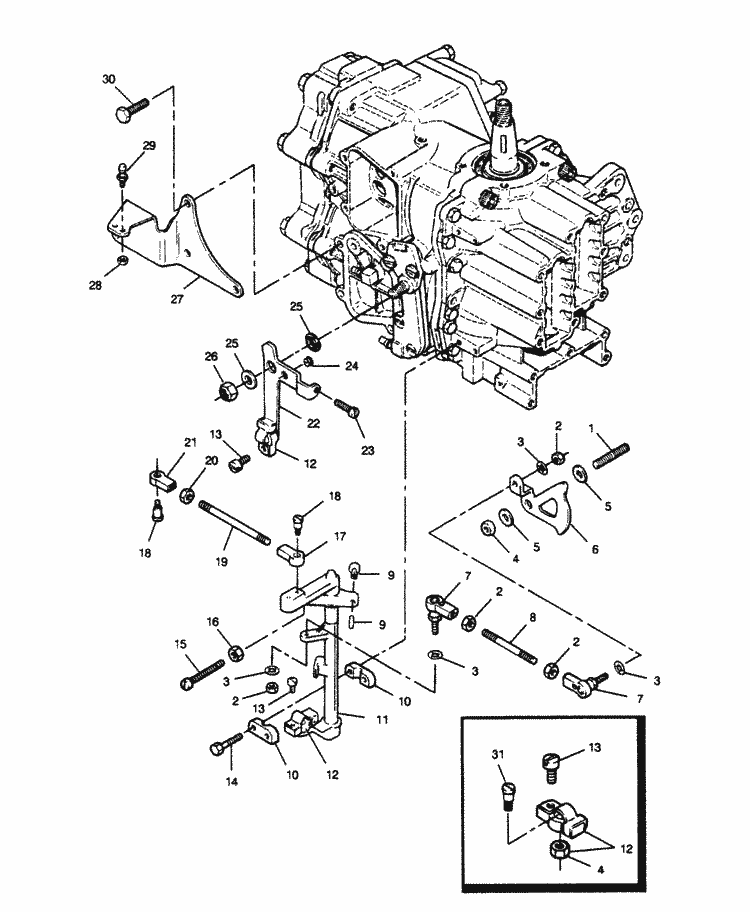

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	F433209-1	STUD, THROTTLE CAM (1 required per assembly)
		16-F433209-1 - Stud [ More info ] $8.61 10+ In Stock.
#2	F1513	NUT, HEX, 10 - 32 (4 required per assembly)
		F1513 - Hex Nut 10 - 32 [ More info ] $0.86 10+ In Stock.
		11-68219 - Nut (#10-32) [ More info ] $2.99 10+ In Stock.
#3	F8058	WASHER, TOOTH, EXTERNAL (4 required per assembly)
		13-F8058 - LockWasher, NLA [ More info ] $1.09 10+ In Stock.
#4	F7008	NUT, ELASTIC, STOP, 1/4 - 20 (1 required per assembly)
		11-F7008 - Nut, (.250-20) [ More info ] Unavailable
		11-72008 - Nut (1/4-20) [ More info ] Unavailable
		11-826708 8 - Nut [ More info ] $1.70 Available to Order: Shipping delay up to 10 days.
#5	F269319	BEARING, THROTTLE CAM (2 required per assembly)
		23-F269319 - Bushing, NLA [ More info ] $9.69 10+ In Stock.
#6	F718192	CAM, THROTTLE (1 required per assembly)
		F718192 - Throttle Cam, NLA [ More info ] $6.00 $5.08 9 In Stock.
#7	817747 1	BEARING W/BALL JOINT (2 required per assembly)
		817747 1 - Ball Joint Assembly [ More info ] Unavailable
		828514A 1 - Ball and Socket [ More info ] $22.61 10+ In Stock.
#8	F718502	LINK, THROTTLE (1 required per assembly)
		16-F718502 - Throttle Link, NLA [ More info ] $21.47 10+ In Stock.
#9	F1727	RIVET, PLASTIC (1 required per assembly)
		17-F1727 - Rivet, NLA [ More info ] $1.79 10 In Stock.
#10	F433689	BEARING, TOWERSHAFT (4 required per assembly)
		F433689 - Towershaft Bearing [ More info ] Unavailable
		816957 - Towershaft Bearing, NLA [ More info ] $2.50 1 In Stock.
#11	FK433838	TOWERSHAFT (1 required per assembly)
		FK433838 - TOWERSHAFT KIT [ More info ] Unavailable
		819537A 1 - Tower Shaft Kit [ More info ] Unavailable
		819522A 3 - TowerShaft Kit [ More info ] Unavailable
#12	FK405020	SWIVEL (1 required per assembly)
		FK405020 - Swivel Kit, NLA [ More info ] $26.95 10+ In Stock.
#13	F2217	SCREW, FILL HD. W/LOCKWASHER, 10 - 24 X 3/8 (2 required per assembly)
		10-F2217 - Screw [ More info ] $0.72 3 In Stock.
		10-F2217-1 - 10-F2217-1 - SCREW (10-24 x .3 [ More info ] Unavailable Replaced by 10-F2217-1
#14	F1995	SCREW, FILL HD., 10 - 24 X 1 (4 required per assembly)
		10-F1995 - Screw [ More info ] $0.30 10+ In Stock.
		10-68918 - Screw [ More info ] $3.20 $1.79 10+ In Stock.
#15	F1052	SCREW, FILL HD., 1/4 - 20 X 1 (1 required per assembly)
		F1052 - Screw SS [ More info ] $0.56 10+ In Stock.
		10-28666 - Screw, NLA [ More info ] $1.83 $1.56 10+ In Stock.
#16	F1341	NUT, HEX (1 required per assembly)
		F1341 - Hex Nut 1/4 - 20 [ More info ] Unavailable
		11-64015 - Nut (1 /4-20) [ More info ] $2.79 10+ In Stock.
#17	F84036	BEARING, SPARK CONTROL, L.H. (1 required per assembly)
		F84036 - Spark Control Bearing - LH [ More info ] Unavailable
		819208 - Spark Control Bearing [ More info ] Unavailable
#18	F84026	SWIVEL, SPARK CONTROL (2 required per assembly)
		10-F84026 - SCREW-SHOULDER [ More info ] Unavailable
		10-819625 - Screw, NLA [ More info ] $9.89 10+ In Stock.
#19	F658445	LINK, SPARK CONTROL (1 required per assembly)
		F658445 - Link, NLA [ More info ] $7.50 $6.36 10+ In Stock.
#20	F1473	NUT, HEX, 10 - 24 (1 required per assembly)
		F1473 - Hex Nut 10 - 24 [ More info ] Unavailable
		11-79989 - Nut (10 - 24) [ More info ] $2.79 10+ In Stock.
#21	F84035-2	BEARING, SPARK CONTROL. R.H. (1 required per assembly)
		F84035-2 - Spark Control Bearing - RH [ More info ] Unavailable
		816514 - Bearing - Black [ More info ] Unavailable
#22	817793A 1	SHIFT ARM (1 required per assembly)
		817793A 1 - ARM ASSY-SHIFT [ More info ] Unavailable
		817793A 2 - ARM KIT-SHIFT,NLA [ More info ] Unavailable
#23	F2207	SCREW, FILL HD., 1/4 - 20 X 1/2 (1 required per assembly)
		10-F2207 - Screw, NLA [ More info ] $1.46 10+ In Stock.
#24	F85610	BEARING (1 required per assembly)
		23-F85610 - Bushing [ More info ] $0.35 10+ In Stock.
		23-97896 - Bushing [ More info ] $4.49 10+ In Stock.
#25	F269052	BEARING, SHIFT ARM (2 required per assembly)
		23-F269052 - Bushing, NLA [ More info ] $3.90 10+ In Stock.
#26	F7004	NUT STOP, 3/8 - 16 (1 required per assembly)
		11-F7004 - Nut, (.375-16) [ More info ] $0.49 7 In Stock.
		11-28010 - Nut - Priced Individually [ More info ] Unavailable
		11-68411 - Nut (3/8-16) [ More info ] $6.66 10+ In Stock.
		11-826709 12 - Nut, (.375-16) Stainless Steel [ More info ] $6.79 $3.81 10+ In Stock.
#27	817746A 1	BRACKET, CONNECTOR STUD (1 required per assembly) W/LITERATURE ORIGINAL FORCE P/N A267371-1
		817746A 1 - Bracket Kit, NLA [ More info ] $9.70 2 In Stock.
#28	F1804	NUT, STOP 10 - 32 (2 required per assembly)
		11-F1804 - Nut - Priced Individually [ More info ] Unavailable
		11-20110 - Nut (M10X32) [ More info ] $1.70 10+ In Stock.
#29	F98273	STUD, ROD END CONNECTOR (2 required per assembly)
		16-F98273 - Stud, NLA [ More info ] $19.92 $16.88 10 In Stock.
#30	F1864	SCREW, HEX CAP, 1/4 - 20 X 3/4 (3 required per assembly)
		10-F1864 - Screw SS [ More info ] Unavailable
		10-28636 - Screw - Priced Individually [ More info ] $1.80 10+ In Stock.
#31	F405457	SCREW, PIVOT (1 required per assembly)
		10-F405457 - Screw, NLA [ More info ] $8.39 10+ In Stock.
