Parts for Force 50 HP (1987) Reed Plate

Revise Search: All Models > 50 HP (1987) > 507X7A ( ) > Reed Plate

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

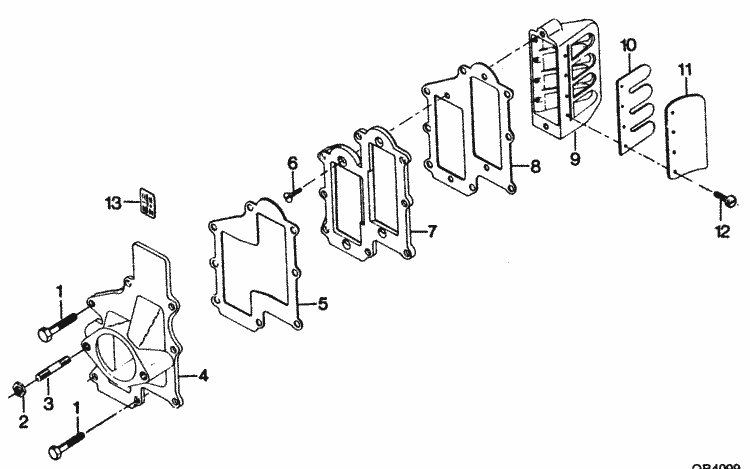

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	F2008	HEX HD SCREW, 1/4 - 20 X 7/8 (8 required per assembly)
		10-F2008 - Screw -ss, NLA [ More info ] $3.22 10+ In Stock.
#2	F1515	HEX NUT, 5/16 - 18 (2 required per assembly)
		F1515 - Hex Hut, 5/16 - 18 [ More info ] $0.30 10+ In Stock.
		11-68292 - Nut (5/16 Inch) [ More info ] $1.50 10+ In Stock.
		11-8M0204668 - NUT @5 [ More info ] Unavailable
#3	F40209	CARBURETOR STUD (2 required per assembly)
		16-F40209 - STUD [ More info ] Unavailable
		16-826388 1 - Stud, NLA [ More info ] $1.65 $1.40 10+ In Stock.
#4	FA433167	CARBURETOR ADAPTER FLANGE (1 required per assembly) W/ILLUS. 3
		FA433167 - Adapter Kit, NLA [ More info ] Unavailable
#5	F433168	CARBURETOR ADAPTER GASKET (1 required per assembly)
		27-F433168 - Carburetor Adapter Gasket [ More info ] $2.69 10+ In Stock.
#6	F1141	FLAT HD SCREW, 10 - 24 X 1/2 (4 required per assembly)
		F1141 - Screw, NLA [ More info ] Unavailable
		10-21424 - Screw, NLA [ More info ] Unavailable
#7	F433404	DEFLECTOR PLATE (1 required per assembly)
		F433404 - Deflector Plate [ More info ] Unavailable
		819807 1 - Deflector Plate, NLA [ More info ] $33.33 $28.23 10 In Stock.
#8	F433406	DEFLECTOR PLATE GASKET (1 required per assembly)
		27-F433406 - Deflector Plate Gasket [ More info ] $5.09 $2.86 10+ In Stock.
#9	FA658158	REED PLATE (2 required per assembly) W/ILLUS. 10, 11 AND 12
		FA658158 - Reed Plate Assembly, NLA [ More info ] Unavailable
#10	F316160	REED (4 required per assembly)
		34-F316160 - Reed, 4 Petal, Sold as a Single Reed Only [ More info ] $61.99 $59.36 4 In Stock.
#11	F88161-4	REED STOP (4 required per assembly)
		34-F88161-4 - Reed Stop, NLA [ More info ] $6.52 $5.53 10+ In Stock.
#12	F1755	ROUND HD SCREW W/LOCKWASHER, 6 - 32 X 1/4 (16 required per assembly)
		F1755 - SCREW [ More info ] $0.30 5 In Stock.
		10-819074 - Screw -w/Lw [ More info ] $0.55 $0.46 10+ In Stock.
#13	37-817792A 1	DECAL, TIMING (1 required per assembly) W/LITERATURE ORIGINAL FORCE P/N A 433387-1
		37-817792A 1 - Decal Kit - Timing, NLA [ More info ] Unavailable
