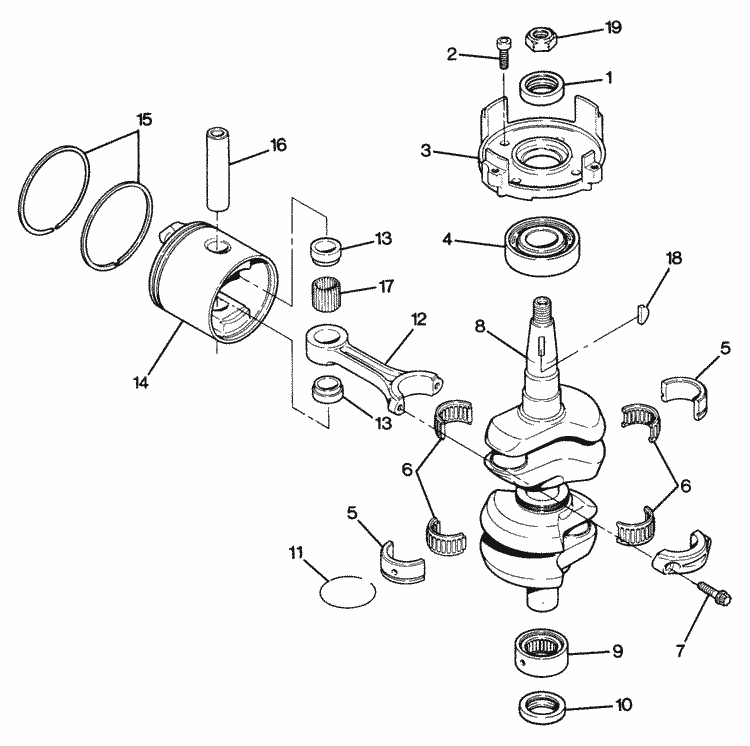

Parts for Force 50 HP (1987) Crankshaft & Piston
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 700-818130A 1 | PISTON (.030 OVER) (2 required per assembly) |
  |
700-818130A 1 - Piston -.030 oversize [ More info ] Unavailable |
|
  |
|
700-834798A 2 - Piston Kit-.030,NLA [ More info ] Unavailable |
| # | 39-818131A 1 | RING SET (.030 OVER) (2 required per assembly) |
  |
|
39-818131A 1 - Ring Set-2-.030,NLA [ More info ] Unavailable |
| # | FSA658015 | PISTON (.010 OVER) (2 required per assembly) |
  |
FSA658015 - Piston - .010 [ More info ] Unavailable |
|
  |
|
700-834798A 1 - Piston - .010 oversize, NLA [ More info ]
|
| # | FSA658260 | RING SET (.010 OVER) (2 required per assembly) |
  |
|
FSA658260 - Rings - 2-.010, NLA [ More info ] Unavailable |
| #1 | F474146 | SEAL, CRANKSHAFT, UPPER (1 required per assembly) |
  |
|
26-F474146 - Seal [ More info ]
|
  |
|
26-828626 - Seal [ More info ]
|
| #2 | F2081 | SCREW, BEARING CAGE TO CYLINDER, 1/4 - 20 X 7/8, PAN HD (4 required per assembly) |
  |
F2081 - Screw [ More info ] Unavailable |
|
  |
|
10-92160 - Screw [ More info ]
|
| #3 | F658144 | CAGE, CRANKSHAFT BEARING W/CRANKSHAFT SEAL (474146) (1 required per assembly) |
  |
1100-F658144 - CAGE [ More info ] Unavailable |
|
  |
|
1100-F2A658144 - Cage Assembly, NLA [ More info ] Unavailable |
| #4 | F658013 | BEARING, CRANKSHAFT, UPPER MAIN (1 required per assembly) |
  |
|
30-F658013 - Ball Bearing, NLA [ More info ]
|
| #5 | FA40655 | RACE, CRANKSHAFT CENTER MAIN BEARING W/SNAP RING (40410) (1 required per assembly) |
  |
|
31-FA40655 - Bearing, NLA [ More info ]
|
| #6 | FK85228-1 | CAGE, BEARING WITH ROLLERS (16 PER SET) (3 required per assembly) |
  |
FK85228-1 - Cage/Roller Set [ More info ] Unavailable |
|
  |
|
31-62596A 2 - Cage Roller, for One Rod Only [ More info ]
|
| #7 | F85634-2 | SCREW, CONNECTING ROD (4 required per assembly) |
  |
10-F85634-2 - Connecting Rod Screw [ More info ] Unavailable |
|
  |
|
10-91012 - Screw - Special - Priced Individually [ More info ]
|
| #8 | F658018 | CRANKSHAFT W/UPPER CRANKSHAFT BEARING (658013) (1 required per assembly) |
  |
F658018 - Crankshaft [ More info ] Unavailable |
|
  |
|
FA658018 - CrankShaft, NLA [ More info ]
|
| #9 | F90014 | BEARING, CRANKSHAFT, LOWER MAIN (1 required per assembly) |
  |
|
31-F90014 - Bearing - Crankshaft Lower Main [ More info ]
|
| #10 | F40146-1 | SEAL, CRANKSHAFT, LOWER (1 required per assembly) |
  |
26-F40146-1 - Seal [ More info ] Unavailable |
|
  |
|
26-819394 - Seal [ More info ]
|
| #11 | F40410 | SNAP RING (1 required per assembly) |
  |
|
53-F40410 - Ring -snap, NLA [ More info ]
|
| #12 | 600-818052A 4 | ROD, CONNECTING W/CAP AND SCREWS (85634-2) (2 required per assembly) |
  |
600-818052A 4 - Connecting Rod Assembly [ More info ] Unavailable |
|
  |
600-818052A 6 - Connecting Rod [ More info ] Unavailable |
|
  |
|
600-818052T 6 - Connecting Rod [ More info ]
|
| #13 | F335215 | SPACER, PISTON PIN (4 required per assembly) |
  |
23-F335215 - Piston Pin Spacer [ More info ] Unavailable |
|
  |
|
23-826806 - Piston Pin Spacer [ More info ]
|
| #14 | F658015 | PISTON (STANDARD) (2 required per assembly) |
  |
|
700-F658015 - Piston, Std [ More info ]
|
  |
|
700-834798 - Piston - Standard [ More info ] Unavailable |
| #15 | FA658260 | RING SET (STANDARD) (2 required per assembly) |
  |
|
39-FA658260 - Rings - 2 - Standard, NLA [ More info ]
|
| #16 | F658017 | PIN, PISTON (2 required per assembly) |
  |
|
41-F658017 - PIN-Piston, NLA [ More info ] Unavailable |
| #17 | F335217-1 | BEARING, PISTON PIN (1 required per assembly) |
  |
|
31-F335217-1 - Bearing - Piston Pin [ More info ]
|
| #18 | F85498-1 | FLYWHEEL KEY (1 required per assembly) |
  |
|
28-F85498-1 - Key [ More info ]
|
| #19 | F1968 | FLYWHEEL NUT, 3/4-16 (1 required per assembly) |
  |
|
11-F1968 - Nut (3/4-16) [ More info ]
|
