Parts for Force 50 HP (1984) Motor Leg

Revise Search: All Models > 50 HP (1984) > 507XC4A ( ) > Motor Leg

NEED PARTS OR KITS?

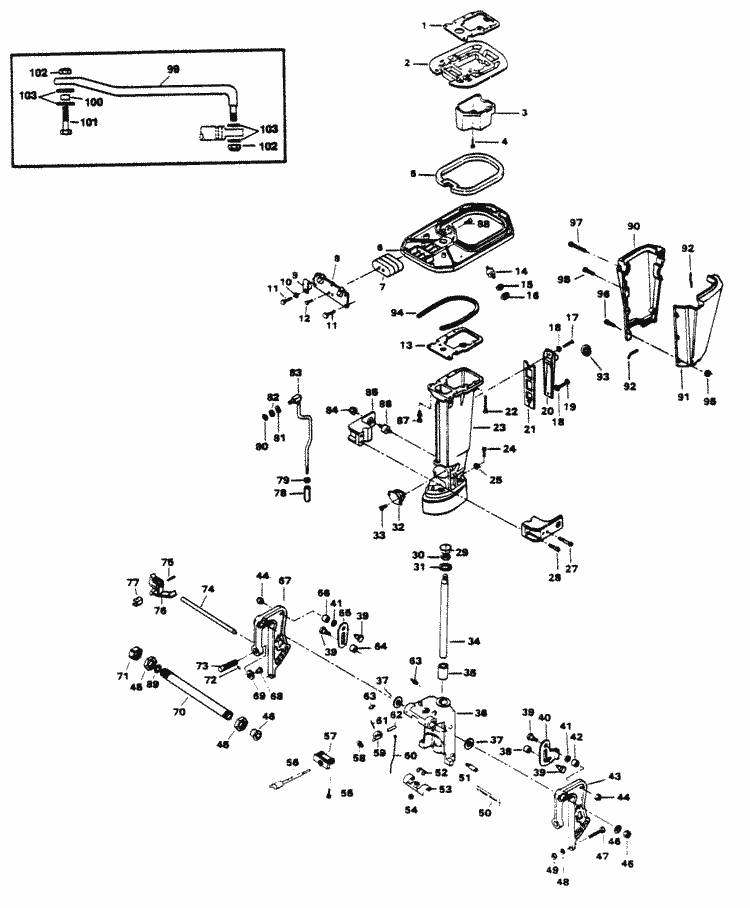

View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	F307279-2	CYLINDER EXHAUST GASKET UPPER (1 required per assembly)
		27-F307279-2 - Gasket [ More info ] $7.09 10+ In Stock.
#2	F433680	SPACER PLATE (1 required per assembly)
		F433680 - Spacer Plate, NLA [ More info ] Unavailable
#3	F307660-1	LEG EXHAUST TUBE (1 required per assembly)
		F307660-1 - Tube, NLA [ More info ] Unavailable
#4	F1851	FILL HD M. SCREW W/LOCKWASHER, 10 - 24 X 1/2 (3 required per assembly)
		10-F1851 - Screw -ss, NLA [ More info ] Unavailable
#5	26-817766A 1	SEAL, KING (1 required per assembly) W/LITERATURE ORIGINAL FORCE P/N A 307989-1
		26-817766A 1 - Seal Kit, NLA [ More info ] $42.99 $36.41 5 In Stock.
#6	FS307940	KINGPIN PLATE (1 required per assembly)
		FS307940 - PLATE,NLA [ More info ] Unavailable
#7	F203965	SHOCK MOUNT UPPER (1 required per assembly)
		F203965 - F2039651 [ More info ] Unavailable
		F203965-1 - Shock Mount [ More info ] $42.47 $35.97 10+ In Stock.
#8	F433946	SHOCK MOUNT UPPER COVER (1 required per assembly)
		F433946 - F4339461 [ More info ] Unavailable
		F433946-1 - Cover [ More info ] $24.45 $20.71 2 In Stock.
#9	F286772-1	CLAMP (1 required per assembly)
		54-F286772-1 - Clamp [ More info ] $1.50 $1.28 10+ In Stock.
#10	F8025	PLAIN WASHER (1 required per assembly)
		12-F8025 - Washer - Priced Individually [ More info ] Unavailable
		12-37998 - Washer - Priced Individually [ More info ] $0.70 4 In Stock.
#11	F1922	HEX CAP SCREW, 1/4 - 20 X 5/8 (5 required per assembly)
		10-F1922 - Screw, NLA [ More info ] Unavailable
#12	F1211	HEX HD SCREW W/LOCKWASHER, 1/4 - 25 X 5/8 (2 required per assembly)
		10-F1211 - Screw -w/Lw, NLA [ More info ] Unavailable
#13	F40279-1	CYLINDER EXHAUST GASKET LOWER (1 required per assembly)
		27-F40279-1 - Gasket [ More info ] $14.48 $12.26 10 In Stock.
#14	F307962	SHOCK MOUNT - SIDE - UPPER (2 required per assembly)
		F307962 - Shock Mount [ More info ] $97.99 $82.99 10+ In Stock.
#15	F8038	PLAIN WASHER (2 required per assembly)
		12-F8038 - Washer [ More info ] Unavailable
		12-37828 - Washer, (.390 X .625 X .062) Stainless Steel [ More info ] $0.80 2 In Stock.
#16	F1346	HEX NUT, 3/8 - 16 (2 required per assembly)
		11-F1346 - Hex Nut, 3/8 - 16 [ More info ] $0.44 2 In Stock.
		11-86226 - Nut (3/8-16) [ More info ] $2.21 10 In Stock.
		11-8M0204671 - NUT [ More info ] Unavailable
#17	F1849	HEX HD SCREW, S.S., 1/4 - 20 X 1-3/8 (1 required per assembly)
		10-F1849 - Screw -ss [ More info ] $0.90 $0.18 9 In Stock.
#18	F8083	SPRING LOCKWASHER (2 required per assembly)
		F8083 - LockWasher SS [ More info ] Unavailable
		13-26992 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
#19	F1199	HEX HD SCREW, 1/4 - 20 X 1 (1 required per assembly)
		F1199 - Screw SS [ More info ] Unavailable
		10-14168 - Screw [ More info ] $1.39 $1.17 10+ In Stock.
#20	FA613832	MOTOR LEG EXHAUST COVER (1 required per assembly) W/ILLUS. 17 & 19
		FA613832 - Cover, NLA [ More info ] Unavailable
#21	F40833-4	MOTOR LEG EXHAUST COVER GASKET (1 required per assembly)
		27-F40833-4 - Gasket [ More info ] $4.94 10+ In Stock.
#22	F1905	FILL HD SCREW, 1/4 - 20 X 3-7/16 (1 required per assembly)
		10-F1905 - Screw -ss, NLA [ More info ] $4.00 $3.39 2 In Stock.
#23	F435133-1	MOTOR LEG (1 required per assembly)
		F435133-1 - F4351332 [ More info ] Unavailable
		F435133-2 - LEG-MOTOR [ More info ] Unavailable
		1500-F435133-3 - LEG,NLA [ More info ] Unavailable
#24	F1929	HEX HD CAP SCREW, S.S., 3/8 - 16 X 1-1/8 (4 required per assembly)
		10-F1929 - Screw - Priced Individually [ More info ] Unavailable
		10-35047 - Screw - Priced Individually [ More info ] $3.79 Available to Order: Shipping delay up to 10 days.
#25	F8065	SPRING LOCKWASHER (4 required per assembly)
		F8065 - LockWasher [ More info ] $0.25 10+ In Stock.
		13-58643 - LockWasher [ More info ] $1.80 $1.30 10+ In Stock.
#26	F433973	SHOCK MOUNT LOWER COVER - PORT (1 required per assembly)
		F433973 - Cover, NLA [ More info ] Unavailable
#27	F1635	HEX SOCKET HD CAP SCREW, S.S., 3/8 - 16 X 3-1/2 (2 required per assembly)
		10-F1635 - Screw -ss, NLA [ More info ] Unavailable
#28	F1636	HEX SOCKET HD SCAP SCREW, S.S., 3/8 - 16 X 1-1/4 (2 required per assembly)
		F1636 - Screw SS [ More info ] Unavailable
		10-830573 - Screw, NLA [ More info ] $1.50 $1.28 10+ In Stock.
#29	F1880	PLASTIC PLUG (1 required per assembly)
		F1880 - Plug, NLA [ More info ] $1.67 $1.42 10+ In Stock.
#30	F84280	KINGPIN NUT (1 required per assembly)
		11-F84280 - NUT,NLA [ More info ] Unavailable
#31	F89011	SWIVEL BRACKET WASHER (1 required per assembly)
		12-F89011 - Washer, NLA [ More info ] Unavailable
		12-69342 - Washer, Swivel Pin - Upper, NLA [ More info ] $11.98 8 In Stock.
#32	F183346-1	SHOCK MOUNT LOWER (1 required per assembly)
		F183346-1 - Shock Mount, NLA [ More info ] Unavailable
#33	F1129	FILL HD SCREW, S.S., 5/16 - 18 X 1/2 (4 required per assembly)
		10-F1129 - Screw -ss, NLA [ More info ] $2.25 $1.91 10+ In Stock.
#34	FA433019	KINGPIN (1 required per assembly) W/ILLUS. 29
		FA433019 - KINGPIN ASSY [ More info ] Unavailable
		819331A 2 - Kingpin Assembly -35/50, NLA [ More info ] Unavailable
#35	F191169-1	SWIVEL BRACKET BEARING (2 required per assembly)
		23-F191169-1 - Bearing, NLA [ More info ] $11.70 8 In Stock.
#36	FA613072	SWIVEL BRACKET (1 required per assembly) W/ILLUS. 35 & 63
		FA613072 - Swivel Bracket Kit [ More info ] Unavailable
		1400-817868A 1 - Swivel Bracket Kit [ More info ] Unavailable
		1400-817868A 2 - Bracket Kit, NLA [ More info ] $80.00 $67.76 2 In Stock.
#37	F522286	STERN BRACKET FRICTION WASHER (2 required per assembly)
		12-F522286 - Washer-phenolic (1.40 Od X .89 Id X .094) NLA [ More info ] $3.49 $2.96 10+ In Stock.
#38	F269929	SPACER, TILT STOP (1 required per assembly)
		23-F269929 - Spacer [ More info ] $23.08 5 In Stock.
#39	F366350	TILT STOP PIVOT (4 required per assembly)
		F366350 - F3663501 [ More info ] Unavailable
		F366350-1 - Pivot [ More info ] $8.99 3 In Stock.
#40	F366426	TILT STOP - PORT (1 required per assembly)
		F366426 - Port Tilt Stop [ More info ] Unavailable
		F366426-1 - STOP-TILT-PORT [ More info ] Unavailable
		820527 - Port Tilt Stop [ More info ] $39.99 Available to Order: Shipping delay up to 10 days.
#41	F1666	BOWED SPRING WASHER (2 required per assembly)
		F1666 - Wave Washer - Priced Individually [ More info ] Unavailable
		13-69150 - Wave Washer - Priced Individually [ More info ] $3.79 10+ In Stock.
#43	F522532-1	STEN BRACKET - PORT (1 required per assembly)
		F522532-1 - FK522032, NLA [ More info ] Unavailable
		FK522032 - Bracket Kit -Stern, NLA [ More info ] Unavailable
#44	F7007	NUT (4 required per assembly)
		F7007 - 11F7052 [ More info ] Unavailable
		11-F7052 - Nut, NLA [ More info ] $3.59 5 In Stock.
#45	F1600	LOCK NUT, PIVOT TUBE (2 required per assembly)
		11-F1600 - Nut (.875-14) [ More info ] Unavailable
		11-56041 - Nut (7/8-14) [ More info ] Unavailable
		11-30499 - Nut (7/8-14) [ More info ] Unavailable
		11-858869 - Nut, (.875-14) [ More info ] $4.99 4 In Stock.
#46	F9052	PLASTIC PLUG, PIVOT TUBE (2 required per assembly)
		19-F9052 - Plug, NLA [ More info ] Unavailable
#47	F1593	HEX HD SCREW, S.S., 3/8 - 16 X 3 (2 required per assembly)
		F1593 - 10F2185 [ More info ] Unavailable
		10-F2185 - Screw, NLA [ More info ] $11.00 $9.32 9 In Stock.
#48	F1904	PLAIN WASHER (2 required per assembly)
		12-F1904 - Washer, NLA [ More info ] Unavailable
#50	F544390-1	DECAL, TILT LOCK (1 required per assembly)
		37-F544390-1 - DECAL-REV LOCK,NLA [ More info ] Unavailable
#51	F366886	PIN (2 required per assembly)
		F366886 - Pin, Retaining [ More info ] $12.50 10+ In Stock.
		826578 - Reverse Lock Pin [ More info ] $17.49 Available to Order: Shipping delay up to 10 days.
#52	F366300	REVERSE LOCK SPRING (2 required per assembly)
		24-F366300 - Spring, Reverse Lock [ More info ] $6.19 $4.96 1 In Stock.
#53	F366349	RESERVE LOCK (1 required per assembly)
		F366349 - F3663491 [ More info ] Unavailable
		F366349-1 - LOCK-REVERSE [ More info ] Unavailable
		828986 - LOCK-REVERSE [ More info ] $35.13 1 In Stock.
		821805A 1 - Lock Kit - Reverse [ More info ] $233.49 $223.92 3 In Stock.
#54	F1669	STOP NUT (1 required per assembly)
		11-F1669 - Nut (#6-32) [ More info ] $2.50 10+ In Stock.
		11-8M0207777 - NUT-SS [ More info ] Unavailable
#55	F1733	PAN HD SCREW, 10 - 24 X 9/16 (2 required per assembly)
		10-F1733 - Screw, SS [ More info ] $1.29 2 In Stock.
		10-852453 - Screw [ More info ] $1.50 Available to Order: Shipping delay up to 10 days.
#56	F366827	HANDLE AND SHAFT (1 required per assembly)
		F366827 - Lever - Long [ More info ] Unavailable
		817944A 2 - Lever Kit-LONG, NLA [ More info ] $49.99 $42.33 1 In Stock.
#57	F522884	BEARING, RESERVE LOCK SHAFT (1 required per assembly)
		F522884 - Reverse Lock Shaft Bearing, NLA [ More info ] $16.40 10+ In Stock.
#58	F522741	RING, RETAINING-REV. LOCK SHAFT (1 required per assembly)
		53-F522741 - Ring, NLA [ More info ] $1.50 $1.28 10+ In Stock.
#59	F366364	ARM, REVERSE LOCK (1 required per assembly)
		F366364 - Reverse Lock Arm [ More info ] Unavailable
#60	F366510-1	LINK, REVERSE LOCK (1 required per assembly)
		F366510-1 - Reverse Lock Link [ More info ] Unavailable
#61	F1836	1 SPRING PIN
		17-F1836 - Pin, Spring [ More info ] $4.30 10+ In Stock.
#62	F483884	BEARING, REVERSE LOCK SHAFT REAR (1 required per assembly)
		23-F483884 - Bearing, NLA [ More info ] $1.67 $1.42 10+ In Stock.
#63	F213274	GREASE FITTING (3 required per assembly)
		22-F213274 - Grease Fitting [ More info ] Unavailable
#65	F366433	TILT STOP, STARBOARD (1 required per assembly)
		F366433 - F3664331 [ More info ] $6.00 10+ In Stock.
		F366433-1 - Tilt Stop - Stbd, NLA [ More info ] $10.99 $9.30 10+ In Stock.
#67	F522032	STERN BRACKET - STARBOARD (1 required per assembly)
		F522032 - FK522032, NLA [ More info ] Unavailable
#68	F353480	STUD (2 required per assembly)
		F353480 - Stud, NLA [ More info ] $3.00 $2.54 10+ In Stock.
#69	F24074	CLAMP SCREW FOOT (2 required per assembly)
		F24074 - Foot- Clamp Screw, NLA [ More info ] $13.01 10+ In Stock.
#70	F522125-1	TUBE, PIVOT STEERING (1 required per assembly)
		F522125-1 - F5221252 [ More info ] Unavailable
		F522125-2 - Steering Tube [ More info ] Unavailable
		819545 - Steering Tube [ More info ] Unavailable
		819545 1 - Steering Tube [ More info ] Unavailable
		819545A 1 - Steering Tube Kit [ More info ] $113.06 10+ In Stock.
#71	F9018	PLASTIC CAP, PIVOT TUBE (1 required per assembly)
		19-F9018 - Cap, NLA [ More info ] Unavailable
#72	F8538	SPRING PIN (2 required per assembly)
		17-F8538 - Spring Pin, NLA [ More info ] $0.22 $0.18 10+ In Stock.
#73	F474073-1	CLAMP SCREW (2 required per assembly)
		F474073-1 - Screw - Stern [ More info ] Unavailable
		FA628073 - Screw Assembly, NLA [ More info ] Unavailable
#74	FA433113	STERN BRACKET LOCK BAR (1 required per assembly) W/ILLUS. 75, 76 & 77
		FA433113 - BAR KIT-LOCK [ More info ] Unavailable
		FA658113 - Lock Bar, NLA [ More info ] Unavailable
#75	F1744	SPRING PIN (1 required per assembly)
		17-F1744 - Pin, Spring [ More info ] Unavailable
		17-25319 - Pin, (.125 X 0.75 Inches) [ More info ] $5.09 10+ In Stock.
#76	F433114	HANDLE, LOCK BAR (1 required per assembly)
		F433114 - Handle - Lock Bar [ More info ] Unavailable
		816517 - Lock Bar Handle [ More info ] $17.99 6 In Stock.
#77	F286461	SPRING LOCK BAR HANDLE (1 required per assembly)
		24-F286461 - Spring, Lock Bar Handle [ More info ] $9.69 10+ In Stock.
#78	F141704	GEAR SHIFT ROD COUPLING (1 required per assembly)
		F141704 - Coupler [ More info ] $37.99 Available to Order: Shipping delay up to 10 days.
#79	F1349	HEX NUT, S.S., 5/16 - 18 (1 required per assembly)
		11-F1349 - Nut - Priced Individually [ More info ] Unavailable
		11-68292 - Nut (5/16 Inch) [ More info ] $1.50 10+ In Stock.
		11-8M0204668 - NUT @5 [ More info ] Unavailable
#80	F185764	RETAINER RING (1 required per assembly)
		F185764 - Ring - Retaining - Priced Individually [ More info ] $0.25 4 In Stock.
		53-13194 - Ring - Retaining - Priced Individually [ More info ] $1.27 10+ In Stock.
#81	F8049	BOWED SPRING WASHER (1 required per assembly)
		13-F8049 - Bow Washer, NLA [ More info ] $1.73 $1.46 4 In Stock.
#82	F1987	PLAIN WASHER (1 required per assembly)
		F1987 - Washer - Priced Individually [ More info ] $0.25 10+ In Stock.
		12-34437 - Washer (5/16 In. I.d.) [ More info ] $2.89 Available to Order: Shipping delay up to 10 days.
#83	F307615	GEAR SHIFT ROD UPPER (1 required per assembly)
		F307615 - Shift Rod [ More info ] Unavailable
		F307615-1 - Shift Rod, NLA [ More info ] Unavailable
#84	F1326	ACORN NUT, S.S., 5/16 - 18 (2 required per assembly)
		11-F1326 - NUT-SS [ More info ] Unavailable
		11-826378 - Nut (5/16-18) With Dri Loc, NLA [ More info ] $2.16 9 In Stock.
#85	F433972	SHOCK MOUNT LOWER COVER - STARBOARD (1 required per assembly)
		F433972 - Shock Mount Lower Cover [ More info ] Unavailable
#86	F215962	SHOCK MOUNT SIDE LOWER (2 required per assembly)
		F215962 - Shock Mount [ More info ] Unavailable
		819869 - Shock Mount, NLA [ More info ] $69.28 2 In Stock.
#87	F1947	FLANGED 12 POINT SCREW, 5/16 - 18 X 2 (8 required per assembly)
		F1947 - 10F2235 [ More info ] Unavailable
		10-F2235 - Screw, NLA [ More info ] Unavailable
#88	F1160	FLAT HD SCREW, 1/4 - 28 X 5/8 (2 required per assembly)
		10-F1160 - Screw, NLA [ More info ] $1.50 $1.28 10+ In Stock.
#89	F316599	SEAL, PIVOT TUBE (1 required per assembly)
		25-F316599 - O Ring, Steering Tube [ More info ] $1.39 5 In Stock.
		25-48462 - O-ring, (.614 X .070) [ More info ] $1.80 4 In Stock.
#90	FA435135	COVER, LEG ST'BD (1 required per assembly) W/ILLUS. 92
		FA435135 - Cover-PORT,NLA [ More info ] Unavailable
#91	FA435145	COVER, LEG PORT (1 required per assembly) W/ILLUS. 92
		FA435145 - Cover - Starboard,NLA [ More info ] Unavailable
#92	F435323	PACKING, LEG COVER LOWER (3 required per assembly)
		F435323 - Packing, NLA [ More info ] $2.50 $2.13 10+ In Stock.
#93	F89504	GROMMET, MOTOR LEG EXHAUST COVER (1 required per assembly)
		25-F89504 - Grommet, NLA [ More info ] $4.79 10+ In Stock.
#94	F89025	PAD, DAMPENING - LEG COVER (1 required per assembly)
		F89025 - PAD,NLA [ More info ] Unavailable
#95	F1473	HEX M. SC. NUT #10 - 24 (6 required per assembly)
		F1473 - Hex Nut 10 - 24 [ More info ] Unavailable
		11-79989 - Nut (10 - 24) [ More info ] $2.79 10+ In Stock.
#97	F1767	FILL HD. M. SC., #10 - 24 X 3 (1 required per assembly)
		10-F1767 - Screw -ss, NLA [ More info ] $1.79 10+ In Stock.
#98	F1768	FILL HD. M. SC. #10 - 24 X 1-3/8 (2 required per assembly)
		10-F1768 - Screw -ss [ More info ] $0.44 10+ In Stock.
		10-822970 - Screw [ More info ] $1.80 $1.44 4 In Stock.
#99	F5H141	LINK, STEERING, (1 required per assembly) W/ILLUS. 100, 101, 102, 103
		F5H141 - LINK KIT-STEERIN [ More info ] Unavailable
#100	F522359	SPACER, STEERING LINK (1 required per assembly)
		23-F522359 - Spacer - Steering Link [ More info ] $3.00 $2.54 10+ In Stock.
#101	F2073	HEX CAP SCREW 3/8-24 X 1-5/8 (1 required per assembly)
		F2073 - Screw [ More info ] Unavailable
		10-90072 - Screw [ More info ] $4.99 $4.00 2 In Stock.
#102	F2093	STOP NUT (2 required per assembly)
		11-F2093 - Nut, (.375-24) [ More info ] Unavailable
		11-34863 - Nut (3/8-24) [ More info ] Unavailable
		11-826709113 - Nut, (.375-24) Stainless Steel [ More info ] Unavailable
		11-8M0042636 - Nut - Brass , Priced Individually [ More info ] Unavailable
		118M0204726 - NUT-BRASS Note: Priced Individually [ More info ] $1.80 10 In Stock.
