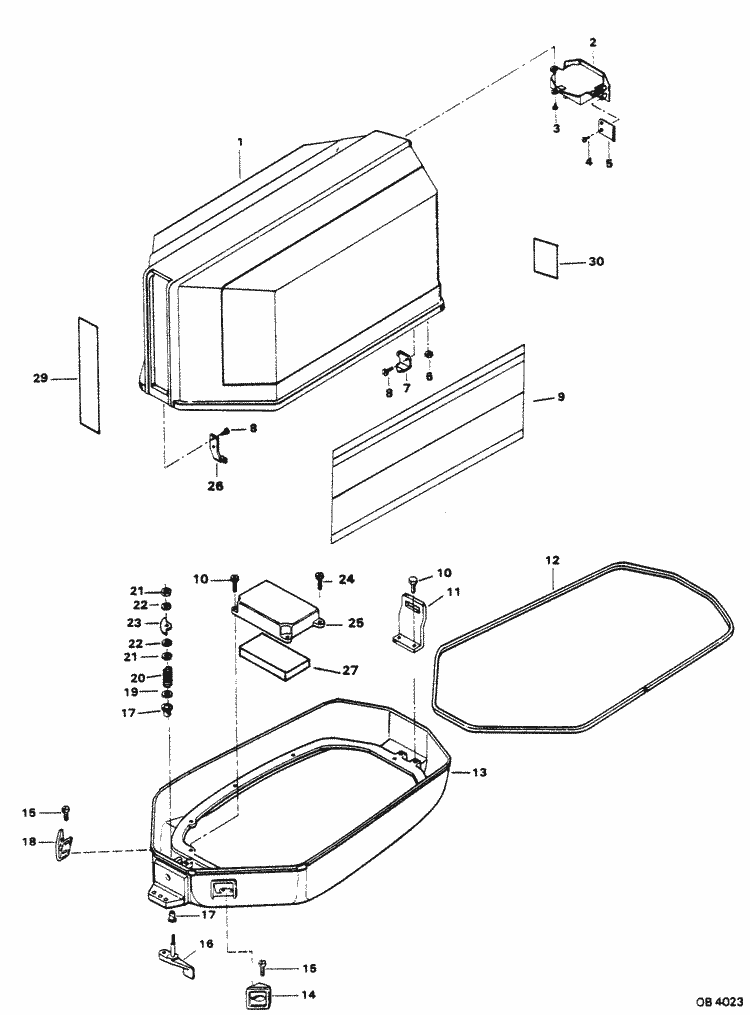

Parts for Force 50 HP (1984) Engine Cover & Support Plate
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | F2C598712 | ENGINE COVER COMPLETE. (1 required per assembly) |
  |
|
F2C598712 - COVER ASSY NLA [ More info ] Unavailable |
| # | F474992 | BLANKET SILENCER - FRONT (NOT SHOWN) (1 required per assembly) |
  |
|
F474992 - Blanket,NLA [ More info ] Unavailable |
| # | F465985 | BLANKET, SILENCER - SIDE (NOT SHOWN) (1 required per assembly) |
  |
|
F465985 - Blanket,NLA [ More info ] Unavailable |
| # | F311984-1 | BLANKET SILENCER - TOP (NOT SHOWN) (1 required per assembly) |
  |
|
F311984-1 - Blanket-SOUND,NLA [ More info ] Unavailable |
| # | A313397 | DECAL, ENGINE COVER PORT W/LITERATURE (1 required per assembly) |
| #1 | FS606712 | ENGINE COVER, (1 required per assembly) W/ILLUS. 6, 7, 8 AND 26 ORIGINAL FORCE P/N S 486712-1 |
  |
|
FS606712 - COVER KIT,NLA [ More info ] Unavailable |
| #2 | 817814A 1 | TILT HANDLE W/LITERATURE (1 required per assembly) |
  |
|
817814A 1 - Handle Kit, NLA [ More info ]
|
| #3 | F2025 | PAN HD SCREW. 10 X 5/8 (1 required per assembly) |
  |
|
10-F2025 - Screw -ss, NLA [ More info ]
|
| #4 | F2066 | PAN HD SELF-TAPPING SCREW (4 required per assembly) |
  |
|
F2066 - Screw SS, NLA [ More info ]
|
| #5 | F463864 | RETAINER, TILT HANDLE (2 required per assembly) |
  |
|
F463864 - Retainer, NLA [ More info ]
|
| #6 | F7011 | HEX NUT, 10 - 24 (4 required per assembly) |
  |
11-F7011 - 11F7009 [ More info ] Unavailable |
|
  |
|
11-F7009 - Nut, (#10-24) [ More info ] Unavailable |
| #7 | FA458480 | ENGINE COVER RETAINER (1 required per assembly) W/ILLUS. 6 AND 8 |
  |
|
FA458480 - Retainer Kit,NLA [ More info ]
|
| #8 | F1475 | FILL HD SCREW, 10 X 24 X 1/2 (4 required per assembly) |
  |
|
10-F1475 - Screw -ss, NLA [ More info ] Unavailable |
| #9 | A313396 | DECAL, ENGINE COVER STARBOARD W/LITERATURE (1 required per assembly) |
| #10 | F1864 | HEX CAP SCREW, 1/4 - 20 X 3/4 (10 required per assembly) |
  |
10-F1864 - Screw SS [ More info ] Unavailable |
|
  |
|
10-28636 - Screw - Priced Individually [ More info ]
|
| #11 | F458774 | BRACKET RETAINER -REAR (1 required per assembly) |
  |
|
F458774 - Bracket, NLA [ More info ]
|
| #12 | F85756 | SUPPORT PLATE PACKING (1 required per assembly) |
  |
|
F85756 - HOOD SEAL,NLA [ More info ] Unavailable |
| #13 | F307038 | SUPPORT PLATE (1 required per assembly) |
  |
|
100-F307038 - PLATE,NLA [ More info ] Unavailable |
| #14 | F549189 | BUSHING ELECTRIC CABLE ENTRY (1 required per assembly) |
  |
F549189 - F5491891 [ More info ] Unavailable |
|
  |
F549189-1 - 23F5491892 [ More info ] Unavailable |
|
  |
23-F549189-2 - Bushing [ More info ] Unavailable |
|
  |
|
23-828763 - Bushing, NLA [ More info ]
|
| #15 | F1733 | PAN HD SCREW, 10 - 24 X 9/16 (3 required per assembly) |
  |
|
10-F1733 - Screw, SS [ More info ]
|
  |
|
10-852453 - Screw [ More info ]
|
| #16 | FA328763 | COVER LATCH HANDLE W/SHAFT (1 required per assembly) |
  |
|
FA328763 - Handle Kit, NLA [ More info ] Unavailable |
| #17 | F307818 | BEARING, LATCH SHAFT (2 required per assembly) |
  |
23-F307818 - Bushing -nyLiner [ More info ] Unavailable |
|
  |
|
23-26841 - Bushing - Priced Individually [ More info ]
|
| #18 | F545189 | BUSHING, CABLE ENTRY (1 required per assembly) |
  |
F545189 - Bushing-ENTRY [ More info ] Unavailable |
|
  |
23-819006 - Entry Bushing [ More info ] Unavailable |
|
  |
23-819006 1 - Bushing-ENTRY [ More info ] Unavailable |
|
  |
|
23-819006 2 - Entry Bushing, NLA [ More info ]
|
| #19 | F1987 | PLAIN WASHER (1 required per assembly) |
  |
|
F1987 - Washer - Priced Individually [ More info ]
|
  |
|
12-34437 - Washer (5/16 In. I.d.) [ More info ]
|
| #20 | F183300 | SPRING (1 required per assembly) |
  |
|
24-F183300 - Spring, NLA [ More info ]
|
| #21 | F1515 | HEX NUT, 5/16 - 18 (2 required per assembly) |
  |
|
F1515 - Hex Hut, 5/16 - 18 [ More info ]
|
  |
|
11-68292 - Nut (5/16 Inch) [ More info ]
|
  |
|
11-8M0204668 - NUT @5 [ More info ] Unavailable |
| #22 | F8096 | SPRING LOCKWASHER (2 required per assembly) |
  |
F8096 - LockWasher - Priced Individually [ More info ] Unavailable |
|
  |
|
13-53166 - LockWasher - Priced Individually [ More info ]
|
| #23 | F89777-1 | LATCH CAM (1 required per assembly) |
  |
|
F89777-1 - Cam - Latch, NLA [ More info ]
|
| #24 | F1532 | HEX HD SCREW, 1/4 - 20 X 1 (2 required per assembly) |
  |
10-F1532 - Screw [ More info ] Unavailable |
|
  |
|
10-819110100 - Screw [ More info ]
|
| #25 | FA307779 | BAFFLE, AIR INTAKE (1 required per assembly) W/ILLUS. 27 |
  |
|
FA307779 - BAFFLE KIT,NLA [ More info ] Unavailable |
| #26 | FA366778 | ENGINE COVER RETAINER FORWARD (1 required per assembly) W/ILLUS. 6 AND 8 |
  |
|
FA366778 - Retainer Kit, NLA [ More info ]
|
| #27 | F307860 | INTAKE SILENCER (1 required per assembly) |
  |
|
F307860 - SILENCER,NLA [ More info ]
|
| #29 | F605711 | PLATE, FRONT (1 required per assembly) |
  |
F605711 - FK606711, NLA [ More info ] Unavailable |
|
  |
|
FK606711 - Plate Kit [ More info ]
|
| #30 | F312528 | DECAL, ENGINE COVER REAR (1 required per assembly) |
  |
F312528 - DECAL [ More info ] Unavailable |
|
  |
817972A 1 - 37F6853872 [ More info ] Unavailable |
|
  |
|
37-F685387-2 - Decal - (Blue), NLA [ More info ]
|
