Parts for Force 50 HP (1984) Carburetor

Revise Search: All Models > 50 HP (1984) > 507FC4A ( ) > Carburetor

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

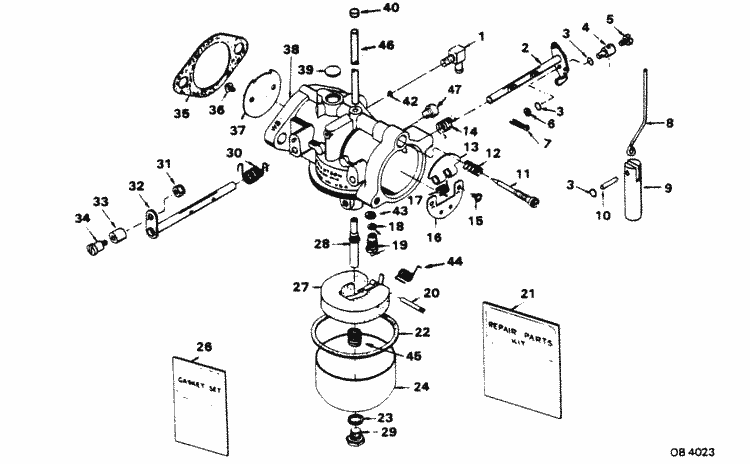

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	F10186	MAIN FUEL JET .080 - OPT. 5000 - 7500 FT. (- required per assembly)
		F10186 - Jet, Bottom, .080 [ More info ] Unavailable
#	F10185	MAIN FUEL JET .076 - OPT. 7500 & UP (- required per assembly)
		F10185 - JET-BOTTOM,.076 [ More info ] Unavailable
#	F10188	MAIN FUEL JET .084 - OPT. 2500 - 5000 FT. (- required per assembly)
		F10188 - Bottom Jet-.084 [ More info ] Unavailable
#1	F10156	ELBOW, FUEL LINE CARBURETOR (1 required per assembly)
		F10156 - Fitting, NLA [ More info ] Unavailable
#2	F10159	CHOKE SHAFT AND LEVER (1 required per assembly)
		F10159 - SHAFT ASSY,NLA [ More info ] Unavailable
#3	F184579	SEAL, CHOKE ARM SWIVEL (3 required per assembly)
		25-F184579 - O-Ring [ More info ] Unavailable
		25-68211 - O-Ring [ More info ] $1.40 Available to Order: Shipping delay up to 10 days.
#4	F184033-1	SWIVEL, CHOKE ROD (1 required per assembly)
		F184033-1 - Swivel [ More info ] $9.12 10+ In Stock.
#5	F1059	FILL HD SCREW, 6 - 32 X 1/4 (1 required per assembly)
		10-F1059 - Screw -ss, NLA [ More info ] $2.93 10+ In Stock.
#6	F8088	PLAIN WASHER (2 required per assembly)
		12-F8088 - Washer - Priced Individually [ More info ] Unavailable
		12-27882 - Washer - Priced Individually [ More info ] $1.27 10+ In Stock.
#7	F1014	COTTER PIN (1 required per assembly)
		F1014 - Cotter Pin - Priced Individually [ More info ] Unavailable
		18-26953 - Cotter Pin - Priced Individually [ More info ] $4.19 7 In Stock.
#8	F452925	CHOKE SOLENOID ROD (1 required per assembly)
		F452925 - Choke Rod, NLA [ More info ] $5.56 $4.71 10+ In Stock.
#9	F391926-1	CHOKE SOLENOID PLUNGER (1 required per assembly)
		F391926-1 - Choke Plunger, NLA [ More info ] $41.85 $35.45 3 In Stock.
#10	F2033	GROOVE PIN (1 required per assembly)
		17-F2033 - Pin, Groove, NLA [ More info ] $1.53 $1.29 10+ In Stock.
#11	F10146	IDLE MIXTURE SCREW (1 required per assembly)
		F10146 - FO14166, NLA [ More info ] Unavailable
		FO14166 - Idle Mixture Screw [ More info ] $13.09 6 In Stock.
#12	F10141	IDLE MIXTURE SCREW SPRING (1 required per assembly)
		24-F10141 - Spring, Idle Mixture Screw [ More info ] Unavailable
		1395-6103 - Spring, Idle Needle [ More info ] Unavailable
#13	F10129	CHOKE RELIEF VALVE (1 required per assembly)
		F10129 - FO15724, NLA [ More info ] Unavailable
		FO15724 - SHUTTER,NLA [ More info ] Unavailable
#14	F10191	CHOKE SHAFT RETURN SPRING (1 required per assembly)
		24-F10191 - Spring [ More info ] $3.50 $2.97 5 In Stock.
#15	F10140	CHOKE SHUTTER RETAINING SCREW AND LOCKWASHER (2 required per assembly)
		10-F10140 - Screw [ More info ] Unavailable
#16	F10128	CHOKE SHUTTER (1 required per assembly)
		F10128 - Valve [ More info ] Unavailable
		FO15725 - Valve, NLA [ More info ] Unavailable
#17	F10130	CHOKE RELIEF VALVE SPRING (1 required per assembly)
		24-F10130 - 24F10296 [ More info ] Unavailable
		24-F10296 - Spring, Shutter [ More info ] $2.15 $1.82 10+ In Stock.
#18	F10171	VALVE SEAT (1 required per assembly)
		F10171 - FO18005, NLA [ More info ] Unavailable
		FO18005 - Seat - Valve [ More info ] Unavailable
		820719 - Seat - Valve [ More info ] $9.39 5 In Stock.
#19	F10170	VALVE ASSEMBLY INLET (1 required per assembly)
		F10170 - Valve Assembly [ More info ] $19.55 $16.56 10+ In Stock.
#20	F10136	FLOAT LEVER PIN (1 required per assembly)
		F10136 - Shaft, NLA [ More info ] $2.72 $2.31 10+ In Stock.
#21	FK10195	*REPAIR PARTS KIT (1 required per assembly) INCLUDES ALL ITEMS MARKED WITH AN ASTERISK ()**
		FK10195 - Repair Kit, NLA [ More info ] Unavailable
#22	F10138	FUEL BOWL GASKET (1 required per assembly)
		F10138 - 27FO15623 [ More info ] Unavailable
		27-FO15623 - Fuel Bowl Gasket [ More info ] $4.29 10+ In Stock.
#23	F10090	FUEL BOWL JET ASSEMBLY GASKET (1 required per assembly)
		27-F10090 - Fuel Bowl Gasket [ More info ] $3.69 6 In Stock.
#24	F10127	FUEL BOWL (1 required per assembly)
		F10127 - BOWL [ More info ] Unavailable
		F10333 - Fuel Bowl [ More info ] $34.48 2 In Stock.
#26	FK10178	GASKET SET. (1 required per assembly)
		FK10178 - Carburetor Gasket Set [ More info ] $18.60 5 In Stock.
#27	F10135	FLOAT (1 required per assembly)
		F10135 - Float Assembly [ More info ] $46.18 1 In Stock.
#28	F10137	MAIN NOZZLE (1 required per assembly)
		F10137 - Main Nozzle, NLA [ More info ] Unavailable
#29	F10162	MAIN FUEL JET .086 - STD. (1 required per assembly)
		F10162 - Main Fuel Jet - .086 [ More info ] Unavailable
#30	F10192	THROTTLE SHAFT RETURN SPRING (1 required per assembly)
		24-F10192 - Spring, NLA [ More info ] $2.50 $2.13 8 In Stock.
#31	F1997	STOP NUT. 8 - 32 (1 required per assembly)
		11-F1997 - Nut (#8-32) [ More info ] Unavailable
		11-826709 4 - Nut - Priced Individually [ More info ] $1.88 3 In Stock.
#32	F10193	THROTTLE SHAFT AND LEVER (1 required per assembly)
		F10193 - SHAFT ASSY,NLA [ More info ] Unavailable
#33	F92759	ROLLER (1 required per assembly)
		F92759 - Roller, NLA [ More info ] Unavailable
		819225 - Roller, NLA [ More info ] $9.69 10+ In Stock.
#34	F333316	THROTTLE ROLLER SHAFT (1 required per assembly)
		F333316 - Roller Shaft, NLA [ More info ] Unavailable
		830110 - Roller Shaft, NLA [ More info ] $11.84 3 In Stock.
#35	F40906-1	FLANGE GASKET (1 required per assembly)
		F40906-1 - 27F85906 [ More info ] Unavailable
		27-F85906 - Carburetor Gasket [ More info ] Unavailable
		27-828925 - Carburetor Gasket [ More info ] $2.39 10+ In Stock.
#36	F10155	THROTTLE SHUTTER RETAINING SCREW AND LOCKWASHER (2 required per assembly)
		10-F10155 - Screw [ More info ] $2.79 Available to Order: Shipping delay up to 10 days.
#37	F10158	THROTTLE SHUTTER (1 required per assembly)
		F10158 - VALVE [ More info ] Unavailable
		1395-6023 - Throttle Valve, NLA [ More info ] $4.00 $3.39 10+ In Stock.
#38	FK575061	CARBURETOR - COMPLETE (WE-8) (1 required per assembly) W/LIT.
		FK575061 - Carburetor Kit [ More info ] Unavailable
		1300-817973A 3 - Carburetor Kit, NLA [ More info ] Unavailable
#39	F10153	BODY CHANNEL WELCH PLUG (1 required per assembly)
		19-F10153 - Plug [ More info ] $2.39 1 In Stock.
#40	F10152	BODY CHANNEL CUP PLUG (1 required per assembly)
		19-F10152 - Plug -cup [ More info ] $1.77 $1.49 2 In Stock.
#42	F10131	THROTTLE SHAFT POSITION RETAINING RING (1 required per assembly)
		F10131 - FO16620, NLA [ More info ] Unavailable
		FO16620 - E-Ring, NLA [ More info ] Unavailable
#43	F10167	RETAINING RING, VALVE SEAT (1 required per assembly)
		53-F10167 - Ring [ More info ] $5.29 Available to Order: Shipping delay up to 10 days.
#44	F10142	SPRING, FLOAT SUPPORT (1 required per assembly)
		24-F10142 - Spring, Float Support [ More info ] Unavailable
#45	F10145	SPRING, ADJ. (1 required per assembly)
		24-F10145 - Spring, NLA [ More info ] Unavailable
#46	F10176	TUBE, IDLE (1 required per assembly)
		F10176 - Tube - Idle, NLA [ More info ] Unavailable
#47	F10194	JET, NOZZLE VENT (1 required per assembly)
		F10194 - JET-.040 [ More info ] Unavailable
		19266040 - Jet, NLA [ More info ] $7.17 $6.07 10+ In Stock.
