Parts for Force 5 HP (1998) Fuel Tank & Line Assembly (Plastic - 3.2 Gallon)

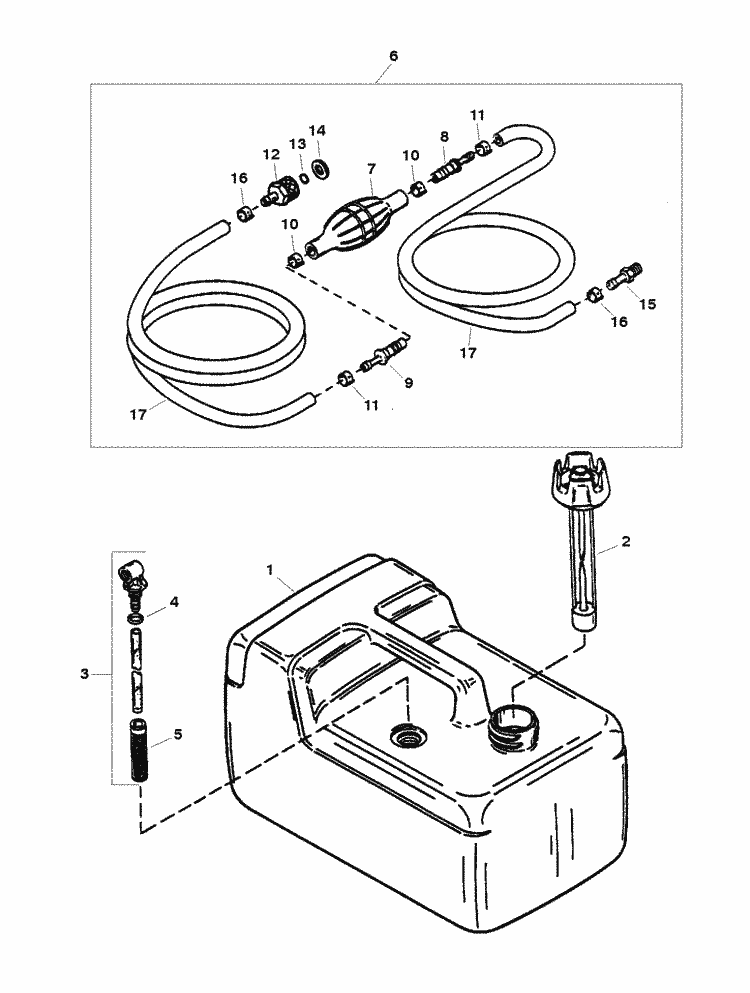

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.

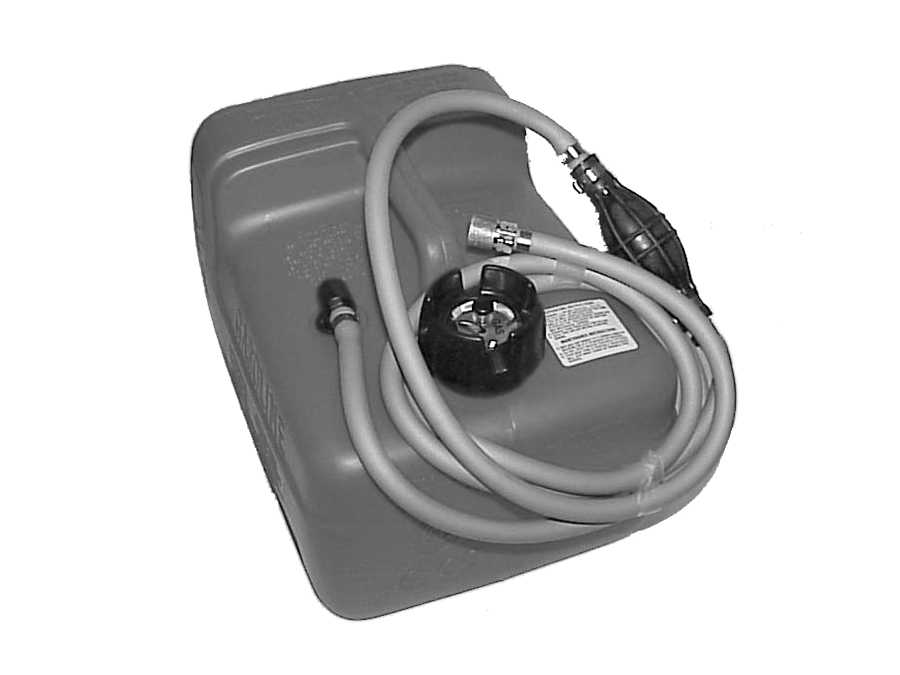

| #1 | 1260-823505A 2 | TANK ASSEMBLY-Fuel (1 required per assembly) (COMPLETE) (PLASTIC - 3.2 GALLON) |
  |
|
1260-823505A 2 - Fuel Tank-3.2 GA,NLA [ More info ] Unavailable |

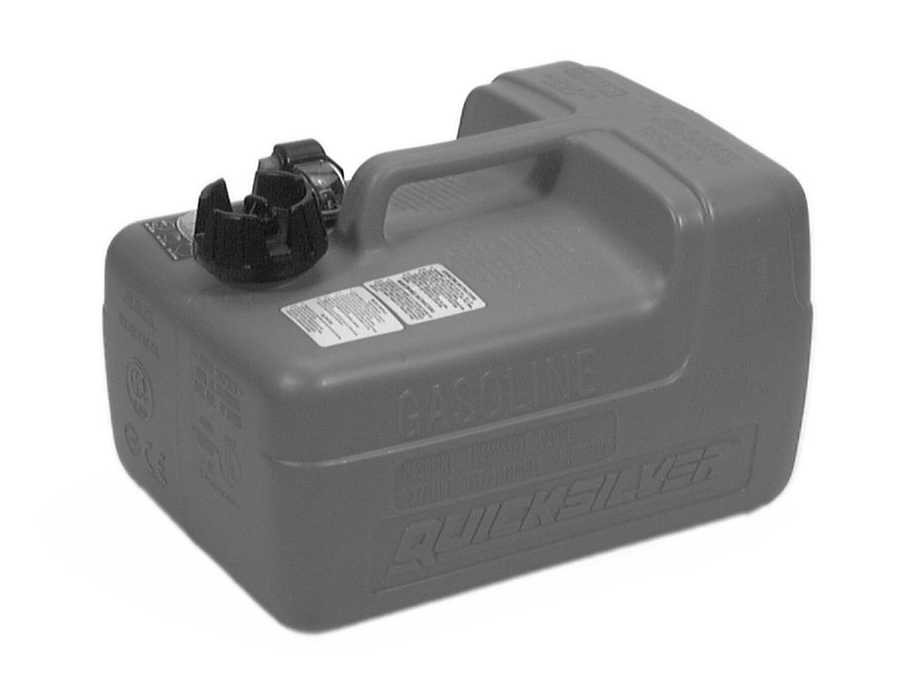

| #1 | 1260-823505A 1 | TANK ASSEMBLY-Fuel (Plastic - 3.2 Gallon) (1 required per assembly) |
  |
1260-823505A 1 - TANK-FUEL-3.2 GAL [ More info ] Unavailable |
|
  |
|
1260-859061A 1 - Fuel Tank-3.2,NLA [ More info ] Unavailable |

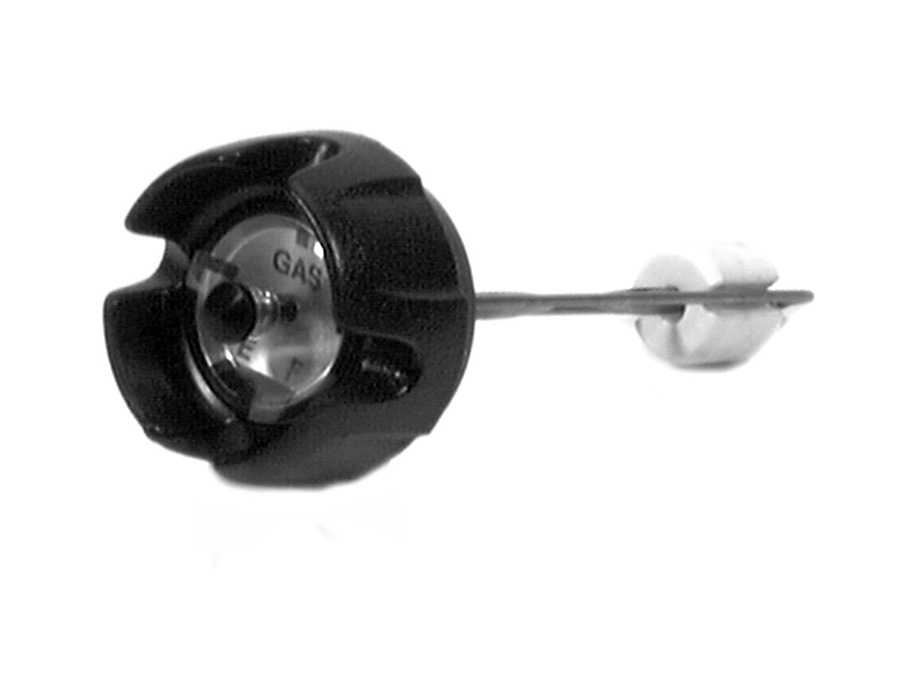

| #2 | 823535 | GAUGE AND CAP ASSEMBLY (1 required per assembly) |
  |
|
823535 - Fuel Tank Cap and Gauge Assembly [ More info ] Unavailable |
| #3 | 22-823531A 1 | CONNECTOR KIT-Fuel (1 required per assembly) |
 |
|
22-823531A 1 - Fuel Connector Kit -3.2 [ More info ] Unavailable |

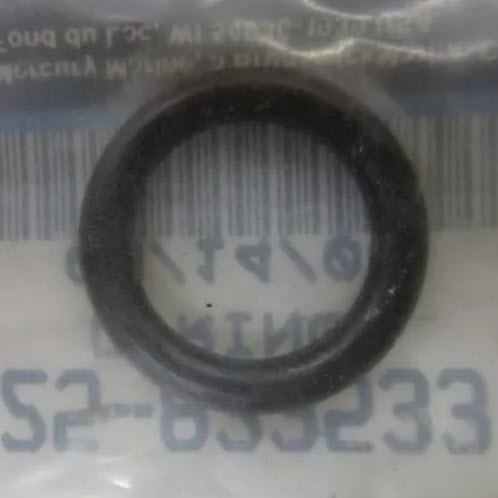

| #4 | 25-823533 | O RING (1 required per assembly) |
|
|
25-823533 - O-Ring [ More info ]
|

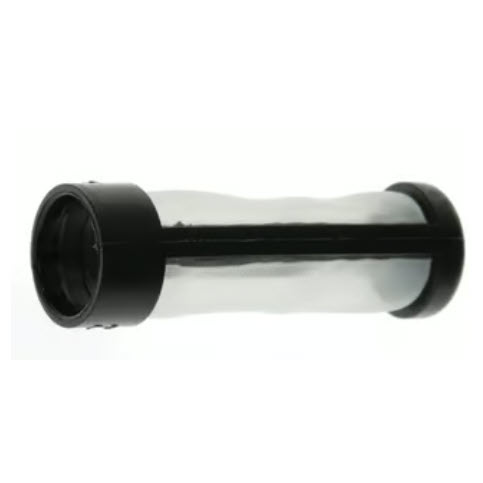

| #5 | 35-823534 | SCREEN-Fuel Pickup (1 required per assembly) |
  |
|
35-823534 - Screen [ More info ]
|

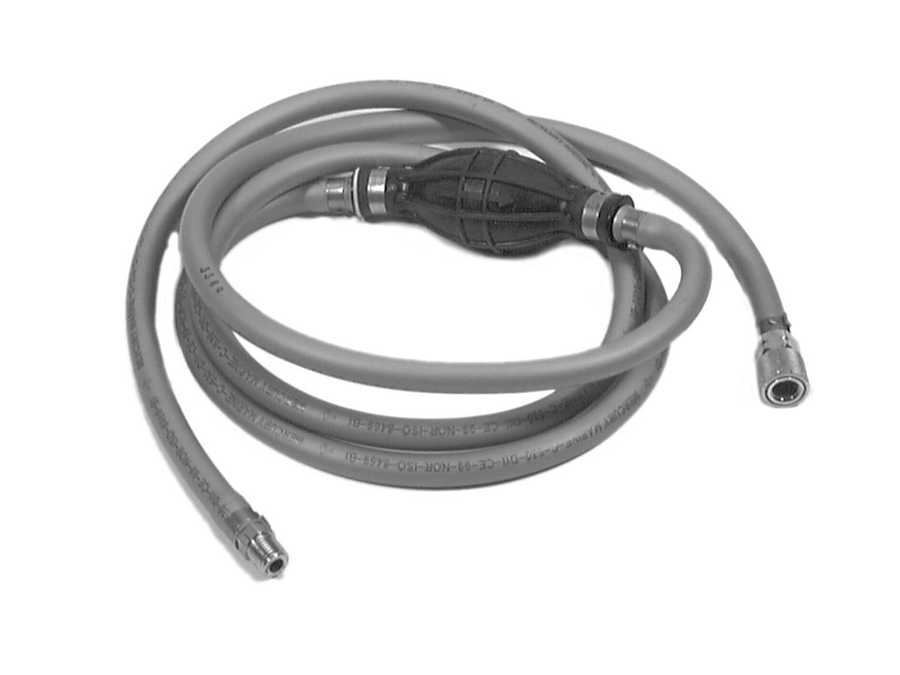

| #6 | 32-820572A 8 | LINE ASSY-Fuel (1 required per assembly) (.312 ID) (8.00 FEET) (30.00 INCH AND 60.00 INCH) |
|
32-820572A 8 - Line - Fuel - 8 Ft - 5/16 ID [ More info ] Unavailable |
|
|
32-858624A 8 - Fuel Hose - 8FT [ More info ] Unavailable |
|
  |
32-858624Q 8 - Fuel Hose - 8FT [ More info ] Unavailable |
|
  |
|
32-877684Q 8 - Fuel Hose Assembly -8ft [ More info ] Unavailable |

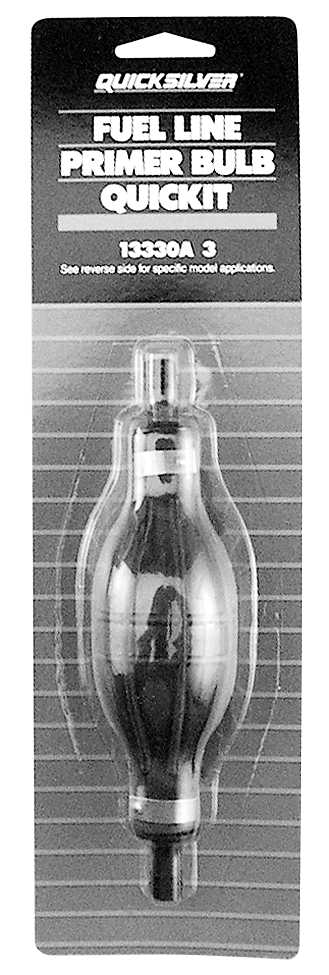

| #7 | 13330A 3 | BULB ASSEMBLY-Primer (1 required per assembly) |
  |
13330A 3 - PRIMER BULB Note: Priced Individually [ More info ] Unavailable |
|
  |

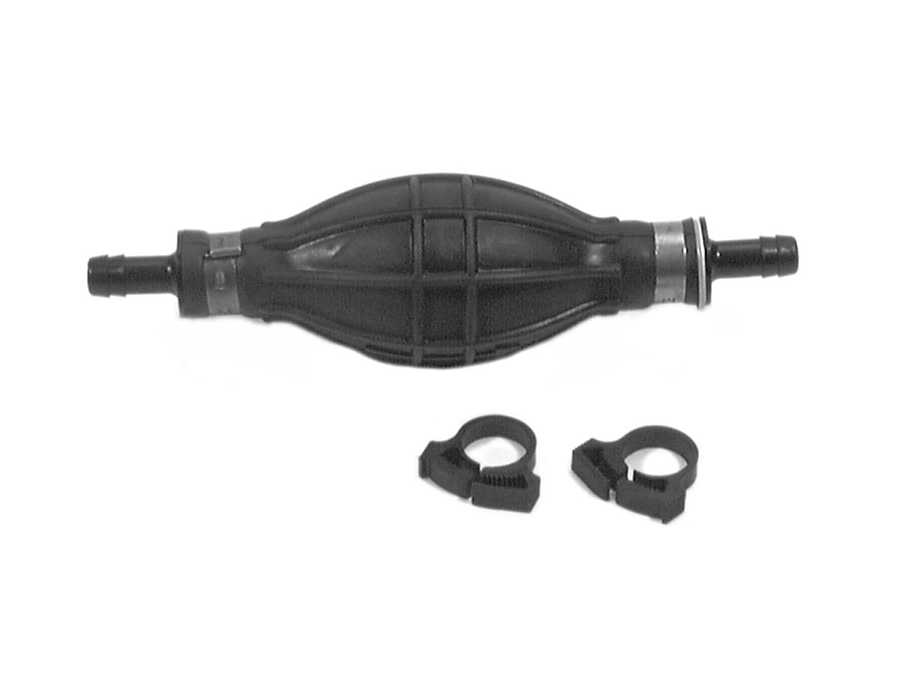

13330Q 5 - Primer Bulb , Priced Individually [ More info ] Unavailable |
|
  |

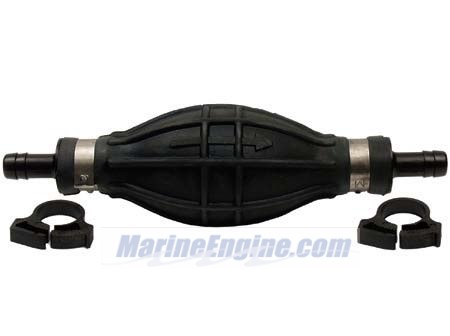

13330Q06 - PRIMER BULB Note: Priced Individually [ More info ] Unavailable |
|
|
|
13330Q07 - 8M0052973 [ More info ] Unavailable |
  |
|

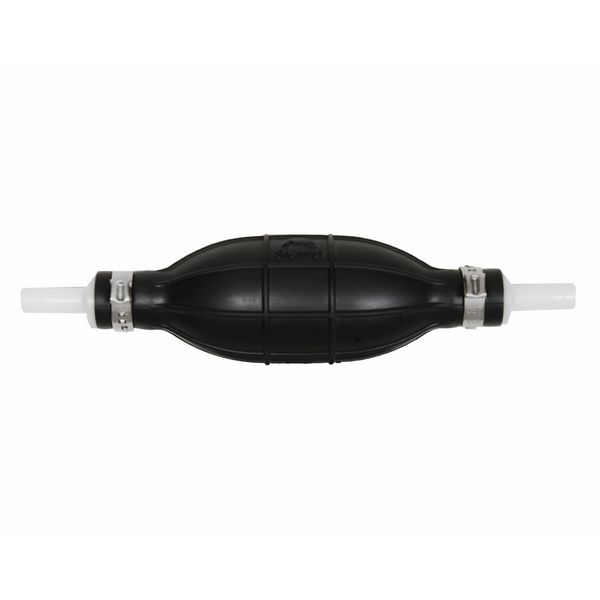

18-8005EP-1 - Primer Bulb -3/8 Inch [ More info ]
|
| #8 | 21-13331A 1 | VALVE-Check (INLET) (1 required per assembly) |
|
21-13331A 1 - Check Valve [ More info ] Unavailable |
|
|
|
21-13331A 3 - Check Valve Assembly [ More info ]
|
| #9 | 21-13331A 2 | VALVE-Check (OUTLET) (1 required per assembly) |
|
21-13331A 2 - Check Valve [ More info ] Unavailable |
|
|
|
21-13331A 4 - Check Valve Assembly [ More info ]
|

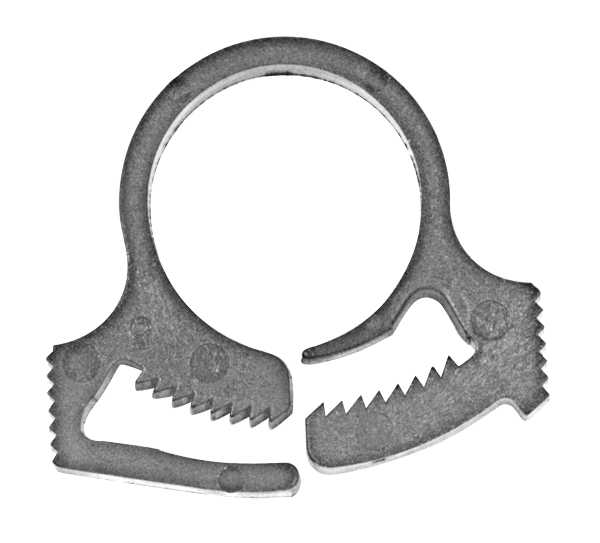

| #10 | 54-41582 10 | CLAMP (LARGE) (2 required per assembly) |
  |
|
54-41582 10 - CLAMP [ More info ] Unavailable |
| #11 | 54-41582 7 | CLAMP (SMALL) (2 required per assembly) |
  |
54-41582 7 - CLAMP Note: Priced Individually [ More info ] Unavailable |
|
  |
|
54-41582Q 7 - Clamps [ More info ]
|
  |
|
18-8020-9 - Snapper Clamp, 10PK [ More info ]
|
  |
|
54-41582T 7 - Clamps [ More info ]
|

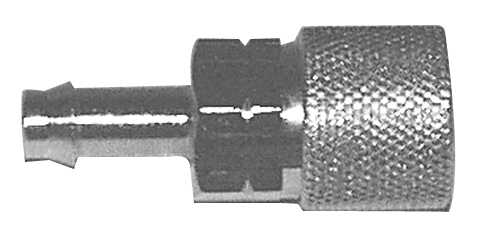

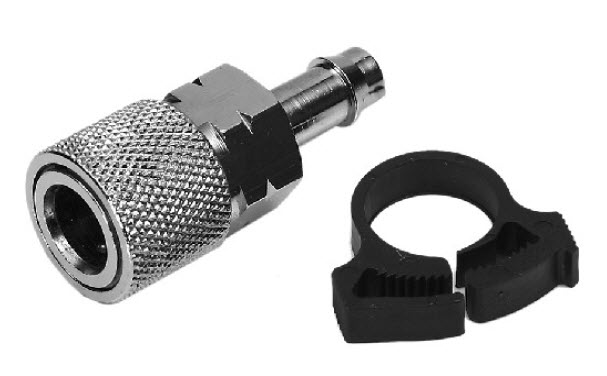

| #12 | F197787 3 | COUPLER-Fuel Line-Engine End (1 required per assembly) |
  |
F197787-3 - Coupler- Fuel Line [ More info ] Unavailable |
|
  |
|

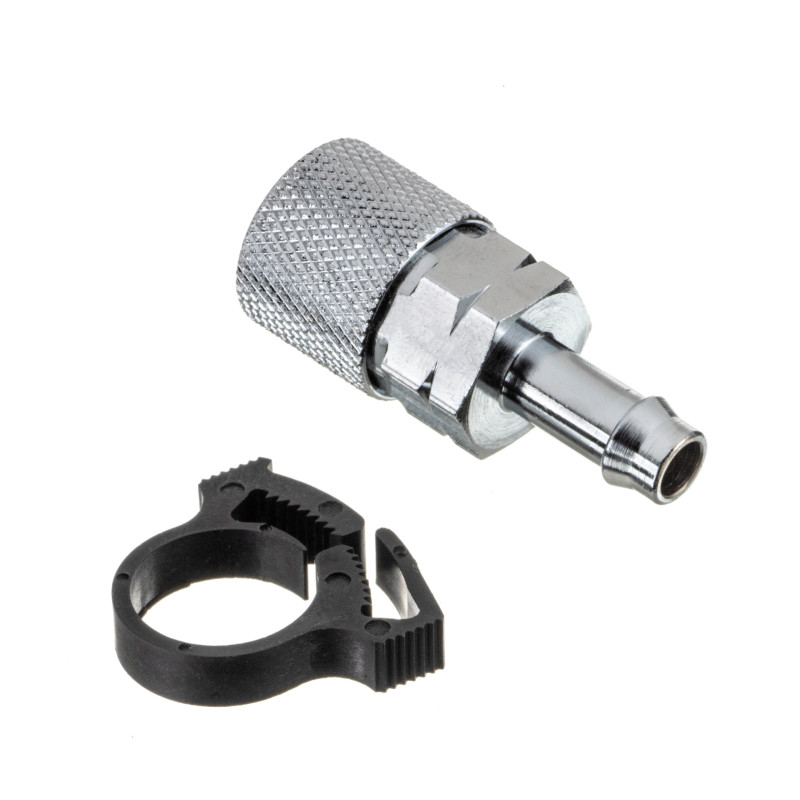

F197787Q3 - Fuel Coupler Assembly - Priced Individually [ More info ]
|
  |
|
18-8062 - Fitting, F197787-3 [ More info ]
|
  |
|
F197787T3 - Coupler- Fuel - Priced Individually [ More info ]
|

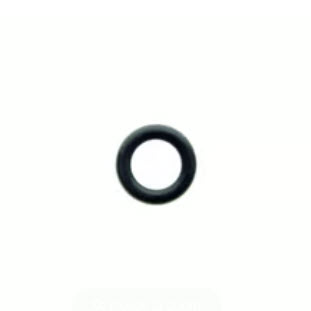

| #13 | F17815 | SEAL-Coupler (1 required per assembly) |
|
|
F17815 - Small Seal [ More info ]
|

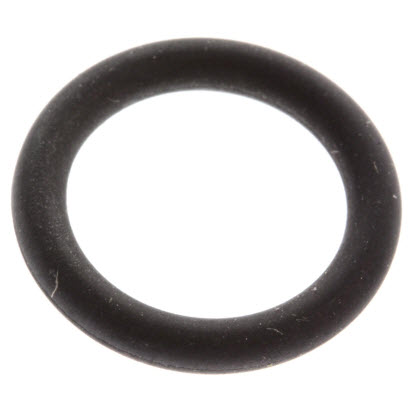

| #14 | F17816 | SEAL-Coupler (1 required per assembly) |
  |
|
F17816 - Large Seal [ More info ]
|

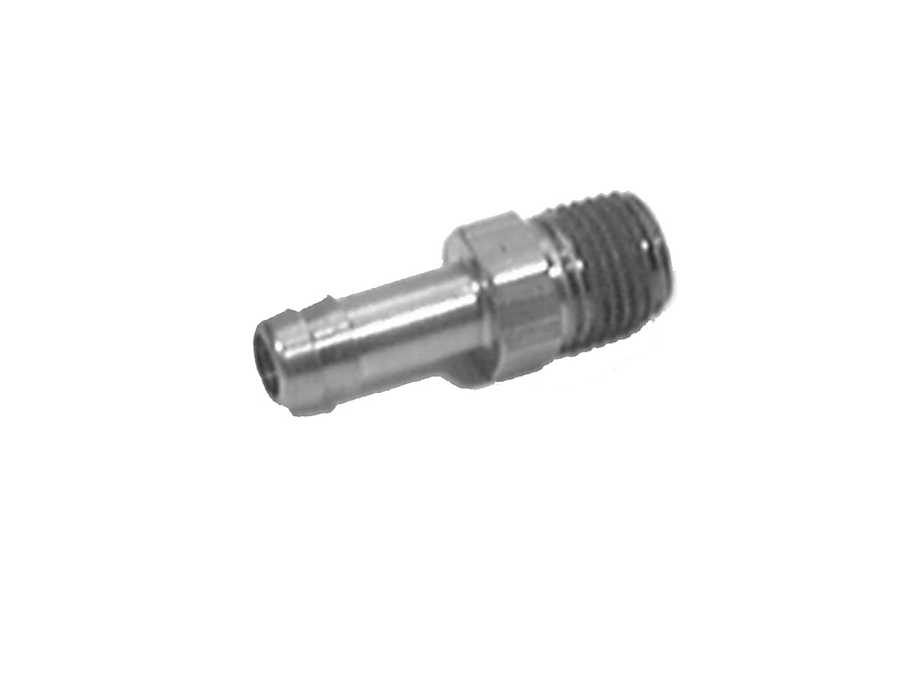

| #15 | 22-89771 1 | CONNECTOR-Fuel Line-Fuel Tank End (1 required per assembly) |
  |
|
22-89771 1 - Connector [ More info ]
|
  |
|
22-89771 2 - Connector [ More info ]
|
  |
|

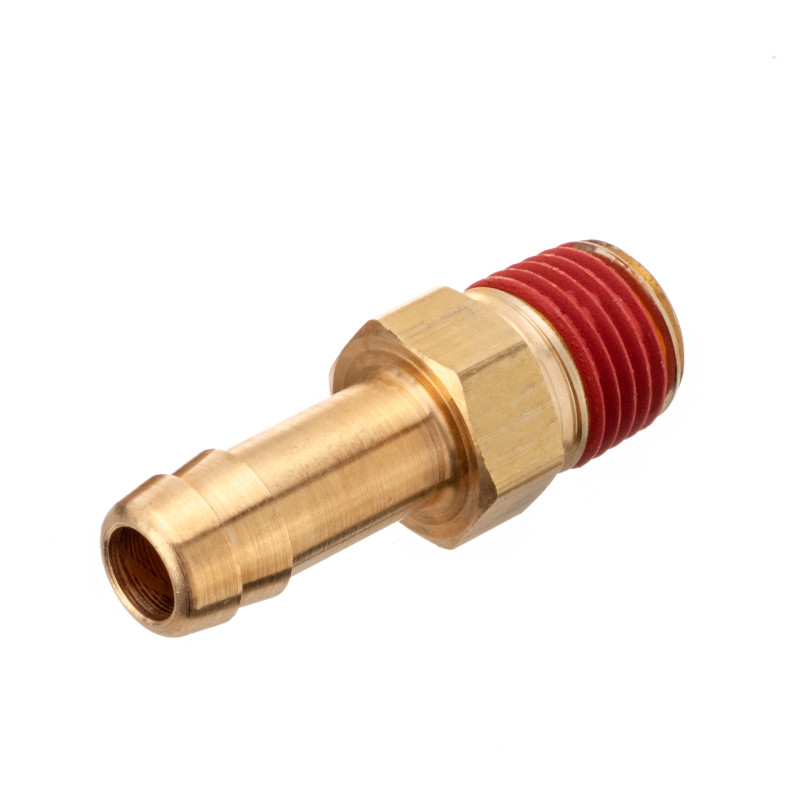

22-89771Q 2 - Connector - Priced Individually [ More info ]
|
  |
|
22-89771T 2 - Connector - Priced Individually [ More info ]
|
| #17 | 32-16789 78 | LINE-Fuel-Bulk (AR required per assembly) (9.00 FEET) (CUT AS REQUIRED) |
|
32-16789 78 - Fuel Line (9 feet) Cut As Reqd [ More info ] Unavailable |
|
  |
|
32-858610 79 - Ord 32-8M0038468 [ More info ] Unavailable |

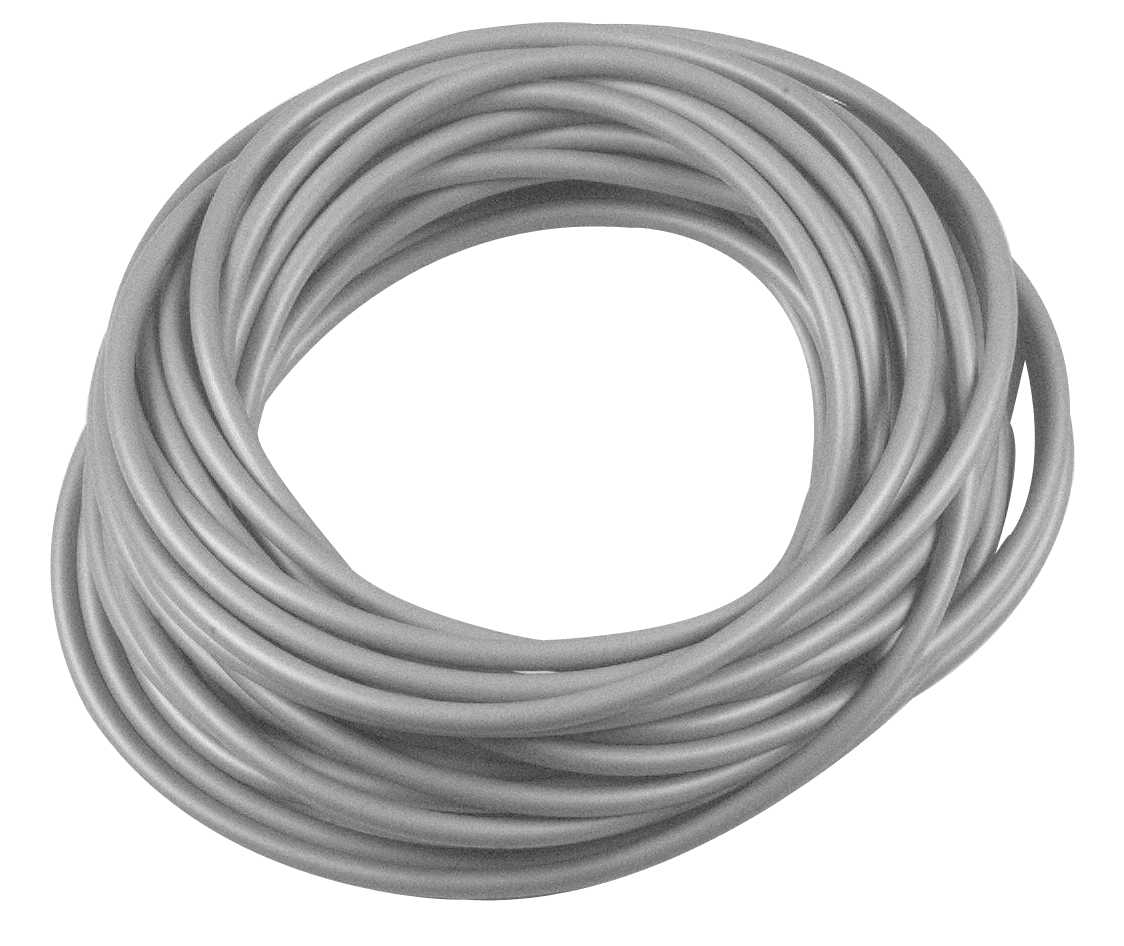

| #17 | 32-16789100 | LINE-Fuel-Bulk (AR required per assembly) (100.00 FEET) (CUT AS REQUIRED) |
  |
32-16789100 - Fuel Line (100 feet) Cut As Req'd [ More info ] Unavailable |
|
  |
|
32-858610100 - ORD 32-8M0038500 [ More info ] Unavailable |
