Parts for Force 5 HP (1996) Swivel Bracket / Clamp Bracket
Tap to zoom. Scroll down to order.

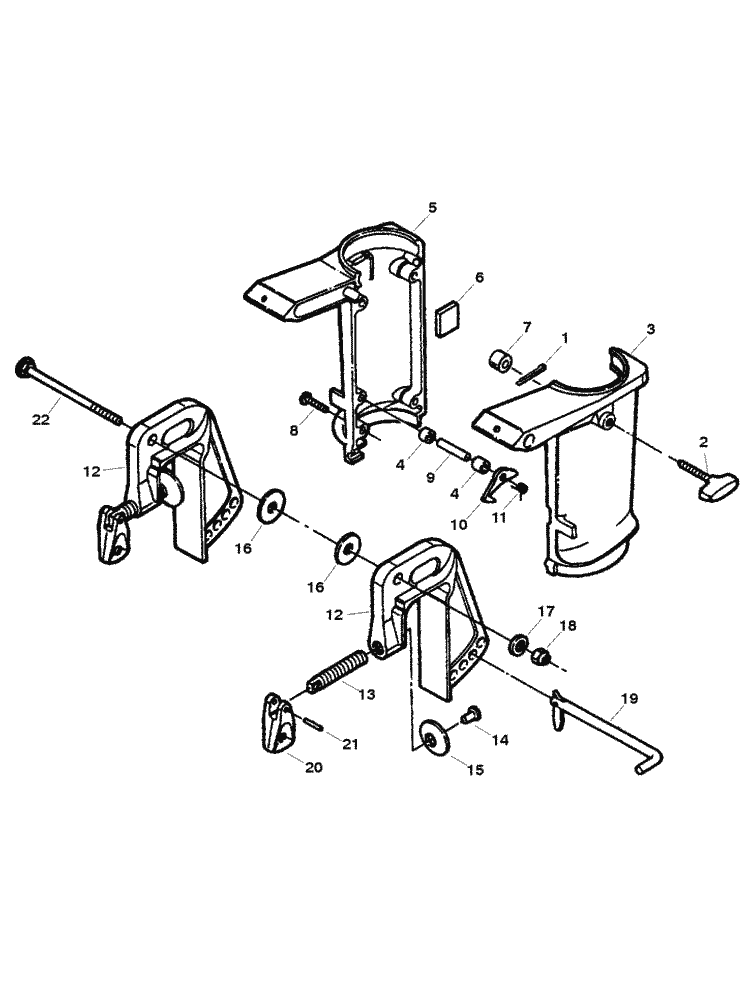

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
#1 | 18-26953 | PIN-Cotter (1 required per assembly) |
#2 | F521514 | KNOB-Steering Friction (1 required per assembly) |
F521514 - Steering Friction Knob with Screw, NLA [ More info ] |
||
#3 | 817815A 4 | BRACKET-Swivel (Painted) (PORT) (1 required per assembly) |
817815A 4 - Bracket-PORT [ More info ] Unavailable |
||
1400-817815A 5 - Bracket Kit - Port, NLA [ More info ] Unavailable |
||
#4 | 23-26856 | BUSHING (2 required per assembly) |
#5 | 817816A 6 | BRACKET-Swivel (Painted) (STARBOARD) (1 required per assembly) |
817816A 6 - Bracket - Starboard [ More info ] Unavailable |
||
#6 | F521661 1 | PAD-Swivel Friction (1 required per assembly) |
#7 | F521631 | SHOE-Swivel Friction (1 required per assembly) |
#8 | 10-F2035 | SCREW (.250-20 x 1.00) (4 required per assembly) TORQUE 70 LB IN 7.8 N-M |
#9 | 17-F468350 | PIN-Reverse Lock (1 required per assembly) |
17-F468350 - PIN-REVERSE LOCK,NLA [ More info ] Unavailable |
||
#10 | F468349 | LOCK-Reverse (1 required per assembly) |
#11 | 24-F468300 1 | SPRING-Reverse Lock (1 required per assembly) |
#12 | 1400-817850A 5 | BRACKET KIT-Stern (Painted) (2 required per assembly) |
1400-817850A 5 - BRKT KIT-STERN [ More info ] Unavailable |
||
#13 | 10-826248 | SCREW (Special)-Clamp Bracket (2 required per assembly) |
#14 | 10-69022 | SCREW (#10-32 x .500) (2 required per assembly) |
#15 | F24074 | FOOT-Clampscrew (2 required per assembly) |
#16 | 12-F2037 | WASHER (2 required per assembly) |
#17 | 12-20553 | WASHER (1 required per assembly) |
#18 | 11-F7026 | NUT (.375-16) (1 required per assembly) TORQUE 30 LB IN 3.3 N-M |
#19 | 817810A 1 | LOCK BAR KIT (1 required per assembly) |
#20 | F424075T | HANDLE-Clampscrew (Painted) (2 required per assembly) |
#21 | 17-24198 | PIN-Roll (2 required per assembly) |
#22 | 10-F468037 1 | BOLT-Stern Bracket Pivot (1 required per assembly) |
