Parts for Force 5 HP (1996) Shift Linkage

Revise Search: All Models > 5 HP (1996) > 0E127700 - 0E202999 ( ) > Shift Linkage

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

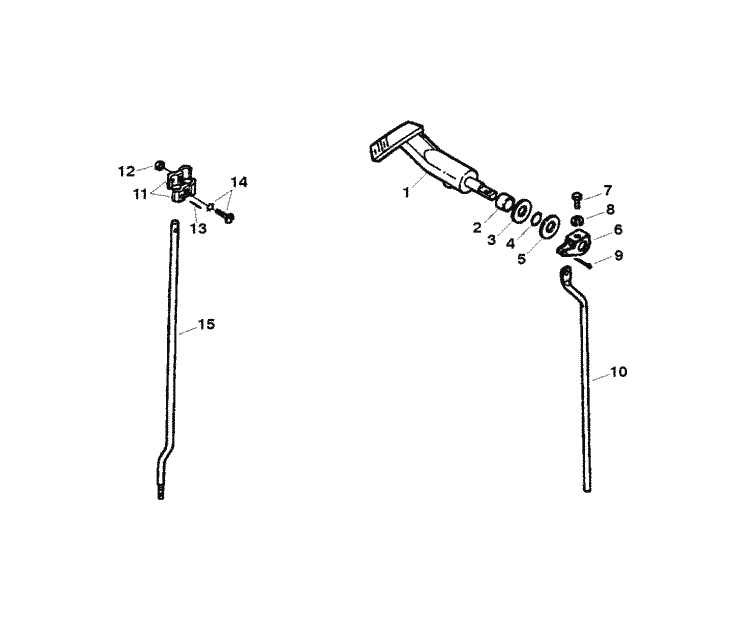

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	820433T	HANDLE-Gear Shift (Painted) (1 required per assembly)
		820433T - Gear Shift Handle [ More info ] Unavailable
		820433T 1 - Gear Shift Handle [ More info ] $28.00 $23.72 6 In Stock.
#2	23-F341610	BEARING-Gear Shift Shaft (1 required per assembly)
		23-F341610 - Bearing - Gear - Shift Shaft [ More info ] $6.67 $5.65 10+ In Stock.
#3	23-F269052	BUSHING-Shift Arm (1 required per assembly)
		23-F269052 - Bushing, NLA [ More info ] $3.90 10+ In Stock.
#4	25-F19342	SEAL (1 required per assembly)
		25-F19342 - O-Ring [ More info ] $16.49 $9.25 8 In Stock.
#5	12-34931	WASHER (1 required per assembly)
		12-34931 - Washer, (.406 X .734 X .063 - Stainless Steel) [ More info ] $2.59 10+ In Stock.
#6	F521621	LEVER-Gear Shift (1 required per assembly)
		F521621 - Lever [ More info ] $3.33 $2.82 10+ In Stock.
#7	10-F2041	SCREW (#10-24 x .375) (1 required per assembly) TORQUE 30 LB IN 3.3 N-M
		10-F2041 - Screw -ss, NLA [ More info ] $1.25 $1.06 10+ In Stock.
#8	13-26996	LOCKWASHER (#10) (1 required per assembly)
		13-26996 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
#9	17-29908	PIN-Roll (1 required per assembly)
		17-29908 - Pin -roll - Priced Individually [ More info ] $1.99 10+ In Stock.
#10	F521615	ROD-Gear Shift (UPPER) (1 required per assembly)
		F521615 - Upper Gear Shift Rod [ More info ] Unavailable
#11	FK341704	COUPLING KIT-Gear Shift Rod (1 required per assembly)
		FK341704 - Coupling Kit, NLA [ More info ] Unavailable
#12	11-F7009	NUT (#10-24) (1 required per assembly)
		11-F7009 - Nut, (#10-24) [ More info ] Unavailable
#13	17-F8538	PIN-Spring (1 required per assembly)
		17-F8538 - Spring Pin, NLA [ More info ] $0.22 $0.18 10+ In Stock.
#14	10-F1371	SCREW With Lockwasher (#10-24 x .625) (1 required per assembly) TORQUE 30 LB IN 3.3 N-M
		10-F1371 - Screw -w/Lw, NLA [ More info ] $1.50 $1.28 10+ In Stock.
#15	F521705 1	ROD-Gear Shift (1 required per assembly) (LOWER) (15 IN. TRANSOM)
		F521705-1 - Shift Rod -15 In, NLA [ More info ] $15.22 $12.89 10+ In Stock.
#15	F332705 1	ROD-Gear Shift (1 required per assembly) (LOWER) (20 IN. TRANSOM)
		F332705-1 - ROD-SHIFT-20 IN,NLA [ More info ] $28.00 $23.72 4 In Stock.
