Parts for Force 5 HP (1996) Carburetor

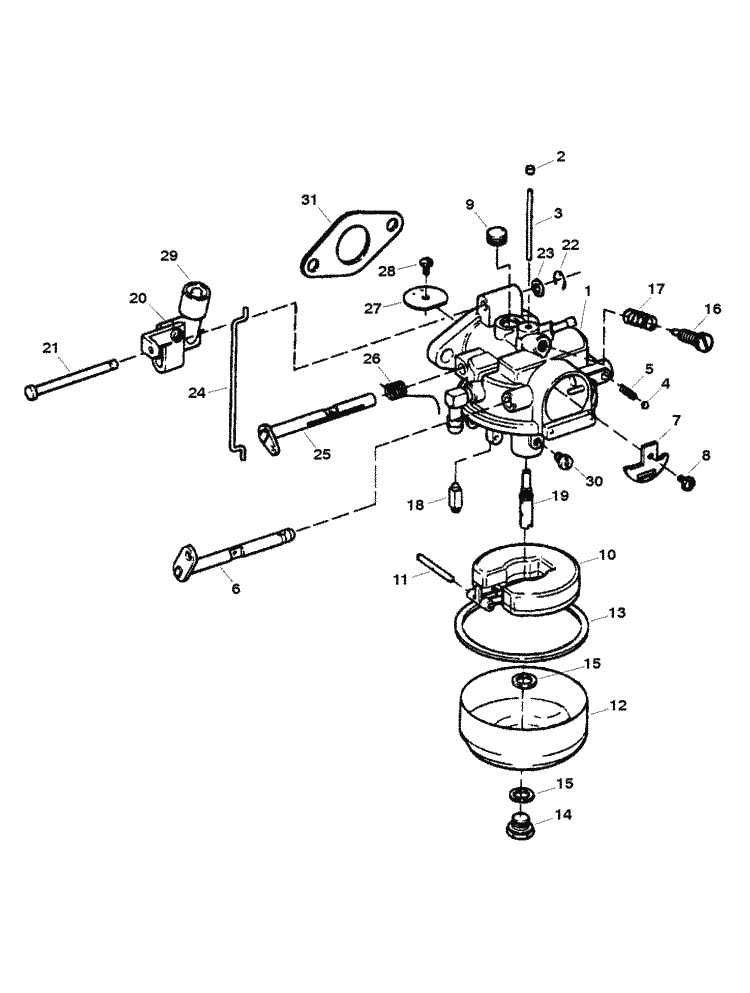

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | FG1034 1 | GASKET SET-Powerhead (1 required per assembly) |
  |
|
FG1034-1 - Gasket Set [ More info ] Unavailable |
| # | FK10295 | REPAIR KIT-Carburetor (1 required per assembly) |
  |
|
FK10295 - Carburetor Repair Kit [ More info ]
|
| # | FK10294 | GASKET SET-Carburetor (1 required per assembly) |
  |
|
FK10294 - Carburetor Gasket Set [ More info ]
|
| #1 | 1300-F712061 | CARBURETOR (HO-4A) (1 required per assembly) |
  |
|
1300-F712061 - Carburetor [ More info ] Unavailable |
| #2 | 19-FO10588 | PLUG-Cup (1 required per assembly) |
  |
|
19-FO10588 - Plug -cup - Priced Individually [ More info ]
|
| #3 | F10235 | TUBE-By Pass (1 required per assembly) |
  |
|
F10235 - Bypass Tube, NLA [ More info ] Unavailable |
| #4 | FO4784 | BALL-Choke Friction Spring (1 required per assembly) |
  |
|
FO4784 - BALL,NLA [ More info ] Unavailable |
| #5 | FO8805 | SPRING-Choke Friction (1 required per assembly) |
  |
|
FO8805 - Choke Friction Spring, NLA [ More info ]
|
| #6 | FO15736 | SHAFT-Choke (1 required per assembly) |
  |
|
FO15736 - Choke Shaft and Lever [ More info ]
|
| #7 | FO15367 | SHUTTER-Choke (1 required per assembly) |
  |
|
FO15367 - Shutter, NLA [ More info ]
|
| #8 | 10-FO10280 | SCREW-Shutter (2 required per assembly) |
  |
10-FO10280 - SCREW-W/LW [ More info ] Unavailable |
|
  |
|
10-803176 - Screw [ More info ]
|
| #9 | 19-FO2531 | PLUG-Welch (1 required per assembly) |
  |
19-FO2531 - Plug - Welch - Priced Individually [ More info ] Unavailable |
|
  |
|
19-20011 - Plug - Welch - Priced Individually [ More info ]
|
| #10 | F10346 | FLOAT-Fuel Bowl (1 required per assembly) |
  |
F10346 - Fuel Bowl Float [ More info ] Unavailable |
|
  |
FO13554 - Carburetor Float [ More info ] Unavailable |
|
  |
|
891730A01 - Float [ More info ]
|
| #11 | 17-FO13944 | PIN-Float (1 required per assembly) |
  |
|
17-FO13944 - Carburetor Float Pin [ More info ]
|
| #12 | FO15366 | BOWL-Fuel (1 required per assembly) |
  |
|
FO15366 - Fuel Bowl [ More info ]
|
| #13 | 27-FO15623 | GASKET-Fuel Bowl (1 required per assembly) |
  |
|
27-FO15623 - Fuel Bowl Gasket [ More info ]
|
| #14 | 1399-5128 | SCREW-Fuel Bowl (1 required per assembly) |
  |
|
1399-5128 - Screw, NLA [ More info ] Unavailable |
| #15 | 27-FO2510 | GASKET-Fuel Bowl (1 required per assembly) |
  |
|
27-FO2510 - Fuel Bowl Gasket [ More info ]
|
| #16 | FO15520 | NEEDLE-Idle (1 required per assembly) |
  |
|
FO15520 - - Idle Mixture Screw [ More info ]
|
| #17 | 24-27160 | SPRING-Idle Needle (1 required per assembly) |
  |
|
24-27160 - Spring, Idle Adjusting Screw [ More info ]
|
| #18 | F10265 | NEEDLE-Inlet (1 required per assembly) (NOTE: DO NOT REMOVE INLET SEAT) |
  |
|
F10265 - Inlet Needle [ More info ]
|
| #19 | F10238 | NOZZLE-Main (1 required per assembly) |
  |
|
F10238 - Main Nozzle, NLA [ More info ]
|
| #20 | F10290 | BRACKET-Throttle (1 required per assembly) |
  |
|
F10290 - Bracket [ More info ] Unavailable |
| #21 | F10240 | SHAFT-Throttle Linkage (1 required per assembly) |
  |
|
F10240 - Shaft, NLA [ More info ]
|
| #22 | F10241 | E RING-Throttle Linkage Shaft (1 required per assembly) |
  |
|
F10241 - Linkage Shaft E-Ring, NLA [ More info ]
|
| #23 | F10242 | WASHER-Throttle Linkage Shaft (1 required per assembly) |
  |
|
F10242 - Washer, NLA [ More info ]
|
| #24 | F10338 | LINKAGE-Throttle Shaft (1 required per assembly) |
  |
|
F10338 - Wire, NLA [ More info ] Unavailable |
| #25 | F10339 | SHAFT-Throttle (1 required per assembly) |
  |
|
F10339 - SHAFT AND LEVER [ More info ] Unavailable |
| #26 | 24-F10246 | SPRING-Return (1 required per assembly) |
  |
|
24-F10246 - Spring, Throttle Shaft Return [ More info ]
|
| #27 | F10248 | SHUTTER-Throttle (1 required per assembly) |
  |
|
F10248 - Shutter, NLA [ More info ] Unavailable |
| #28 | 10-F10328 | SCREW-Shutter (2 required per assembly) |
  |
10-F10328 - Screw -w/Lw [ More info ] Unavailable |
|
| #29 | FO10571 | SCREW-Idle Speed (1 required per assembly) |
  |
|
FO10571 - Screw - Idle Speed, NLA [ More info ] Unavailable |
| #30 | F10337 | JET-Main (.041) (0 - 2500 Ft.) (1 required per assembly) |
  |
|
F10337 - 041 - Main Jet, NLA [ More info ]
|
| #30 | 1399-2407 | JET-Main (.039) (2500 - 5000 Ft.) (OPT required per assembly) |
  |
|
1399-2407 - Jet -.039, NLA [ More info ] Unavailable |
| #30 | F10342 | JET-Main (.037) (5000 - 7500 Ft.) (OPT required per assembly) |
  |
|
F10342 - 037 Main jet, NLA [ More info ] Unavailable |
| #30 | F10341 | JET-Main (.035) (7500 - 10000 Ft.) (OPT required per assembly) |
  |
|
F10341 - JET-.035,NLA [ More info ] Unavailable |
| #31 | 27-F18906 | GASKET-Carburetor Flange (1 required per assembly) |
  |
|
27-F18906 -Carburetor Gasket [ More info ]
|
