Parts for Force 5 HP (1988-1995) Shift Linkage (All Models)

Revise Search: All Models > 5 HP (1988-1995) > 1988-A - 1992-B ( ) > Shift Linkage (All Models)

NEED PARTS OR KITS?

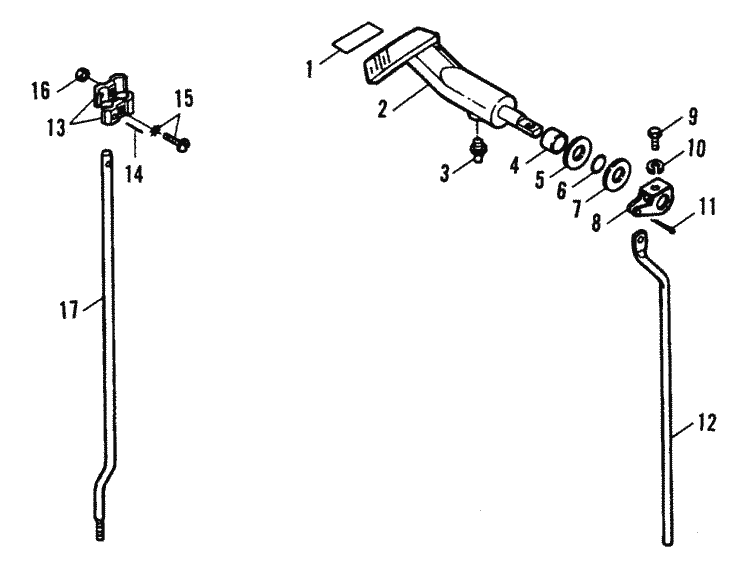

View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	NLA	DECAL, SHIFT (CANADA) (88A) (FC521400) (1 required per assembly)
		NLA - No Longer Availab [ More info ] Unavailable
#2	820433T	HANDLE, GEAR SHIFT (PAINTED) (1 required per assembly)
		820433T - Gear Shift Handle [ More info ] Unavailable
		820433T 1 - Gear Shift Handle [ More info ] $28.00 $23.72 6 In Stock.
#3	22-F213274	FITTING, GREASE (AS APPLICABLE) (1 required per assembly)
		22-F213274 - Grease Fitting [ More info ] Unavailable
#4	23-F341610	BEARING, GEAR SHIFT SHAFT (1 required per assembly)
		23-F341610 - Bearing - Gear - Shift Shaft [ More info ] $6.67 $5.65 10+ In Stock.
#5	23-F269052	BUSHING, SHIFT ARM (1 required per assembly)
		23-F269052 - Bushing, NLA [ More info ] $3.90 10+ In Stock.
#6	25-F19342	SEAL (1 required per assembly)
		25-F19342 - O-Ring [ More info ] $16.49 $9.25 8 In Stock.
#7	12-34931	WASHER (1 required per assembly)
		12-34931 - Washer, (.406 X .734 X .063 - Stainless Steel) [ More info ] $2.59 10+ In Stock.
#8	F521621	LEVER, GEAR SHIFT (1 required per assembly)
		F521621 - Lever [ More info ] $3.33 $2.82 10+ In Stock.
#9	10-F2041	SCREW (10-24 X 3/8") (1 required per assembly)
		10-F2041 - Screw -ss, NLA [ More info ] $1.25 $1.06 10+ In Stock.
#10	13-26996	LOCKWASHER (#10) (1 required per assembly)
		13-26996 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
#11	17-29908	PIN, ROLL (1 required per assembly)
		17-29908 - Pin -roll - Priced Individually [ More info ] $1.99 10+ In Stock.
#12	F521615	ROD, GEAR SHIFT (UPPER) (1 required per assembly)
		F521615 - Upper Gear Shift Rod [ More info ] Unavailable
#13	FK341704	COUPLING KIT, GEAR SHIFT ROD (1 required per assembly)
		FK341704 - Coupling Kit, NLA [ More info ] Unavailable
#14	17-F8538	PIN, SPRING (1 required per assembly)
		17-F8538 - Spring Pin, NLA [ More info ] $0.22 $0.18 10+ In Stock.
#15	10-F1371	SCREW (10-24 X 5/8") (1 required per assembly)
		10-F1371 - Screw -w/Lw, NLA [ More info ] $1.50 $1.28 10+ In Stock.
#16	11-F7009	NUT (10-24) (1 required per assembly)
		11-F7009 - Nut, (#10-24) [ More info ] Unavailable
#17	F521705-1	ROD, GEAR SHIFT (LOWER) (15" TRANSOM) (1 required per assembly)
		F521705-1 - Shift Rod -15 In, NLA [ More info ] $15.22 $12.89 10+ In Stock.
#17	F332705-1	ROD, GEAR SHIFT (LOWER) (20" TRANSOM) (1 required per assembly)
		F332705-1 - ROD-SHIFT-20 IN,NLA [ More info ] $28.00 $23.72 4 In Stock.
