Parts for Force 5 HP (1988-1995) Magneto

Revise Search: All Models > 5 HP (1988-1995) > 1988-A - 1992-B ( ) > Magneto

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

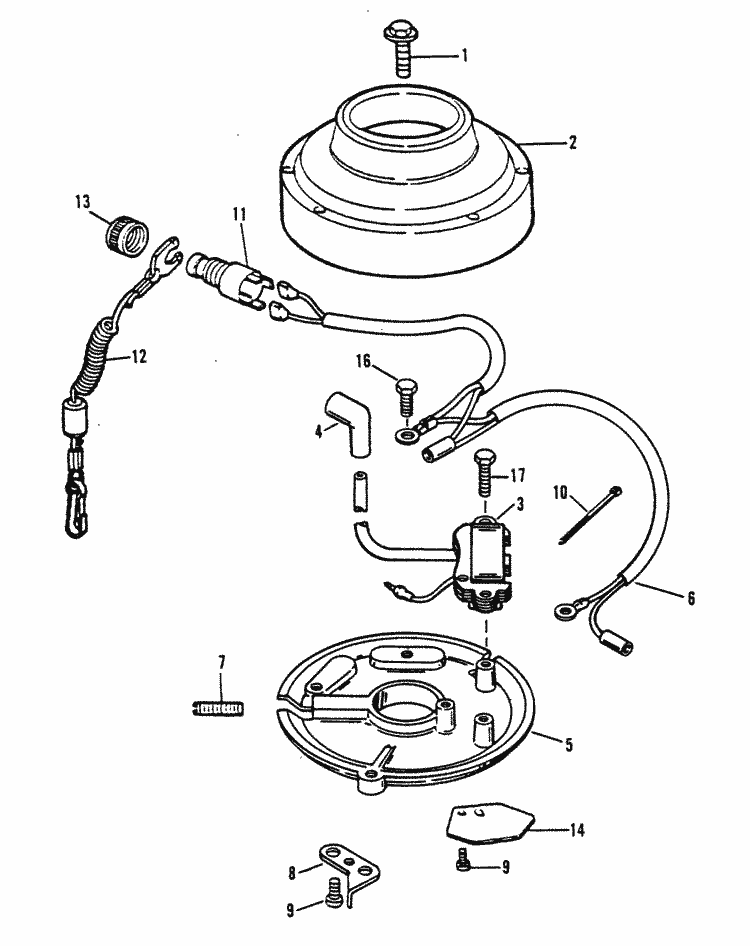

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	10-F521552	SCREW, FLYWHEEL (1 required per assembly)
		10-F521552 - Screw, NLA [ More info ] $2.20 $1.86 10+ In Stock.
#2	200-819363T	FLYWHEEL (PAINTED) (1 required per assembly)
		200-819363T - Flywheel [ More info ] Unavailable

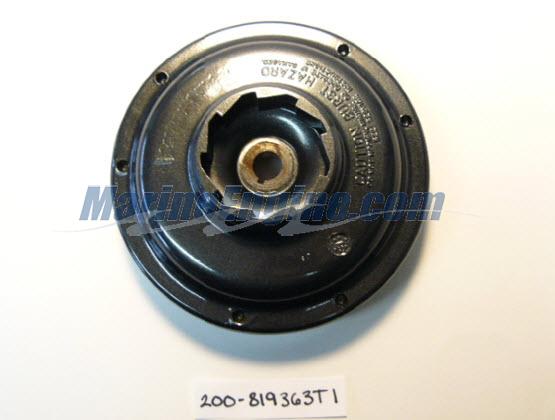

		200-819363T 1 - Flywheel, NLA [ More info ] $59.99 $50.80 5 In Stock.
#3	300-819156T	MODULE, IGNITION (1 required per assembly) (CUT WIRE AS REQ'D)
		300-819156T - Module - 5/15 HP [ More info ] Unavailable
		300-850899T - Ignition Module -5/15 HP [ More info ] Unavailable
#4	FK1123	BOOT KIT, SPARK PLUG (1 required per assembly)
		FK1123 - Boot Kit [ More info ] Unavailable
		85-63709A 1 - Boot Kit - Black - Priced Individually [ More info ] $8.19 8 In Stock.
#5	300-819345A 2	PLATE ASSEMBLY, STATOR (1 required per assembly)
		300-819345A 2 - Plate Assembly -Stator [ More info ] $147.37 1 In Stock.

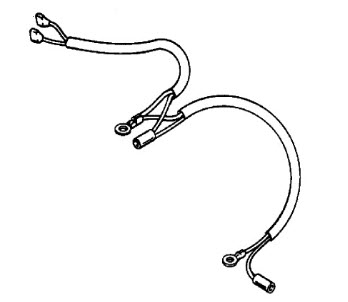

#6	84-824486A 2	CABLE ASSEMBLY (1 required per assembly)
		84-824486A 2 - Cable Assembly, NLA [ More info ] $7.00 $5.93 1 In Stock.
#7	10-824678	SCREW, FRICTION (1 required per assembly)
		10-824678 - Screw, NLA [ More info ] $1.50 $1.28 10+ In Stock.
#8	F702505	STOP, HIGH SPEED (1 required per assembly)
		F702505 - Stop, NLA [ More info ] $6.00 $5.08 5 In Stock.
#9	10-34939	SCREW (1/4-20 X 1/2") (2 required per assembly)
		10-34939 - Screw w/ Lw, NLA [ More info ] $1.96 10+ In Stock.
#10	56762	CABLE TIE (4") (AR required per assembly)
		56762 - Tie Strap - Priced Individually [ More info ] $0.50 3 In Stock.
#11	87-F687287	SWITCH, EMERGENCY STOP (1 required per assembly)
		87-F687287 - Stop Switch [ More info ] $20.94 9 In Stock.
#12	819399A 1	LANYARD ASSEMBLY (1 required per assembly)
		819399A 1 - Lanyard Assembly [ More info ] $16.50 10+ In Stock.
		879104 - LANYARD W/CLIP,NLA [ More info ] Unavailable
#13	22-F681188	NUT, STOP SWITCH (1 required per assembly)
		22-F681188 - CONNECTOR [ More info ] Unavailable
		11-855594 - Nut, (Special)-Stop Switch Sleeve [ More info ] $7.00 $5.93 10+ In Stock.
#14	F712192	CAM, THROTTLE (1 required per assembly)
		F712192 - Cam, NLA [ More info ] $5.00 $4.24 10+ In Stock.
#16	10-824352	SCREW (1/4-20 X 3/4") (1 required per assembly)
		10-824352 - Screw [ More info ] Unavailable
#17	10-824353	SCREW (8-32 X 3/4") (3 required per assembly)
		10-824353 - Screw, NLA [ More info ] $1.59 $1.34 10+ In Stock.
