Parts for Force 4 HP (1986) Starter

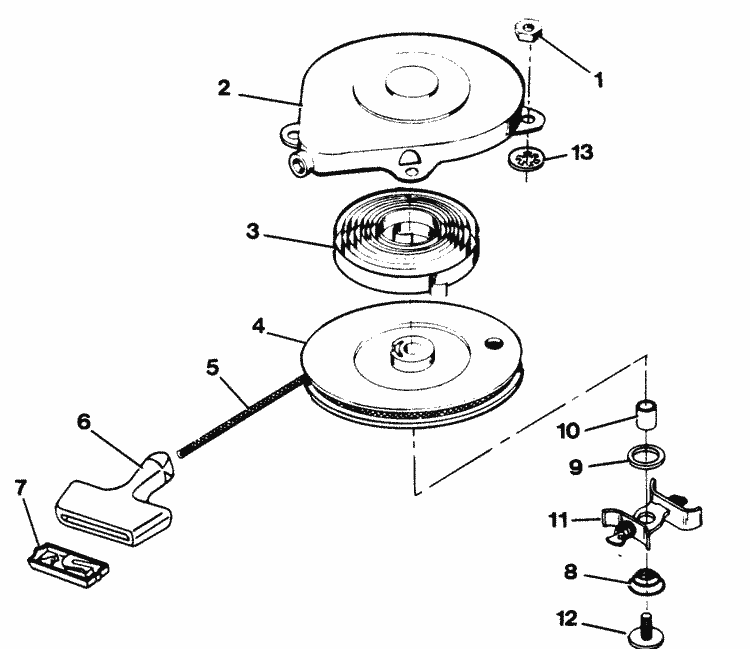

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 50-817848A 3 | STARTER - COMPLETE (1 required per assembly) W/ILLUS. 2 THRU 5 AND 8 THRU 12 ORIGINAL FORCE P/N A 521063-3 |
  |
|
50-817848A 3 - Rewind Starter, NLA [ More info ] Unavailable |
| #1 | F1341 | HEX NUT (4 required per assembly) |
  |
F1341 - Hex Nut 1/4 - 20 [ More info ] Unavailable |
|
  |
|
11-64015 - Nut (1 /4-20) [ More info ]
|
| #2 | FA521408 | COVER (1 required per assembly) |
  |
|
FA521408 - Cover [ More info ]
|
| #3 | F521970 | SPRING, REWIND (1 required per assembly) |
  |
|
24-F521970 - Spring, Starter Rewind,NLA [ More info ]
|
| #4 | FA521239 | ROTOR (1 required per assembly) |
  |
|
FA521239 - ROTOR ASSY,NLA [ More info ] Unavailable |
| #5 | F521232 | STARTER ROPE (1 required per assembly) |
  |
|
50-F521232 - Starter Rope [ More info ]
|
| #6 | F620132 | HANDLE, STARTER ROPE (1 required per assembly) |
  |
|
F620132 - Handle, NLA [ More info ]
|
| #7 | F620817 | RETAINER (1 required per assembly) |
  |
|
F620817 - Retainer, NLA [ More info ]
|
| #8 | F521003 | SPRING (1 required per assembly) |
  |
|
24-F521003 - Spring, Starter Rewind,NLA [ More info ]
|
| #9 | F521359 | WASHER (1 required per assembly) |
  |
|
12-F521359 - Washer, Starter Rewind, NLA [ More info ]
|
| #10 | F521818 | NYLINER (1 required per assembly) |
  |
|
23-F521818 - Bearing ,NLA [ More info ] Unavailable |
| #11 | FA521775 | FRICTION SHOE ASSEMBLY (1 required per assembly) |
  |
|
FA521775 - Shoe Kit, NLA [ More info ] Unavailable |
| #12 | F2145 | SCREW (1 required per assembly) |
  |
|
10-F2145 - Screw w/ Washer, NLA [ More info ] Unavailable |
| #13 | F8061 | INTERNAL TOOTH LOCKWASHER (4 required per assembly) |
  |
F8061 - LockWasher - Priced Individually [ More info ] Unavailable |
|
  |
|
13-21272 - LockWasher - Priced Individually [ More info ]
|
