Parts for Force 4 HP (1985) Power Head & Support Plate

Revise Search: All Models > 4 HP (1985) > 43FC5A ( ) > Power Head & Support Plate

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	F521906	CARBURETOR GASKET (1 required per assembly)
		27-F521906 - Carburetor Gasket [ More info ] $2.59 9 In Stock.
#	FC521010	*SHORT BLOCK (NOT SHOWN). (1 required per assembly) INCLUDES ALL ITEMS MARKED WITH AN ASTERISK ().**
		800-FC521010 - Short Block, NLA [ More info ] Unavailable
#	F521168	CARBURETOR ADAPTER GASKET (1 required per assembly)
		27-F521168 - Carburetor Adapter Gasket [ More info ] $2.99 $2.53 7 In Stock.
#1	F1341	HEX NUT (2 required per assembly)
		F1341 - Hex Nut 1/4 - 20 [ More info ] Unavailable
		11-64015 - Nut (1 /4-20) [ More info ] $2.79 10+ In Stock.
#2	F8083	SPRING LOCKWASHER (2 required per assembly)
		F8083 - LockWasher SS [ More info ] Unavailable
		13-26992 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
#3	F901938-1	SCREW, CYLINDER HEAD (4 required per assembly)
		10-F901938-1 - Screw, NLA [ More info ] $2.06 10+ In Stock.
#4	F521774	BRACKET, ENGINE COVER LOWER MOUNTING (1 required per assembly)
		F521774 - Bracket - Lower [ More info ] Unavailable
		F521774T - Bracket - Lower, NLA [ More info ] $2.22 $1.88 10+ In Stock.
#5	F1705	HEX HD CAP SCREW, 1/4 - 20 X 3/4 (4 required per assembly)
		F1705 - Screw - Priced Individually [ More info ] Unavailable
		10-28636 - Screw - Priced Individually [ More info ] $1.80 10+ In Stock.
#6	FA521010	CYLINDER W/CRANKCASE COVER (1 required per assembly) ILLUS. 29, 30 AND 33
		FA521010 - Cylinder Kit, NLA [ More info ] $79.99 $67.74 1 In Stock.

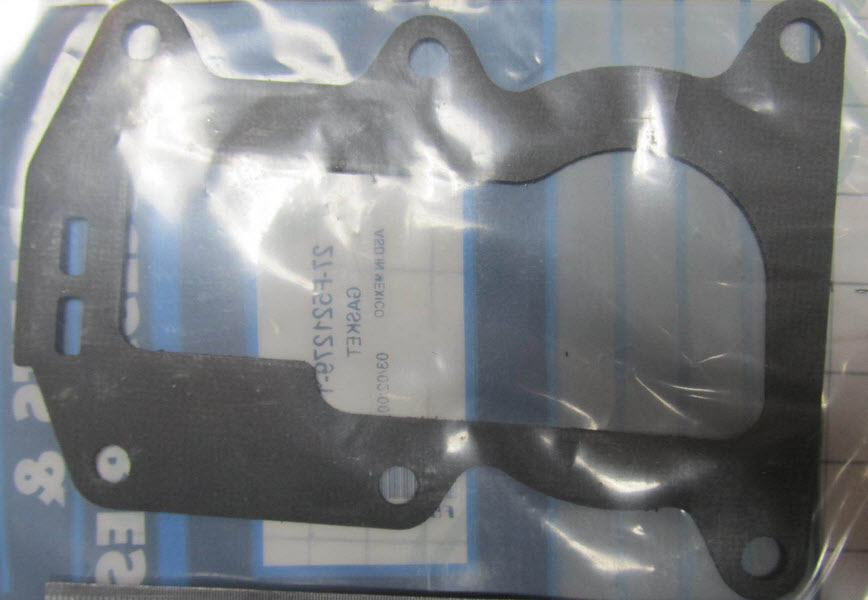

#7	F521279	GASKET, CYLINDER EXHAUST (1 required per assembly)
		27-F521279 - 27F5212791 [ More info ] Unavailable
		27-F521279-1 - Cylinder Exhaust Gasket [ More info ] $15.08 9 In Stock.
#8	39-818038A 1	PISTON RING SET (2 RINGS) (1 required per assembly)
		39-818038A 1 - Rings - 2 - Standard, NLA [ More info ] Unavailable
#9	F250410	PISTON PIN RETAINING RING (2 required per assembly)
		53-F250410 - Ring - Retaining, NLA [ More info ] $1.25 $1.06 10+ In Stock.
#10	F250017	PISTON PIN (1 required per assembly)
		41-F250017 - Piston Pin, NLA [ More info ] $5.00 $4.24 10+ In Stock.
#11	F521015-1	PISTON (1 required per assembly)
		700-F521015-1 - Piston, NLA [ More info ] $61.11 $51.76 1 In Stock.
#12	F2A521016	CONNECTING ROD W/BEARING (1 required per assembly) ILLUS. 34
		F2A521016 - Connecting Rod Assembly,NLA [ More info ] Unavailable
#13	FA567241	CRANKPIN ROLLER & CAGE SET (1 required per assembly)
		FA567241 - Roller And Cage Set [ More info ] $10.78 10+ In Stock.
#14	F1493	PAN HD SCREW, 1/4 - 20 X 5/8 (2 required per assembly)
		F1493 - Screw - Priced Individually [ More info ] Unavailable
		10-28639 - Screw - Priced Individually [ More info ] $1.99 $1.68 10+ In Stock.
#15	F521925	LINK, CHOKE KNOB (1 required per assembly)
		F521925 - Choke Knob Link, NLA [ More info ] $3.00 $2.54 10+ In Stock.
#16	F2041	HEX HD M. SCREW, 10 - 24 X 3/8 (1 required per assembly)
		10-F2041 - Screw -ss, NLA [ More info ] $1.25 $1.06 10+ In Stock.
#17	F1975	SPRING LOCKWASHER (1 required per assembly)
		13-F1975 - LockWasher - Priced Individually [ More info ] Unavailable
		13-26996 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
#18	F535163	COVER, SUPPORT PLATE (1 required per assembly)
		F535163 - F535163 - COVER [ More info ] Unavailable Replaced by -F665163
		F665163 - Support Plate Front Cover [ More info ] $8.89 $7.53 10 In Stock.
#19	FC521248	DECAL, CHOKE (1 required per assembly)
		FC521248 - DECAL,NLA [ More info ] Unavailable
#20	F521547	CHOKE KNOB (1 required per assembly)
		F521547 - Choke Knob, NLA [ More info ] $6.00 $5.08 10+ In Stock.
#21	FA271038	SUPPORT PLATE (1 required per assembly)
		100-FA271038 - PLATE KIT-SUPPORT,NLA [ More info ] Unavailable
#22	F521004	STUD (1 required per assembly)
		16-F521004 - STUD [ More info ] Unavailable
		16-827618 - Stud, NLA [ More info ] $5.99 $5.07 10+ In Stock.
#23	F286286-1	WASHER, NYLON (1 required per assembly)
		12-F286286-1 - Washer -Stern Bracket, NLA [ More info ] $2.21 $1.88 10+ In Stock.
#24	F8015	PLAIN WASHER (2 required per assembly)
		12-F8015 - Washer, NLA [ More info ] $2.09 $1.77 10+ In Stock.
#25	F521319	BUSHING, STEERING HANDLE (2 required per assembly)
		23-F521319 - Bushing, NLA [ More info ] $3.00 $2.54 10+ In Stock.
#26	F521079	STEERING HANDLE (1 required per assembly)
		F521079 - Handle, NLA [ More info ] $8.89 $7.53 4 In Stock.
#27	F1756	STOP NUT (1 required per assembly)
		11-F1756 - Nut, (3/8-16)(Stainless Steel) NLA [ More info ] $2.00 $1.69 10+ In Stock.
#28	F390137	GRIP, STEERING HANDLE (1 required per assembly)
		F390137 - Grip, NLA [ More info ] $5.56 $4.71 8 In Stock.
#29	F1789	PIPE PLUG (1 required per assembly)
		22-F1789 - Pipe Plug, NLA [ More info ] Unavailable
#30	F1107	FILL HD M. SCREW, 1/4 - 20 X 3/4 (2 required per assembly)
		10-F1107 - Screw [ More info ] $0.70 $0.60 10+ In Stock.
#31	F2040	HEX WASHER HD TAPTITE SCREW, 1/4 - 20 X 5/8 (1 required per assembly)
		10-F2040 - Screw -ss, NLA [ More info ] Unavailable
#32	F1504	SLOTTED FILL HD SCREW, 1/4 - 20 X 1-1/4 (4 required per assembly)
		10-F1504 - Screw -ss [ More info ] $2.79 Available to Order: Shipping delay up to 10 days.
#33	F8559	DOWEL PIN (2 required per assembly)
		17-F8559 - Pin, Dowel [ More info ] $1.30 $1.11 10 In Stock.
#34	F36634	SCREW, CONNECTING ROD (2 required per assembly)
		10-F36634 - SCREW,NLA [ More info ] Unavailable

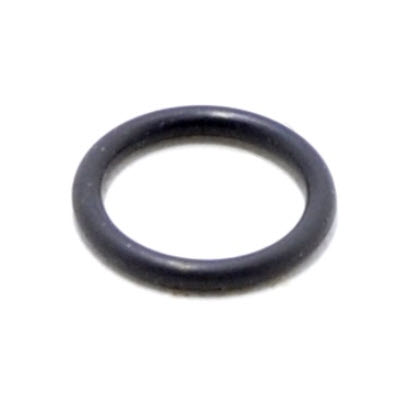

#35	F521579	SEAL, CRANKSHAFT SPINE (1 required per assembly)
		25-F521579 - 0-Ring Seal, Crankshaft Spline,NLA [ More info ] $1.80 5 In Stock.
#36	F521118-1	SEAL, CRANKSHAFT LOWER (1 required per assembly)
		F521118-1 - Seal [ More info ] Unavailable
		26-819798 - Seal, NLA [ More info ] $19.76 10+ In Stock.
#37	F2A527018	CRANKSHAFT (1 required per assembly) W/ILLUS. 45 AND 46
		400-F2A527018 - Crankshaft [ More info ] Unavailable
		400-819797A 1 - CrankShaft Assembly, NLA [ More info ] Unavailable
#38	F521013	BEARING, CRANKSHAFT UPPER (1 required per assembly)
		31-F521013 - Roller Bearing, NLA [ More info ] $7.55 3 In Stock.
#39	F521146	SEAL, CRANKSHAFT UPPER (1 required per assembly)
		F521146 - F5211461 [ More info ] Unavailable
		F521146-1 - Seal [ More info ] Unavailable
		26-819799 - Seal, NLA [ More info ] $8.39 10+ In Stock.
#40	F521529	GASKET, CYLINDER HEAD (1 required per assembly)
		F521529 - 27F712529 [ More info ] Unavailable
		27-F712529 - Cylinder Head Gasket [ More info ] $28.09 $18.88 5 In Stock.
#41	F521518	CYLINDER HEAD (1 required per assembly)
		900-F521518 - Cylinder Head,NLA [ More info ] Unavailable
#42	33-82370M	SPARK PLUG (L-86) (USA) (1 required per assembly)
		33-82370M - NGK B6HS Note: Priced Individually [ More info ] Unavailable
		33-82370M 1 - NGK B6HS - Priced Individually [ More info ] Unavailable
		33-813472 - NGK Spark Plug BR6HS , Priced Individually [ More info ] Unavailable
		L86C - Champion Spark Plug ( #306) [ More info ] $4.50 $3.29 Available to Order: Shipping delay up to 10 days.
#43	F8028	PLAIN WASHER (2 required per assembly)
		F8028 - 12F8008 [ More info ] Unavailable
		12-F8008 - Washer [ More info ] Unavailable
		12-35044 - Washer, (.281 X .625 X .065) Stainless Steel [ More info ] $2.49 10+ In Stock.
#44	F1426	HEX HD SCREW W/LOCKWASHER, 1/4 - 20 X 7/16 (2 required per assembly)
		10-F1426 - SCREW-W/LW,NLA [ More info ] Unavailable
#45	F521270	SLINGER (1 required per assembly)
		F521270 - Slinger, NLA [ More info ] $1.88 $1.59 10+ In Stock.
#46	F521910	BEARING, CRANKSHAFT LOWER (1 required per assembly)
		30-F521910 - Ball Bearing, NLA [ More info ] $22.22 $18.82 5 In Stock.
#47	F8008	PLAIN WASHER (2 required per assembly)
#48	F341284-1	KNOB, ENGINE COVER RETAINER (1 required per assembly)
		F341284-1 - Knob, NLA [ More info ] $17.25 10+ In Stock.
#49	F9102	RETAINING RING (1 required per assembly)
		F9102 - 53F455208 [ More info ] Unavailable
		53-F455208 - Ring - Retaining [ More info ] $1.80 1 In Stock.
#50	FG1022	GASKET SET. (1 required per assembly)
		FG1022 - FG10221 [ More info ] $50.00 1 In Stock.
		FG1022-1 - Gasket Set [ More info ] $35.87 $30.38 6 In Stock.
