Parts for Force 4 HP (1984) Gear Housing

Revise Search: All Models > 4 HP (1984) > 42X4A ( ) > Gear Housing

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	F341128	DRIVESHAFT (1 required per assembly)
		45-F341128 - Drive Shaft - Long, NLA [ More info ] $49.99 $42.33 4 In Stock.
#	F1825	HEX CAP SCREW, 1/4 - 20 X 6 (MOTOR LEG EXTENSION REAR) (1 required per assembly)
		10-F1825 - Screw, NLA [ More info ] $6.00 $5.08 9 In Stock.
#	F332705	ROD, GEAR SHIFT LOWER (1 required per assembly)
		F332705 - F3327051 [ More info ] Unavailable
		F332705-1 - ROD-SHIFT-20 IN,NLA [ More info ] $28.00 $23.72 4 In Stock.
#	F521845	EXTENSION, MOTOR LEG (1 required per assembly)
		F521845 - EXTENSION [ More info ] Unavailable
		F521845T - Extension, NLA [ More info ] $80.00 $67.76 9 In Stock.
		F521845T1 - Extension, NLA [ More info ] Unavailable
#	FC341054	*GEAR HOUSING COMPLETE. (1 required per assembly) INCLUDES ALL ITEMS MARKED WITH AN ASTERISK ()**
		FC341054 - Gear Housing Complete [ More info ] Unavailable
		1600-819481A 1 - Gear Housing Kit [ More info ] Unavailable
		1600-820090A 3 - Gear Housing Assembly [ More info ] Unavailable
		1600-820090A 8 - Gear Housing,FORCE,NLA [ More info ] Unavailable
#	F535006	STUD, GEAR HOUSING FRONT (1 required per assembly)
		16-F535006 - Stud [ More info ] Unavailable
#	F341244-1	WATER LINE (1 required per assembly)
		32-F341244-1 - Water Line, NLA [ More info ] $7.00 $5.93 2 In Stock.
#1	F341704	COUPLING, GEAR SHIFT ROD (2 PARTS MAKE 1 SET) (2 required per assembly)
		F341704 - FK341704, NLA [ More info ] Unavailable
		FK341704 - Coupling Kit, NLA [ More info ] Unavailable
#2	F1371	SOCKET HD SCREW W/LOCKWASHER, 10 - 24 X 5/8 (1 required per assembly)
		10-F1371 - Screw -w/Lw, NLA [ More info ] $1.50 $1.28 10+ In Stock.
#3	F8538	SPRING PIN (1 required per assembly)
		17-F8538 - Spring Pin, NLA [ More info ] $0.22 $0.18 10+ In Stock.
#4	F521705	ROD, GEAR SHIFT LOWER (1 required per assembly)
		F521705 - F5217051 [ More info ] Unavailable
		F521705-1 - Shift Rod -15 In, NLA [ More info ] $15.22 $12.89 10+ In Stock.
#5	F1504	FILL HD SCREW, 1/4 - 20 X 1 1/4 (4 required per assembly)
		10-F1504 - Screw -ss [ More info ] $2.79 Available to Order: Shipping delay up to 10 days.
#6	F521537	PLATE, WATER PUMP (1 required per assembly)
		F521537 - Water Pump Plate [ More info ] $7.91 $6.70 10+ In Stock.
#7	F521065	IMPELLER (1 required per assembly)
		F521065 - 47F5210651 [ More info ] Unavailable
		47-F521065-1 - Impeller [ More info ] $118.49 Available to Order: Shipping delay up to 10 days.
#8	F8083	SPRING LOCKWASHER (2 required per assembly)
		F8083 - LockWasher SS [ More info ] Unavailable
		13-26992 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
#9	F338618-1	SEAL, SHIFT ROD (1 required per assembly)
		F338618-1 - SEAL [ More info ] Unavailable
		26-817472 - Seal [ More info ] $8.99 4 In Stock.
		18-0500 - Seal, 26-817472 [ More info ] $8.99 $8.32 Available to Order: Shipping delay up to 10 days.
#10	FA521735	SEAL, WATERLINE (1 required per assembly) W/LITERATURE
		FA521735 - Waterline Seal, NLA [ More info ] $14.06 $11.90 9 In Stock.
#11	FA735060	WATER PUMP BODY W/PLUG (1 required per assembly) ILLUS. 39 ORIGINAL FORCE P/N A 521060-2
		FA735060 - Water Pump Body [ More info ] $66.58 $15.98 10+ In Stock.
#12	F521128	DRIVESHAFT - STANDARD LEG (1 required per assembly)
		45-F521128 - Drive Shaft - Short [ More info ] $87.11 $73.78 3 In Stock.
#13	F390563	PIN, WATER PUMP IMPELLER DRIVE (1 required per assembly)
		17-F390563 - Pin, Impeller Drive, NLA [ More info ] $4.94 10+ In Stock.
#14	F521721	CAM, CLUTCH SHIFT (1 required per assembly)
		F521721 - Cam, NLA [ More info ] $7.00 $5.93 10+ In Stock.
#15	F318307	SEAL, DRIVESHAFT (1 required per assembly)
		26-F318307 - Seal [ More info ] $45.99 $30.80 10+ In Stock.
#16	F521783	SEAL (1 required per assembly)
		25-F521783 - Seal, Water Pump Body,NLA [ More info ] $1.92 10+ In Stock.
#17	F1077	FILL HD SCREW, 10 - 24 X 1/4 (1 required per assembly)
		10-F1077 - Screw, NLA [ More info ] $1.77 $1.49 10+ In Stock.
#18	F8074	WASHER (1 required per assembly) * **
		12-F8074 - WASHER [ More info ] Unavailable
#19	F50109	PLUG, GEAR HOUSING (1 required per assembly)
		10-F50109 - Screw -Special [ More info ] $7.77 4 In Stock.
		10-79953A 2 - Drain Screw Kit [ More info ] Unavailable
		10-79953Q 2 - Screw Kit - Priced Individually [ More info ] Unavailable
		10-79953Q04 - Screw Kit - Priced Individually [ More info ] $7.49 9 In Stock.
		18-2244 - Plug Kit, 10-79953A2 [ More info ] $3.79 10+ In Stock.
		10-79953K04 - Drain Screw - Priced Individually [ More info ] $8.19 8 In Stock.
#20	F2A521054	GEAR HOUSING (1 required per assembly) W/ILLUS. 15, 17, 18 AND 19
		F2A521054 - Gear Housing Assembly [ More info ] Unavailable
		1600-820090A 2 - Basic Gear Housing Kit [ More info ] Unavailable
		1600-820090A 7 - Basic Gear Housing Assembly [ More info ] Unavailable
#21	F1199	HEX CAP SCREW, 1/4 - 20 X 1 (1 required per assembly)
		F1199 - Screw SS [ More info ] Unavailable
		10-14168 - Screw [ More info ] $1.39 $1.17 10+ In Stock.
#22	F521266	BEVEL PINION GEAR (1 required per assembly)
		F521266 - Bevel Pinion Gear [ More info ] Unavailable
		43-819250 - Pinion Gear [ More info ] Unavailable
#23	F521728	CLUTCH SHIFT PIN (1 required per assembly)
		17-F521728 - Clutch Shift Pin, NLA [ More info ] $5.39 10+ In Stock.
#24	FA521023	BEVEL GEAR W/BEARING (1 required per assembly)
		FA521023 - Bevel Gear [ More info ] Unavailable
		43-819249A 1 - Front Gear Assembly [ More info ] $29.99 $25.39 6 In Stock.
#25	FA409098	PROPELLER SHAFT (1 required per assembly) W/ILLUS. 28 & LITERATURE
		44-FA409098 - Prop Shaft Kit, NLA [ More info ] $48.00 $40.66 1 In Stock.
#26	F409521	CLUTCH (1 required per assembly)
		52-F409521 - Clutch, NLA [ More info ] $7.25 $6.14 10+ In Stock.
#27	F318372	PIN, CLUTCH GUIDE (1 required per assembly)
		17-F318372 - Clutch Guide Pin, NLA [ More info ] $3.33 $2.82 10+ In Stock.
#28	F409719	CLUTCH SPRING (1 required per assembly)
		24-F409719 - Spring, Clutch,NLA [ More info ] $5.56 $4.71 10+ In Stock.
#29	F521099	SPACER (1 required per assembly)
		23-F521099 - SPACER,NLA [ More info ] Unavailable
#30	FA341298	BEARING CAGE (1 required per assembly) W/BEARING AND ILLUS. 31
		FA341298 - Cage Assembly [ More info ] Unavailable
		FA341298T - Cage Assembly [ More info ] $71.58 Available to Order: Shipping delay up to 10 days.
#31	F521307	SEAL, PROPELLER SHAFT (1 required per assembly)
		26-F521307 - Seal, NLA [ More info ] $35.54 $30.11 10+ In Stock.
#32	F521305	SEAL, "O" RING (1 required per assembly)
		25-F521305 - O-Ring Seal, Prop Shaft Bearing Cage,NLA [ More info ] $7.81 10+ In Stock.
#33	F521296	RETAINER, PROPELLER SHAFT BEARING CAGE (1 required per assembly)
		F521296 - Retainer [ More info ] Unavailable
		F521296T - Retainer [ More info ] Unavailable
		F521296T1 - Retainer [ More info ] $31.58 Available to Order: Shipping delay up to 10 days.
#34	F525457	FILL HD SCREW, 1/4 - 20 X 5/8 (4 required per assembly)
		10-F525457 - Screw, NLA [ More info ] $1.67 $1.42 10+ In Stock.
#35	FP332	PROPELLER (1 required per assembly)
		FP332 - Prop [ More info ] Unavailable
		FP712 - PROP [ More info ] Unavailable
		48-820110A20 - Black Diamond Prop 7.25X6.5 [ More info ] $155.42 Available to Order: Shipping delay up to 10 days.
#36	11-817752A 1	PROPELLER NUT (1 required per assembly) W/ILLUS. 38 ORIGINAL FORCE P/N A 286094-1
		11-817752A 1 - Prop Nut Kit [ More info ] $23.08 6 In Stock.
#37	FA324101	PROPELLER PIN, PACK OF 3 AND (1 required per assembly) ILLUS. 38
		FA324101 - Prop Pin Kit [ More info ] $13.97 1 In Stock.
#38	F1846	COTTER PIN (1 required per assembly)
		18-F1846 - Cotter Pin - Priced Individually [ More info ] Unavailable
		18-45882 - Cotter Pin - Priced Individually [ More info ] $3.03 10+ In Stock.
#39	F521246-1	PLUG, WATER PUMP (1 required per assembly)
		19-F521246-1 - Plug - Welch [ More info ] Unavailable
#40	F7009	LOCK NUT, 10 - 24 (1 required per assembly)
		11-F7009 - Nut, (#10-24) [ More info ] Unavailable

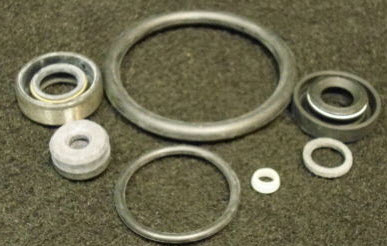

#41	FK1057	GEAR HOUSING SEAL KIT. (1 required per assembly) INCLUDES ALL ITEMS MARKED WITH A DOUBLE ASTERISK ()**
		FK1057 - Gear Housing Seal Kit, NLA [ More info ] Unavailable
#42	F8077	WASHER (1 required per assembly) **
		F8077 - SEAL [ More info ] Unavailable
		F8186 - Washer-BLK - Priced Individually [ More info ] Unavailable
		12-19183 - Washer (3/8 Inch Screw) [ More info ] Unavailable
		12-19183 2 - Washer - Priced Individually [ More info ] Unavailable
		12-19183 3 - Seal -Blue - Priced Individually [ More info ] Unavailable
		12-8M0187157 - SEAL-BLUE, Sold Individually [ More info ] $1.49 10+ In Stock.
		18-2945-9 - Gasket 12-19183 2-Pack [ More info ] $2.41 10+ In Stock.
		12-19183Q02 - Seals, Pack of 4 (yes this is actually a pack of 4) [ More info ] $6.69 10+ In Stock.
		12-19183K02 - Seal, Pack of 4 [ More info ] $7.29 6 In Stock.
		12-02108-1 - Drain Gasket (1 piece) [ More info ] $1.20 $0.85 10+ In Stock.
#43	FK1072	WATER PUMP KIT. (1 required per assembly)
		FK1072 - Water Pump Kit [ More info ] Unavailable
		46-819026A 1 - Water Pump Kit, NLA [ More info ] Unavailable
#44	F1341	HEX NUT (1 required per assembly)
		F1341 - Hex Nut 1/4 - 20 [ More info ] Unavailable
		11-64015 - Nut (1 /4-20) [ More info ] $2.79 10+ In Stock.
#45	F601006	STUD (1 required per assembly)
		16-F601006 - Stud, NLA [ More info ] Unavailable
