Parts for Force 4 HP (1984) Starter
Tap to zoom. Scroll down to order.

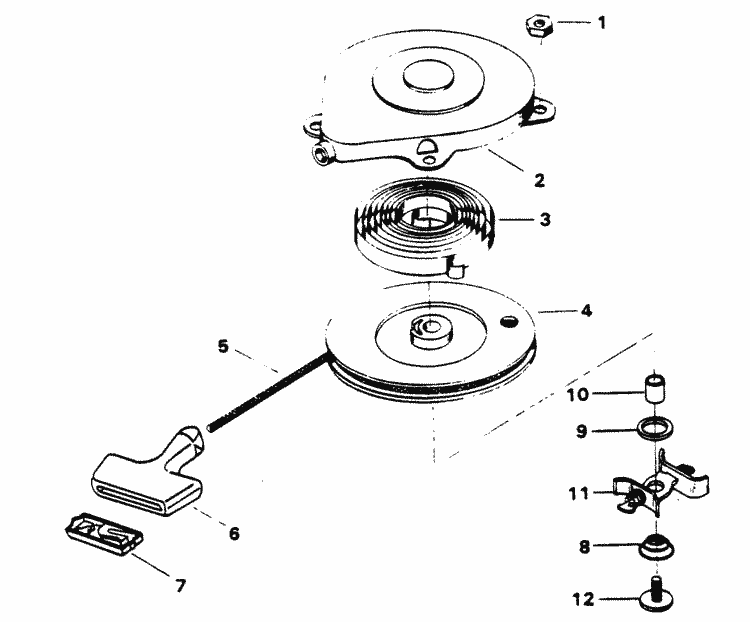

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.

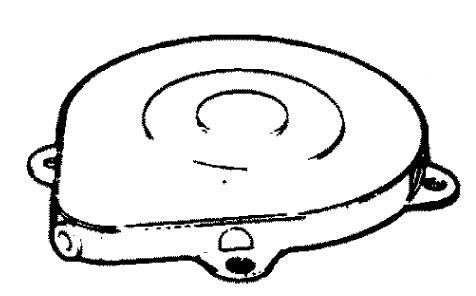

# | F521063-2 | STARTER - COMPLETE (1 required per assembly) W/ILLUS. 2 THRU 5 AND 8 THRU 12 |
F521063-2 - Rewind Starter [ More info ] Unavailable |
||
50-817848A 3 - Rewind Starter, NLA [ More info ] Unavailable |
||
#1 | F1896 | HEX NUT (4 required per assembly) |
F1896 - Hex Nut, 1/4 - 20 [ More info ] Unavailable |
||
F1341 - Hex Nut 1/4 - 20 [ More info ] Unavailable |
||
#2 | F15601 | COVER (1 required per assembly) |
F15601 - Cover [ More info ] Unavailable |
||

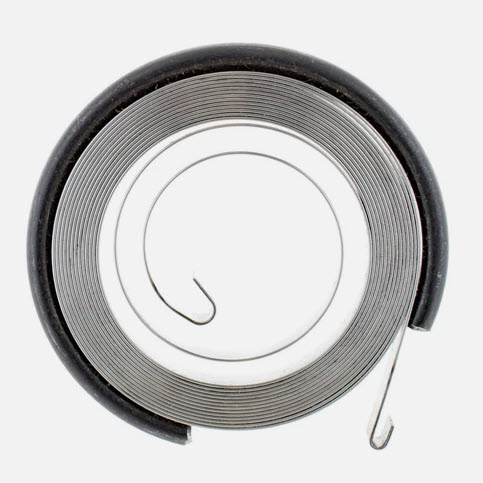

#3 | F15570 | SPRING, REWIND (1 required per assembly) |
F15570 - Rewing Spring - 24F521970, NLA [ More info ] Unavailable |
||
24-F521970 - Spring, Starter Rewind,NLA [ More info ] Unavailable |
||
#4 | F15591 | ROTOR (1 required per assembly) |
F15591 - ROTOR [ More info ] Unavailable |
||
FA521239 - ROTOR ASSY,NLA [ More info ] Unavailable |
||

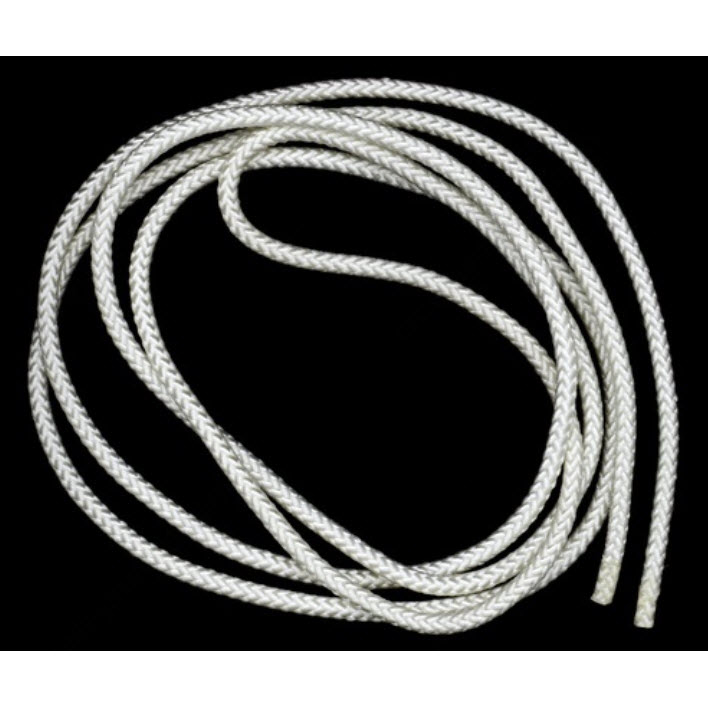

#5 | F15582-1 | STARTER ROPE (1 required per assembly) |
F15582-1 - 50F521232 [ More info ] Unavailable |
||

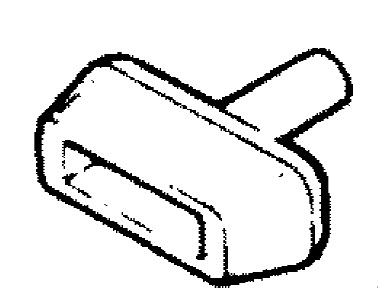

#6 | F620132 | HANDLE, STARTER ROPE (1 required per assembly) |

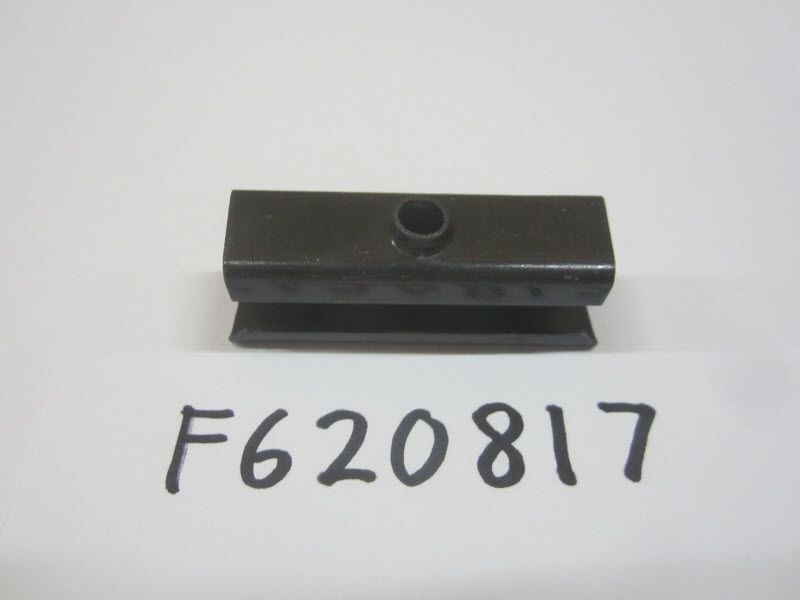

#7 | F620817 | RETAINER (1 required per assembly) |

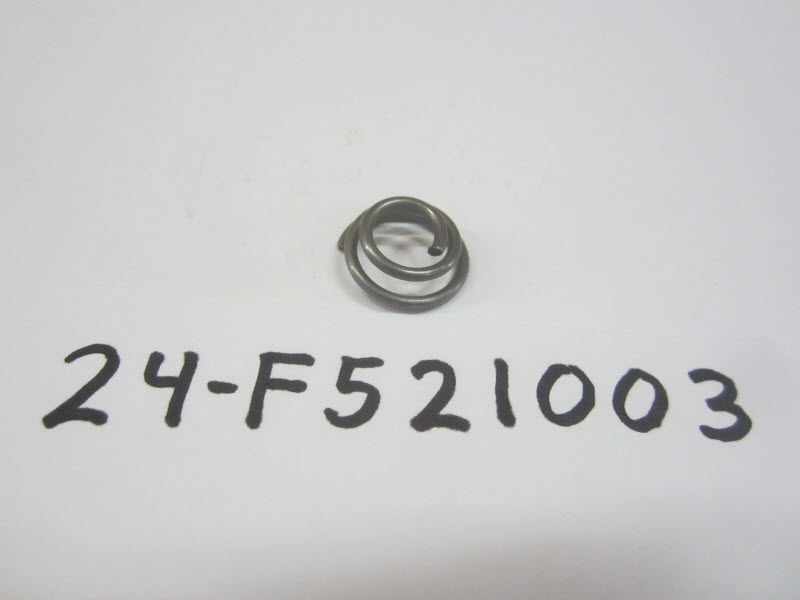

#8 | F15596 | SPRING (1 required per assembly) |
F15596 - 24F521003 [ More info ] Unavailable |
||
#9 | F15594 | WASHER (1 required per assembly) |
F15594 - 12F521359 [ More info ] Unavailable |
||
#10 | F15602 | NYLINER (1 required per assembly) |
F15602 - 23F521818 [ More info ] Unavailable |
||
23-F521818 - Bearing ,NLA [ More info ] Unavailable |
||
#11 | F15608 | FRICTION SHOE ASSEMBLY (1 required per assembly) |
F15608 - Shoe Assembly [ More info ] Unavailable |
||
FA521775 - Shoe Kit, NLA [ More info ] Unavailable |
||
#12 | F15597 | SCREW (1 required per assembly) |
F15597 - 10F2145 [ More info ] Unavailable |
||
10-F2145 - Screw w/ Washer, NLA [ More info ] Unavailable |
