Parts for Force 4 HP (1984) Engine Cover & Fuel Tank

Revise Search: All Models > 4 HP (1984) > 42F4A ( ) > Engine Cover & Fuel Tank

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

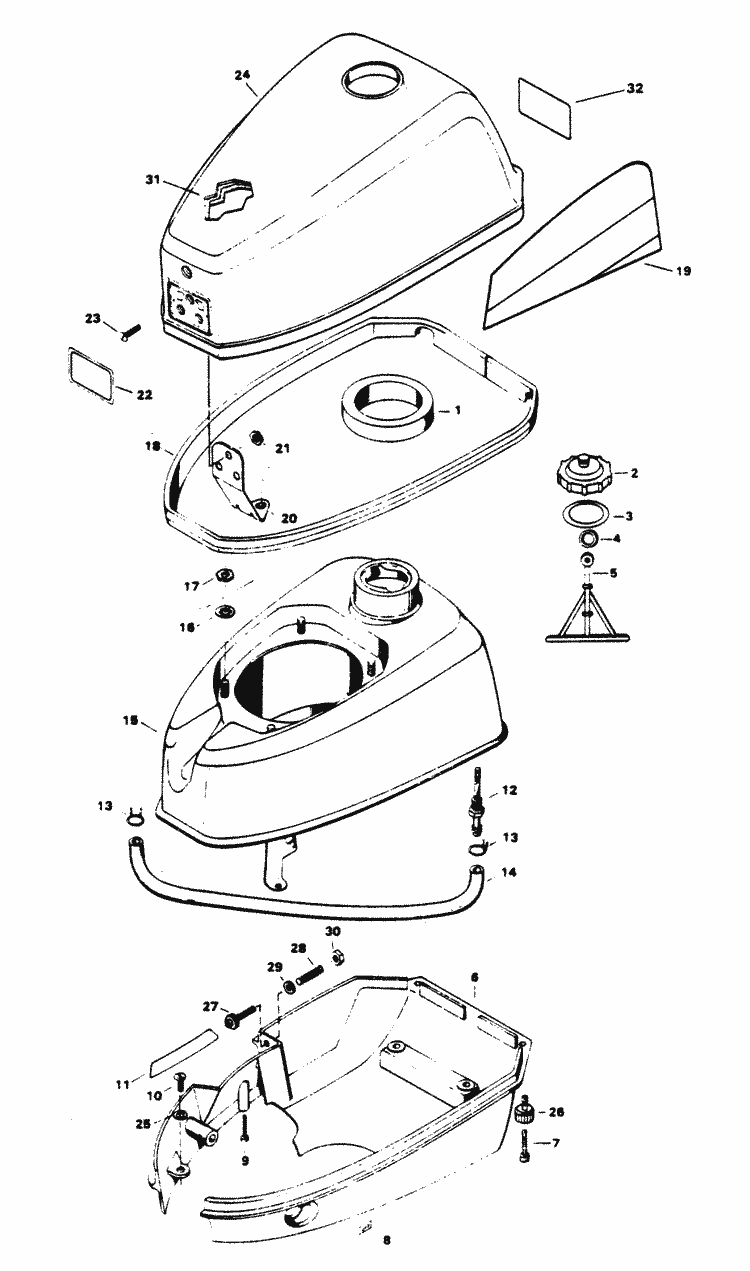

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	A 310397	DECAL, ENGINE COVER - PORT (1 required per assembly) W/LITERATURE
#	F2C593712	*ENGINE COVER COMPLETE. (1 required per assembly) INCLUDES ALL ITEMS MARKED WITH AN ASTERISK (). ORDER ILLUS. 31 IF REQUIRED**
		F2C593712 - COVER ASSEMBLY NLA [ More info ] Unavailable
#	F312528	DECAL, ENGINE COVER REAR (1 required per assembly)
		F312528 - DECAL [ More info ] Unavailable
		817972A 1 - 37F6853872 [ More info ] Unavailable
		37-F685387-2 - Decal - (Blue), NLA [ More info ] $1.50 $1.28 8 In Stock.
#	FA593396	DECAL, ENGINE COVER - STARBOARD (1 required per assembly) W/LITERATURE (42H4L, 42C4L, 43C4L)
		FA593396 - DECAL NLA [ More info ] Unavailable
#	FC521894	DECAL, "OFF" (CANADA) (1 required per assembly)
		FC521894 - DECAL,NLA [ More info ] Unavailable
#	F4C601712	*ENGINE COVER COMPLETE. (1 required per assembly) INCLUDES ALL ITEMS MARKED WITH AN ASTERISK () (42X4A, 42XC4A, 42F4A, 42FC4A)**
		F4C601712 - F4C601712 - COVER ASSEMBLY [ More info ] Unavailable Replaced by 100-F2C625712
		100-F2C625712 - COVER-4,NLA [ More info ] Unavailable
#	A 310396	DECAL, ENGINE COVER - STARBOARD (1 required per assembly) W/LITERATURE
#1	F459186	COLLAR, FUEL TANK (1 required per assembly)
		23-F459186 - Collar, NLA [ More info ] Unavailable
#2	F521251-3	GAS CAP COMPLETE. (1 required per assembly) INCLUDES ILLUS. 3, 4, AND 5
		36-F521251-3 - Cap Assembly, NLA [ More info ] Unavailable
#3	F17980	FUEL CAP GASKET (1 required per assembly)
		F17980 - Fuel Cap Gasket, NLA [ More info ] Unavailable
#4	F427249	RETAINING RING (1 required per assembly)
		F427249 - Retaining Ring, NLA [ More info ] $2.50 $2.13 1 In Stock.
#5	F17938	ANCHOR (1 required per assembly)
		F17938 - Fuel Cap Anchor, NLA [ More info ] Unavailable
#6	F535944	ENGINE COVER, BOTTOM (1 required per assembly)
		F535944 - Bottom Cover [ More info ] Unavailable
		100-F665944 - Bottom Cover, NLA [ More info ] Unavailable
#7	F1995	SLOTTED FILL HD SCREW, 10 24 X 1 (2 required per assembly)
		10-F1995 - Screw [ More info ] $0.30 10+ In Stock.
		10-68918 - Screw [ More info ] $3.20 $1.79 10+ In Stock.
#8	F521894	DECAL, "OFF" (USA) (1 required per assembly)
		37-F521894 - DECAL,NLA [ More info ] Unavailable
#9	F1829	FILL HD M. SCREW, 10 - 24 x 7/8 (1 required per assembly)
		10-F1829 - Screw -ss, NLA [ More info ] $3.22 10+ In Stock.
#10	F1035	SLOTTED FILL HD SCREW, 1/4 (3 required per assembly)
		10-F1035 - Screw -ss, NLA [ More info ] $1.65 $1.40 10+ In Stock.
#11	F521391-1	DECAL, SPEED RANGE USA (1 required per assembly)
		F521391-1 - F521391-1 - DECAL [ More info ] Unavailable Replaced by 37-F521391-2
		37-F521391-2 - DECAL-SPEED,NLA [ More info ] Unavailable
#12	F521811	FITTING, GAS TANK (1 required per assembly)
		22-F521811 - Fuel Fitting, NLA [ More info ] $6.67 $5.65 10+ In Stock.
#13	F2706772	HOSE CLAMP (2 required per assembly)
		54-F2706772 - CLAMP [ More info ] Unavailable
		54-827255 - Clamp, NLA [ More info ] $2.50 $2.13 7 In Stock.
#14	FA901754	HOSE (1 required per assembly) W/ILLUS. 13
		FA901754 - Hose Kit [ More info ] Unavailable
		F901754 - 32F402531 [ More info ] Unavailable
		32-F40253-1 - Hose -14 7/8 Inch [ More info ] Unavailable
		32-819398 53 - Hose-18 INCH [ More info ] Unavailable
		32-819398T - Hose -18 Inch [ More info ] $190.49 Available to Order: Shipping delay up to 10 days.
#15	F521034-1	FUEL TANK (1 required per assembly)
		1200-F521034-1 - Fuel Tank,NLA [ More info ] Unavailable
#16	F8061	INTERNAL TOOTH LOCKWASHER (4 required per assembly)
		F8061 - LockWasher - Priced Individually [ More info ] Unavailable
		13-21272 - LockWasher - Priced Individually [ More info ] $1.10 1 In Stock.
#18	FK525713	PACKING, TOP COVER TRIM (1 required per assembly) W/LITERATURE
		FK525713 - Packing Kit, NLA [ More info ] $28.00 $23.72 4 In Stock.
#19	FA593397	DECAL, ENGINE COVER - PORT (1 required per assembly) W/LITERATURE (42H4L, 42C4L, 43H4L, 43C4L)
		FA593397 - DECAL NLA [ More info ] Unavailable
#20	FA521778	RETAINER, ENGINE COVER FRONT (1 required per assembly) W/ILLUS. 21 & 23
		FA521778 - Retainer Kit, NLA [ More info ] $2.78 $2.36 2 In Stock.
#21	F7011	HEX NUT (3 required per assembly)
		11-F7011 - 11F7009 [ More info ] Unavailable
		11-F7009 - Nut, (#10-24) [ More info ] Unavailable
#22	FA620892	DECAL, ENGINE COVER - FRONT (1 required per assembly) W/LITERATURE (42H4L, 42C4L, 43H4L, 43C4L)
		37-FA620892 - DECAL,NLA [ More info ] Unavailable
#23	F1979	PAN HD SCREW, 10 24 X 1/2 (3 required per assembly)
		F1979 - SCREW,NLA [ More info ] Unavailable
		10-41772 - Screw, NLA [ More info ] $1.80 $1.52 10+ In Stock.
#24	FS535712	ENGINE COVER TOP W/RETAINER & PACKING (1 required per assembly)
		FS535712 - Cover [ More info ] Unavailable
		100-FS665712 - COWL ASSY-BASIC,NLA [ More info ] Unavailable
#25	F8008	PLAIN WASHER (3 required per assembly)
		12-F8008 - Washer [ More info ] Unavailable
		12-35044 - Washer, (.281 X .625 X .065) Stainless Steel [ More info ] $2.49 10+ In Stock.
#26	F521284	KNOB, ENGINE COVER RETAINER (2 required per assembly)
		F521284 - Knob, NLA [ More info ] $2.50 $2.13 1 In Stock.
#27	F521690-1	SCREW, THROTTLE LEVER ADJUSTMENT (1 required per assembly)
		10-F521690-1 - Screw, NLA [ More info ] $2.00 $1.69 10+ In Stock.
#28	F521199	SPRING, THROTTLE LEVER ADJUSTMENT (1 required per assembly)
		24-F521199 - Spring, Throttle Lever Adjust,NLA [ More info ] $1.50 $1.28 10+ In Stock.
#29	F2042	PLAIN WASHER, #10 NARROW (1 required per assembly)
		F2042 - Washer - Priced Individually [ More info ] Unavailable
		12-89302 - Washer (.203 X .406 X .040) [ More info ] $1.80 10+ In Stock.
#30	F1473	HEX NUT (1 required per assembly)
		F1473 - Hex Nut 10 - 24 [ More info ] Unavailable
		11-79989 - Nut (10 - 24) [ More info ] $2.79 10+ In Stock.
#31	F521984	BLANKET, SILENCER TOP (1 required per assembly)
		F521984 - Blanket, NLA [ More info ] Unavailable
#32	FA619528	DECAL, ENGINE COVER REAR (42H4L, 42C4L, 43H4L, 43C4L) (1 required per assembly)
		37-FA619528 - DECAL,NLA [ More info ] Unavailable
