Parts for Force 35 HP (1991) Reed Plate

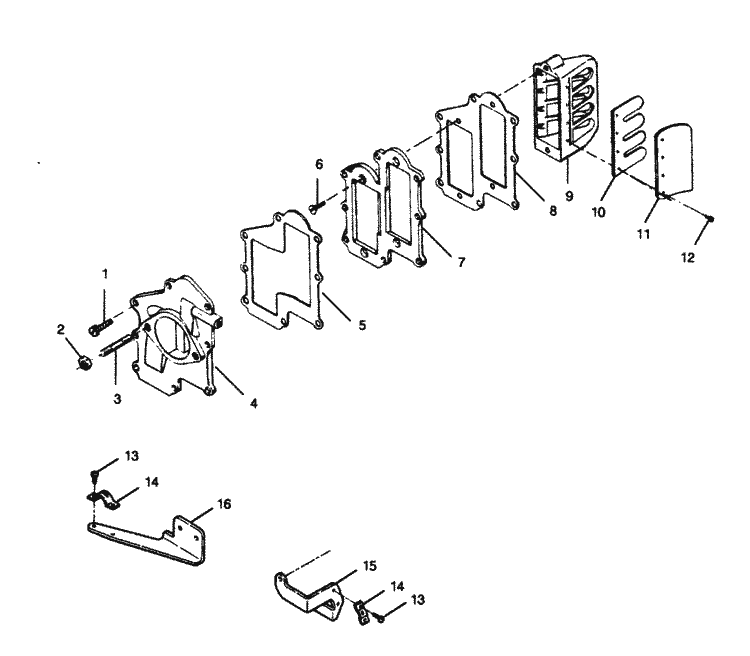

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | F2008 | HEX HEAD MACHINE SCREW, 1/4 - 20 X 7/8 (8 required per assembly) |
  |
|
10-F2008 - Screw -ss, NLA [ More info ]
|
| #2 | F1515 | HEX NUT, 5/16 - 18 (2 required per assembly) |
  |
|
F1515 - Hex Hut, 5/16 - 18 [ More info ]
|
  |
|
11-68292 - Nut (5/16 Inch) [ More info ]
|
  |
|
11-8M0204668 - NUT @5 [ More info ] Unavailable |
| #3 | F40209 | CARBURETOR STUD (2 required per assembly) |
  |
16-F40209 - STUD [ More info ] Unavailable |
|
  |
|
16-826388 1 - Stud, NLA [ More info ]
|
| #4 | F717167 | CARBURETOR ADAPTOR (1 required per assembly) |
  |
|
F717167 - Adapter, NLA [ More info ]
|
| #5 | F433168 | GASKET, CARBURETOR ADAPTOR (1 required per assembly) |
  |
|
27-F433168 - Carburetor Adapter Gasket [ More info ]
|
| #6 | F1411 | FLAT HEAD SCREW, 10 - 24 X 1/2 (4 required per assembly) |
  |
|
F1411 - F1411 - SCREW [ More info ] Unavailable Replaced by -F1141 |
  |
F1141 - Screw, NLA [ More info ] Unavailable |
|
  |
|
10-21424 - Screw, NLA [ More info ] Unavailable |
| #7 | F433404 | DEFLECTOR PLATE (1 required per assembly) |
  |
F433404 - Deflector Plate [ More info ] Unavailable |
|
  |
|
819807 1 - Deflector Plate, NLA [ More info ]
|
| #8 | F433406 | GASKET, DEFLECTOR PLATE (1 required per assembly) |
  |
|
27-F433406 - Deflector Plate Gasket [ More info ]
|
| #9 | FA572158 | REED PLATE W/METERING CUP (2 required per assembly) |
  |
|
FA572158 - Plate Assembly, NLA [ More info ] Unavailable |
| #10 | F316160 | REED (4 required per assembly) |
  |
|
34-F316160 - Reed, 4 Petal, Sold as a Single Reed Only [ More info ]
|
| #11 | F88161-4 | REED STOP (4 required per assembly) |
  |
|
34-F88161-4 - Reed Stop, NLA [ More info ]
|
| #12 | F1755 | ROUND HEAD SCREW W/LOCKWASHER, 6 - 32 X 5/16 (16 required per assembly) |
  |
|
|
  |
|
10-819074 - Screw -w/Lw [ More info ]
|
| #13 | F2107 | SCREW, 10 - 24 X 5/8 (4 required per assembly) |
  |
10-F2107 - 10F1090 [ More info ] Unavailable |
|
  |
|
10-F1090 - SCREW-W/LW,NLA [ More info ]
|
| #14 | F154317 | CLAMP (2 required per assembly) |
  |
|
54-F154317 - Clamp [ More info ]
|
| #15 | F683371 | BRACKET, THROTTLE CABLE (1 required per assembly) |
  |
|
F683371 - Bracket, NLA [ More info ]
|
| #16 | F683872-1 | BRACKET, SHIFT CABLE (1 required per assembly) |
  |
|
F683872-1 - Bracket, NLA [ More info ] Unavailable |
