Parts for Force 35 HP (1989) Support Plate

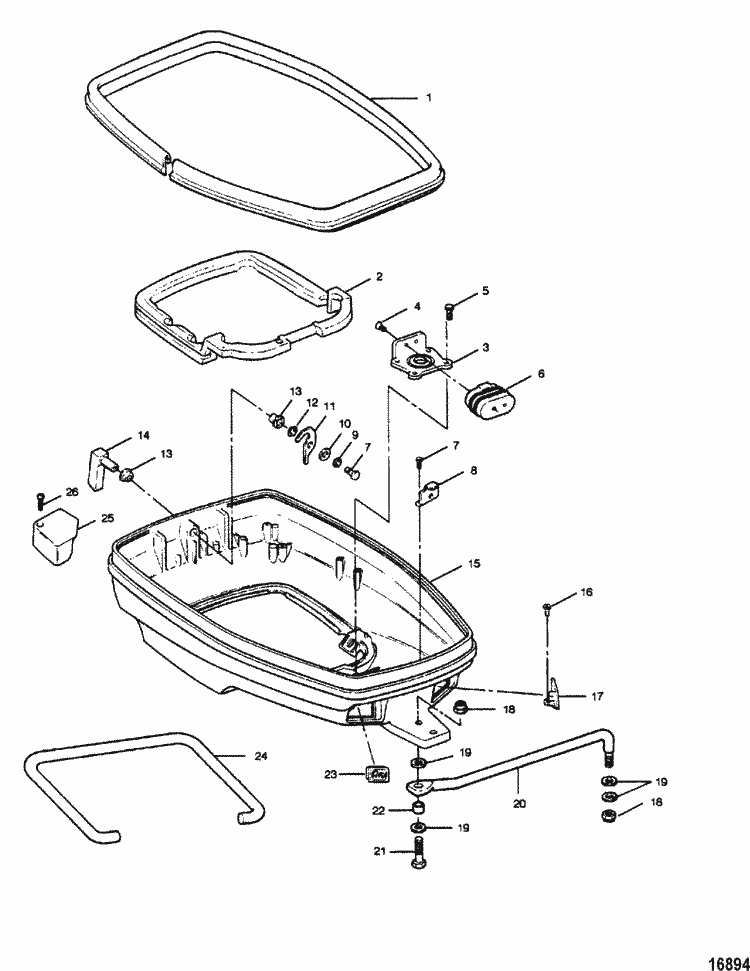

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | F684756-1 | PACKING, Support Plate (1 required per assembly) |
  |
F684756-1 - F6637561 [ More info ] Unavailable |
|
  |
F663756-1 - PACKING-81 INCH [ More info ] Unavailable |
|
  |
|
819717 2 - PACKING-81 INCH [ More info ] Unavailable |
| #2 | F684989 | SEAL, Support Plate (1 required per assembly) |
  |
|
F684989 - Seal, NLA [ More info ]
|
| #3 | F683354 | BRACKET, Upper Mount (1 required per assembly) |
  |
|
F683354 - Bracket-25/35 HP,NLA [ More info ] Unavailable |
| #4 | F1211 | SCREW (.250-28 x .625) (2 required per assembly) |
  |
|
10-F1211 - Screw -w/Lw, NLA [ More info ] Unavailable |
| #5 | 10-F1532 | SCREW, (.250-20 x 1.00) (4 required per assembly) |
  |
10-F1532 - Screw [ More info ] Unavailable |
|
  |
|
10-819110100 - Screw [ More info ]
|
| #6 | F203965 | MOUNT, Upper Shock (1 required per assembly) |
  |
F203965 - F2039651 [ More info ] Unavailable |
|
  |
|
F203965-1 - Shock Mount [ More info ]
|
| #7 | 10-F1854 | SCREW, (.250-20 x .625) (.250-20 x .625) (3 required per assembly) |
  |
F1854 - Screw SS [ More info ] Unavailable |
|
  |
|
10-28635 - Screw - Priced Individually [ More info ]
|
| #8 | F663480-1 | RETAINER, Cowl Front, Engine Cover (1 required per assembly) |
  |
|
F663480-1 - Retainer, NLA [ More info ]
|
| #10 | F8094 | WASHER (1 required per assembly) |
  |
|
F8094 - Washer SS [ More info ]
|
  |
|
12-40023 16 - Washer - Priced Individually [ More info ]
|
  |
|
128M0214930 - WASHER Note: Must be ordered in multiples of 5 [ More info ]
|
| #11 | F481777 | CAM, Latch Shaft, Latch Shaft (1 required per assembly) |
  |
F481777 - Latch Shaft Cam [ More info ] Unavailable |
|
  |
889566 - Latch-Cam [ More info ] Unavailable |
|
  |
|
|
| #12 | 13-F2047 | WASHER, Wave (1 required per assembly) |
  |
|
13-F2047 - Wave Washer [ More info ]
|
| #13 | 23-F286818 | BEARING, Latch Shaft (2 required per assembly) |
  |
|
23-F286818 - Bushing [ More info ]
|
  |
|
23-812707 - Bushing [ More info ]
|
| #14 | FA663469 | HANDLE ASSEMBLY, Engine Cover Latch (1 required per assembly) |
  |
FA663469 - Handle Assembly [ More info ] Unavailable |
|
  |
820000A 4 - HANDLE ASY-GRA/GR [ More info ] Unavailable |
|
  |
820000A 7 - Handle Assembly-ST/GR [ More info ] Unavailable |
|
  |
|
820000A08 - Handle Assembly - Black, NLA [ More info ]
|
| #15 | F684038-1 | PLATE, Support (1 required per assembly) |
  |
F684038-1 - F6840382 [ More info ] Unavailable |
|
  |
F684038-2 - F6840383 [ More info ] Unavailable |
|
  |
F684038-3 - PLATE-SUPPORT [ More info ] Unavailable |
|
  |
100-819372A 1 - PLATE KIT-SUPPORT [ More info ] Unavailable |
|
  |
100-819372A 2 - COWL KIT-BOTTOM [ More info ] Unavailable |
|
  |
|
100-819372A 3 - Cowl Kit -bottom, NLA [ More info ] Unavailable |
| #16 | 10-F1733 | SCREW, (#10-24 x .562) (#10-24 x .5625) (2 required per assembly) |
  |
|
10-F1733 - Screw, SS [ More info ]
|
  |
|
10-852453 - Screw [ More info ]
|
| #17 | F549189 | BUSHING, Electric Cable Entry (1 required per assembly) |
  |
F549189 - F5491891 [ More info ] Unavailable |
|
  |
F549189-1 - 23F5491892 [ More info ] Unavailable |
|
  |
23-F549189-2 - Bushing [ More info ] Unavailable |
|
  |
|
23-828763 - Bushing, NLA [ More info ]
|
| #18 | 11-F2093 | NUT, (.375-24) (2 required per assembly) |
  |
11-F2093 - Nut, (.375-24) [ More info ] Unavailable |
|
  |
11-34863 - Nut (3/8-24) [ More info ] Unavailable |
|
  |
11-826709113 - Nut, (.375-24) Stainless Steel [ More info ] Unavailable |
|
  |
11-8M0042636 - Nut - Brass , Priced Individually [ More info ] Unavailable |
|
  |
|
118M0204726 - NUT-BRASS Note: Priced Individually [ More info ]
|
| #19 | F8083 | LOCKWASHER, (.250) (4 required per assembly) |
  |
F8083 - LockWasher SS [ More info ] Unavailable |
|
  |
|
13-26992 - LockWasher - Priced Individually [ More info ]
|
| #20 | F5H141 | LINK KIT, Steering (1 required per assembly) |
  |
|
F5H141 - LINK KIT-STEERIN [ More info ] Unavailable |
| #21 | F2073 | SCREW (.375-24 x 1.625) (1 required per assembly) |
  |
F2073 - Screw [ More info ] Unavailable |
|
  |
|
10-90072 - Screw [ More info ]
|
| #22 | 23-F522359 | SPACER, Steering Link (1 required per assembly) |
  |
|
23-F522359 - Spacer - Steering Link [ More info ]
|
| #23 | F660189 | BUSHING, Cable Entry (1 required per assembly) |
  |
F660189 - Bushing-ENTRY [ More info ] Unavailable |
|
  |
23-819006 - Entry Bushing [ More info ] Unavailable |
|
  |
23-819006 1 - Bushing-ENTRY [ More info ] Unavailable |
|
  |
|
23-819006 2 - Entry Bushing, NLA [ More info ]
|
| #24 | F5H084 | TILT LOCK, Trailering (1 required per assembly) |
  |
F5H084 - Trailering Tilt Lock [ More info ] Unavailable |
|
  |
|
F5H216 - Bracket Kit, NLA [ More info ] Unavailable |
| #25 | F684408 | COVER, Starter Relay (1 required per assembly) |
  |
|
F684408 - Starter Relay Cover [ More info ]
|
| #26 | 10-F1979 | SCREW (#10-24 x .500) (1 required per assembly) |
  |
F1979 - SCREW,NLA [ More info ] Unavailable |
|
  |
|
10-41772 - Screw, NLA [ More info ]
|
