Parts for Force 35 HP (1989) Remote Control
Tap to zoom. Scroll down to order.

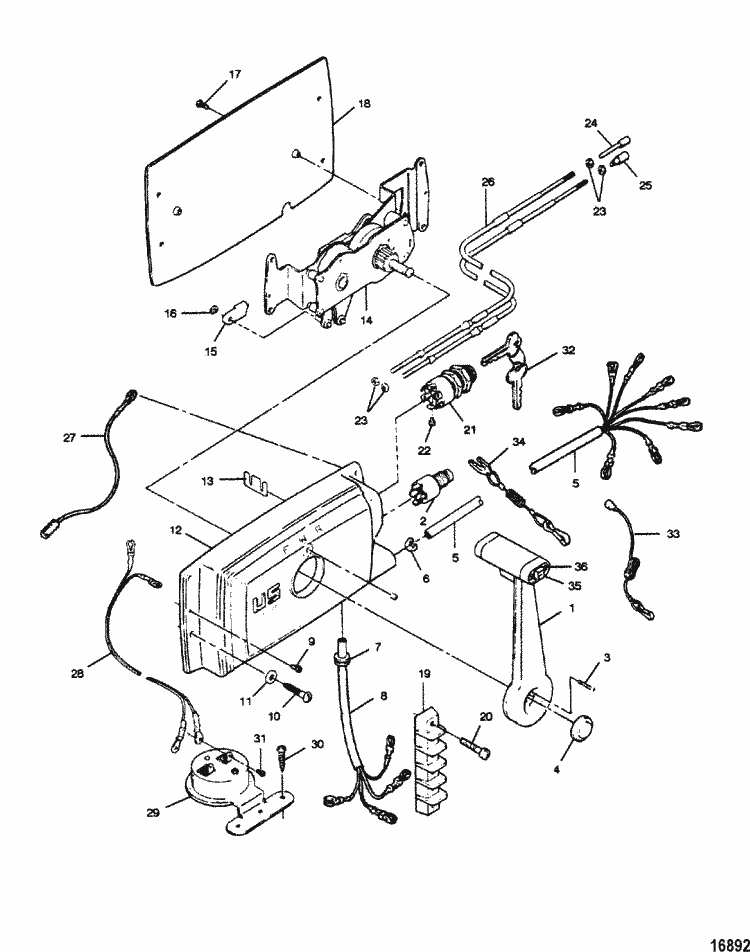

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
# | F5H198 | REMOTE CONTROL, Complete, Wired For Power Trim (- required per assembly) |
F5H198 - Remote Control [ More info ] Unavailable |
||
F5H267 - Remote Control [ More info ] Unavailable |
||
#1 | F660611 | LEVER ASSEMBLY, With Trim Switch (1 required per assembly) |
F660611 - Lever [ More info ] Unavailable |
||
#2 | F681602 | SWITCH (Emergency Stop) (1 required per assembly) |
F681602 - FK681602, NLA [ More info ] Unavailable |
||
FK681602 - Stop Switch Kit, NLA [ More info ] Unavailable |
||
#3 | 10-F660165 | SCREW (Lever To Actuator) (4 required per assembly) |
10-F660165 - Screw [ More info ] Unavailable |
||
#4 | F660332 | PLUG (Warm Up Bottom) (1 required per assembly) |
F660332 - PLUG,NLA [ More info ] Unavailable |
||
#5 | F660843 | CABLE ASSEMBLY (15.50 Feet - Remote Electric) (1 required per assembly) |
F660843 - Cable ASSY [ More info ] Unavailable |
||
84-819200A 1 - Cable-15.5 FEET [ More info ] Unavailable |
||
84-819200T 1 - Cable - 15.5 Feet [ More info ] Unavailable |
||
#5 | F663843 | CABLE ASSEMBLY (19.00 Feet - Remote Electric - 10 Wire) (AR required per assembly) |
84-F663843 - Cable-19 FT [ More info ] Unavailable |
||
84-819203A 1 - Cable - 19 Feet [ More info ] Unavailable |
||
#5 | F664843 | CABLE ASSEMBLY (22.00 Feet - Remote Electric - 10 WIRE) (AR required per assembly) |
84-F664843 - Cable-22 FT [ More info ] Unavailable |
||
84-819204A 1 - Cable-22 FEET,NLA [ More info ] Unavailable |
||
#5 | F591843 | CABLE ASSEMBLY (25.00 Feet - Remote Electric - 10 WIRE) (AR required per assembly) |
84-F591843 - Cable-25 FT [ More info ] Unavailable |
||
84-819205A 1 - Cable-25 FEET,NLA [ More info ] Unavailable |
||
#5 | F5H193 | CABLE ASSEMBLY, (7 Feet) Extension (7.00 Feet Extension For 10 Wire Remote Electric Cable) (AR required per assembly) |
F5H193 - Cable, 7 Ft, NLA [ More info ] Unavailable |
||
#6 | 54-F660446 | CLAMP (Remote Electric Cable) (1 required per assembly) |
54-F660446 - Clamp [ More info ] Unavailable |
||
#7 | 25-F660504 | GROMMET (Remote Accessory Cable) (1 required per assembly) |
25-F660504 - GROMMET,NLA [ More info ] Unavailable |
||
#8 | 84-F660353 | CABLE ASSEMBLY, (5 Feet) (1 required per assembly) |
84-F660353 - Cable-5 FT,NLA [ More info ] Unavailable |
||
#9 | 10-F660480 | SCREW (Cover To Actuator) (2 required per assembly) |
10-F660480 - SCREW [ More info ] Unavailable |
||
#10 | 10-F660732 | SCREW (Control Mounting) (4 required per assembly) |
#11 | 12-F660595 | WASHER (Control Mounting Screw) (4 required per assembly) |
12-F660595 - Washer (control Mounting Screw) NLA [ More info ] |
||
#12 | F660995 | COVER ASSEMBLY (Assembly - Remote Control) (1 required per assembly) |
F660995 - Cover, NLA [ More info ] Unavailable |
||
#13 | F660642 | RETAINER (Remote Cable) (1 required per assembly) |
#14 | F660327 | ACTUATOR ASSEMBLY (Assembly - Remote Control) (1 required per assembly) |
F660327 - Actuator [ More info ] Unavailable |
||
#15 | F660141-1 | CONNECTOR (Cable - Remote Control) (2 required per assembly) |
F660141-1 - Connector, NLA [ More info ] Unavailable |
||
#16 | F660411 | RING, Retaining (2 required per assembly) |
#17 | 10-F660751 | SCREW (Plate To Actuator) (2 required per assembly) |
10-F660751 - Screw [ More info ] Unavailable |
||
#18 | F660911 | PLATE (Remote Control) (1 required per assembly) |
F660911 - Remote Control Plate [ More info ] Unavailable |
||
#19 | F660497 | BLOCK (Terminal) (1 required per assembly) |
F660497 - Terminal Block-4 Post [ More info ] Unavailable |
||
#20 | 10-F1741 | SCREW, (#8 x .750) Fill Head (Terminal Block) (2 required per assembly) |
10-F1741 - Screw -ss [ More info ] Unavailable |
||
#21 | F5H077 | SWITCH KIT, Ignition - With Keys And Screws (Accessory Item) With Items 22 And 32 (1 required per assembly) |
F5H077 - Switch KIT-SHORT [ More info ] Unavailable |
||
#22 | 10-F1280 | SCREW, (#8-32 x .250) (Ignition Switch Wire Terminal) (6 required per assembly) |
#23 | F1513 | NUT, (#10-32) (Cable End) (4 required per assembly) |
#24 | F58976-1 | CONNECTOR (Throttle) (1 required per assembly) |
#25 | F58685-2 | CONNECTOR (Shift) (1 required per assembly) |
#26 | F195/__ | CABLE SET, Thottle/Shift (Specify Length - XX) (1 required per assembly) |
F195/__ - CABLE SET Thottle [ More info ] Unavailable |
||
#27 | 84-F660664 | WIRE (Ignition Switch To Accessory Terminal Block) (1 required per assembly) |
#28 | 84-F404841 | CABLE ASSEMBLY, Overheat Buzzer (1 required per assembly) |
#29 | F5H073-1 | BUZZER KIT, Overheat (Accessory Item) (1 required per assembly) |
#31 | F1645 | SCREW, (#6-32 x .250) Self Tapping, Round Head Self-Tapping (#6-32 x .250) (8 required per assembly) |
F1645 - Screw [ More info ] Unavailable |
||
#32 | 817782 1 | KEY SET, Stamped A (1 required per assembly) |
#32 | 817883 1 | KEY SET, Stamped B (1 required per assembly) |
#32 | 817891 1 | KEY SET, Stamped C (1 required per assembly) |
#32 | 817928 1 | KEY SET, Stamped D (1 required per assembly) |
#32 | 817929 1 | KEY SET, Stamped E (1 required per assembly) |
#33 | F660329 | LANYARD, Stop Switch (Cup Type) (1 required per assembly) |
F660329 - Lanyard-cup Type [ More info ] Unavailable |
||
#34 | F702329 | LANYARD, Stop Switch (Fork Type) (1 required per assembly) |
F702329 - LANYARD ASSY [ More info ] Unavailable |
||
819399A 1 - Lanyard Assembly [ More info ] Unavailable |
||
879104 - LANYARD W/CLIP,NLA [ More info ] Unavailable |
||
#35 | F17864 | SWITCH ASSEMBLY (1 required per assembly) |
F17864 - Switch Assembly, NLA [ More info ] Unavailable |
||
#36 | F17863 | BUTTON/PLATE KIT (Includes Rubber Boot) (1 required per assembly) |
F17863 - Button Plate Kit, NLA [ More info ] Unavailable |
