Parts for Force 35 HP (1989) Ignition Components

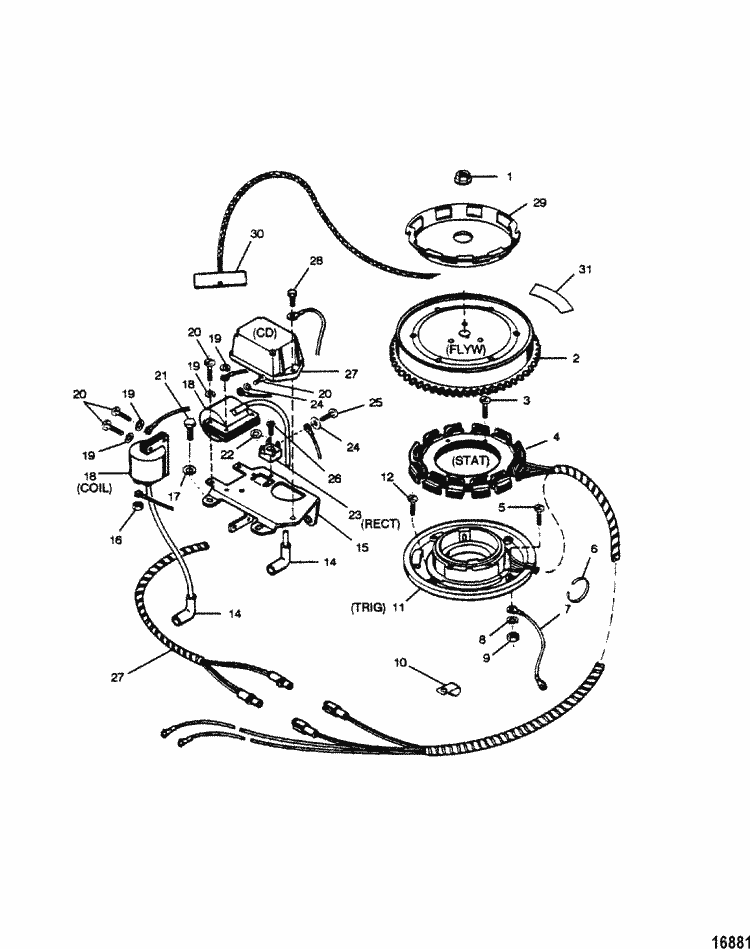

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | F2021 | NUT (.625-18) (1 required per assembly) |
  |
|
11-F2021 - NUT,NLA [ More info ]
|
| #2 | F529097 | FLYWHEEL (1 required per assembly) |
  |
|
F529097 - Flywheel, NLA [ More info ] Unavailable |
| #4 | 10-F1995 | SCREW (1 required per assembly) |
  |
|
10-F1995 - Screw [ More info ]
|
  |
|
10-68918 - Screw [ More info ]
|
| #5 | F2010 | SCREW (#10-32 x .5625) (3 required per assembly) |
  |
F2010 - FK2010, NLA [ More info ] Unavailable |
|
  |
|
FK2010 - Screw w/ Lw, NLA [ More info ]
|
| #6 | F1877 | TIE STRAP (1 required per assembly) |
  |
F1877 - TY RAP [ More info ] Unavailable |
|
  |
54-816311 - TIE STRAP Note: Priced Individually [ More info ] Unavailable |
|
  |
|
54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ]
|
| #7 | F460664 | WIRE (1 required per assembly) |
  |
|
84-F460664 - Wire Assembly, NLA [ More info ]
|
| #8 | 13-F1975 | LOCKWASHER, (#10) (1 required per assembly) |
  |
13-F1975 - LockWasher - Priced Individually [ More info ] Unavailable |
|
  |
|
13-26996 - LockWasher - Priced Individually [ More info ]
|
| #9 | F1513 | NUT, (#10-32) (#10-32) (1 required per assembly) |
  |
|
F1513 - Hex Nut 10 - 32 [ More info ]
|
  |
|
11-68219 - Nut (#10-32) [ More info ]
|
| #10 | 54-F286772-1 | CLAMP (1 required per assembly) |
  |
|
54-F286772-1 - Clamp [ More info ]
|
| #11 | F529029 | STATOR ASSEMBLY, Trigger (1 required per assembly) |
  |
|
F529029 - Stator/Trigger, NLA [ More info ]
|
| #12 | F1092 | SCREW (#10-32 x .625) (1 required per assembly) |
  |
|
10-F1092 - Screw, NLA [ More info ]
|
| #14 | FK1123 | BOOT KIT (2 required per assembly) |
  |
FK1123 - Boot Kit [ More info ] Unavailable |
|
  |
|
85-63709A 1 - Boot Kit - Black - Priced Individually [ More info ]
|
| #15 | F529358-2 | BRACKET, Electrical Components (1 required per assembly) |
  |
|
F529358-2 - Bracket, NLA [ More info ] Unavailable |
| #16 | F1337 | NUT (#6-32) (2 required per assembly) |
  |
|
11-F1337 - Nut, NLA [ More info ]
|
| #17 | F2012 | WASHER (2 required per assembly) |
  |
F2012 - Washer [ More info ] Unavailable |
|
  |
|
12-29245 - Washer [ More info ]
|
  |
|
12-8M0204649 - WASHER Note: Priced Individually [ More info ]
|
| #18 | F510475 | COIL, Ignition (2 required per assembly) |
  |
|
F510475 - Ignition Coil, NLA [ More info ] Unavailable |
| #20 | F1648 | SCREW, (#10-24 x .750) (#10-24 x .750) (8 required per assembly) |
  |
F1648 - Screw [ More info ] Unavailable |
|
  |
|
10-41069 - Screw [ More info ]
|
| #21 | F1689 | SCREW (.250-20 x .50) (2 required per assembly) |
  |
F1689 - Screw SS [ More info ] Unavailable |
|
  |
|
10-73286 - Screw [ More info ]
|
| #22 | F8078 | LOCKWASHER (1 required per assembly) |
  |
F8078 - LockWasher, NLA [ More info ] Unavailable |
|
  |
|
13-23836 - LockWasher, NLA [ More info ]
|
| #23 | F650450 | RECTIFIER (1 required per assembly) |
  |
87-F650450 - Rectifier [ More info ] Unavailable |
|
  |
|
FK650450 - Rectifier Kit [ More info ] Unavailable |
  |
|
18-99429 - Uinversal Recifier 2, 3 & 4 Cylinder FK650450, 152-9209 [ More info ]
|
| #24 | 13-F1704 | WASHER (2 required per assembly) |
  |
|
13-F1704 - LockWasher [ More info ]
|
| #25 | F1645 | SCREW, (#6-32 x .250) Self Tapping (#6-32 x .250) (4 required per assembly) |
  |
F1645 - Screw [ More info ] Unavailable |
|
  |
|
10-69080 - Screw [ More info ] Unavailable |
| #26 | 10-F1552 | SCREW, (#8-32 x .500) (2 required per assembly) |
  |
|
10-F1552 - Screw -ss, NLA [ More info ]
|
| #27 | F529301 | CD MODULE (1 required per assembly) |
  |
300-F529301 - C D Module [ More info ] Unavailable |
|
  |
|
300-888789 - CD Module ASY,NLA [ More info ] Unavailable |
| #28 | F1715 | BOLT (2 required per assembly) |
  |
|
10-F1715 - Screw, NLA [ More info ]
|
| #29 | FA458456 | COLLAR, Hand Starter (1 required per assembly) |
  |
|
FA458456 - Hand Starter Collar, NLA [ More info ]
|
| #30 | FA27232 | ROPE ASSEMBLY, Emergency Start (1 required per assembly) |
  |
FA27232 - ROPE W/HANDLE [ More info ] Unavailable |
|
  |
50-12066A 9 - Starter Rope , Priced Individually [ More info ] Unavailable |
|
  |
50-12066Q 9 - Starter Rope , Priced Individually [ More info ] Unavailable |
|
  |
|
50-12066Q10 - Starter Rope - Priced Individually [ More info ]
|
  |
|
18-4915 - Pull Rope, 50-12066Q9 [ More info ]
|
  |
|
50-12066K10 - Starter Rope - Priced Individually [ More info ]
|
| #31 | FA606853 | DECAL, Shift Warning Control (1 required per assembly) |
  |
|
FA606853 - DECAL KIT,NLA [ More info ] Unavailable |
