Parts for Force 35 HP (1988) Gear Housing

Revise Search: All Models > 35 HP (1988) > 357Y8A ( ) > Gear Housing

NEED PARTS OR KITS?

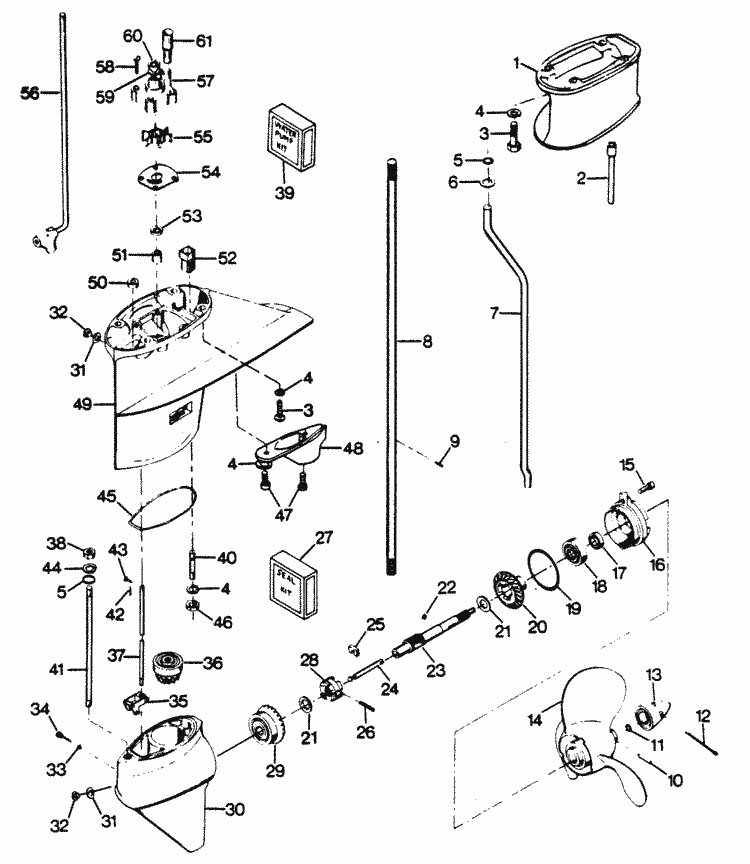

View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	1600-817896A 2	LOWER GEAR HOUSING KIT COMPLETE (NOT SHOWN) (1 required per assembly)
		1600-817896A 2 - Gear Housing Kit,NLA [ More info ] Unavailable
#1	F458845	EXTENSION, MOTOR LEG (1 required per assembly)
		F458845 - Extension, NLA [ More info ] Unavailable
#2	FS901244	EXTENSION, INLET WATER LINE (1 required per assembly)
		32-FS901244 - Water Line, NLA [ More info ] $37.71 10+ In Stock.
#3	F1929	HEX CAP SCREW, 3/8 - 16 X 1-1/8 (8 required per assembly)
		10-F1929 - Screw - Priced Individually [ More info ] Unavailable
		10-35047 - Screw - Priced Individually [ More info ] $3.79 Available to Order: Shipping delay up to 10 days.
#4	F8065	SPRING LOCKWASHER (8 required per assembly)
		F8065 - LockWasher [ More info ] $0.25 10+ In Stock.
		13-58643 - LockWasher [ More info ] $1.80 $1.30 10+ In Stock.
#5	F24342	SEAL, INLET WATER LINE (2 required per assembly)
		25-F24342 - Seal [ More info ] Unavailable
		25-62704 - O-ring, (.362 X .103) [ More info ] $1.40 Available to Order: Shipping delay up to 10 days.
		18-7116 - O-Ring 303067, 25-62704 [ More info ] $1.11 Available to Order: Shipping delay up to 10 days.
#6	F2014	PLAIN WASHER (3 required per assembly)
		F2014 - Washer [ More info ] $0.49 3 In Stock.
		12-34931 - Washer, (.406 X .734 X .063 - Stainless Steel) [ More info ] $2.59 10+ In Stock.
#7	F458244-1	INLET WATER LINE FOR STANDARD SHIFT MODELS (1 required per assembly)
		32-F458244-1 - Water Line, NLA [ More info ] Unavailable
#8	F462128	DRIVESHAFT FOR LONG SHAFT MODELS (1 required per assembly)
		45-F462128 - Drive Shaft, NLA [ More info ] Unavailable
#9	F901563	DRIVE PIN, WATER PUMP IMPELLER (1 required per assembly)
		17-F901563 - Pin, Water Pump Drive [ More info ] $7.69 3 In Stock.
#10	FK247	PROPELLER PIN, PACK OF 6 (1 required per assembly) W/ILLUS. 12
		FK247 - Prop Pin Kit [ More info ] $45.55 10+ In Stock.
#11	F40342	SEAL, PROPELLER NUT (1 required per assembly)
		25-F40342 - Seal [ More info ] Unavailable
		25-20195 - O-ring (.487 X .103) [ More info ] Unavailable
		25-20195 1 - O-Ring [ More info ] $1.99 Available to Order: Shipping delay up to 10 days.
		18-7134-9 - O-Ring (PK5) 339543 [ More info ] $10.47 Available to Order: Shipping delay up to 10 days.
#12	F1027	COTTER PIN (1 required per assembly)
		F1027 - Cotter Pin, Stainless Steel, 1/8 - 1 1/2 [ More info ] $2.21 1 In Stock.
		18-89961 - Cotter Pin [ More info ] Unavailable
		188M0214988 - PIN-COTTER [ More info ] $3.05 4 In Stock.
#13	FA94094-2	PROPELLER NUT (1 required per assembly) W/ILLUS. 11 AND 12
		FA94094-2 - Prop Nut Kit, NLA [ More info ] $13.97 2 In Stock.
#14	FP275	PROPELLER (10-3/8 X 15) (1 required per assembly)
		FP275 - Propeller - 10-3/8 X 15 [ More info ] Unavailable
		48-819333A40 - BLMX 10 1/2R15,NLA [ More info ] Unavailable
#15	F1263	HEX SOCKET HEAD CAP SCREW, 5/16 - 18 X 9/16 (2 required per assembly)
		10-F1263 - Screw -ss [ More info ] $15.00 10+ In Stock.
#16	31-817731A 5	PROPELLER SHAFT BEARING CAGE (1 required per assembly) W/ITEMS 17 AND 18 ORIGINAL FORCE P/N 2A 366298-1
		31-817731A 5 - Cage Kit - Bearing [ More info ] Unavailable
#17	F141118	SEAL, PROPELLER SHAFT (1 required per assembly)
		26-F141118 - Seal [ More info ] Unavailable
		26-819396 - Seal [ More info ] $11.49 4 In Stock.
#18	F366058	BALL BEARING, PROPELLER SHAFT (1 required per assembly)
		30-F366058 - Bearing-BALL [ More info ] Unavailable
		30-820439A 1 - Ball Bearing Kit [ More info ] $67.49 Available to Order: Shipping delay up to 10 days.
#19	F141305	SEAL, PROPELLER SHAFT BEARING CAGE (1 required per assembly)
		25-F141305 - O-Ring [ More info ] Unavailable
		25-88657 - O-ring, Prop shaft Cage [ More info ] $4.99 5 In Stock.
#20	FA458662	BEVEL GEAR REAR W/BUSHING (1 required per assembly) ANTY (414) 673-9151.
		FA458662 - Bevel Gear Rear [ More info ] Unavailable
		43-817806A 2 - Rear Gear-35 [ More info ] Unavailable
		43-819256A 1 - Bevel Gear Rear With Bearing [ More info ] $48.00 4 In Stock.
		43-819256T 1 - Gear Assembly - Rear-35, NLA [ More info ] $54.99 $46.57 4 In Stock.
#21	F40717	THRUST WASHER (2 required per assembly)
		F40717 - Bevel Gear Thrust Washer [ More info ] Unavailable
		12-F40717-1 - Washer- Thrust, NLA [ More info ] $9.59 3 In Stock.
#22	F366727	BALL, PROPELLER SHAFT (1 required per assembly)
		30-F366727 - Ball, NLA [ More info ] $5.54 $4.70 10+ In Stock.
#23	44-819500A 3	PROPELLER SHAFT (1 required per assembly) ANTY (414) 673-9151. ORIGINAL FORCE P/N A 287098-2
		44-819500A 3 - Prop Shaft Kit [ More info ] Unavailable
#24	F90871-3	GEAR SHIFT ARM PIN (1 required per assembly)
		F90871-3 - Gear Shift Pin , NLA [ More info ] $28.07 $23.78 10+ In Stock.
#25	F90619-2	YOKE, GEAR SHIFT ARM (1 required per assembly)
		F90619-2 - Yoke [ More info ] $61.49 Available to Order: Shipping delay up to 10 days.
#26	F2097	SPRING PIN (1 required per assembly)
		17-F2097 - Spring Pin, NLA [ More info ] $4.22 $3.57 10+ In Stock.
#27	FK1068	GEAR HOUSING SEAL KIT (1 required per assembly) INCLUDES ALL ITEMS MARKED WITH A DOUBLE ASTERISK ()**
		FK1068 - Lower Seal Kit, NLA [ More info ] Unavailable
#28	F99521-1	CLUTCH (1 required per assembly) ANTY (414) 673-9151.
		F99521-1 - Clutch [ More info ] Unavailable
		52-819259 - Clutch [ More info ] Unavailable
		52-819259T - Clutch [ More info ] $160.99 Available to Order: Shipping delay up to 10 days.
#29	FS458023	BEVEL GEAR FRONT W/BEARING (1 required per assembly) ANTY (414) 673-9151.
		FS458023 - Bevel Gear Front [ More info ] $79.99 3 In Stock.
		43-818006A 2 - Front Gear Kit [ More info ] Unavailable
		43-819255A 3 - Front Gear Kit, NLA [ More info ] Unavailable
#30	1600-817804A 3	GEAR HOUSING LOWER (1 required per assembly) ANTY (414) 673-9151. ORIGINAL FORCE P/N A 458054-1
		1600-817804A 3 - Gear Housing Kit [ More info ] $235.62 $199.57 1 In Stock.
#31	F8077	WASHER, GEAR HOUSING PLUG (2 required per assembly)
		F8077 - SEAL [ More info ] Unavailable
		F8186 - Washer-BLK - Priced Individually [ More info ] Unavailable
		12-19183 - Washer (3/8 Inch Screw) [ More info ] Unavailable
		12-19183 2 - Washer - Priced Individually [ More info ] Unavailable
		12-19183 3 - Seal -Blue - Priced Individually [ More info ] Unavailable
		12-8M0187157 - SEAL-BLUE, Sold Individually [ More info ] $1.49 10+ In Stock.
		18-2945-9 - Gasket 12-19183 2-Pack [ More info ] $2.41 10+ In Stock.
		12-19183Q02 - Seals, Pack of 4 (yes this is actually a pack of 4) [ More info ] $6.69 10+ In Stock.
		12-19183K02 - Seal, Pack of 4 [ More info ] $7.29 6 In Stock.
		12-02108-1 - Drain Gasket (1 piece) [ More info ] $1.20 $0.85 10+ In Stock.
#32	F50109	PLUG, GEAR HOUSING (2 required per assembly)
		10-F50109 - Screw -Special [ More info ] $7.77 4 In Stock.
		10-79953A 2 - Drain Screw Kit [ More info ] Unavailable
		10-79953Q 2 - Screw Kit - Priced Individually [ More info ] Unavailable
		10-79953Q04 - Screw Kit - Priced Individually [ More info ] $7.49 9 In Stock.
		18-2244 - Plug Kit, 10-79953A2 [ More info ] $3.79 10+ In Stock.
		10-79953K04 - Drain Screw - Priced Individually [ More info ] $8.19 6 In Stock.
#33	F498618	SEAL, "O" RING (1 required per assembly)
		25-F498618 - O-Ring [ More info ] Unavailable
		26-817469 - O-Ring [ More info ] Unavailable
		25-25007 - O-ring, Gear Shift Arm Pin [ More info ] $1.50 Available to Order: Shipping delay up to 10 days.
		18-7120 - O-Ring 322598 [ More info ] $1.07 5 In Stock.
#34	F498891	GEAR SHIFT ARM PIN (1 required per assembly)
		F498891 - Shift Pivot Pin [ More info ] Unavailable
		817468 - Shift Pivot Pin [ More info ] Unavailable
		826374 - Pin - Retainer [ More info ] Unavailable
#35	817796A 2	GEAR SHIFT ARM (1 required per assembly)
		817796A 2 - Coupling Assembly [ More info ] $86.22 10 In Stock.
#36	F2A458266	BEVEL PINION W/BEARING (1 required per assembly) ANTY (414) 673-9151.
		43-F2A458266 - Pinion Gear,NLA [ More info ] Unavailable
#37	F435705	GEAR SHIFT ROD LOWER (1 required per assembly)
		F435705 - Gear Shift Rod, NLA [ More info ] Unavailable
		819295 - Gear Shift Rod Lower [ More info ] $47.43 1 In Stock.
#38	F7004	HEX NUT (1 required per assembly)
		11-F7004 - Nut, (.375-16) [ More info ] $0.49 7 In Stock.
		11-28010 - Nut - Priced Individually [ More info ] Unavailable
		11-68411 - Nut (3/8-16) [ More info ] $6.66 10+ In Stock.
		11-826709 12 - Nut, (.375-16) Stainless Steel [ More info ] $6.79 $3.81 10+ In Stock.
#39	FK1053	WATER PUMP KIT (1 required per assembly) W/ILLUSTRATIONS 9, 54, 55, 57 AND 58
		FK1053 - Water Pump Kit, NLA [ More info ] $230.98 6 In Stock.
#40	F40008	STUD, SHORT (1 required per assembly)
		F40008 - 16F400081 [ More info ] $1.59 2 In Stock.
		16-F40008-1 - 16F6952731 [ More info ] Unavailable
		16-F695273-1 - Stud, NLA [ More info ] $6.00 $5.08 4 In Stock.
#41	F97008-1	STUD, LONG (1 required per assembly)
		16-F97008-1 - Stud, NLA [ More info ] Unavailable
#42	F1015	COTTER PIN (1 required per assembly)
		18-F1015 - Cotter Pin - Priced Individually [ More info ] $1.46 10+ In Stock.
#43	F85372	PIN, GEAR SHIFT ROD LOWER (1 required per assembly)
		17-F85372 - Gear Shift Rod Lower Pin [ More info ] $6.39 3 In Stock.
#45	F435555	SEAL, GEAR HOUSING (1 required per assembly)
		25-F435555 - O Ring [ More info ] Unavailable
		25-841807 - O-ring, (3.500 X .103) [ More info ] $5.79 5 In Stock.
#46	F1346	HEX NUT, 3/8 - 16 (1 required per assembly)
		11-F1346 - Hex Nut, 3/8 - 16 [ More info ] $0.44 2 In Stock.
		11-86226 - Nut (3/8-16) [ More info ] $2.21 10 In Stock.
		11-8M0204671 - NUT [ More info ] Unavailable
#47	F2008	HEX HEAD SCREW, 1/4 - 20 X 7/8 (2 required per assembly)
		10-F2008 - Screw -ss, NLA [ More info ] $3.22 10+ In Stock.
#48	FA435116	EXHAUST SNOUT (1 required per assembly) W/LITERATURE
		FA435116 - ANODE/SNOUT KIT [ More info ] $115.48 2 In Stock.
		817795A 1 - Anode/Snout Kit, NLA [ More info ] Unavailable
#49	FA502554	GEAR HOUSING UPPER (1 required per assembly) W/ITEMS 31, 32, 48, 50, 51, 52 AND 53
		1500-FA502554 - Drive Shaft Housing Kit, NLA [ More info ] Unavailable
#50	F338618-1	SEAL, SHIFT ROD LOWER (1 required per assembly)
		F338618-1 - SEAL [ More info ] Unavailable
		26-817472 - Seal [ More info ] $8.99 4 In Stock.
		18-0500 - Seal, 26-817472 [ More info ] $8.99 $8.32 Available to Order: Shipping delay up to 10 days.
#51	F458057	BEARING, DRIVESHAFT UPPER (1 required per assembly)
		23-F458057 - Bearing, NLA [ More info ] $9.78 $8.29 10+ In Stock.
#52	F435077	SCREEN, WATER INLET (1 required per assembly)
		F435077 - SCREEN [ More info ] Unavailable
		35-819228 - Screen [ More info ] $5.39 2 In Stock.
#53	F458307	SEAL, DRIVESHAFT (1 required per assembly)
		26-F458307 - Seal, NLA, Sell 18-2639 [ More info ] Unavailable
#54	F435562	WATER PUMP BACK PLATE (1 required per assembly)
		F435562 - Water Pump Plate [ More info ] Unavailable
		F435562-1 - Water Pump Plate [ More info ] $15.69 4 In Stock.
#55	F462065	WATER PUMP IMPELLER (1 required per assembly)
		47-F462065 - Impeller [ More info ] $63.99 Available to Order: Shipping delay up to 10 days.
#56	FA435616	GEAR SHIFT ROD INTERMEDIATE (1 required per assembly)
		FA435616 - Shift Rod, Long - NLA [ More info ] Unavailable
#57	FA513060	WATER PUMP BODY (1 required per assembly) W/ITEMS 59, 60 AND 61
		46-FA513060 - Water Pump Body,NLA [ More info ] Unavailable
#58	F2030	HEX HEAD CAP SCREW, 1/4 - 20 X 1-1/4 (4 required per assembly)
		10-F2030 - Screw -ss [ More info ] $3.39 10+ In Stock.
#59	F513388	DISC, WATER PUMP LOCATING (1 required per assembly)
		F513388 - Water Pump Locating Disc, NLA [ More info ] $8.19 10+ In Stock.
#60	F458736	SEAL, WATER PUMP (1 required per assembly)
		26-F458736 - Seal, NLA [ More info ] $12.50 10+ In Stock.

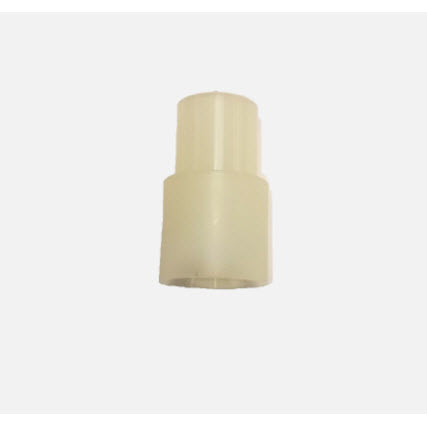

#61	FA510914	SEAL, INLET WATER LINE LOWER (1 required per assembly) W/LITERATURE
		FA510914 - Seal, NLA [ More info ] $25.39 7 In Stock.
