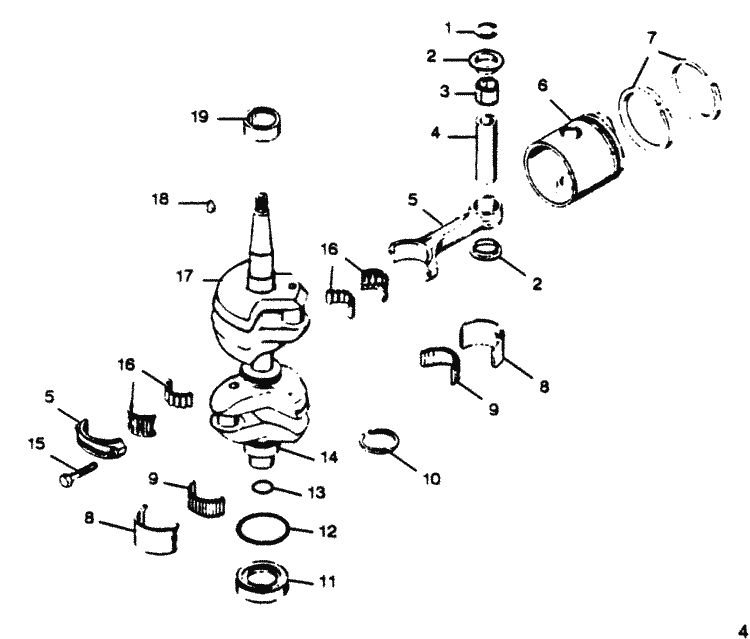

Parts for Force 35 HP (1988) Crankshaft & Piston Group
Tap to zoom. Scroll down to order.
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
# | FSA463260 | RING SET (.010 OVERSIZE) 2 RINGS PER SET (2 required per assembly) |
FSA463260 - Ring Set-2-.010,NLA [ More info ] Unavailable |
||
# | 700-818126A 1 | PISTON (.030 OVERSIZE) (2 required per assembly) |
700-818126A 1 - Piston-.030 [ More info ] Unavailable |
||
700-834801A 2 - Piston Kit, .030, NLA [ More info ] Unavailable |
||
# | 39-818120A 1 | RING SET (.030 OVERSIZE) 2 RINGS PER SET (2 required per assembly) |
# | FSA513015 | PISTON (.010 OVERSIZE) (2 required per assembly) |
FSA513015 - Piston-.010 [ More info ] Unavailable |
||

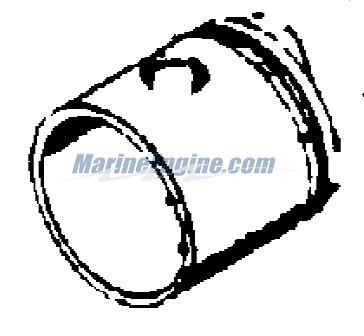

700-834801A 1 - Piston Only - .010 oversize NLA [ More info ] |
||

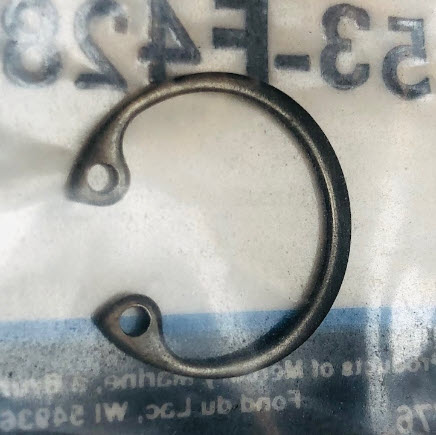

#1 | F428096 | RETAINER, PISTON PIN (4 required per assembly) |

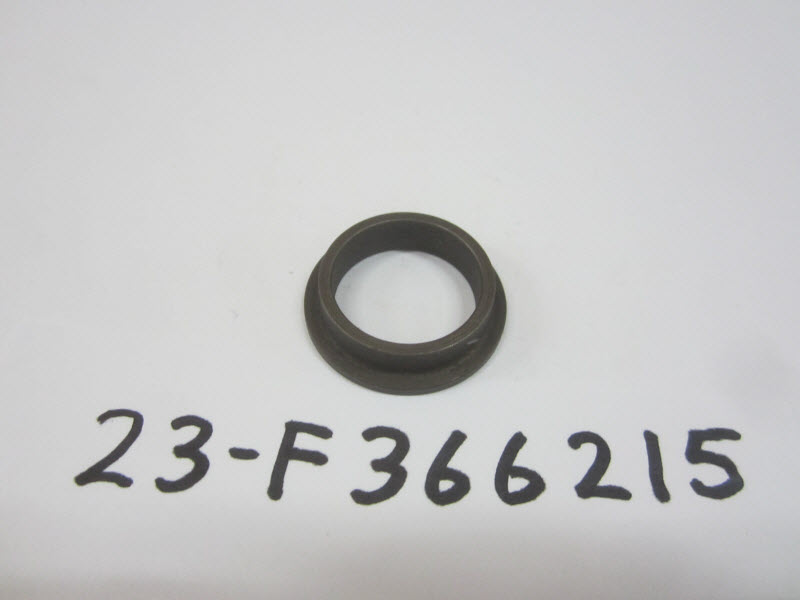

#2 | F366215 | SPACER, PISTON PIN (4 required per assembly) |

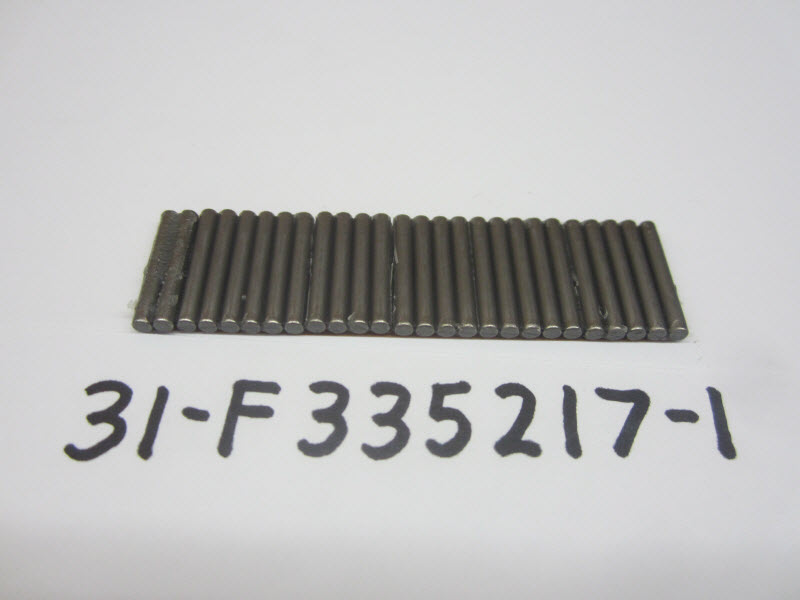

#3 | F335217-1 | BEARING, PISTON PIN (2 required per assembly) |

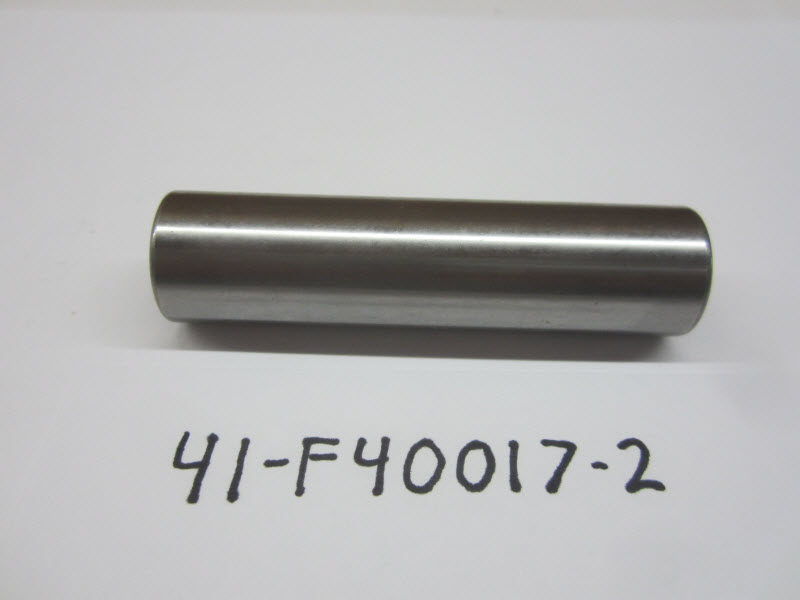

#4 | F40017-2 | PISTON PIN (2 required per assembly) |

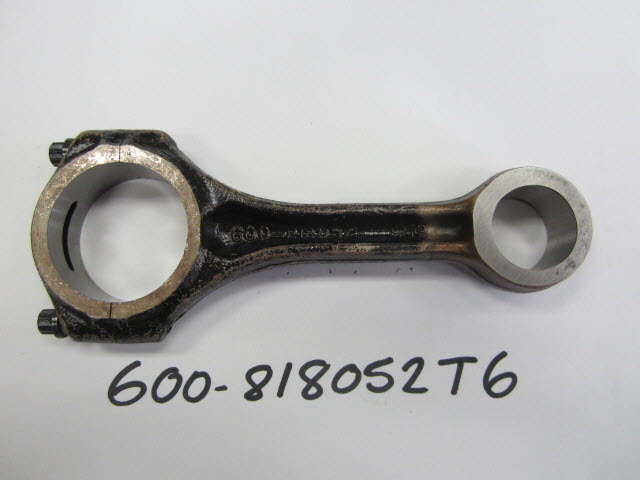

#5 | 600-818052A 4 | CONNECTING ROD (2 required per assembly) W/CAP AND ILLUS. 15 ORIGINAL FORCE P/N 2S 335016-3 |
600-818052A 4 - Connecting Rod Assembly [ More info ] Unavailable |
||

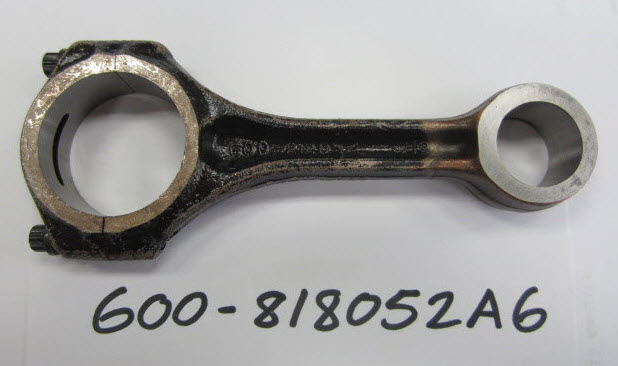

600-818052A 6 - Connecting Rod [ More info ] Unavailable |
||
#6 | F513015-1 | PISTON (2 required per assembly) |
700-F513015-1 - Piston - Std [ More info ] Unavailable |
||
#7 | FA463260 | PISTON RING SET (4 PER SET) (1 required per assembly) |
FA463260 - Ring Set-4-STD,NLA [ More info ] Unavailable |
||
#8 | FA458655 | LINER, CENTER MAIN (1 SET) (1 required per assembly) |

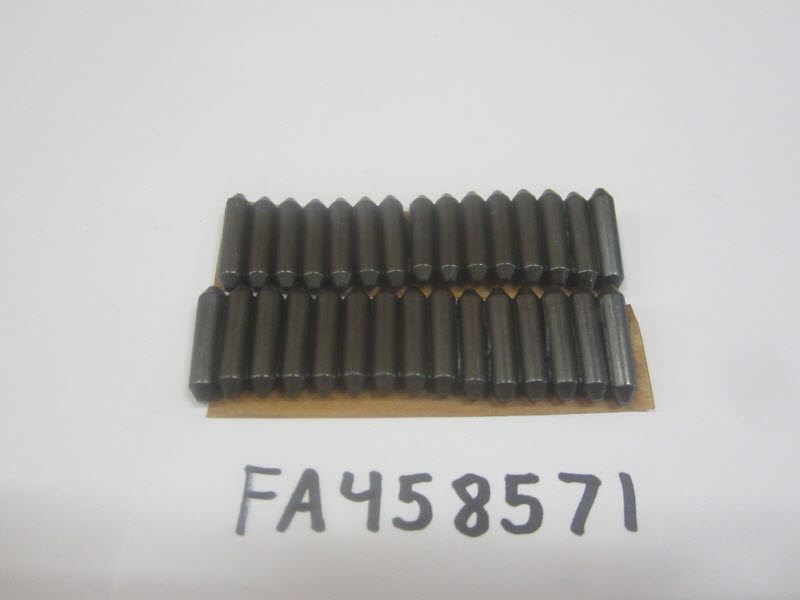

#9 | FA458571 | ROLLER, CENTER MAIN (1 required per assembly) |

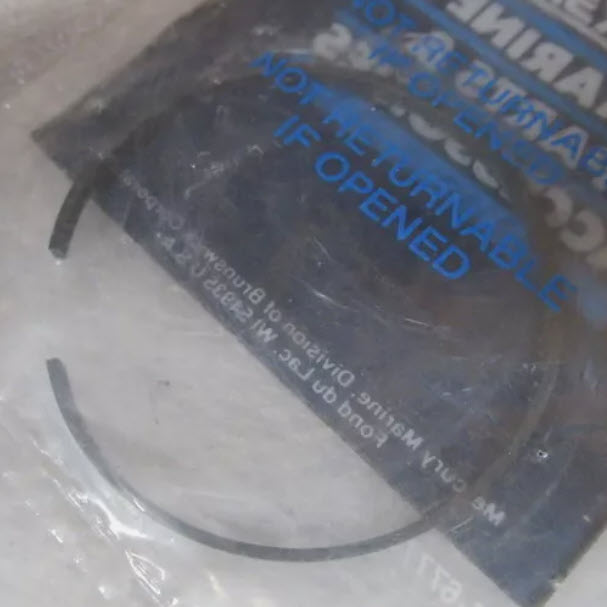

#10 | F458579 | SEAL, CRANKCASE (1 required per assembly) |

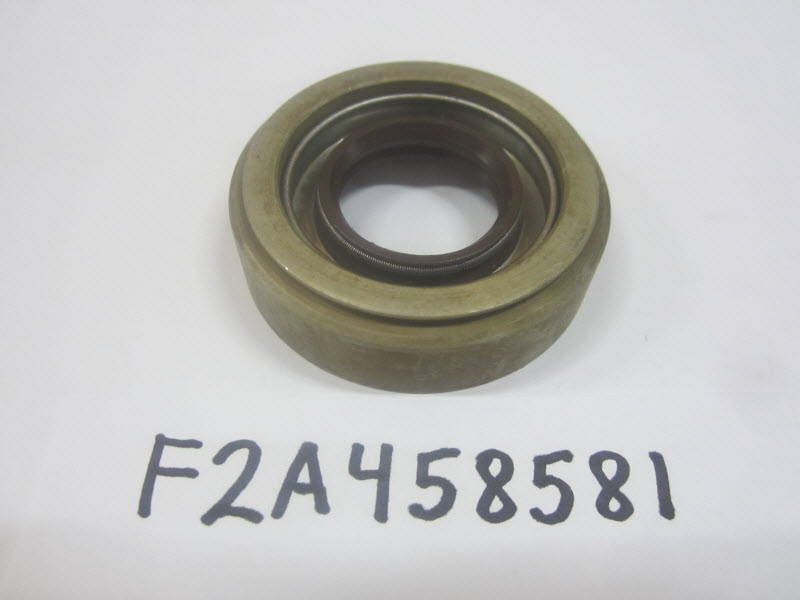

#11 | F2A458581 | COLLAR W/LOWER CRANKSHAFT SEAL (1 required per assembly) |

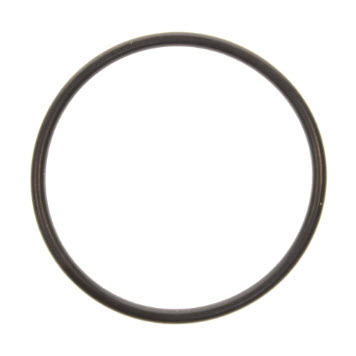

#12 | F455305 | SEAL, CRANKSHAFT COLLAR (1 required per assembly) |
#13 | F458342 | SEAL, CRANKSHAFT SPLINE (1 required per assembly) |
#14 | F286028 | BEARING, CRANKSHAFT LOWER MAIN (1 required per assembly) |
#15 | F85634-2 | SCREW, CONNECTING ROD (4 required per assembly) |
10-F85634-2 - Connecting Rod Screw [ More info ] Unavailable |
||
10-91012 - Screw - Special - Priced Individually [ More info ] |
||

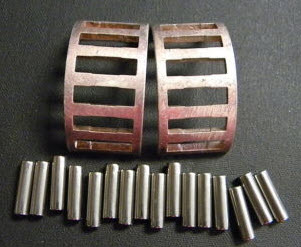

#16 | FK85228-1 | BEARING CAGE W/ROLLERS (16 PER SET) (2 required per assembly) |
FK85228-1 - Cage/Roller Set [ More info ] Unavailable |
||
#17 | F2A683018 | CRANKSHAFT (1 required per assembly) |
F2A683018 - Crankshaft,NLA [ More info ] Unavailable |
||
#18 | F85498-1 | FLYWHEEL KEY (1 required per assembly) |
#19 | F458028 | BEARING, CRANKSHAFT UPPER MAIN (1 required per assembly) |
