Parts for Force 35 HP (1986) Engine Cover & Support Plate
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | F659396 | DECAL ENGINE COVER - STARBOARD (1 required per assembly) |
  |
|
37-F659396 - DECAL - Starboard,NLA [ More info ] Unavailable |
| # | F2C659712 | ENGINE COVER COMPLETE. (1 required per assembly) INCLUDES ALL ITEMS MARKED WITH AN ASTERISK (*). |
  |
|
F2C659712 - COVER ASSEMBLY NLA [ More info ] Unavailable |
| #1 | 100-818015A 1 | ENGINE COVER (1 required per assembly) W/ILLUS. 9, 10, 11 AND 38 ORIGINAL FORCE P/N S 529712-1 |
  |
|
100-818015A 1 - Cover, NLA [ More info ] Unavailable |
| #2 | F2066 | PAN HD SCREW, 10 X 7/16 (6 required per assembly) |
  |
|
F2066 - Screw SS, NLA [ More info ]
|
| #3 | F458245-1 | BAFFLE TILT HANDLE (1 required per assembly) |
  |
|
F458245-1 - Baffle, NLA [ More info ] Unavailable |
| #4 | F2025 | PAN HD SCREW, 10 X 5/8 (1 required per assembly) |
  |
|
10-F2025 - Screw -ss, NLA [ More info ]
|
| #5 | 817842A 1 | TILT HANDLE (1 required per assembly) W/LITERATURE ORIGINAL FORCE P/N A 513269-1 |
  |
|
817842A 1 - Handle Kit, NLA [ More info ]
|
| #6 | F463864 | RETAINER, TILT HANDLE (2 required per assembly) |
  |
|
F463864 - Retainer, NLA [ More info ]
|
| #7 | F85735-1 | SEAL (5 required per assembly) |
  |
|
26-F85735-1 - Seal, NLA [ More info ]
|
| #8 | F1753 | FASTENER (5 required per assembly) |
  |
|
F1753 - Fastener, NLA [ More info ]
|
| #9 | F7011 | HEX NUT, 10 - 24 (4 required per assembly) |
  |
11-F7011 - 11F7009 [ More info ] Unavailable |
|
  |
|
11-F7009 - Nut, (#10-24) [ More info ] Unavailable |
| #10 | FA458480 | RETAINER, ENGINE COVER REAR (1 required per assembly) W/ILLUS. 9 AND 11 |
  |
|
FA458480 - Retainer Kit,NLA [ More info ]
|
| #11 | F1475 | FILL HD SCREW, 10 - 24 X 1/2 (4 required per assembly) |
  |
|
10-F1475 - Screw -ss, NLA [ More info ] Unavailable |
| #12 | F659397 | DECAL, ENGINE COVER - PORT (1 required per assembly) |
  |
|
37-F659397 - DECAL-PORT,NLA [ More info ] Unavailable |
| #14 | F85756 | PACKING, ENGINE COVER (1 required per assembly) |
  |
|
F85756 - HOOD SEAL,NLA [ More info ] Unavailable |
| #15 | F1922 | HEX HD MACHINE SCREW, 1/4 - 20 X 5/8 (2 required per assembly) |
  |
|
10-F1922 - Screw, NLA [ More info ] Unavailable |
| #16 | F461774 | BRACKET, RETAINER REAR (1 required per assembly) |
  |
|
F461774 - Bracket, NLA [ More info ]
|
| #17 | F458038-2 | SUPPORT PLATE (1 required per assembly) |
  |
100-F458038-2 - PLATE,NLA [ More info ] Unavailable |
|
| #18 | F1632 | PLASTI-PLUG (1 required per assembly) |
  |
|
19-F1632 - Plug, NLA [ More info ]
|
| #19 | F1236 | HEX CAP SCREW, 1/4 - 20 X 1/2 (2 required per assembly) |
  |
F1236 - Screw [ More info ] Unavailable |
|
  |
|
10-98253 - Screw [ More info ]
|
| #20 | F458371 | BRACKET, REMOTE THROTTLE CABLE (1 required per assembly) |
  |
|
F458371 - Bracket, NLA [ More info ]
|
| #21 | F154317 | CLAMP, REMOTE CABLE (2 required per assembly) |
  |
|
54-F154317 - Clamp [ More info ]
|
| #22 | F2107 | SLOTTED FILL HD SCREW W/SPRING LOCKWASHER, 10 - 24 X 5/8 (4 required per assembly) |
  |
10-F2107 - 10F1090 [ More info ] Unavailable |
|
  |
|
10-F1090 - SCREW-W/LW,NLA [ More info ]
|
| #23 | F462840 | GROMMET, REMOTE THROTTLE CABLE (1 required per assembly) |
  |
F462840 - 25F4628401 [ More info ] Unavailable |
|
  |
25-F462840-1 - F3248401 [ More info ] Unavailable |
|
  |
|
F324840-1 - Grommet, NLA [ More info ] Unavailable |
| #24 | FA413469 | COVER LATCH HANDLE W/SHAFT (1 required per assembly) |
  |
|
FA413469 - Handle Kit, NLA [ More info ]
|
| #25 | F307818 | BEARING, LATCH SHAFT (2 required per assembly) |
  |
23-F307818 - Bushing -nyLiner [ More info ] Unavailable |
|
  |
|
23-26841 - Bushing - Priced Individually [ More info ]
|
| #26 | F53504 | GROMMET, SUPPORT PLATE (1 required per assembly) |
  |
|
25-F53504 - Grommet, NLA [ More info ]
|
| #27 | 817813A 1 | COVER, SUPPORT PLATE (1 required per assembly) W/LITERATURE ORIGINAL FORCE P/N A 460163-1 |
  |
|
817813A 1 - Cover [ More info ]
|
| #28 | F8011 | PLAIN WASHER (1 required per assembly) |
  |
F8011 - Washer SS [ More info ] Unavailable |
|
  |
|
12-89302 - Washer (.203 X .406 X .040) [ More info ]
|
| #30 | F434767 | BUSHING, FUEL LINE (1 required per assembly) |
  |
|
F434767 - Bushing [ More info ]
|
| #31 | F183300 | SPRING, LATCH SHAFT (1 required per assembly) |
  |
|
24-F183300 - Spring, NLA [ More info ]
|
| #32 | F185764 | RETAINING RING (1 required per assembly) |
  |
|
F185764 - Ring - Retaining - Priced Individually [ More info ]
|
  |
|
53-13194 - Ring - Retaining - Priced Individually [ More info ]
|
| #33 | F1515 | HEX JAM NUT, 5/16 - 18 (2 required per assembly) |
  |
|
F1515 - Hex Hut, 5/16 - 18 [ More info ]
|
  |
|
11-68292 - Nut (5/16 Inch) [ More info ]
|
  |
|
11-8M0204668 - NUT @5 [ More info ] Unavailable |
| #34 | F8096 | SPRING LOCKWASHER (2 required per assembly) |
  |
F8096 - LockWasher - Priced Individually [ More info ] Unavailable |
|
  |
|
13-53166 - LockWasher - Priced Individually [ More info ]
|
| #35 | F89777-1 | CAM, ENGINE COVER LATCH (1 required per assembly) |
  |
|
F89777-1 - Cam - Latch, NLA [ More info ]
|

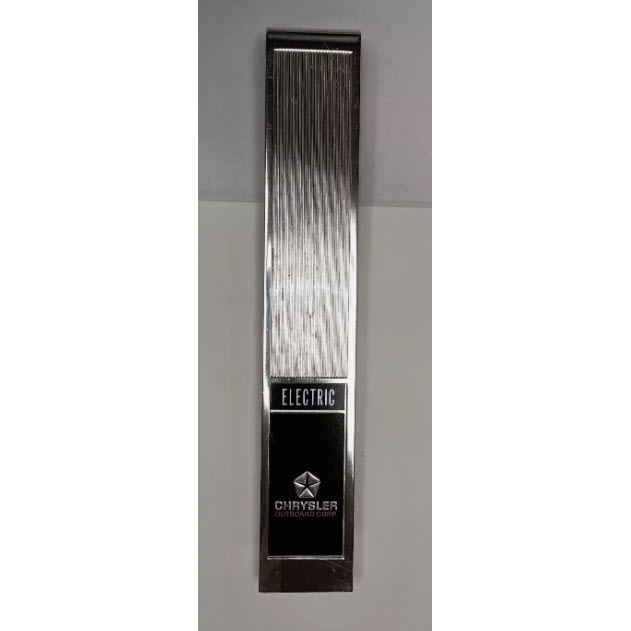

| #37 | FK603711 | PLATE, FRONT (1 required per assembly) |
  |
|
FK603711 - Plate Kit [ More info ]
|
| #38 | FA458778 | RETAINER, ENGINE COVER FRONT (1 required per assembly) W/ILLUS. 9 AND 11 |
  |
|
FA458778 - FA458778 - RETAINER ASSEMBLY [ More info ] Unavailable Replaced by -817807A1 |
  |
|
817807A 1 - Retainer Kit,NLA [ More info ] Unavailable |
| #39 | F659528 | DECAL, ENG. COVER REAR (1 required per assembly) W/LITERATURE |
  |
|
37-F659528 - DECAL-REAR,NLA [ More info ] Unavailable |
