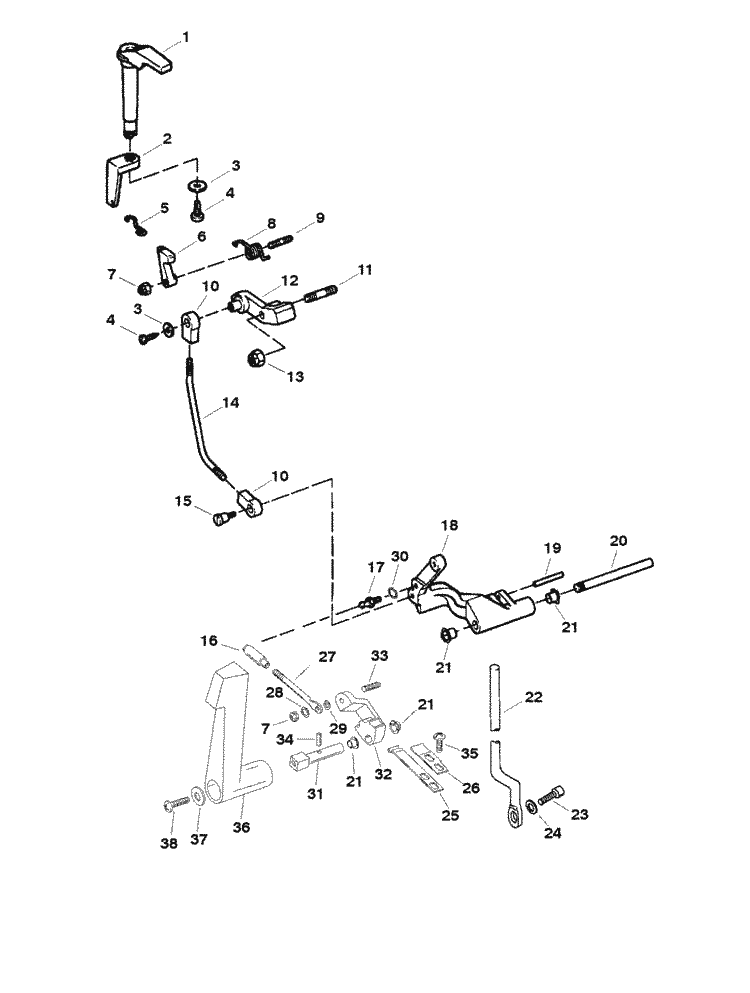

Parts for Force 25 HP (1998) Shift Linkage
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 800-819240A 6 | POWERHEAD ASSEMBLY (1 required per assembly) |
  |
|
800-819240A 6 - Powerhead, 25HP 1996 to 1998 [ More info ] Unavailable |
| #1 | F681490 | STOP-STARTER PULLEY INTERLOCK (1 required per assembly) |
  |
|
F681490 - Stop,NLA [ More info ] Unavailable |
| #2 | F681003 1 | ARM-STARTER INTERLOCK (1 required per assembly) |
  |
|
F681003-1 - Arm - Interlock, NLA [ More info ]
|
| #3 | 12-F8143 | WASHER (2 required per assembly) |
  |
|
12-F8143 - WASHER,NLA [ More info ] Unavailable |
| #4 | 10-48408 | SCREW (#10-16 X .500) (2 required per assembly) |
  |
|
10-48408 - Screw - Priced Individually [ More info ]
|
| #5 | F681263 1 | LINK-INTERLOCK (1 required per assembly) |
  |
|
F681263-1 - Link, NLA [ More info ]
|
| #6 | F681742 | LEVER-INTERMEDIATE INTERLOCK (1 required per assembly) |
  |
|
|
| #7 | 11-20110 | NUT (#10-32) (2 required per assembly) |
  |
|
11-20110 - Nut (M10X32) [ More info ]
|
| #8 | 24-F681424 | SPRING-INTERLOCK LEVER (1 required per assembly) |
  |
|
24-F681424 - Spring, Interlock Lever,NLA [ More info ] Unavailable |
| #9 | 16-F681134 | STUD-INTERLOCK LEVER-TRANSFER PORT COVER (1 required per assembly) |
  |
|
16-F681134 - Stud, NLA [ More info ] Unavailable |
| #10 | 816514 | BEARING-SPARK CONTROL (2 required per assembly) |
  |
|
816514 - Bearing - Black [ More info ] Unavailable |
| #11 | 16-826590 | STUD (.250-20 X 1.690) (1 required per assembly) |
  |
|
16-826590 - Stud, NLA [ More info ]
|
| #12 | 824357 | LEVER-NEUTRAL SPEED INTERLOCK (1 required per assembly) |
  |
|
824357 - Neutral Interlock Lever [ More info ]
|
| #13 | 11-814101 | NUT (.250-20) (1 required per assembly) |
  |
11-814101 - Nut (1/4-20) [ More info ] Unavailable |
|
  |
|
118M0207776 - NUT [ More info ]
|
| #14 | 819159 | ROD-INTERLOCK (1 required per assembly) |
  |
|
819159 - Interlock Rod, NLA [ More info ] Unavailable |
| #15 | 10-819625 | SCREW-SHOULDER (1 required per assembly) |
  |
|
10-819625 - Screw, NLA [ More info ]
|
| #16 | F286685 | CONNECTOR-GEAR SHIFT ROD (1 required per assembly) |
  |
|
F286685 - Connector, NLA [ More info ]
|
| #17 | 16-F98273 | STUD-END CONNECTOR (1 required per assembly) |
  |
|
16-F98273 - Stud, NLA [ More info ]
|
| #18 | 855621T | LEVER-GEAR SHIFT (PAINTED) (1 required per assembly) |
  |
|
855621T - Gear Shift Lever [ More info ]
|
| #19 | 17-25319 | PIN-ROLL (1 required per assembly) |
  |
|
17-25319 - Pin, (.125 X 0.75 Inches) [ More info ]
|
| #20 | F286871T | PIN-GEAR SHIFT LEVER (1 required per assembly) |
  |
|
F286871T - Gear Shift Lever Pin [ More info ]
|
| #21 | 23-26841 | BUSHING (4 required per assembly) |
  |
|
23-26841 - Bushing - Priced Individually [ More info ]
|
| #22 | 819378 1 | ROD-UPPER GEAR SHIFT (1 required per assembly) |
  |
|
819378 1 - Gear Shift Rod, NLA [ More info ] Unavailable |
| #23 | 10-F1976 | SCREW (#10-24 X .500) (1 required per assembly) |
  |
|
10-F1976 - Screw -ss, NLA [ More info ]
|
| #24 | 12-89302 | WASHER (1 required per assembly) |
  |
|
12-89302 - Washer (.203 X .406 X .040) [ More info ]
|
| #25 | 24-39627 | SPRING-DETENT CAM (1 required per assembly) |
  |
|
24-39627 - Spring, Detent [ More info ]
|
| #26 | 824994 | PLATE-DETENT CAM SPRING (1 required per assembly) |
  |
|
824994 - Spring, Plate [ More info ]
|
| #27 | 850388 | LINK-SHIFT LEVER (1 required per assembly) |
  |
|
850388 - Shift Lever Link, NLA [ More info ] Unavailable |
| #28 | 13-F8048 | WASHER-BOWED (1 required per assembly) |
  |
|
13-F8048 - Washer -bowed, NLA [ More info ] Unavailable |
| #29 | 13-26996 | LOCKWASHER (#10) (1 required per assembly) |
  |
|
13-26996 - LockWasher - Priced Individually [ More info ]
|
| #30 | 13-F8058 | LOCKWASHER (#10 INTERNAL) (1 required per assembly) |
  |
|
13-F8058 - LockWasher, NLA [ More info ]
|
| #31 | 850386 | SHAFT-SHIFT HANDLE (1 required per assembly) |
  |
|
850386 - Shift Shaft Handle, NLA [ More info ] Unavailable |
| #32 | 850387A 1 | LEVER ASSEMBLY-DETENT CAM (1 required per assembly) |
  |
|
850387A 1 - Lever Assembly -deten, NLA [ More info ] Unavailable |
| #33 | 16-846345 | STUD (#10-32 X .750) (1 required per assembly) |
  |
|
16-846345 - Stud [ More info ]
|
| #34 | 17-25905 | PIN-ROLL (1 required per assembly) |
  |
|
17-25905 - Pin, Roll, NLA [ More info ]
|
| #35 | 10-42813 | SCREW (#10-32 X .380) (2 required per assembly) |
  |
|
10-42813 - Screw [ More info ]
|
| #36 | 852545 | HANDLE-SHIFT (1 required per assembly) |
  |
|
852545 - Shift Handle, NLA [ More info ] Unavailable |
| #37 | 12-40023 14 | WASHER (1 required per assembly) |
  |
|
12-40023 14 - Washer - Priced Individually [ More info ]
|
| #38 | 10-15124 | SCREW (#10-32 X .750) (1 required per assembly) |
  |
|
10-15124 - Screw [ More info ]
|
